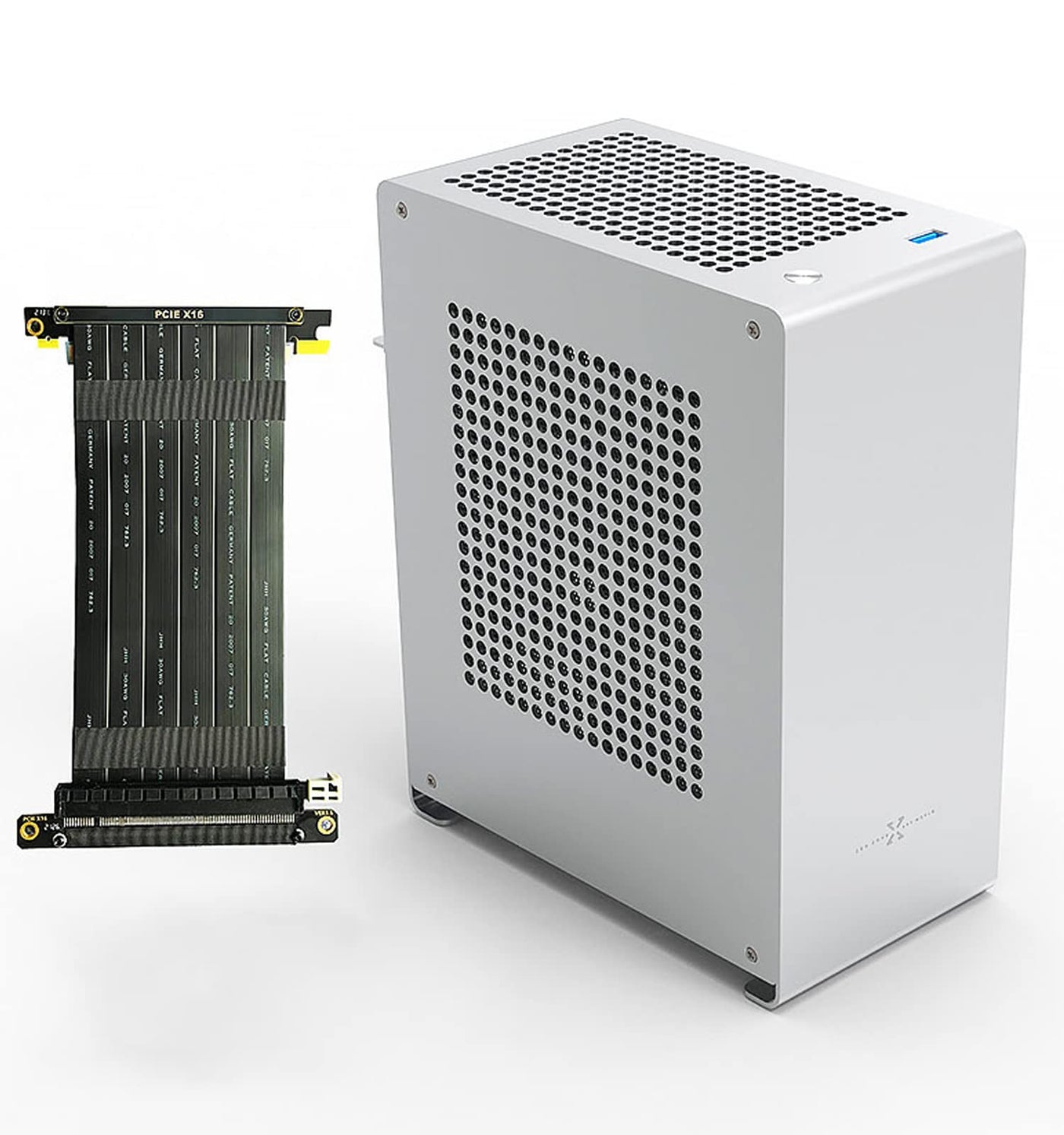

Hard Ware Supporting Specifications: 1.Support Standard Itx Motherboard (170*170Mm) 2.Support Standard Flex-1U Power Supply(150*81.5*40.5Mm) 3.Support Dual-Slot With Single Fan Graphics Card (195*146*44Mm) *Dual Reverse Graphics Card Extension Cable Must Be Used, 185Mm Recommend *Screw Hole Spacing Of Extension Cable Base 108Mmv 4.Supports 2*2.5-Inch Ssd(3.5Inch Or 2.5Inch Ssd Can Be Added If No Gpu) 5.Support Fan 1*9015 (92*92*15Mm) 6.Support Cpu Radiator Within 48Mm Height 7.Memory Maximum Height 50Mm (Under The Premise Of Not Conflicting With The Cpu Cooler) 8.Dual Reverse Graphics Card Extension Cable(185Mm Recommend) Case Parameters: Case Size: 200*114*253Mm Case Capacity: 5.8L Material: Al-Mg High Strength Magnesium Aluminum Alloy Case Color: Anodized Silver Frame Thickness: 2.0Mm Other Components Thickness: 1.5Mm 2 Side Panel Thickness: 2.0Mm Cooling Method: Air Cooling 9015 *1, Top/Bottom/Both Sides Heat Dissipation Holes) Switch Wire: Single Usb3.0 Wire Net Weight: 1Kg Gross Weight: 1.6Kg(Including Package) Package Size: 185*280*335Mm Package Including: A1P Case *1 Switch Wire * 1 Accessory Box * 1 Dual Reverse 3.0 Pci Riser Cable 185Mm * 1
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions

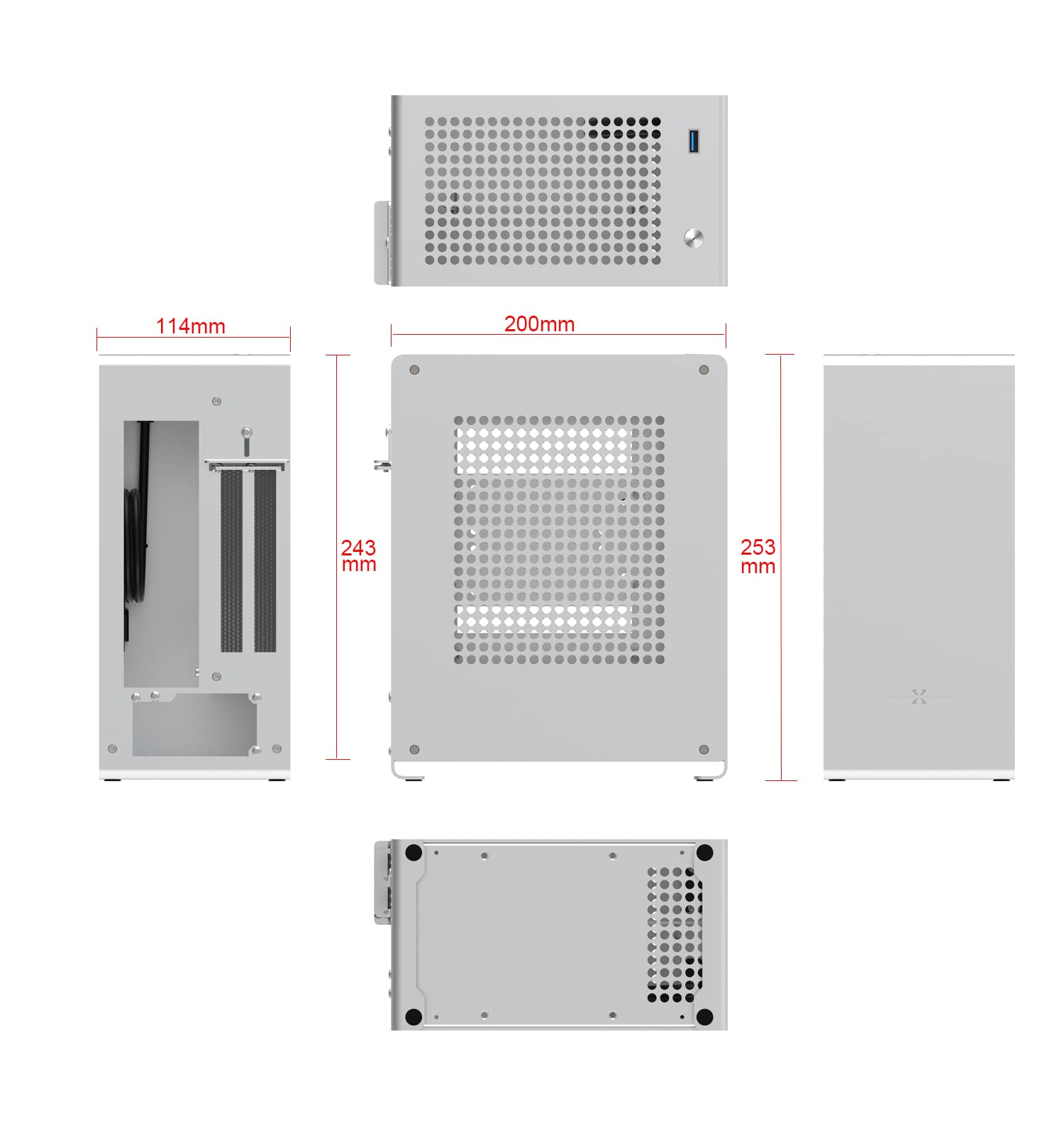

Q: What are the dimensions of the ZZEW A1P Mini-ITX case?A: The dimensions of the ZZEW A1P Mini-ITX case are two hundred millimeters by one hundred fourteen millimeters by two hundred fifty-three millimeters.
Q: What is the capacity of the ZZEW A1P Mini-ITX case?A: The capacity of the ZZEW A1P Mini-ITX case is five point eight liters.
Q: What materials are used in the ZZEW A1P Mini-ITX case?A: The ZZEW A1P Mini-ITX case is made from AL-MG high strength magnesium aluminum alloy.
Q: What type of motherboard does the ZZEW A1P case support?A: The ZZEW A1P case supports standard ITX motherboards measuring one hundred seventy millimeters by one hundred seventy millimeters.
Q: How many SSDs can I install in the ZZEW A1P Mini-ITX case?A: You can install up to two two point five inch SSDs in the ZZEW A1P Mini-ITX case.
Q: What is the maximum height for CPU coolers in the ZZEW A1P case?A: The maximum height for CPU coolers in the ZZEW A1P case is forty-eight millimeters.
Q: How do I install a graphics card in the ZZEW A1P Mini-ITX case?A: To install a graphics card in the ZZEW A1P case, use a dual reverse graphics card extension cable with a recommended length of one hundred eighty-five millimeters.
Q: Is the ZZEW A1P Mini-ITX case easy to carry?A: Yes, the ZZEW A1P Mini-ITX case is lightweight and compact, making it easy to carry in a backpack.
Q: Can I use a standard power supply with the ZZEW A1P Mini-ITX case?A: Yes, the case supports a standard FLEX-1U power supply measuring one hundred fifty millimeters by eighty-one point five millimeters by forty point five millimeters.
Q: What kind of cooling does the ZZEW A1P Mini-ITX case support?A: The ZZEW A1P Mini-ITX case supports air cooling with one ninety millimeter fan.
Q: How should I clean the ZZEW A1P Mini-ITX case?A: To clean the ZZEW A1P case, use a soft, dry cloth to wipe the exterior and avoid using harsh chemicals.
Q: What is the net weight of the ZZEW A1P Mini-ITX case?A: The net weight of the ZZEW A1P Mini-ITX case is one kilogram.
Q: How do I ensure safe shipping for the ZZEW A1P Mini-ITX case?A: The ZZEW A1P Mini-ITX case is packaged securely to ensure safe shipping, including protective packaging materials.
Q: Is there a warranty for the ZZEW A1P Mini-ITX case?A: Yes, the ZZEW A1P Mini-ITX case typically comes with a manufacturer warranty, details of which can be found in the product documentation.
Q: What if my ZZEW A1P case arrives damaged?A: If your ZZEW A1P case arrives damaged, contact customer support for assistance with a return or exchange.
