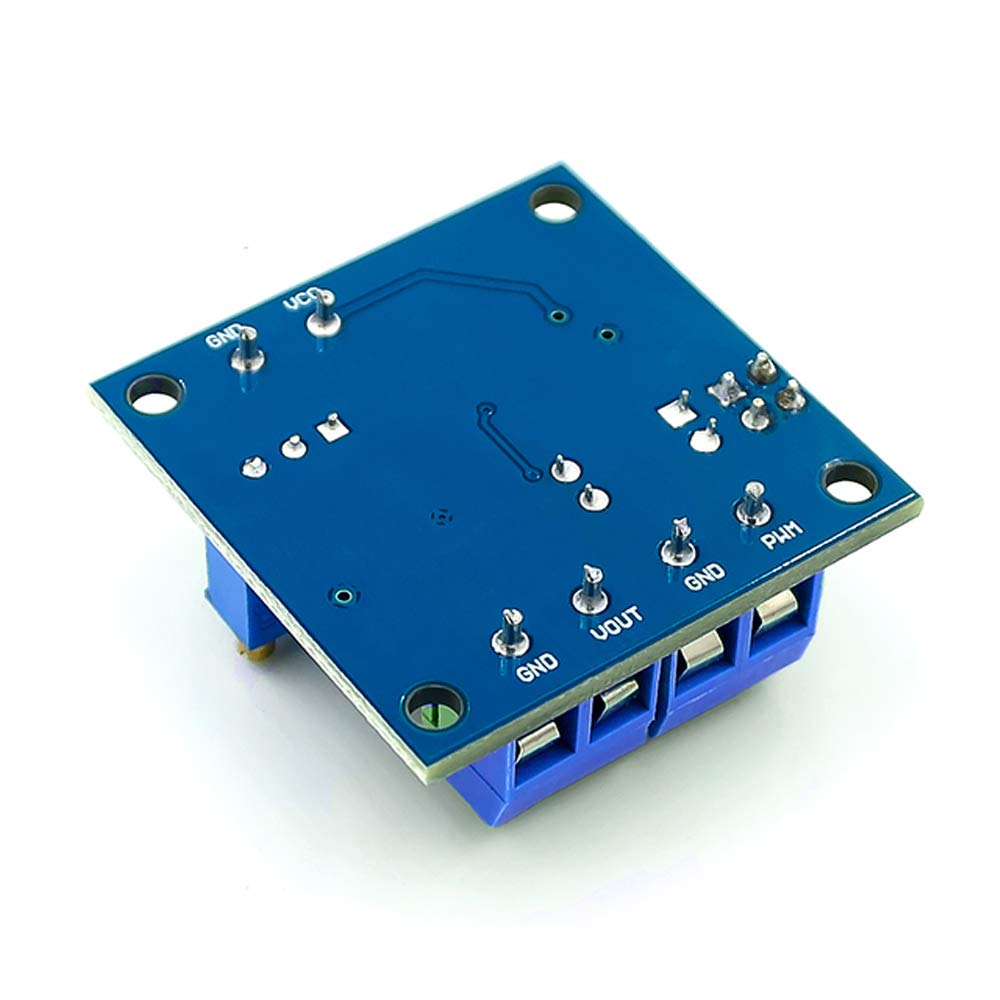

Hardware Interface: Vcc:Dc 12V-30V Gnd:Ground Pwm:Positive Of Pwm Input Signal Gnd:Negative Of Input Signal Vout:Output Voltage 0-10V Gnd:Output Voltage Ground Operation Instructions: After Power On, Without Input Signal, The Output Is 0V, So Only Input Can Output.The First Time When The Power Is On, It Is Best To Do A Calibration Debugging:Input A 50% Duty Ratio Signal To Pwm/Gnd And Adjust The Relative Amplitude Short Cap. The Frequency Is 1Khz-3Khz, Measured Vout And Gnd With A Multimeter And It Will Display 5V. Adjust Potentiometer To Make Sure Display 5.00V On Multimeter. This Will Calibrate Your Pulse Signal To This Module.When The Frequency Changes, The Correspondences May Be Offset And Need To Be Re Calibrated. The Output Voltage Can Be Adjusted By Adjusting The Duty Ratio. The Accuracy Can Be Controlled By Adjusting The Potentiometer. Note: Actual Color May Be Slightly Different From The Image Due To Different Monitor And Light Effect. Please Allow Minor Deviation Due To Manual Measurement. We Highly Appreciate All Customers Opinions To Improve The Selling, Also If Anything You Unsatisfied, Please Contact Us For Probable Best Solution. Package Includes: 2Pcs
Related products
Frequently Asked Questions
Q: What is the purpose of the WSDMAVIS PWM to Voltage Module?A: The WSDMAVIS PWM to Voltage Module is designed to convert PWM digital signals into 0-10V analog signals, making it suitable for applications such as PLC signal interface switching and other industrial control systems.
Q: How do I calibrate the output voltage of this module?A: To calibrate the output voltage, power on the module without an input signal to ensure the output is 0V. Then, input a 50% duty cycle PWM signal and adjust the potentiometer until the multimeter displays exactly 5.00V.
Q: What is the input frequency range for the PWM signals?A: This module supports a PWM receiver frequency range of 1KHZ to 3KHZ, ensuring compatibility with various PWM signal sources.
Q: Can I use this module with different voltage levels?A: Yes, the WSDMAVIS PWM to Voltage Module allows you to select the PWM signal input level range through a short-circuit cap, accommodating levels from 5V to 24V depending on your controller's requirements.
Q: What are the power requirements for this module?A: The module operates within a power supply range of DC 12V to 30V, with a minimum current requirement of 100mA to function effectively.
