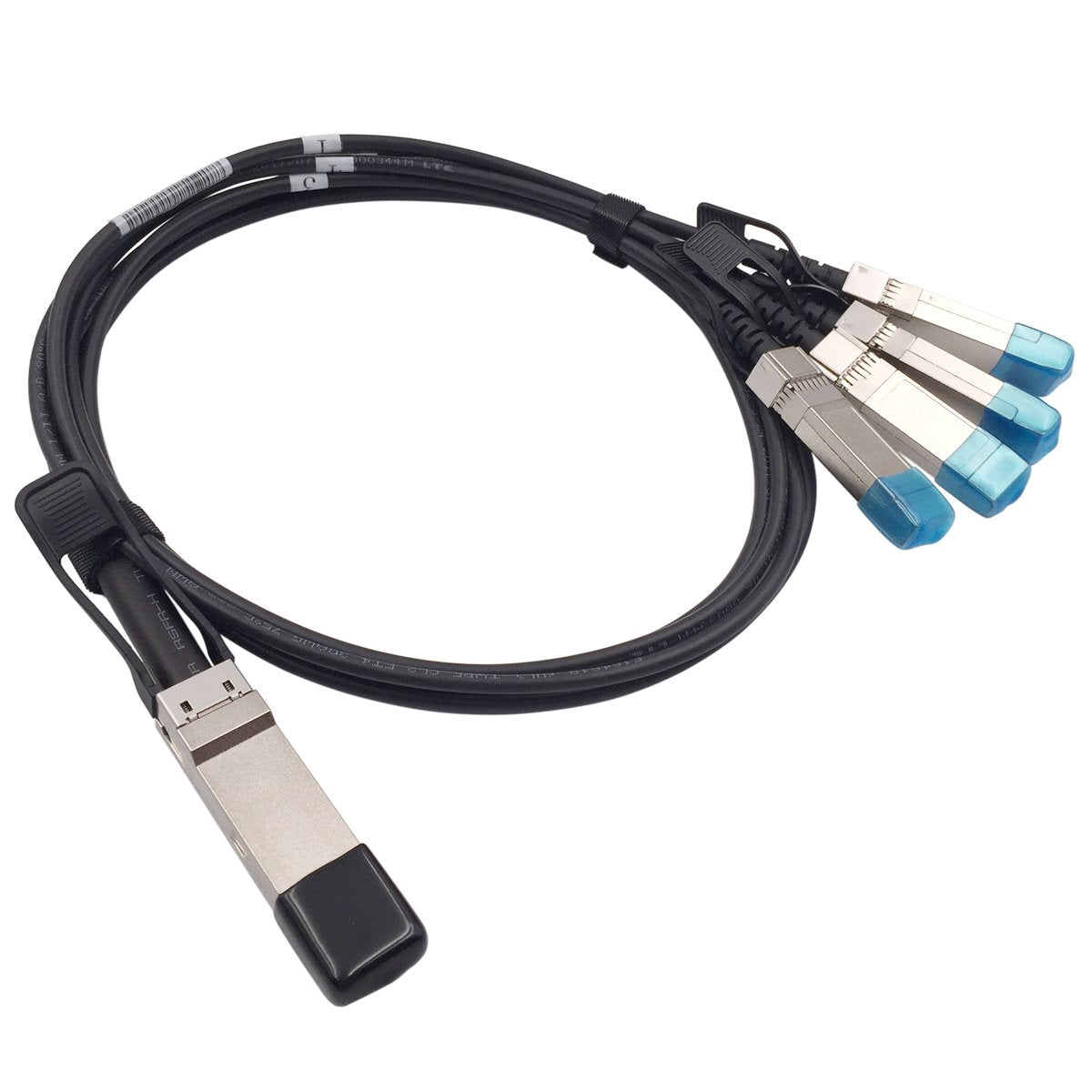

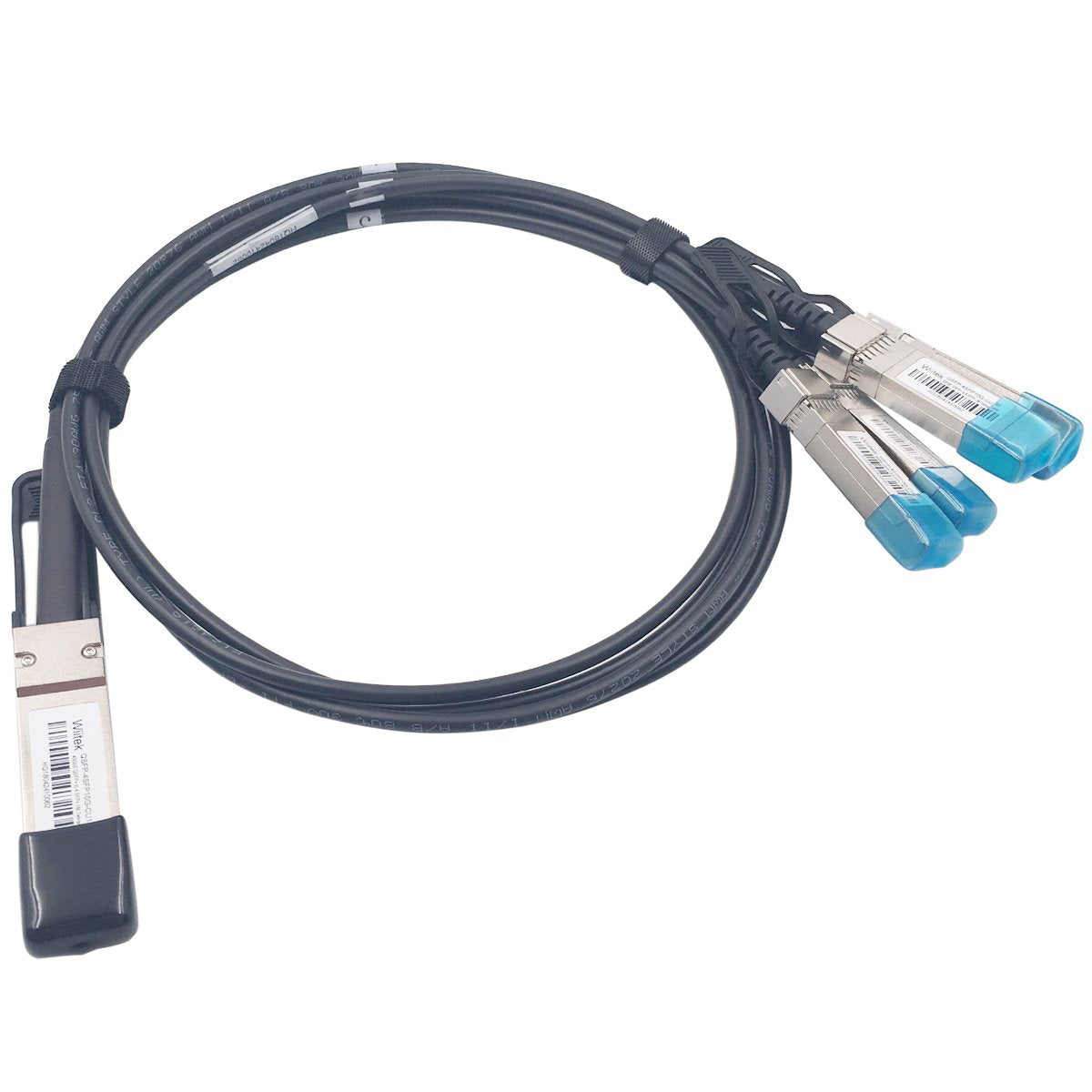

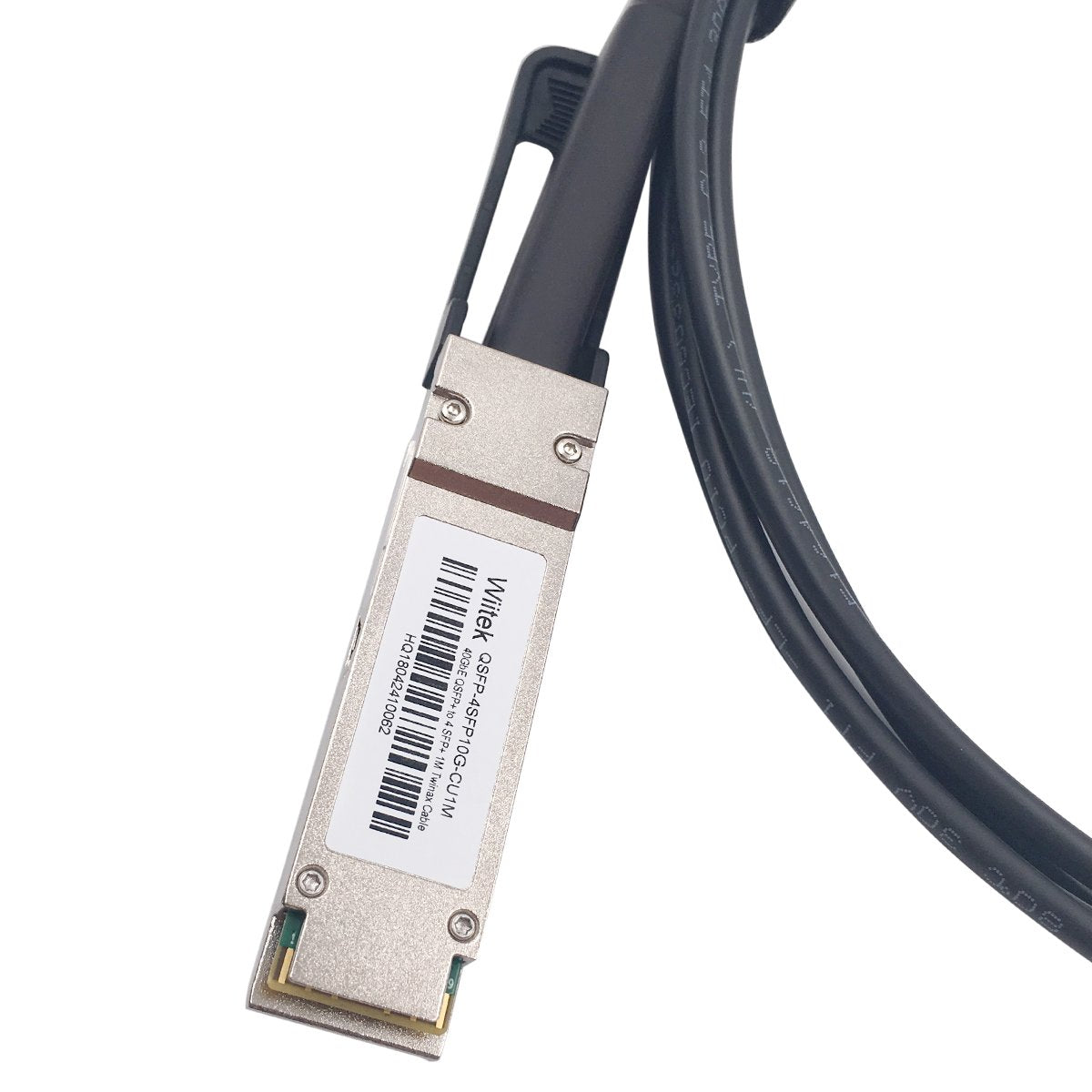

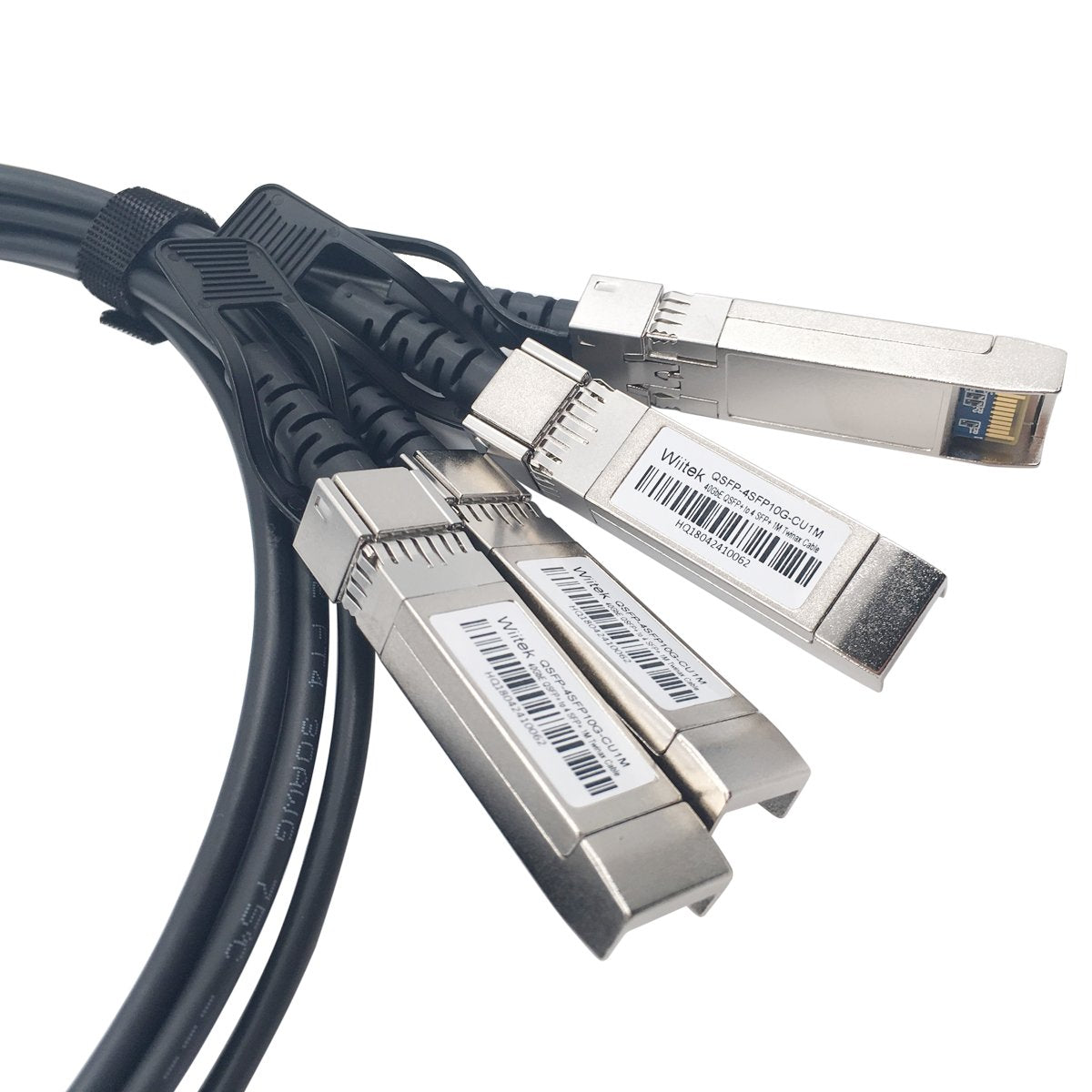

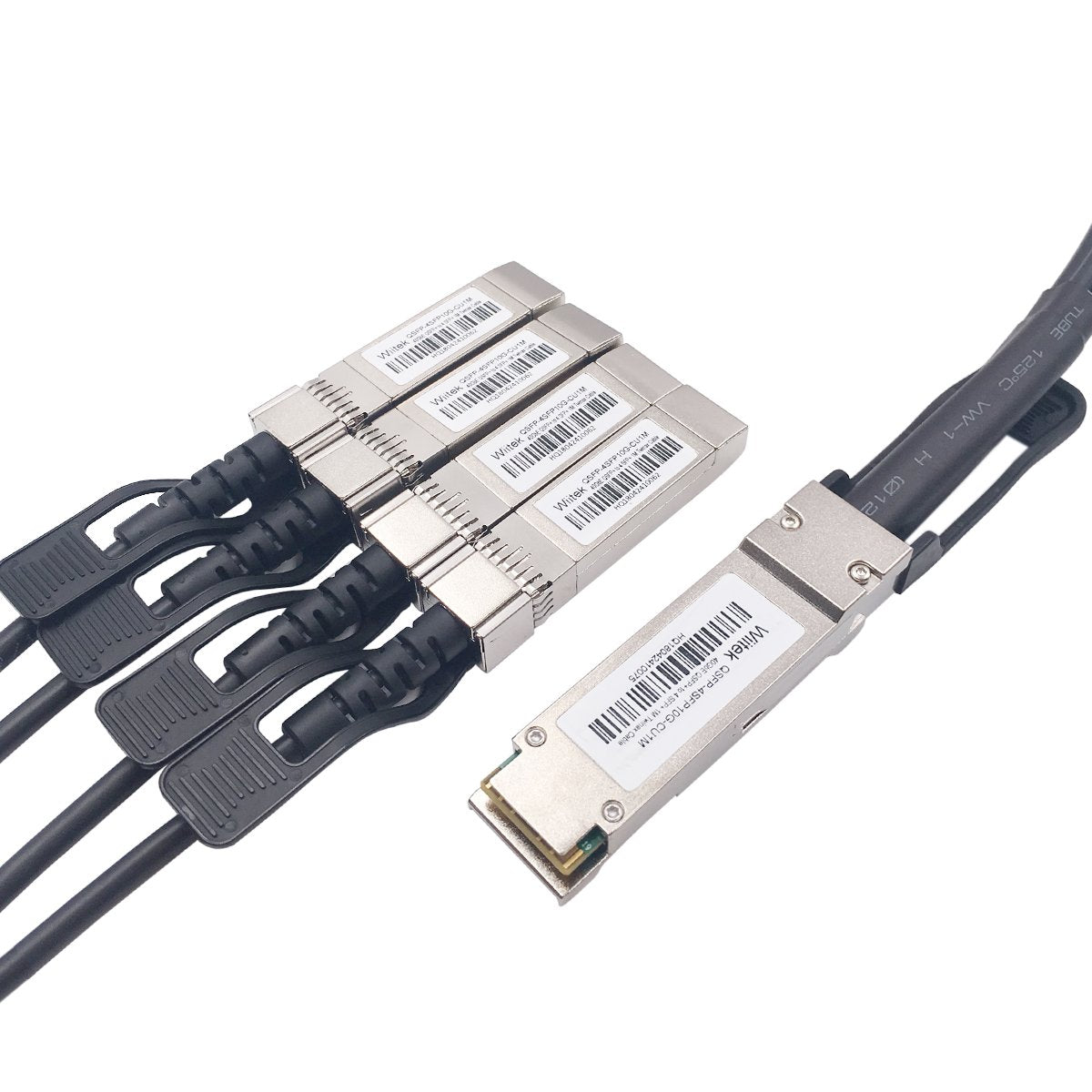

Introduction The Qsfp+ To 4X Sfp+ Passive Cable Assemblies Are High Performance,Cost Effective For Sfp+ And Qsfp+ Equipment Interconnects . The Hybrid Cables Are Compliant With Sff-8436 And Sff-8431 Specifications. It Is Offer A Low Power Consumption,Short Reach Interconnect Applications. The Cable Each Lane Is Capable Of Transmitting Data At Rates Up To 10Gb/S, Providing An Aggregated Rate Of 40Gb/S. Features Hybrid Cable Conforms To The Small Form Factor Sff-8436 And Sff-8431 Support For Multi-Gigabit Data Rates :1.0 Gbps - 10.3125 Gbps (Per Channel) Maximum Aggregate Data Rate: 41.25 Gbps (4 X 10.3125Gbit/S) Hybrid Cable Link Length Up To 5M (Passive Limiting) High-Density Qsfp 38-Pin And 4X Sfp 20-Pin Connector Power Supply :+3.3V Low Power Consumption: 0.02 W (Typ.) Temperature Range: 0~ 70 C Applications 40G Qsfp+ To 4 10Sfp+ 10G/40Gigabit Ethernet Infiniband Sdr, Ddr, Qdr Switches, Routers, And Hbas Data Centers Fiber Channel Standards Compliance Qsfp+ Sff-8436 Qdr Infiniband Qsfp+ Msa Rohs Compliant Sfp+ Sff-8431 Sfp+ Msa Rohs Compatible Product Name:Wiitek For Cisco Compatible 40Gbe Qsfp+ To 4 Sfp+ Twinax Cable, Qsfp-4Sfp10G-Cu3M Direct Attach Copper Cable, Pull-To-Release Latch 30Awg 3M, Black Cisco P/N:Qsfp-4Sfp10G-Cu3M Wire Awg:30Awg Cable Length:3M(10Ft) Connector Type:Qsfp+ To 4Sfp+ Max Data Rate:40Gbps Protocols:40G Infiniband 8X Ddr, 4X Qdr, 10G/40Gigabit Ethernet, Fibre Channel Color:Black
