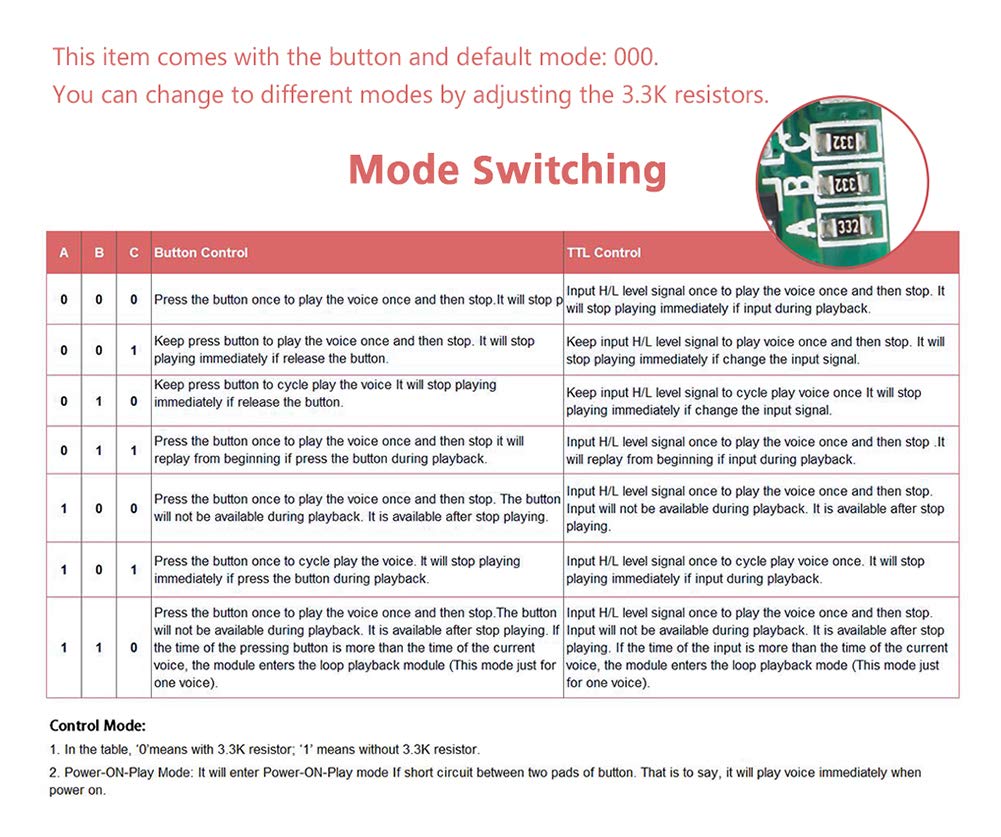

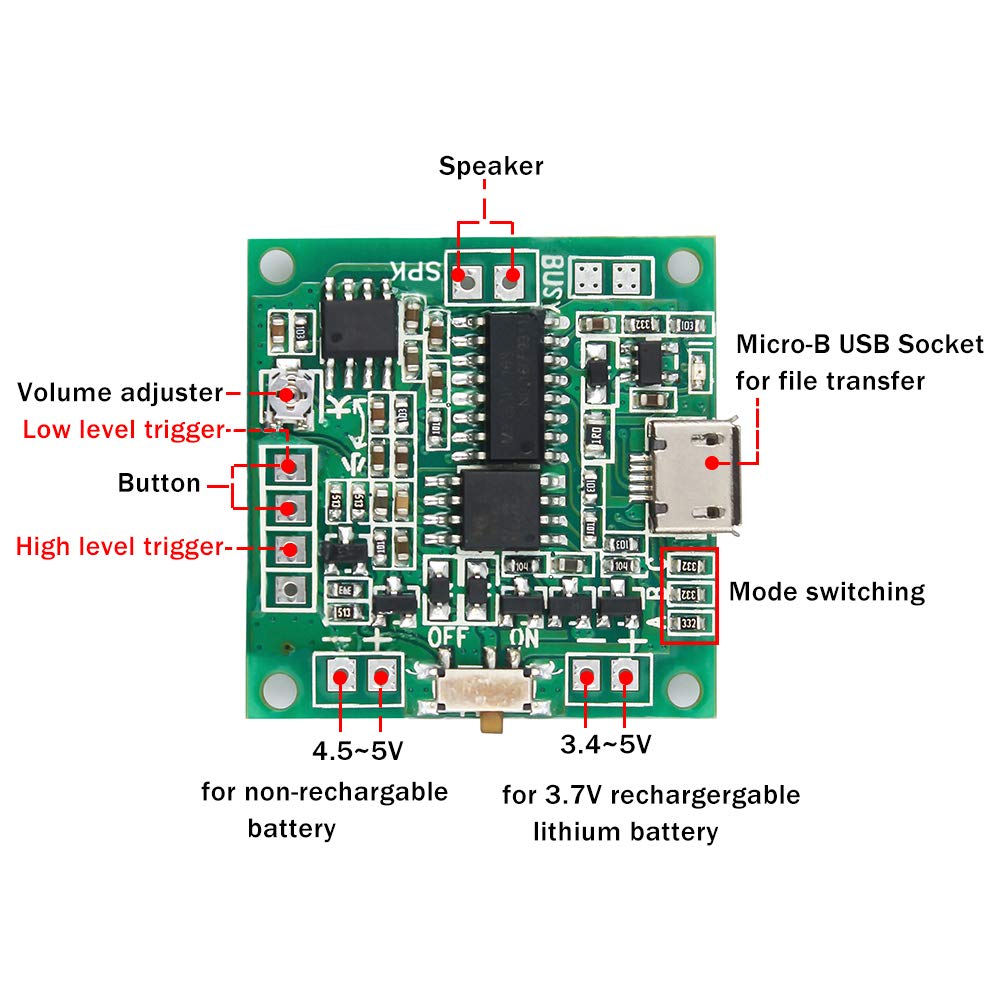

Specifications: -Built-In Flash Memory: 8Mb (8 Bytes) -Speaker Output: 0.5-1W -Speaker Size: 36Mm Diameter -Module Size: 30*30Mm -Usb Socket Type: Micro-B -Battery Power: 4.5-5V Or 3.7V Lithium Battery -Based On Using 3 X Aaa Batteries That Are 2500Mah Rating -Recommended Mp3 File Format: 128Kbps, 44.1Khz, 16 Bit, Mono -Battery Life Example: One Single 10 Second Sound File Will Playback 14,400 Times Using Instructions: Step 1: Connect 4.5V~5V Non-Rechargeable Battery Power Or 3.7V Lithium Battery. Step 2: Press The Button, And You Will Hear A Test Music Which Is A Chinese Song. Press The Button During Playback, Then It Will Stop Playing Immediately. Step 3: Connect The Module To Computer By Usb Cable; Support Windows Only Step 4: It Is Recognized By Computer As A Usb Drive, Just Like A Mp3 Player, And You'Re Free To Add Any Mp3/Wav Audio File To The Internal Storage As Long As It Doesn'T Go Over The 8Mb Limit; Step 5: Do Not Forget To Delete The Default Audio File; Step 6: Repeat Step 2 To See If The Module Work Well. Adjust The Volume To A Suitable Degree. Attention: This Item Comes With The Button And Default Mode: 000. You Can Change To Different Modes By Adjusting The 3.3K Resistors. For The Detail Please Refer To The Picture 2. Package Included: 1 X Recordable Sound Module Button Control 8Mb 1 X Aabattery Box 1 X Micro Usb Cable
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the WayinTop Sound Module?A: The module measures approximately three point nine four inches in length, one point nine seven inches in width, and zero point two inches in height.
Q: What type of memory does the sound module have?A: The sound module features built-in flash memory of eight megabytes, allowing for storage of various audio files.
Q: What is the speaker output power of the module?A: The speaker output power ranges from zero point five to one watt, providing decent sound quality for playback.
Q: How do I power the WayinTop Sound Module?A: You can power the module using four point five to five volts from non-rechargeable batteries or three point seven volts from a lithium battery.
Q: What audio formats are supported by the module?A: The recommended audio file formats for the module are MP3 at one hundred twenty-eight kilobits per second, forty-four point one kilohertz, and sixteen bit in mono.
Q: How do I connect the module to a computer?A: To connect the module, use the included micro USB cable, and it will be recognized by your computer as a USB drive.
Q: Can I change the sound files in the module?A: Yes, you can update the audio files on the module by connecting it to a computer and adding files that do not exceed the eight megabyte limit.
Q: Is the sound module easy to install?A: Yes, installation is straightforward; simply connect the power source, and you can start using it by pressing the button.
Q: What kind of projects can I use this sound module for?A: This sound module is ideal for DIY projects such as musical greeting cards, photo frames, and customized gift boxes.

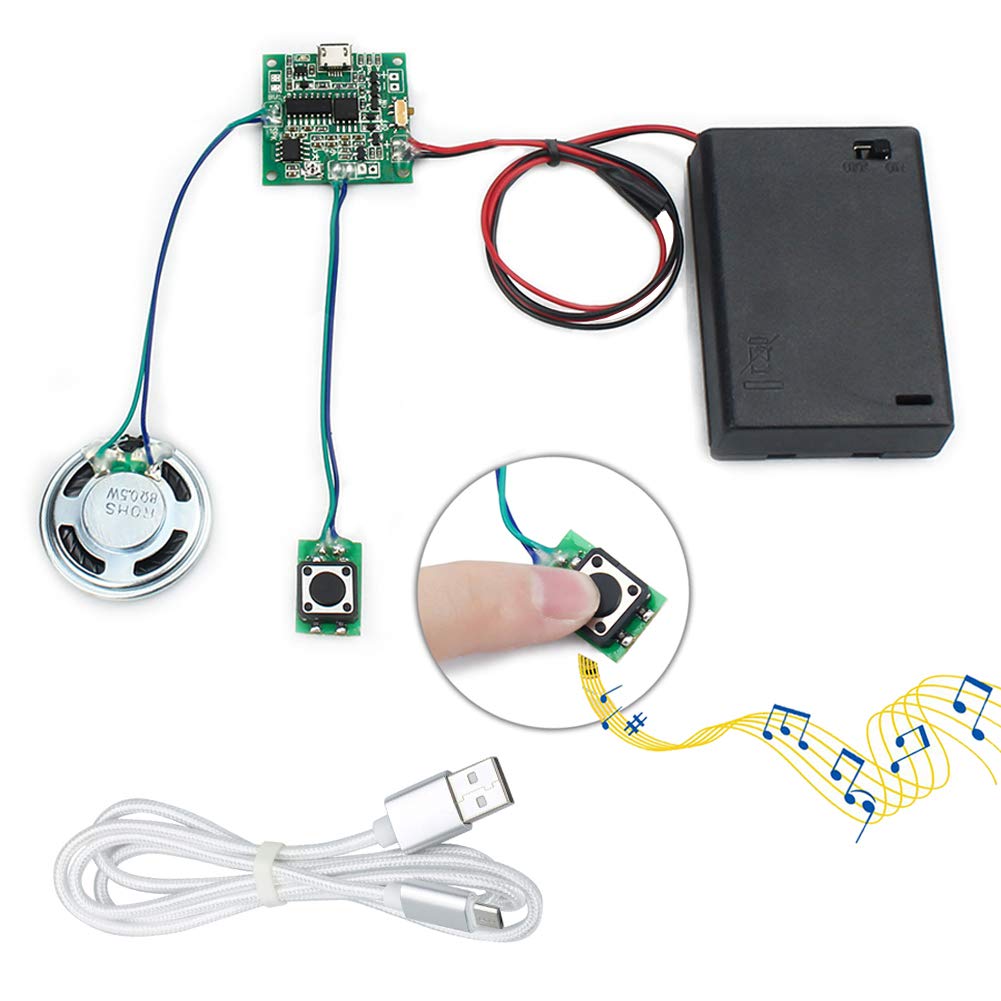

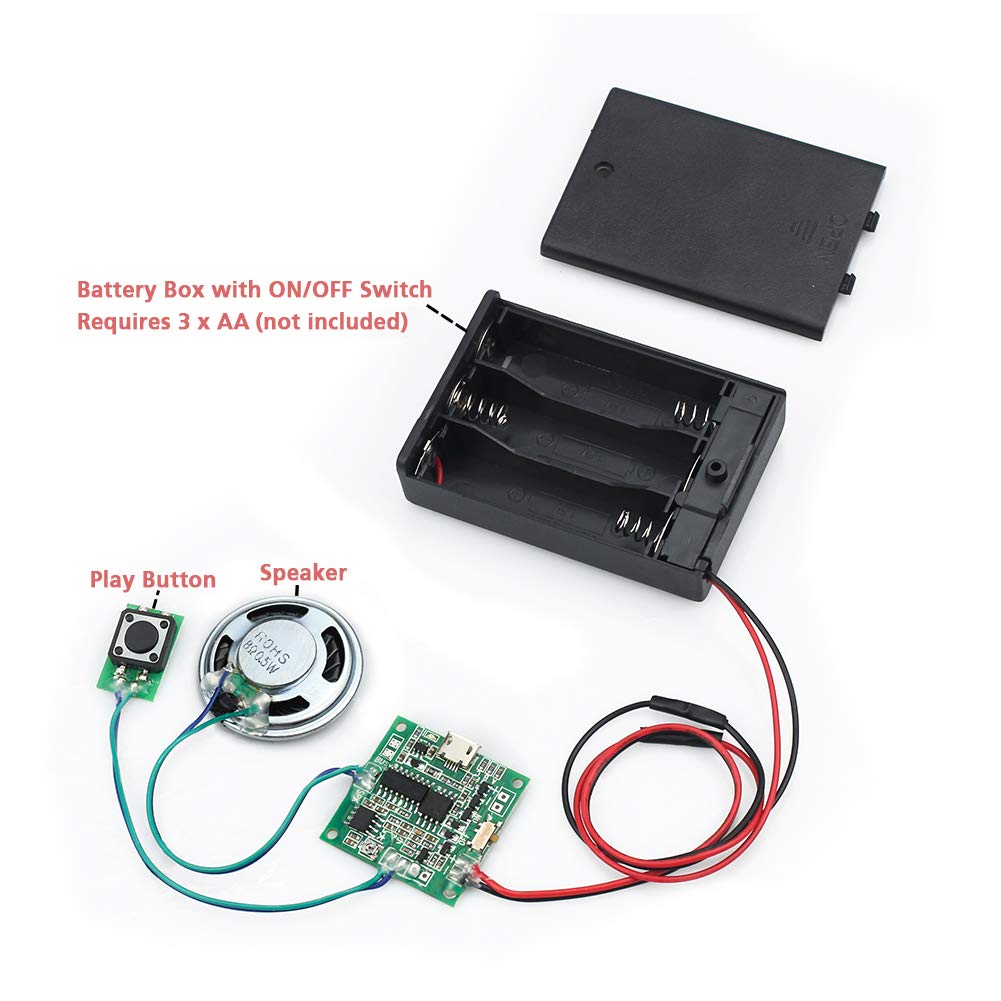

Q: What is included in the package with the sound module?A: The package includes one recordable sound module, one AAA battery box, and one micro USB cable.
Q: How do I care for the WayinTop Sound Module?A: To care for the sound module, ensure it is stored in a dry place and avoid exposing it to moisture or extreme temperatures.
Q: What should I do if the module doesn't work after setup?A: If the module doesn't work, check the battery connections and ensure that the audio files are properly loaded onto the device.
Q: Is the sound module safe for children to use?A: Yes, the sound module is safe for children; however, adult supervision is recommended during setup and usage.
Q: Can I use rechargeable batteries with this sound module?A: Yes, you can use a three point seven volt lithium rechargeable battery, or four point five to five volt non-rechargeable batteries.
Q: What if I want to delete the default audio file?A: You can delete the default audio file by connecting the module to a computer and removing it like any other file.
