Waveshare Sense HAT (B) for Raspberry Pi Onboard Multi Powerful Sensors Supports External Sensors
Free Standard Shipping Across USA
Couldn't load pickup availability
Refresh
Sold by Electroeshop, an authorized reseller.
Returns accepted within 30 days | support@electroeshop.com
Verified
Shipping Information
Free Standard Shipping — United States only
Processing Time: 3–5 business days
Estimated Delivery: 6–10 business days after dispatch
Double-boxed, fully insured & discreetly packaged
Tracking number sent via email once dispatched
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · 25% restocking fee applies
Return Authorization (RA) number before sending.
View Full Return & Refund Policy
Your Cart
Item(s):
Total: $0.00
Waveshare Sense HAT (B) for Raspberry Pi Onboard Multi Powerful Sensors Supports External Sensors
$40.78
Sold Out

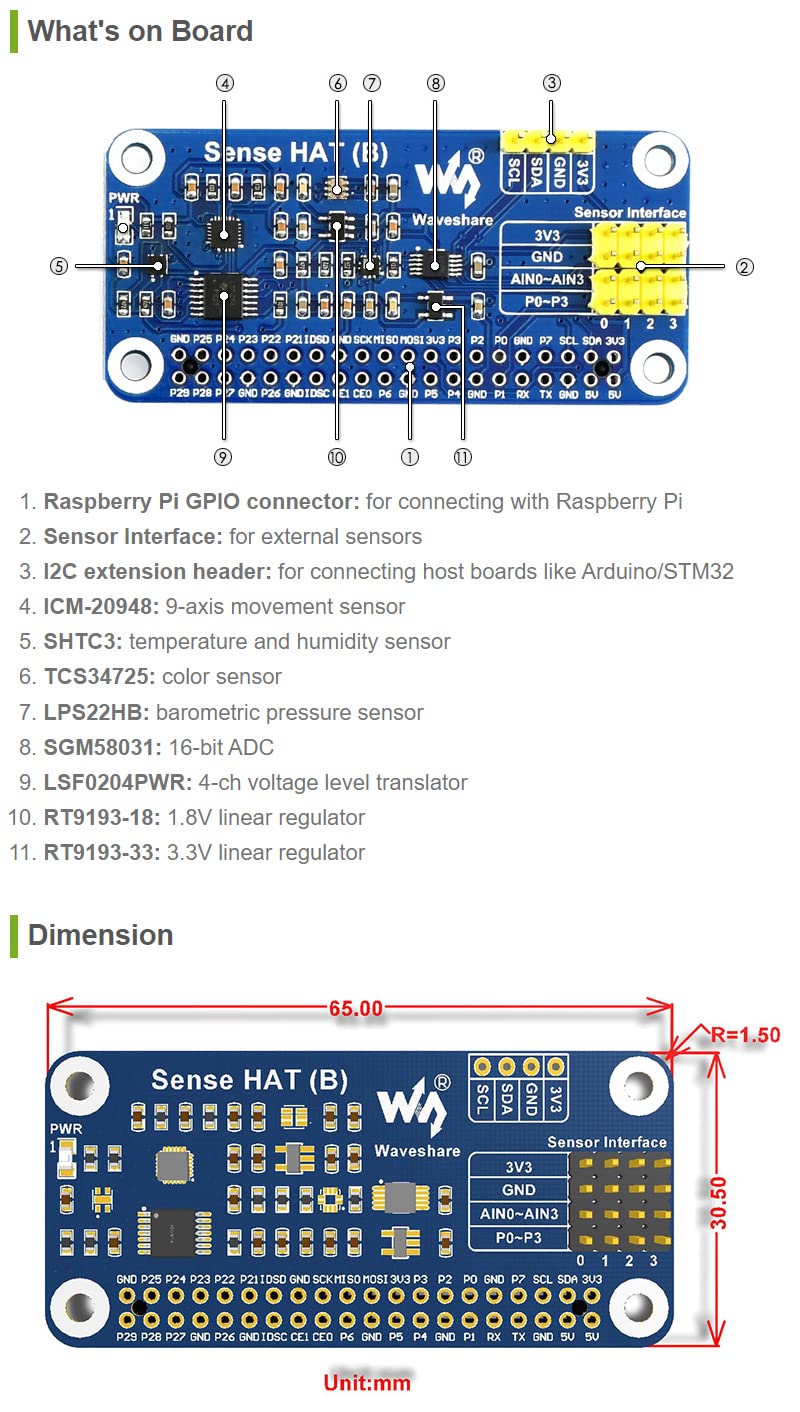

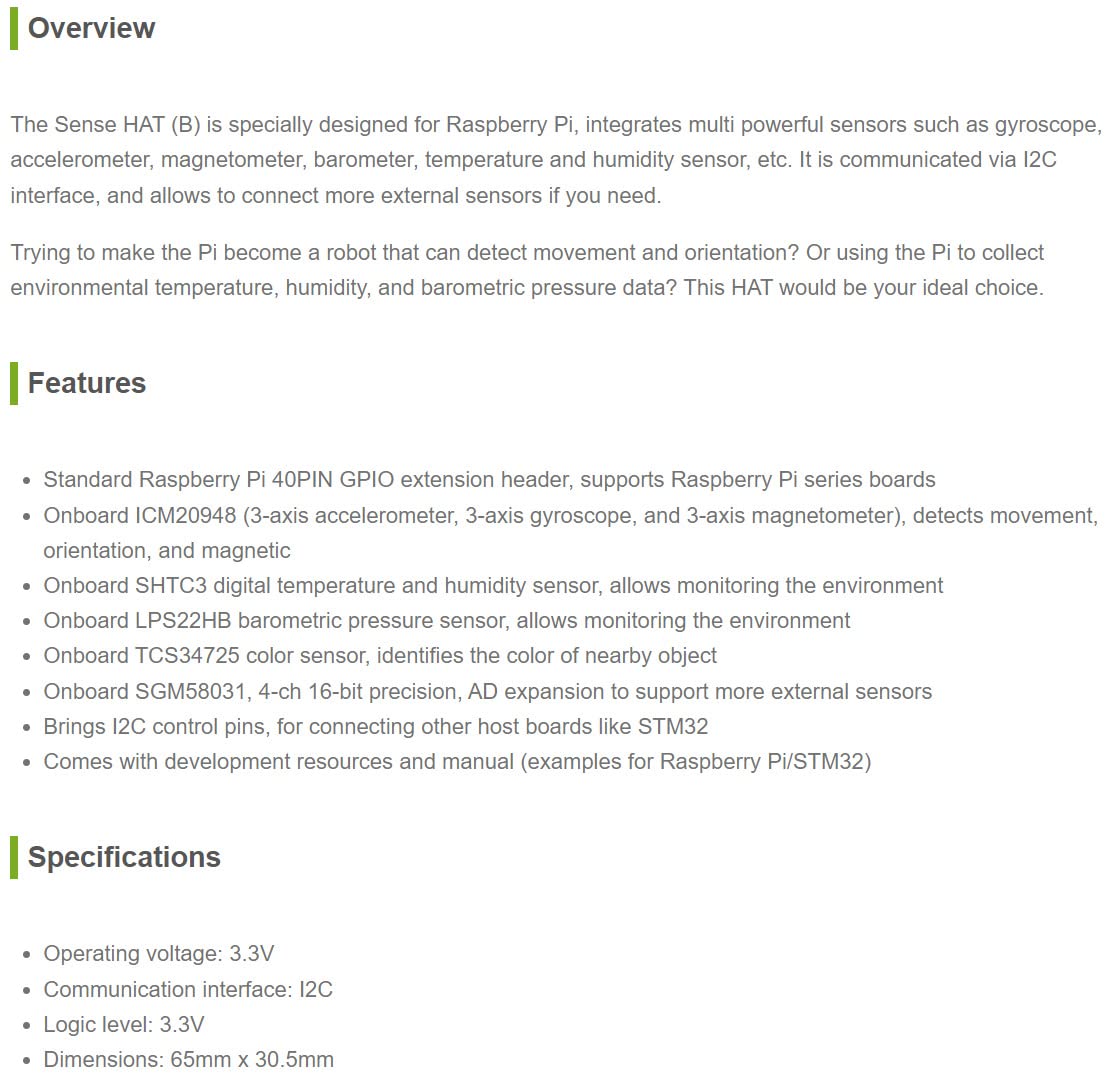

Overview The Sense HAT (B) is specially designed for Raspberry Pi, integrates multi powerful sensors such as gyroscope, accelerometer, magnetometer, barometer, temperature and humidity sensor, etc. It is communicated via I2C interface, and allows to connect more external sensors if you need. Trying to make the Pi become a robot that can detect movement and orientation? Or using the Pi to collect environmental temperature, humidity, and barometric pressure data? This HAT would be your ideal choice. Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards Onboard ICM20948 (3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer), detects movement, orientation, and magnetic Onboard SHTC3 digital temperature and humidity sensor, allows monitoring the environment Onboard LPS22HB barometric pressure sensor, allows monitoring the environment Onboard TCS34725 color sensor, identifies the color of nearby object Onboard ADS1015 ADC, 4-ch 12-bit precision, AD expansion to support more external sensors Brings I2C control pins, for connecting other host boards like STM32 Comes with development resources and manual (examples for Raspberry Pi/STM32) Specifications Operating voltage: 3.3V Communication interface: I2C Logic level: 3.3V Dimensions: 65mm x 30.5mm
