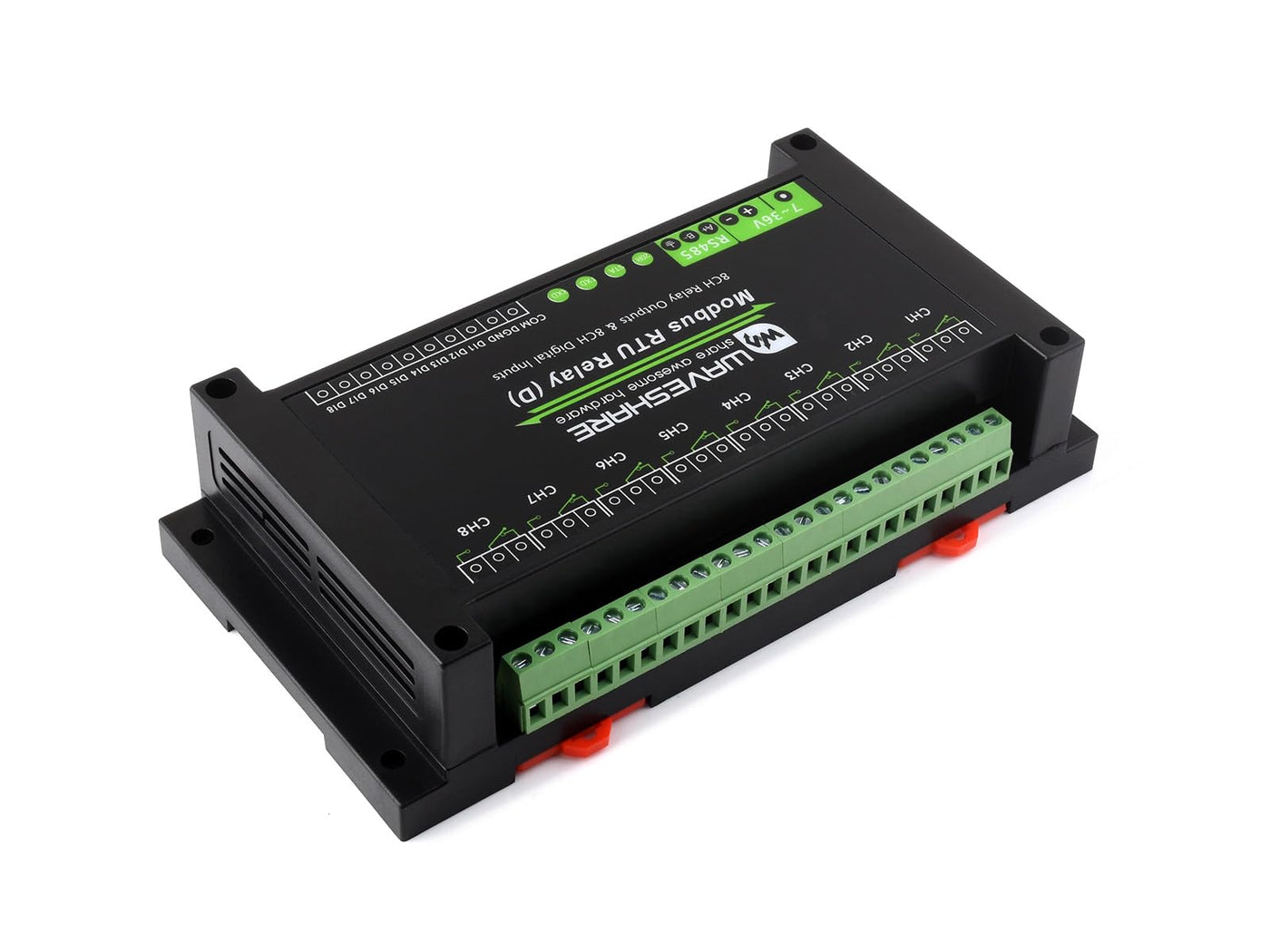

Waveshare Industrial Modbus Rtu 8 Ch Relay Module (D) With Digital Input And Rs485 Interface, Multi Isolation Protection Circuit

Frequently Asked Questions

• Q: What are the dimensions of the Waveshare Modbus RTU Relay Module? A: The dimensions are six point eight nine inches in length, three point five four inches in width, and one point five seven inches in height.
• Q: What materials are used in the construction of this relay module? A: The relay module is primarily made of plastic, ensuring durability and light weight, which is essential for installation.

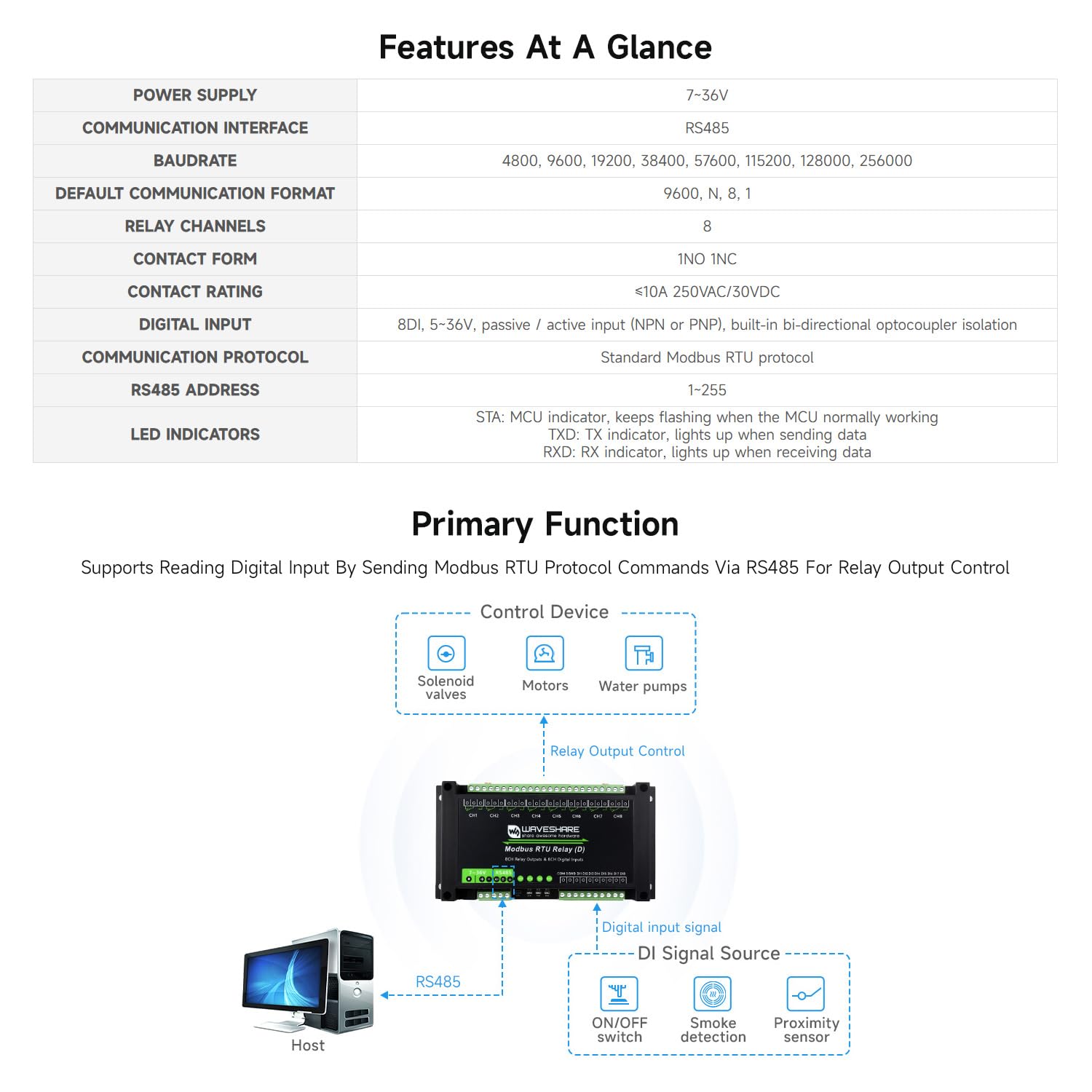

• Q: What is the power supply voltage range for this relay module? A: The power supply voltage range for the Waveshare Modbus RTU Relay Module is seven to thirty-six volts, making it versatile for various applications.
• Q: How do I install the Waveshare Modbus RTU Relay Module? A: To install, mount the relay module on a standard rail, connect the RS485 interface, and configure the device address as needed.
• Q: Can multiple relay modules be connected together? A: Yes, multiple devices can be cascaded on the RS485 bus, allowing for expanded control in complex setups.
• Q: What is the maximum current rating for the relay contacts? A: The maximum contact rating for the relay is ten amps at two hundred fifty volts alternating current or thirty volts direct current.
• Q: How do I care for the Waveshare Modbus RTU Relay Module? A: To maintain the relay, ensure it is kept dry, avoid exposure to extreme temperatures, and clean any dust with a soft, dry cloth.
• Q: Is the relay module safe to use in high-voltage environments? A: Yes, it features onboard unibody isolation and optocoupler isolation to prevent interference from high-voltage circuits.
• Q: How should I store the relay module when not in use? A: Store the relay module in a cool, dry place away from direct sunlight and extreme temperatures to preserve its functionality.
• Q: Is this relay module suitable for beginners to use? A: Yes, it is suitable for beginners, especially with its clear instructions and intuitive setup process.
• Q: How does this relay module handle surge voltage? A: It includes a resettable fuse and transient voltage suppressor to effectively suppress surge voltage and transient spikes.

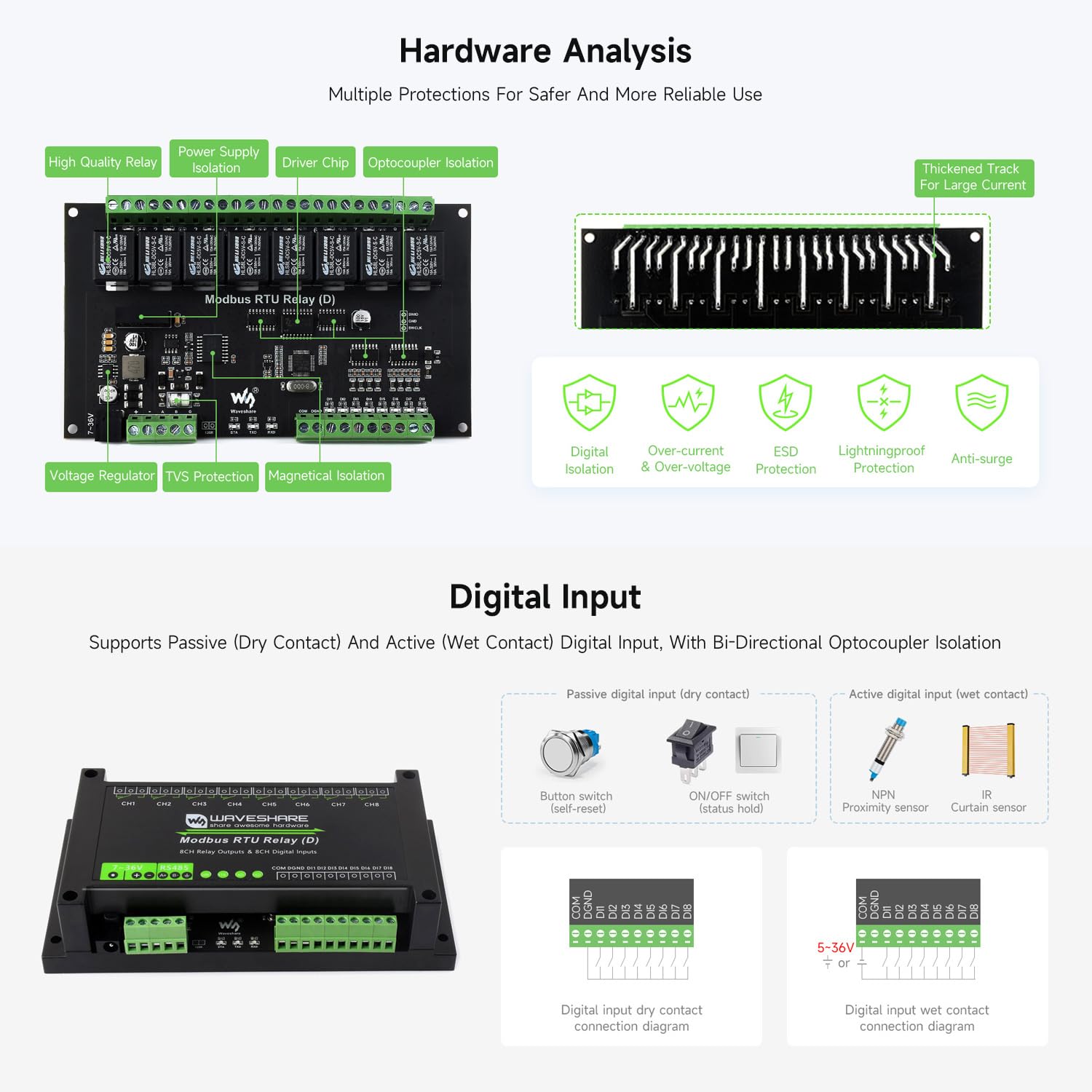

• Q: What types of digital inputs does this relay module support? A: The relay supports both passive and active digital inputs with bi-directional optocoupler isolation and a built-in debouncing algorithm.
• Q: What should I do if the relay module arrives damaged? A: If the relay module arrives damaged, contact customer support for assistance with your return or exchange options.
• Q: Does the relay module come with a warranty? A: Yes, the Waveshare Modbus RTU Relay Module typically comes with a manufacturer's warranty to cover defects in materials or workmanship.
• Q: Can I use this relay module for outdoor applications? A: The relay module is designed primarily for indoor use; outdoor applications may require additional protective housing.
• Q: Is there a risk of reverse polarity connection with this module? A: No, the relay module features a reverse-proof circuit to prevent damage from incorrect connections.
