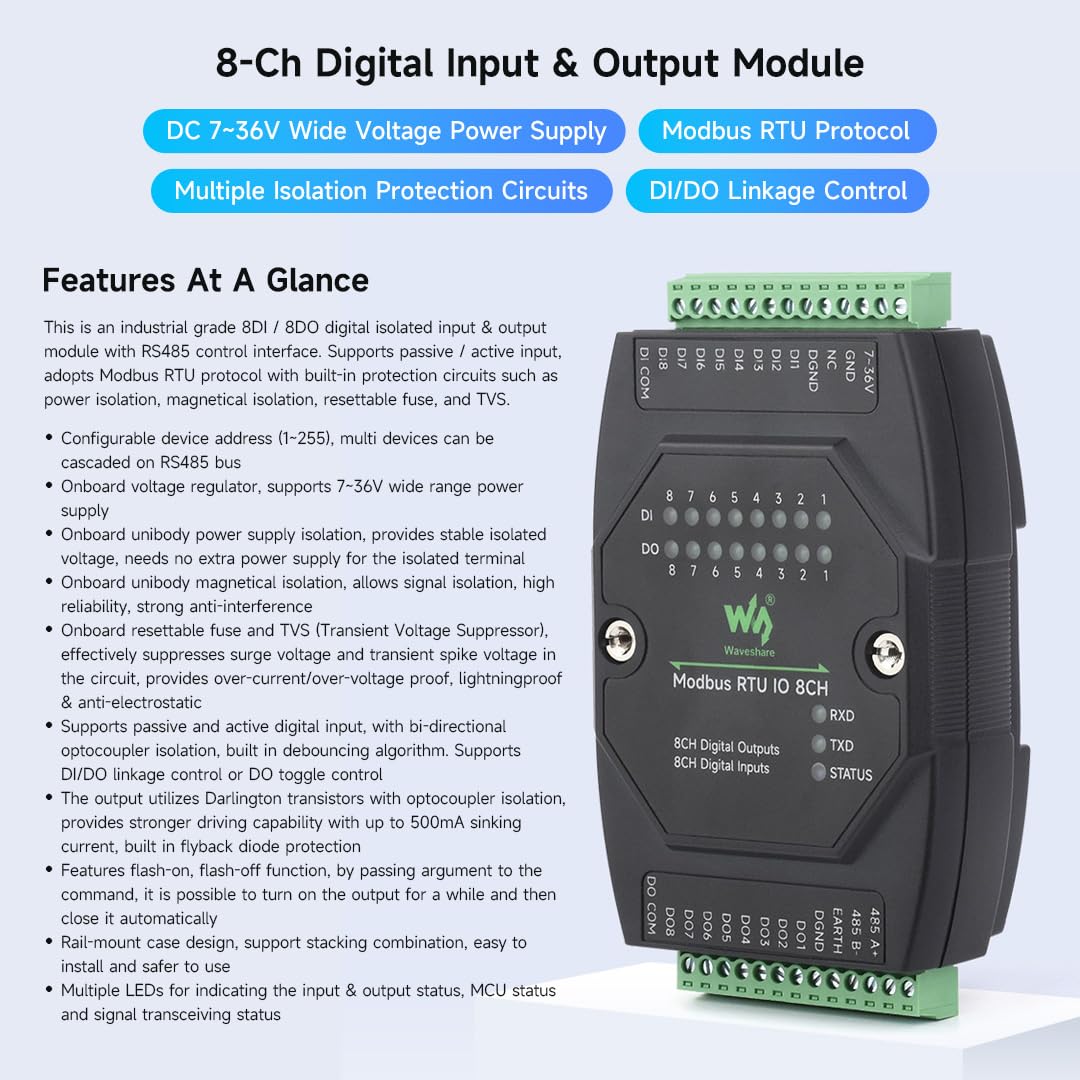

Waveshare 8-Ch Digital Input & Output Module, Modbus RTU, DC 7-36V, Copper, Rail-Mount, Multiple Isolation Protection

Frequently Asked Questions

• Q: What is the voltage range for the Waveshare Industrial 8-Ch Digital Input & Output Module? A: The voltage range is from seven to thirty-six volts. This wide voltage power supply ensures compatibility with various industrial applications.
• Q: What materials are used in the construction of this module? A: The primary material used is copper. This material enhances conductivity and reliability in industrial settings.
• Q: How many channels does the Waveshare module have? A: The module features eight channels. This allows for multiple inputs and outputs to be managed simultaneously.
• Q: How do I install the Waveshare Industrial module? A: You can install it by rail-mounting the module. The design supports stacking combinations for easy installation.

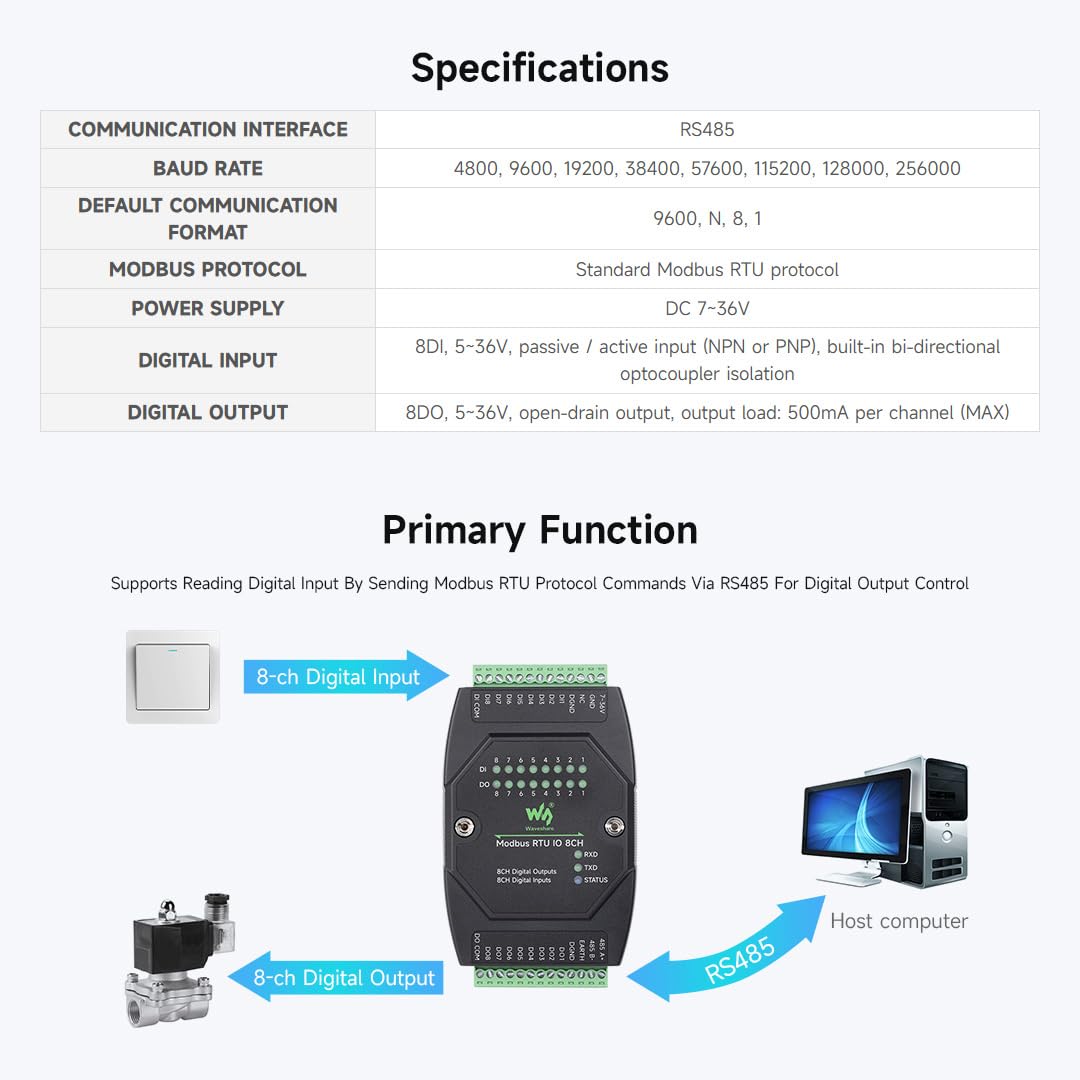

• Q: Is this module suitable for cascading multiple devices? A: Yes, it supports cascading multiple devices on the RS485 bus. This feature allows for expanded connectivity in larger systems.
• Q: Can I use this module for digital input and output? A: Yes, it supports both passive and active digital input and output. This versatility makes it suitable for various automation tasks.
• Q: How do I maintain the Waveshare Industrial module? A: Keep the module dry and clean. Regularly check for dust or debris on the terminals to ensure optimal performance.

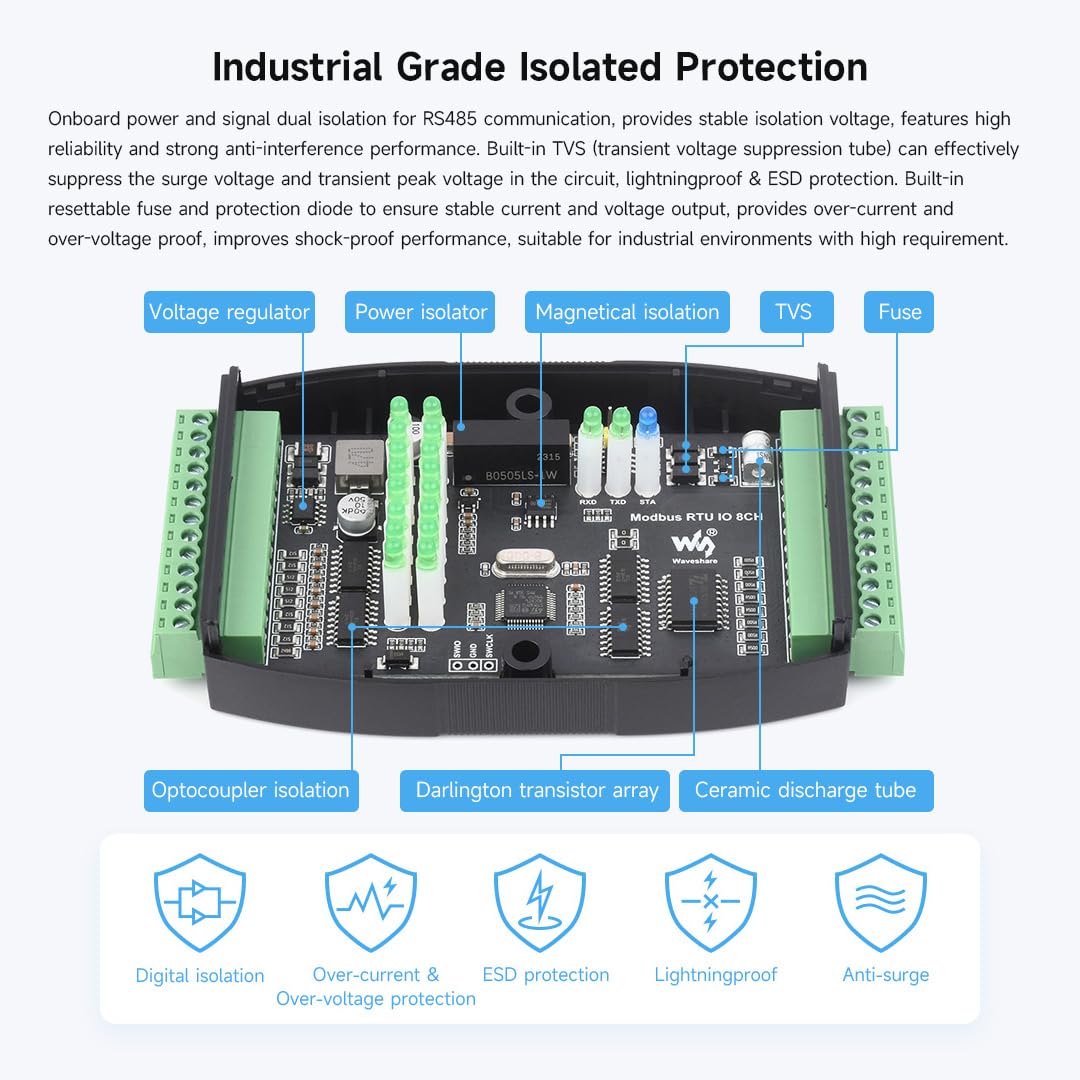

• Q: What safety features does the Waveshare module include? A: It includes a resettable fuse, transient voltage suppressor, and magnetical isolation. These features protect against over-voltage and transient spikes.
• Q: How should I store the module when not in use? A: Store it in a dry, temperature-controlled environment. Avoid exposure to extreme temperatures or humidity to maintain its integrity.
• Q: Is this module suitable for beginners? A: Yes, it is user-friendly and suitable for both beginners and experienced users. The clear setup instructions facilitate easy installation.
• Q: Can I use this module for high-current applications? A: Yes, it can handle up to five hundred milliamperes of sinking current. This capability makes it suitable for controlling larger loads.
• Q: What should I do if the module arrives damaged? A: Contact customer support immediately for assistance. They will guide you through the return or replacement process.
• Q: Does this module support signal isolation? A: Yes, it features built-in optocoupler isolation. This ensures high reliability and strong anti-interference capabilities.
• Q: Can I control the outputs with a specific function? A: Yes, it has a flash-on and flash-off function. You can program it to turn on outputs temporarily based on your commands.
• Q: What is the maximum number of configurable device addresses? A: You can configure addresses from one to two hundred fifty-five. This flexibility supports various network setups.
• Q: Does the module have indicators for status? A: Yes, it features multiple LEDs that indicate input, output, and MCU status. This helps in monitoring its operational conditions.
