Waveshare ESP32-S3 Development Board with 1.28" Touch LCD, Accelerometer & Gyroscope, Compact Size, Model ESP32-S3-Touch-LCD-1.28

Frequently Asked Questions

• Q: What is the processor used in the Waveshare ESP32-S3 Development Board? A: The board is equipped with an Xtensa thirty-two bit LX7 dual-core processor, capable of reaching up to two hundred forty megahertz.
• Q: What wireless protocols does this development board support? A: Yes, it supports two point four gigahertz Wi-Fi and Bluetooth five low energy, making it versatile for various applications.
• Q: What are the memory specifications of the Waveshare ESP32-S3 Development Board? A: It features five hundred twelve kilobytes of SRAM, three hundred eighty-four kilobytes of ROM, along with two megabytes of PSRAM and an external sixteen megabytes of Flash memory.

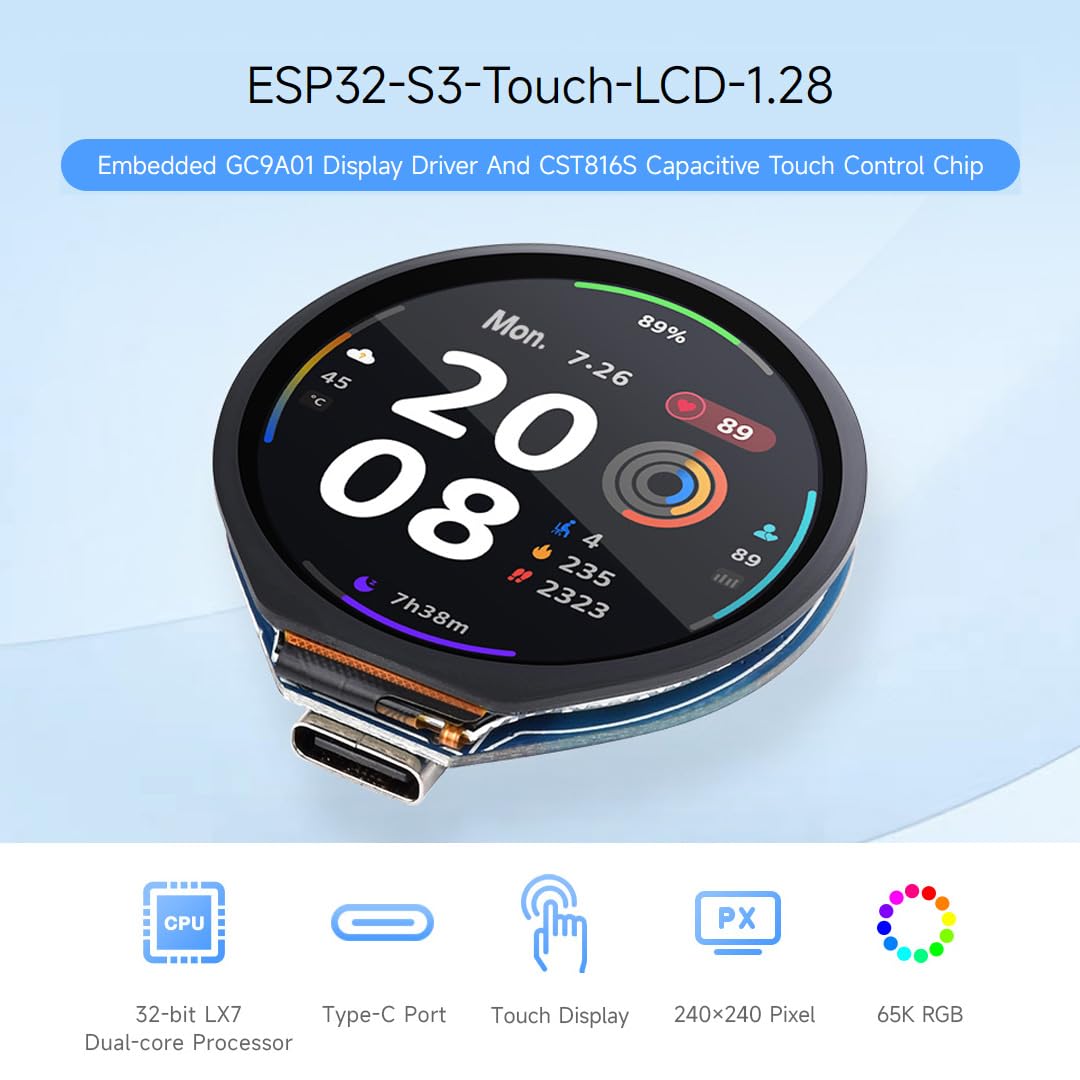

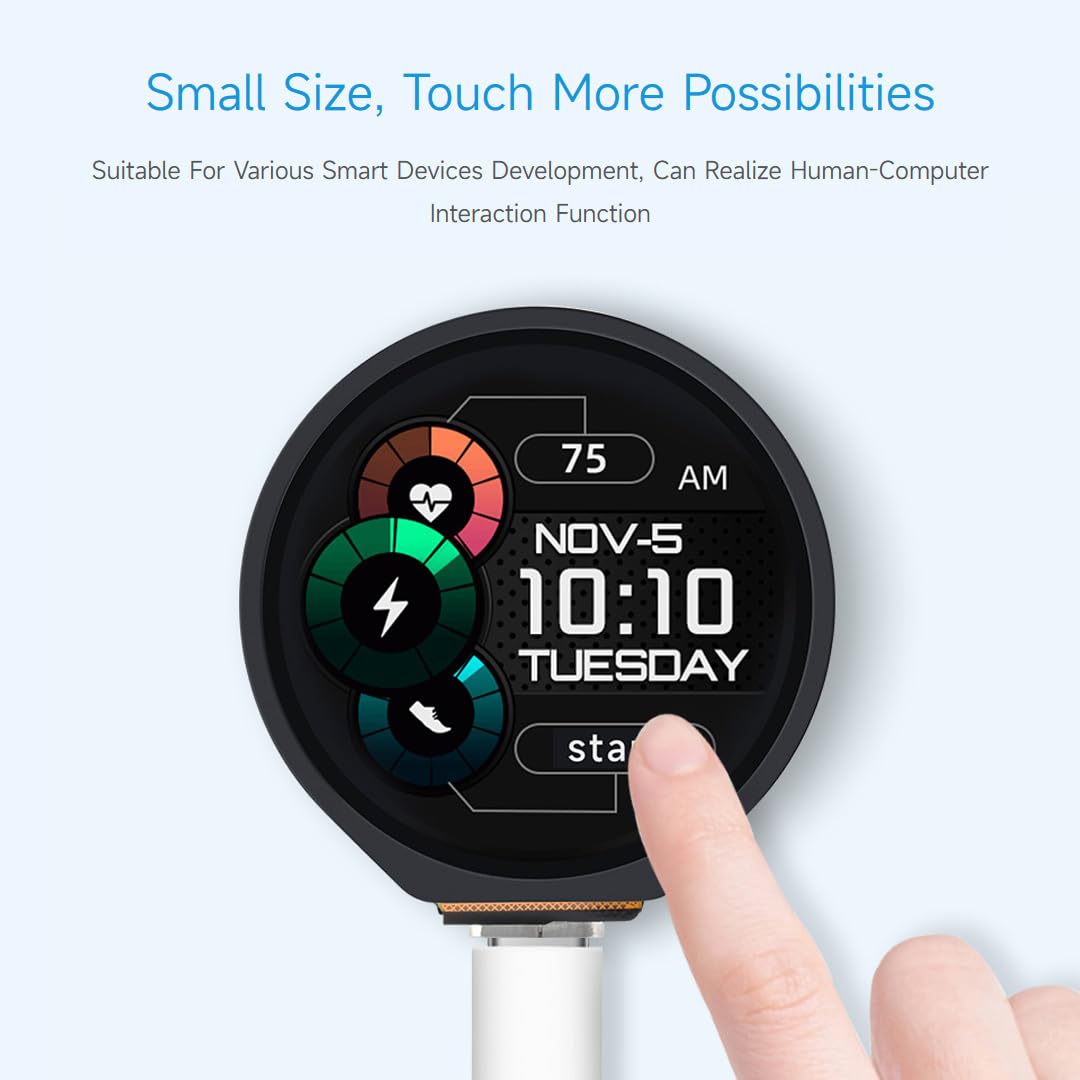

• Q: What is the size of the onboard display? A: The board has a one point twenty-eight inch capacitive touch display with a resolution of two hundred forty by two hundred forty pixels.
• Q: Does the ESP32-S3 Development Board have any sensors? A: Yes, it includes an onboard QMI8658 six-axis IMU, which consists of a three-axis accelerometer and a three-axis gyroscope for detecting motion gestures.
• Q: What type of battery does this development board support? A: It supports a three point seven-volt lithium battery with a recharge and discharge header, providing flexibility for power management.
• Q: How many GPIO pins are available on the board? A: The Waveshare ESP32-S3 Development Board has six GPIO pins accessible via an SH1.0 connector for various configurations.
• Q: Can I use this board for low power consumption applications? A: Yes, it supports flexible clock settings and independent module power supply configurations for optimizing low power consumption.
• Q: What is the type of connector used for data and power? A: The board uses a Type-C connector, ensuring compatibility with modern devices and easy updates.
• Q: Is the Waveshare ESP32-S3 Development Board suitable for beginners? A: Yes, it is user-friendly and ideal for beginners who want to explore development with integrated sensors and wireless capabilities.
• Q: How do I install the Waveshare ESP32-S3 Development Board? A: To install, connect the board via the Type-C connector to your computer and follow the setup instructions provided in the documentation.
• Q: Can I use this board for advanced projects? A: Absolutely, the advanced specifications and onboard sensors make it suitable for complex projects in robotics and IoT applications.
• Q: What should I do to maintain the ESP32-S3 Development Board? A: Keep it in a dry environment, avoid exposing it to extreme temperatures, and ensure the battery is properly charged to maintain performance.
• Q: Are there any safety precautions for the lithium battery? A: Yes, always handle the lithium battery carefully, avoid puncturing it, and store it in a safe place to prevent any hazards.
• Q: What if the board doesn’t power on after setup? A: If the board doesn't power on, check the USB connection, ensure the battery is charged, and refer to the troubleshooting section in the manual.
• Q: Is there any warranty on the Waveshare ESP32-S3 Development Board? A: Yes, it typically comes with a warranty, but specifics can vary, so check with the retailer for detailed warranty information.
