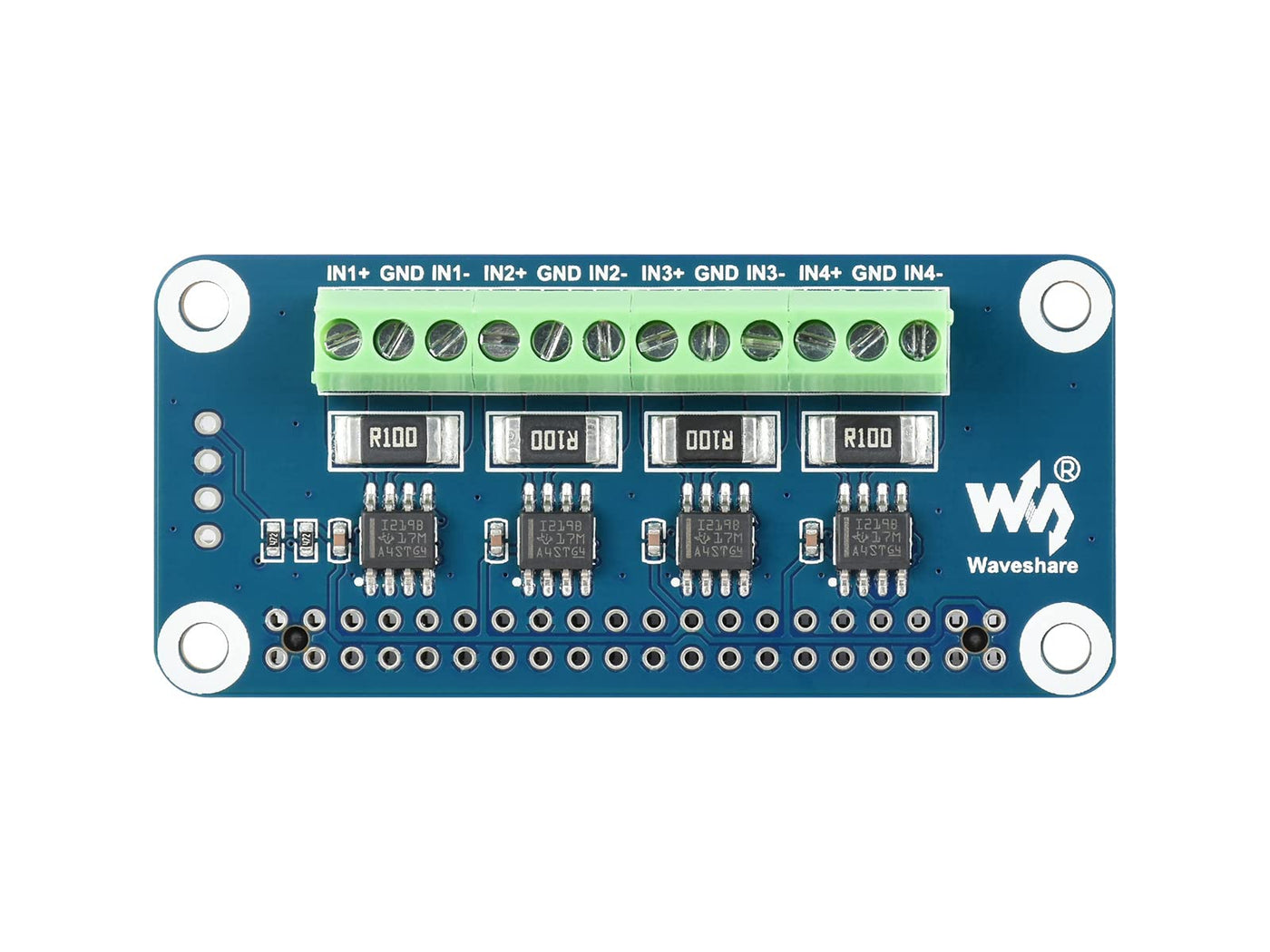

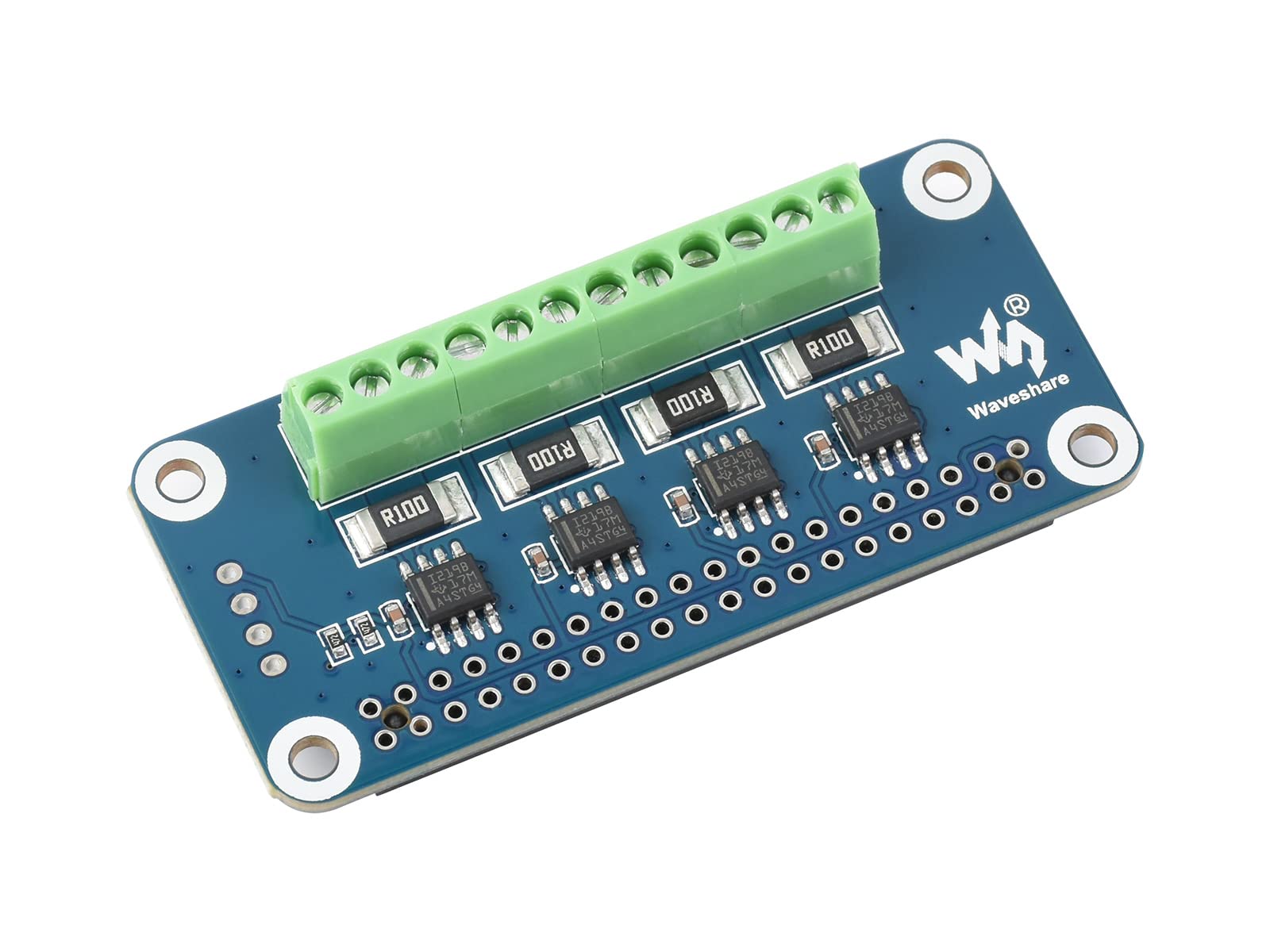

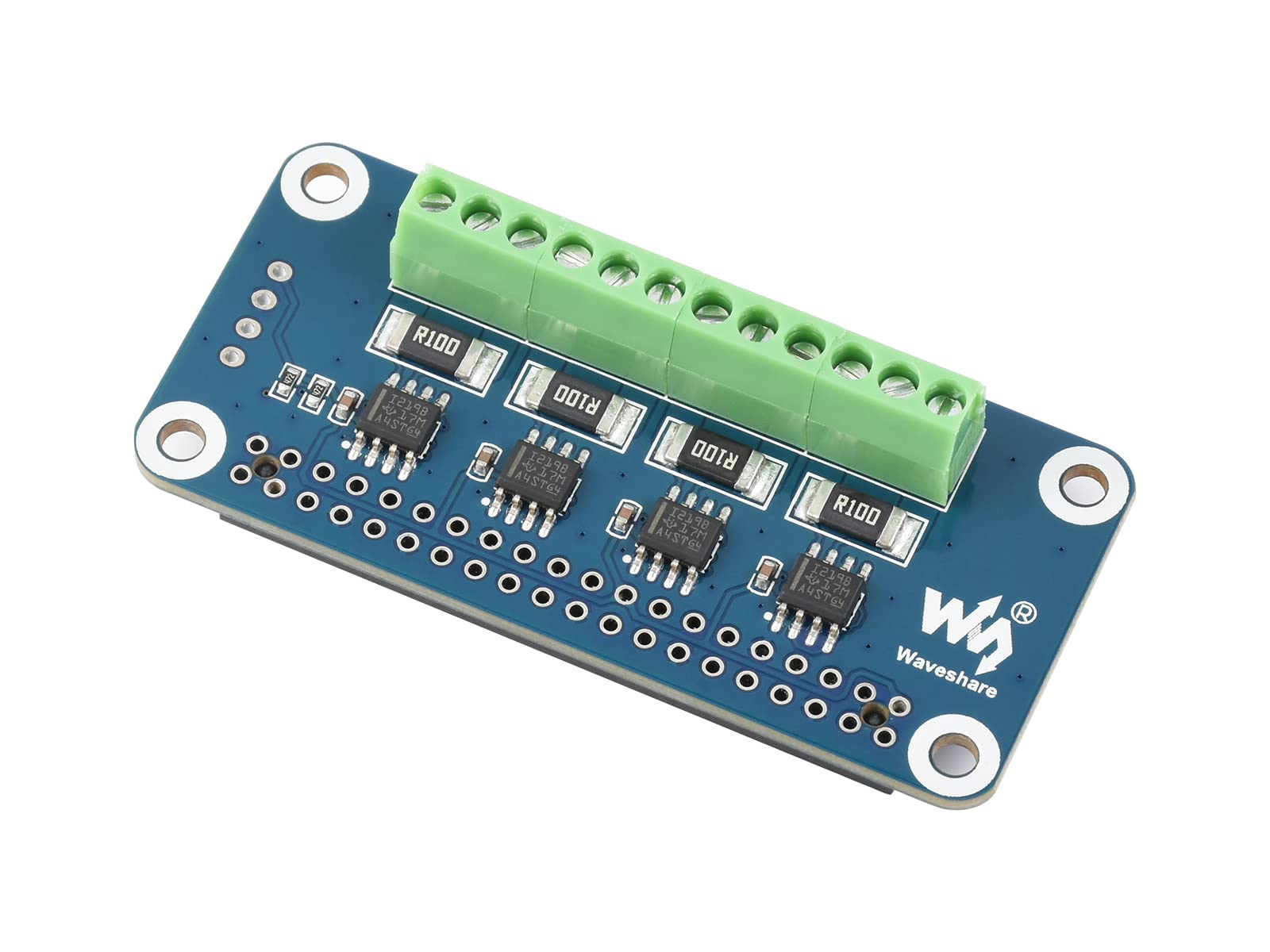

Waveshare 4-Ch Current/Voltage/Power Monitor Hat For Raspberry Pi With I2C/Smbus Interface

Frequently Asked Questions

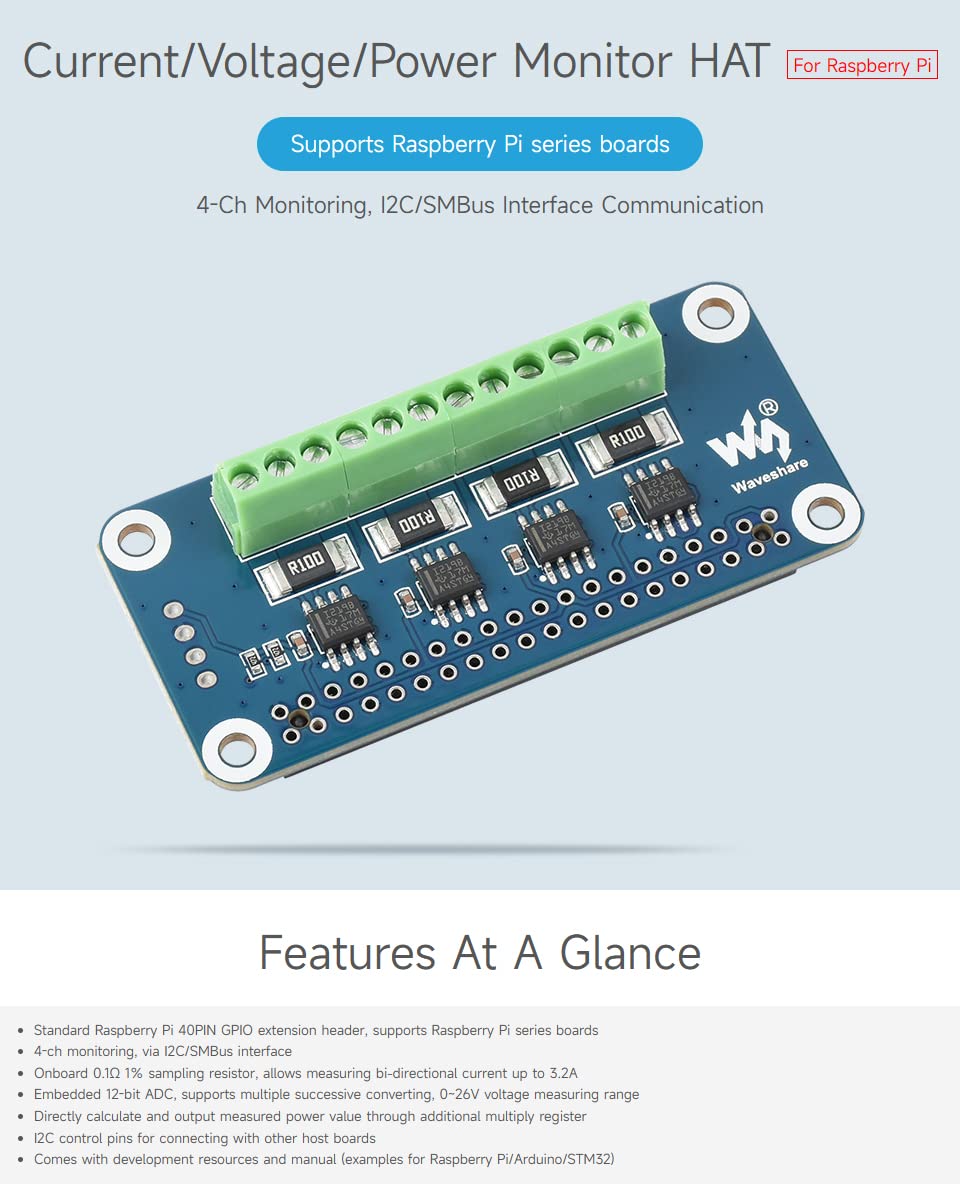

• Q: What are the key specifications of the Current/Power Monitor HAT? A: The Current/Power Monitor HAT supports a bi-directional current measurement up to three point two amperes. It features a twelve-bit ADC and a voltage measuring range of zero to twenty-six volts.
• Q: What kind of interface does the Current/Power Monitor HAT use? A: The Current/Power Monitor HAT uses an I2C/SMBus interface for easy connectivity. This allows it to connect seamlessly with Raspberry Pi series boards.
• Q: What is the size of the Current/Power Monitor HAT? A: The Current/Power Monitor HAT has a standard Raspberry Pi forty-pin GPIO extension header. Specific dimensions are not provided, but it fits standard Raspberry Pi configurations.
• Q: How do I install the Current/Power Monitor HAT? A: To install the Current/Power Monitor HAT, simply connect it to the Raspberry Pi's forty-pin GPIO header. Follow the included development resources for detailed setup instructions.
• Q: Is this product suitable for beginners? A: Yes, the Current/Power Monitor HAT is suitable for beginners. It comes with development resources and examples to facilitate easy usage with Raspberry Pi and STM32.

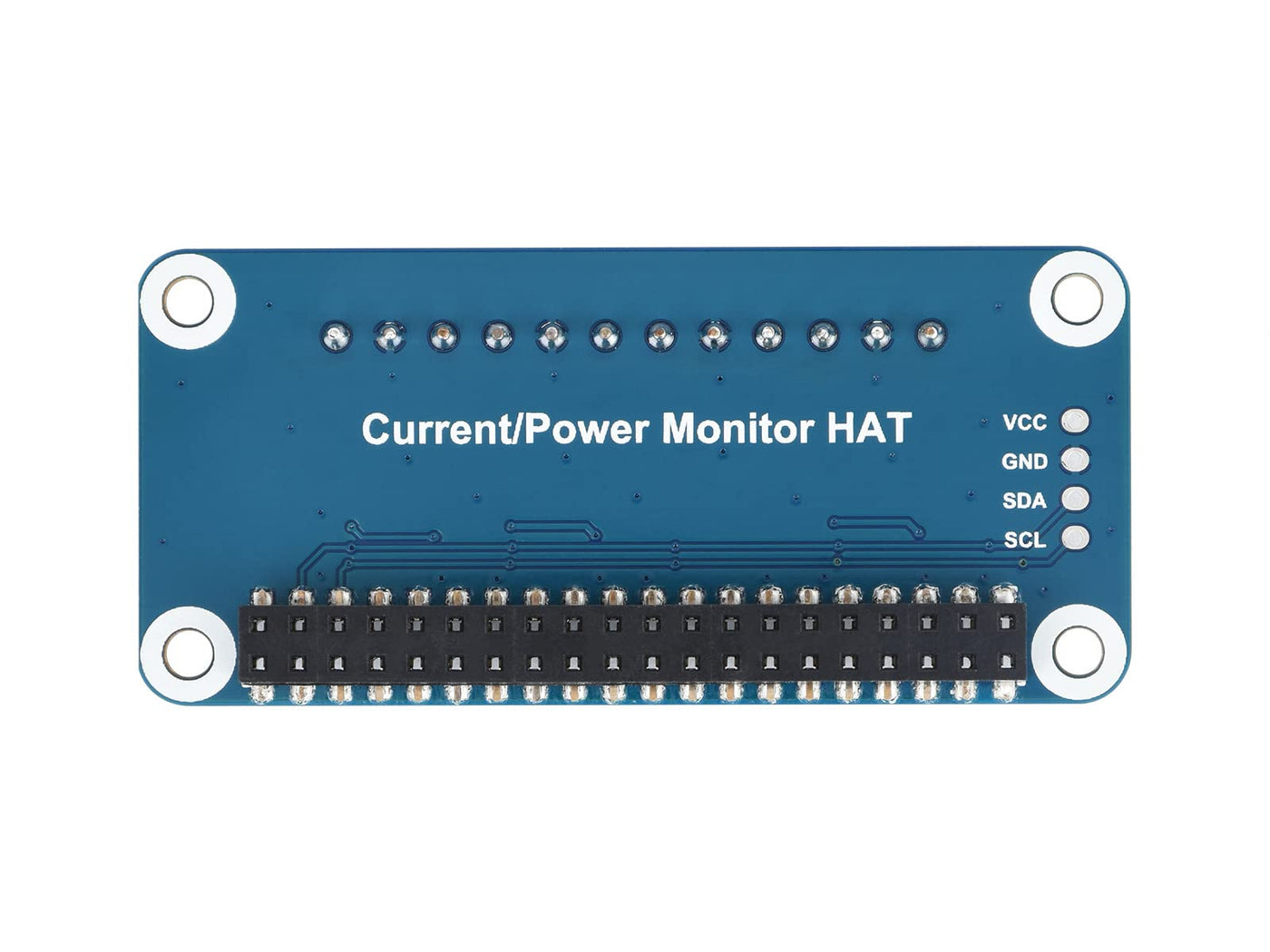

• Q: Can I use this HAT with other host boards? A: Yes, the Current/Power Monitor HAT can connect with other host boards via its I2C control pins. This feature enhances its versatility in various projects.
• Q: How do I keep the Current/Power Monitor HAT in good condition? A: To maintain the Current/Power Monitor HAT, avoid exposing it to moisture and extreme temperatures. Ensure it is stored in a dry environment to prolong its lifespan.
• Q: What safety precautions should I take when using this product? A: Always ensure the current does not exceed three point two amperes to avoid damage. Handle the device with care and follow the manufacturer's guidelines for safe usage.
• Q: What if the Current/Power Monitor HAT arrives damaged? A: If the Current/Power Monitor HAT arrives damaged, contact the seller immediately for a return or replacement. Keep the original packaging for a smooth return process.
• Q: Does this HAT have any warranty? A: Yes, the Current/Power Monitor HAT typically comes with a manufacturer's warranty. Check with the seller regarding specific warranty terms and conditions.
• Q: How does the Current/Power Monitor HAT measure power? A: The Current/Power Monitor HAT calculates power using an onboard multiply register. It directly outputs the measured power value based on the current and voltage readings.
• Q: Is this HAT compatible with Raspberry Pi models? A: Yes, the Current/Power Monitor HAT is compatible with various Raspberry Pi series boards. It connects through the standard forty-pin GPIO header.
• Q: What development resources come with the Current/Power Monitor HAT? A: The Current/Power Monitor HAT includes development resources and a manual. It provides examples for both Raspberry Pi and STM32 to assist users.
• Q: What features enhance the usability of this HAT? A: Key features include bi-directional current monitoring, a twelve-bit ADC, and the ability to connect with other host boards via I2C. These functionalities enhance its usability.
• Q: Can I use this HAT for advanced projects? A: Yes, the Current/Power Monitor HAT is suitable for advanced projects. Its features allow for detailed power monitoring and integration with various systems.
