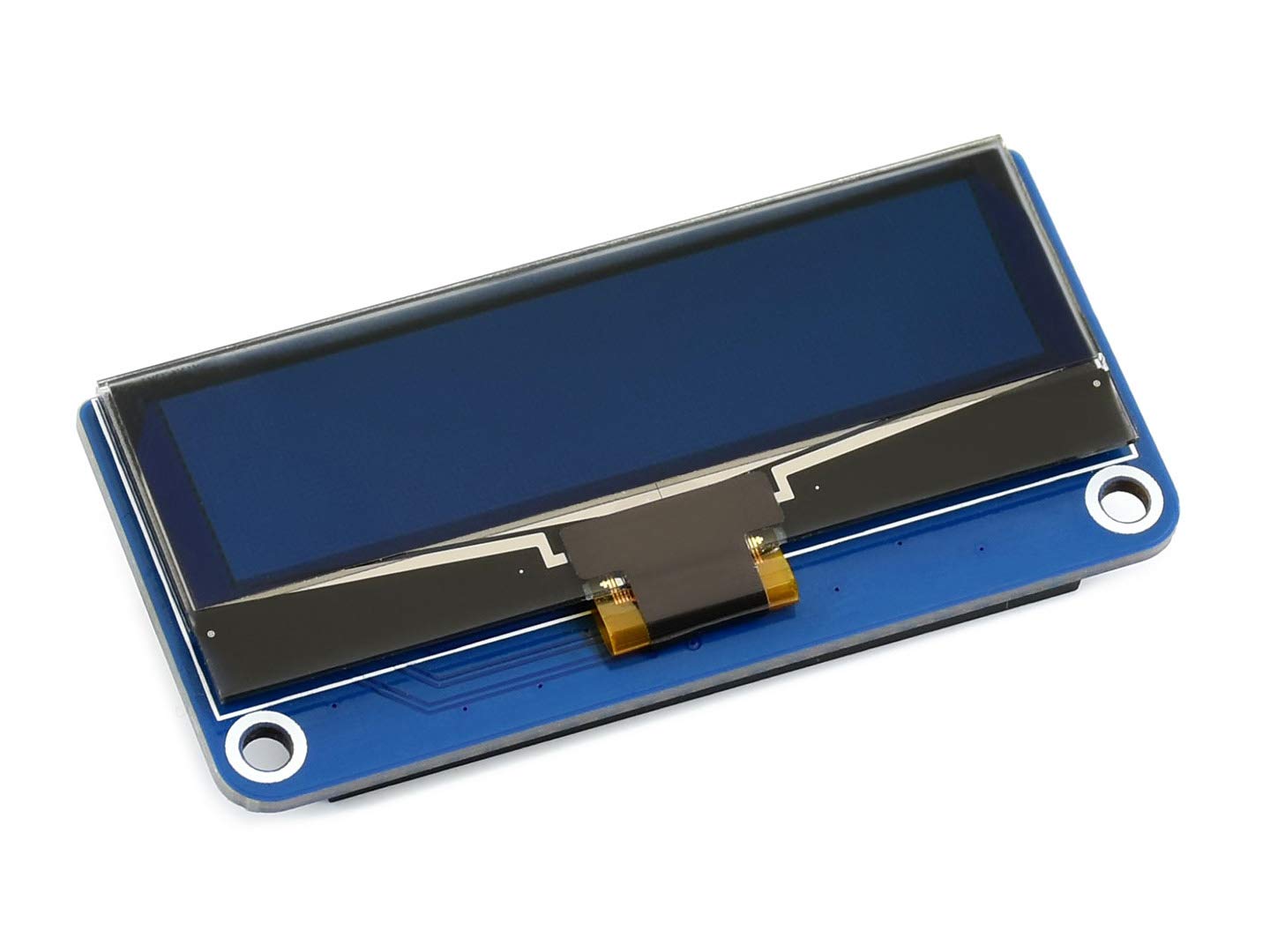

Waveshare 2.23Inch Oled Display Hat For Raspberry Pi 128 32 Pixels With Embedded 1305 Driver Communicating Via Spi Or I2C Inter
$30.37
Frequently Asked Questions
- Q: What is the resolution and display size of the Waveshare 2.23inch OLED Display HAT? A: The Waveshare 2.23inch OLED Display HAT features a resolution of 128×32 pixels and has a diagonal display size of 2.23 inches.
- Q: How does the OLED Display HAT communicate with Raspberry Pi? A: The OLED Display HAT communicates with Raspberry Pi via SPI (default) or I2C interface, which can be configured using an onboard resistor.

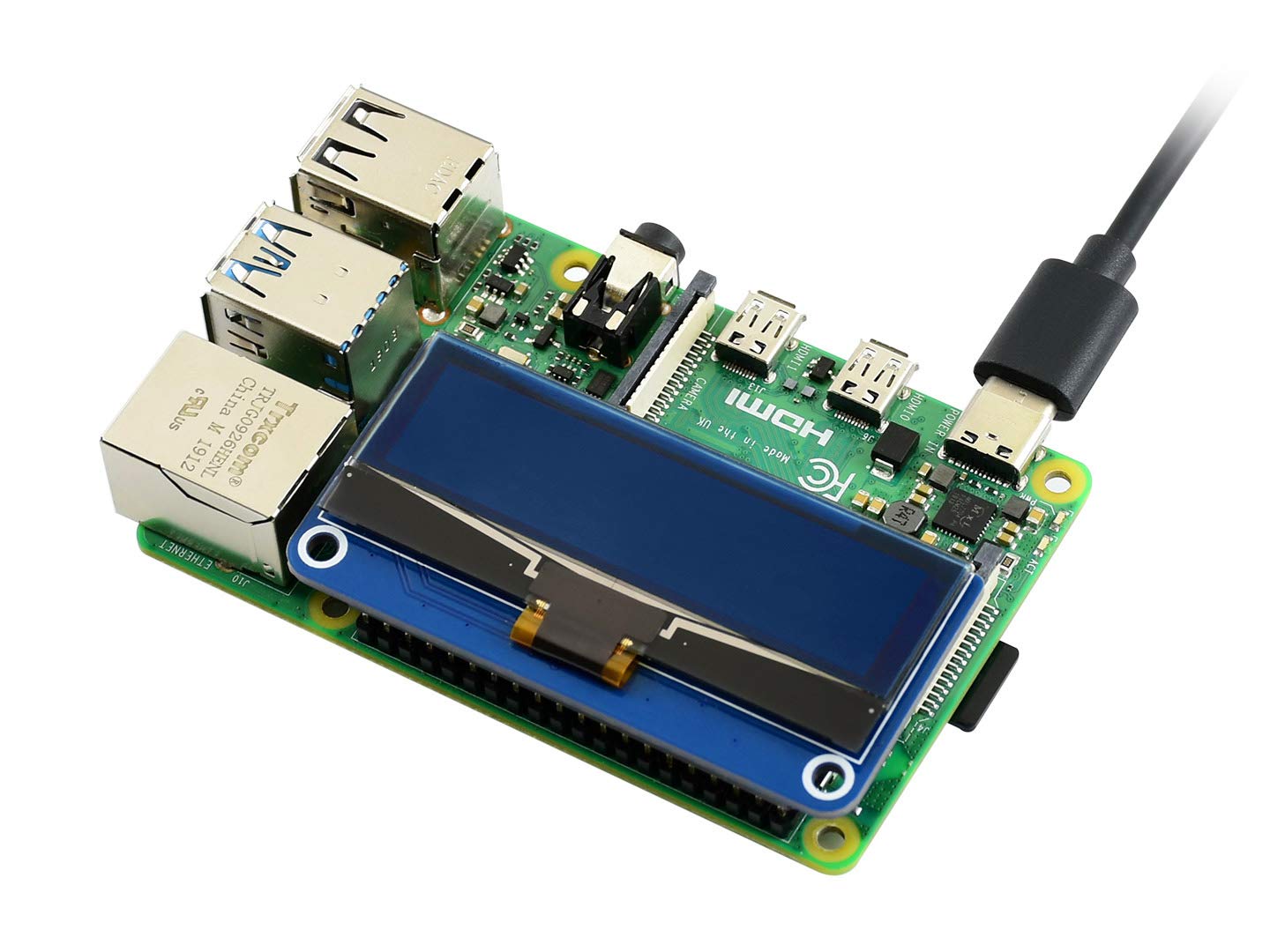

- Q: Is the Waveshare OLED Display HAT compatible with other boards? A: Yes, the Waveshare OLED Display HAT is compatible with Raspberry Pi series boards, Jetson Nano, and also provides control pins for host boards like Arduino and STM32.
- Q: What power supply voltage does the OLED Display HAT require? A: The OLED Display HAT requires a power supply voltage of either 3.3 V or 5 V.
- Q: Does the product come with any development resources? A: Yes, the Waveshare 2.23inch OLED Display HAT comes with development resources and a manual that includes examples for Raspberry Pi, Jetson Nano, Arduino, and STM32.
