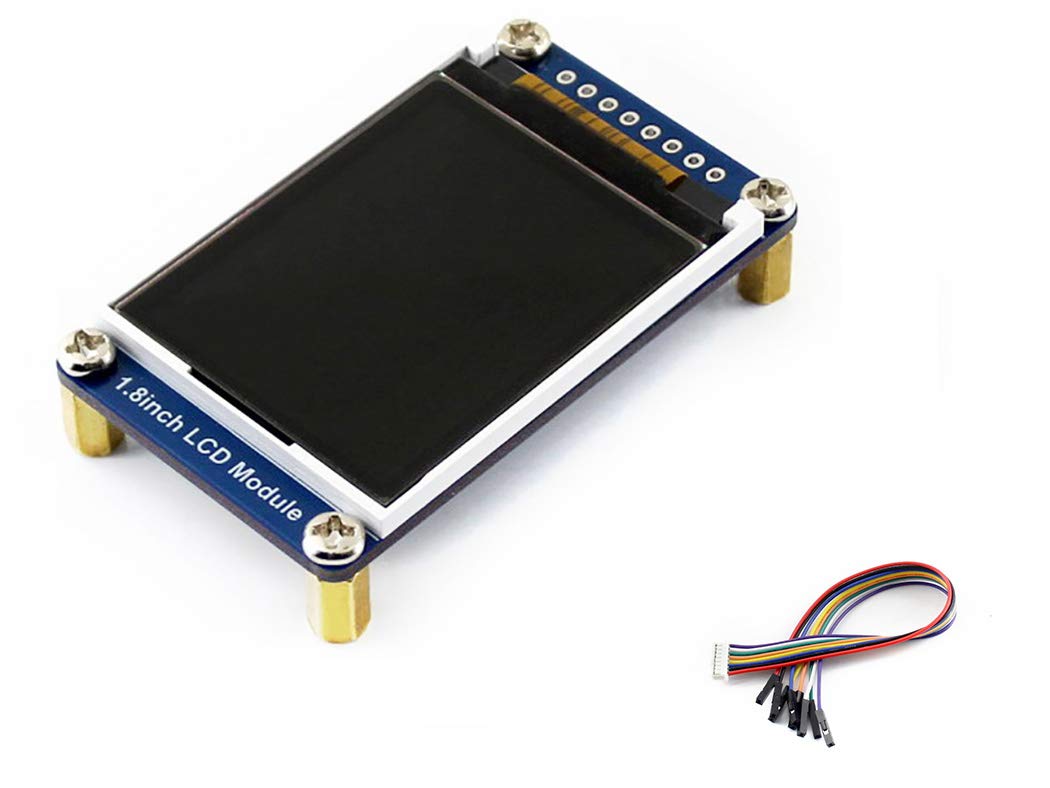

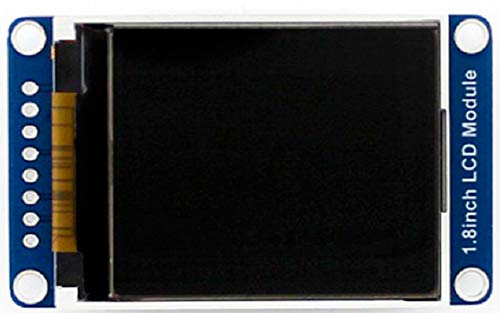

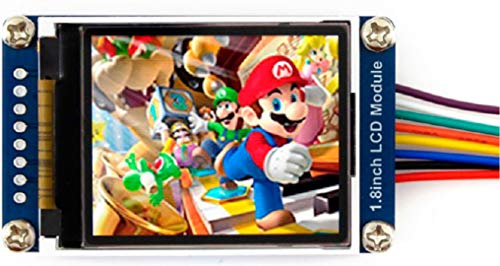

waveshare 1.8inch LCD Display Module 128x160 Pixels Embedded Controller Communicating via SPI interface. RGB, 65K Display Color
Free Standard Shipping Across USA
Couldn't load pickup availability
Refresh
Sold by Electroeshop, an authorized reseller.
Returns accepted within 30 days | support@electroeshop.com
Verified
Shipping Information
Free Standard Shipping — United States only
Processing Time: 3–5 business days
Estimated Delivery: 6–10 business days after dispatch
Double-boxed, fully insured & discreetly packaged
Tracking number sent via email once dispatched
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · 25% restocking fee applies
Return Authorization (RA) number before sending.
View Full Return & Refund Policy
Your Cart
Item(s):
Total: $0.00
waveshare 1.8inch LCD Display Module 128x160 Pixels Embedded Controller Communicating via SPI interface. RGB, 65K Display Color
$18.99
Sold Out

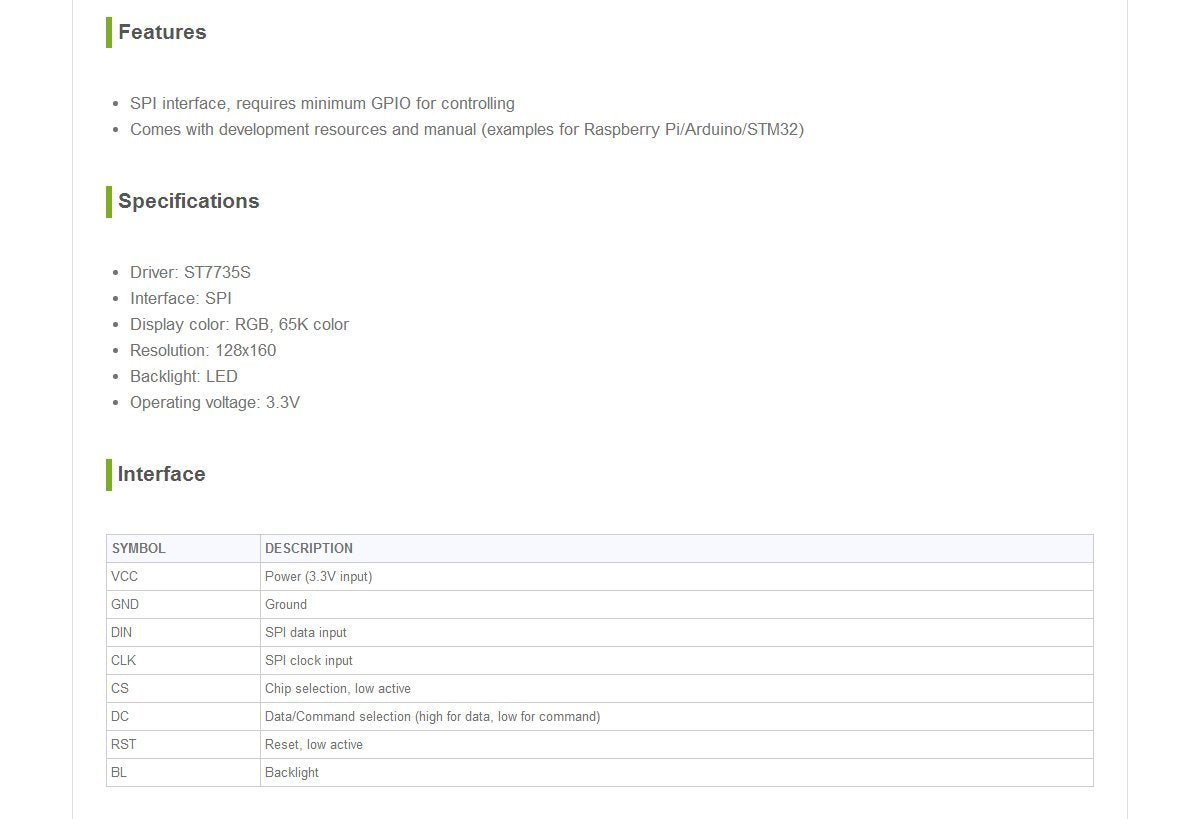

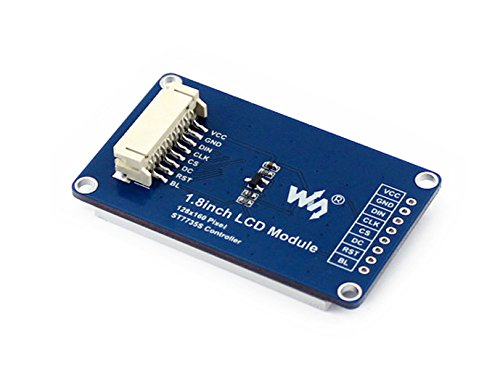

Overview This is a general LCD display Module, 1.8inch diagonal, 128x160 pixels, with embedded controller, communicating via SPI interface. Features SPI interface, requires minimum GPIO for controlling Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32) Specifications Driver: ST7735S Interface: SPI Display color: RGB, 65K color Resolution: 128x160 Backlight: LED Operating voltage: 3.3V/5V Interface VCC ---Power (3.3V/5V input) GND---Ground DIN ---SPI data input CLK---SPI clock input CS---Chip selection, low active DC---Data/Command selection (high for data, low for command) RST---Reset, low active BL---Backlight LCD and the controller ST7735S is a 132*162 pixel LCD, and this product is a 128*160 pixel LCD, so some processing has been done on the display: the display starts from the second pixel in the horizontal direction, and the first pixel in the vertical direction. Start to display, so as to ensure that the position corresponding to the RAM in the LCD is consistent with the actual position when displayed. The LCD supports 12-bit, 16-bit and 18-bit input color formats per pixel, namely RGB444, RGB565, RGB666 three color formats, this routine uses RGB565 color format, which is also a commonly used RGB format The LCD uses a four-wire SPI communication interface, which can greatly save the GPIO port, and the communication speed will be faster. Online Document/User Manual: //bit.ly/3CtXZV6 Package Content 1.8inch LCD Module x1 PH2.0 20cm x1
