waveshare 1.3inch LCD Display HAT for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/Zero WH, IPS Screen 240x240 Pixels RGB, 65K Display
$22.78
Sold Out

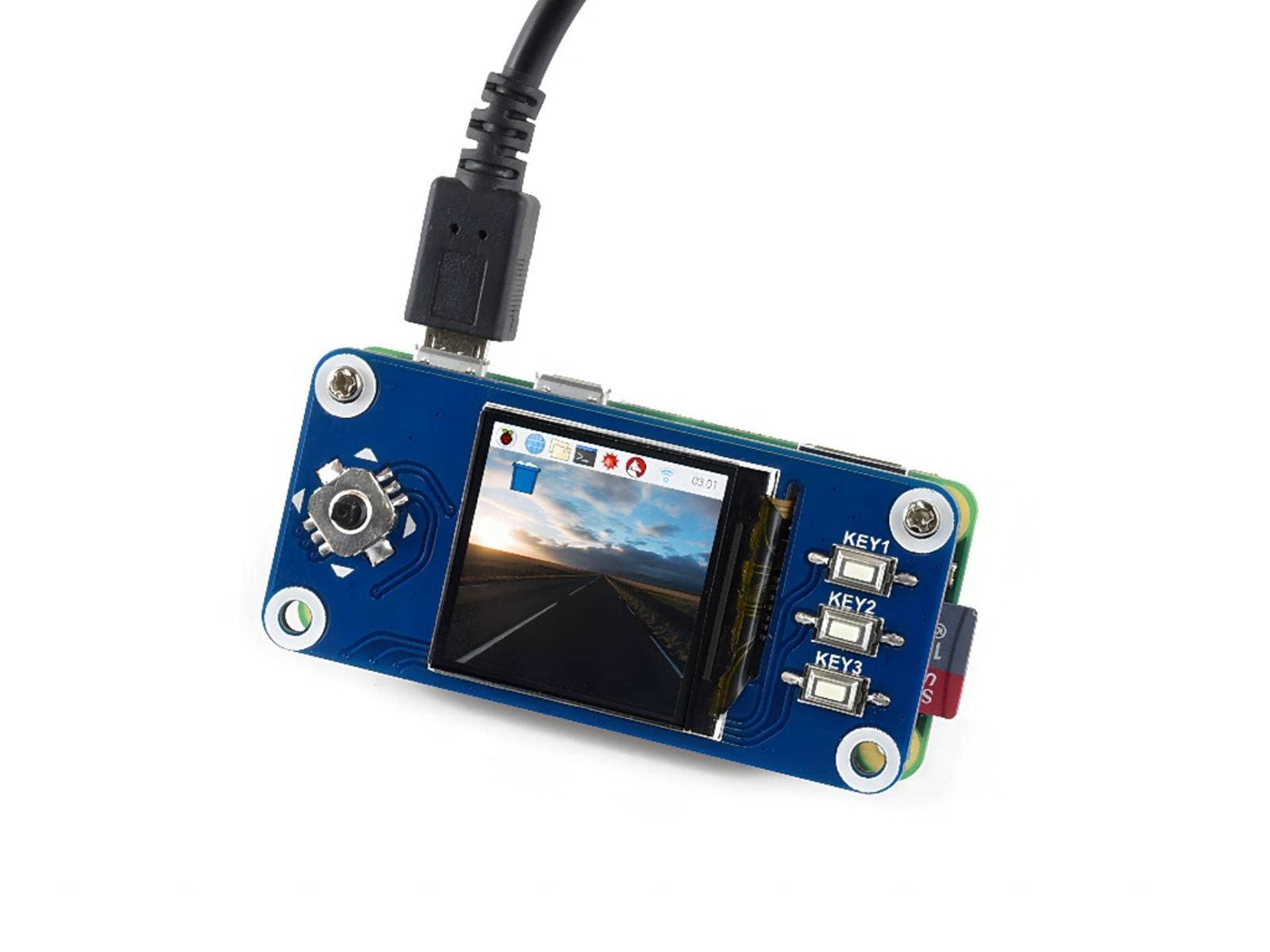

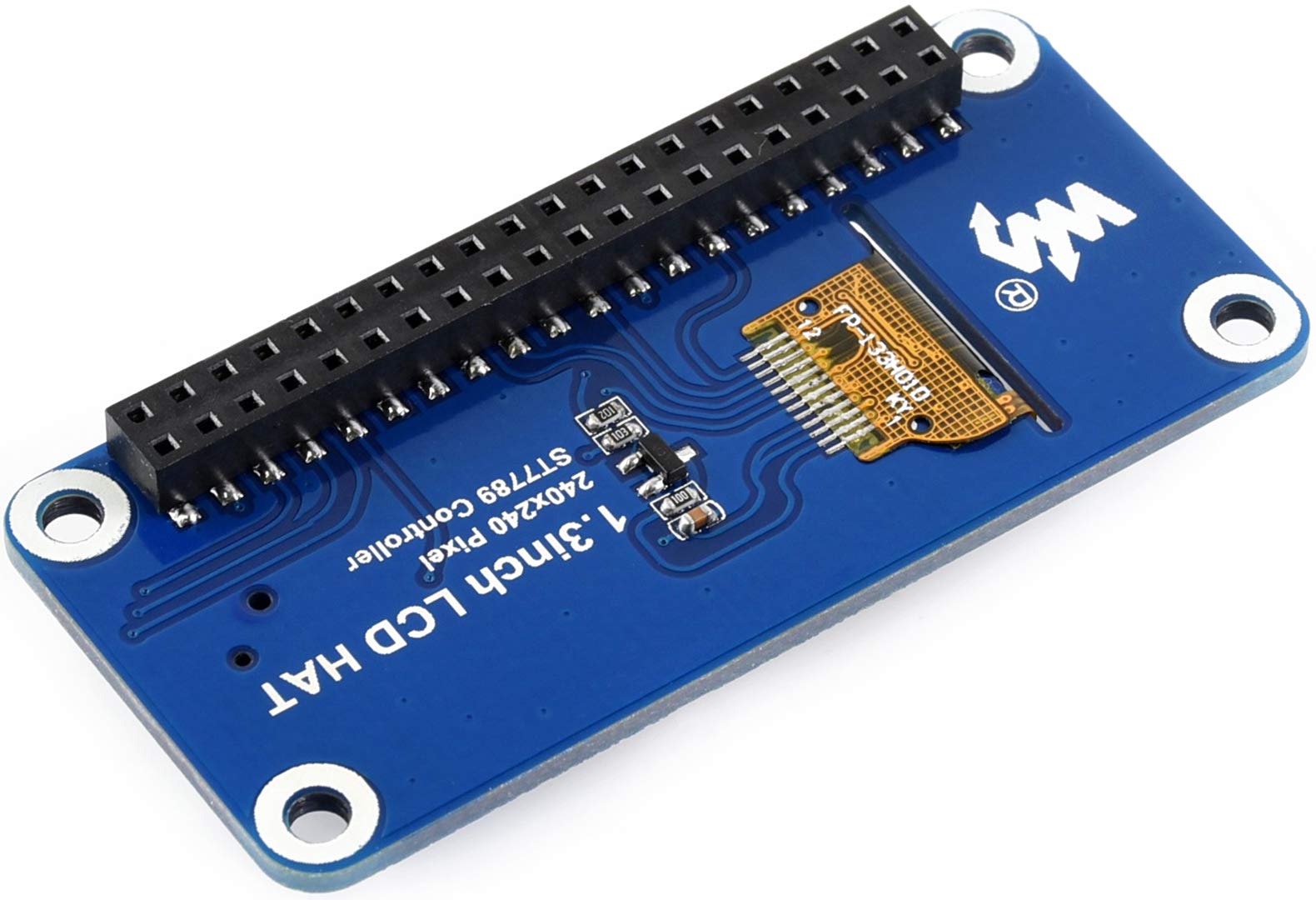

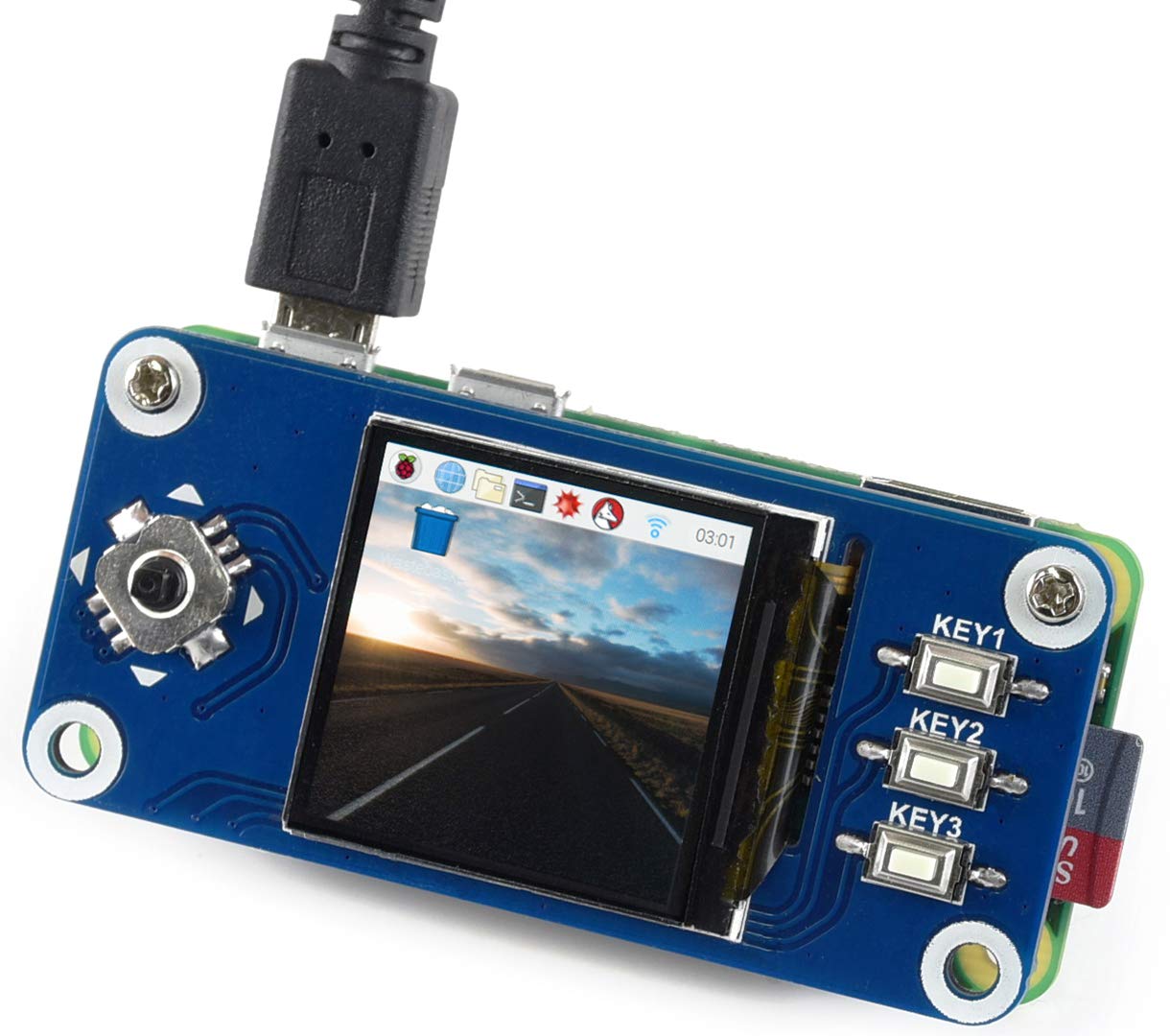

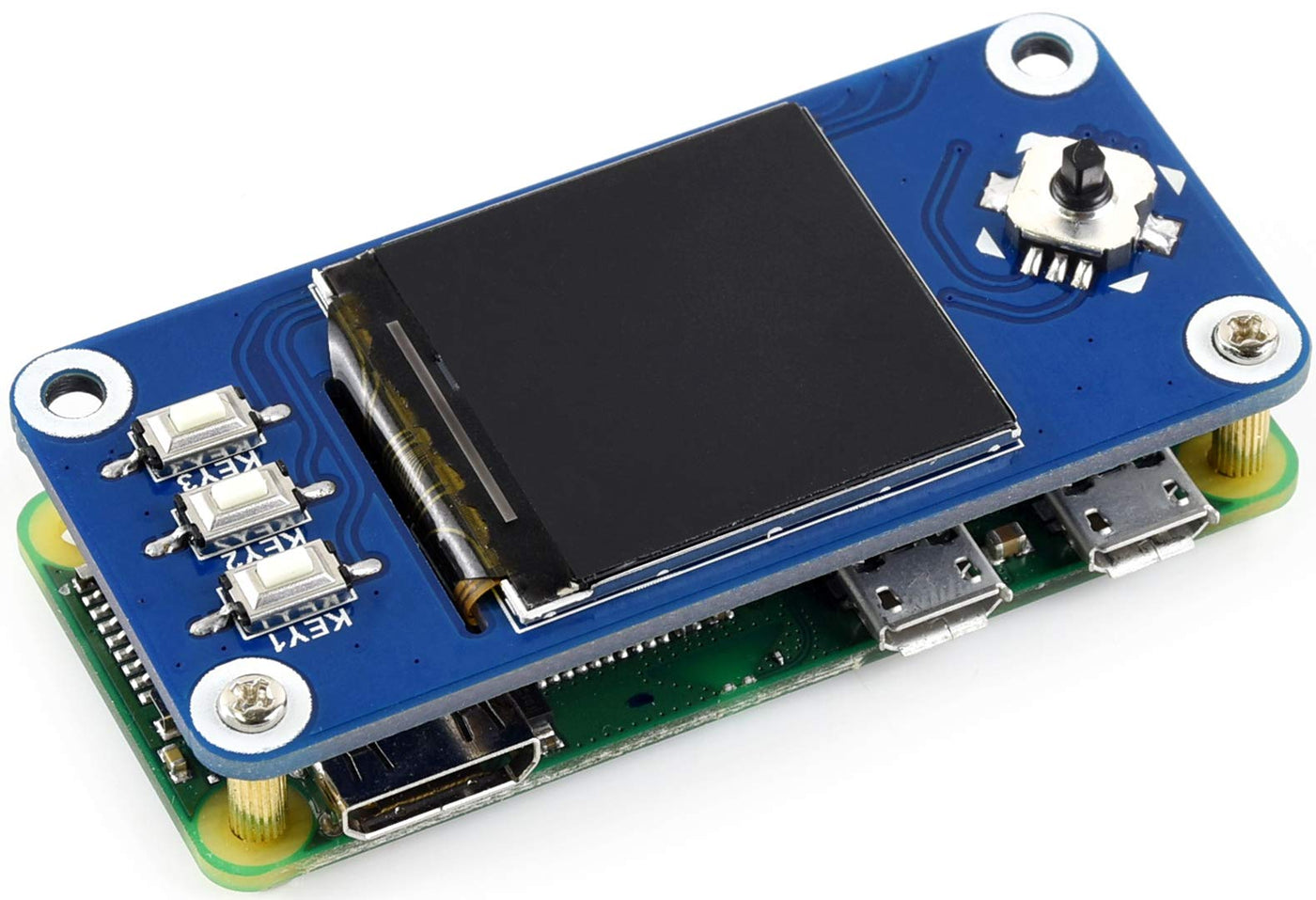

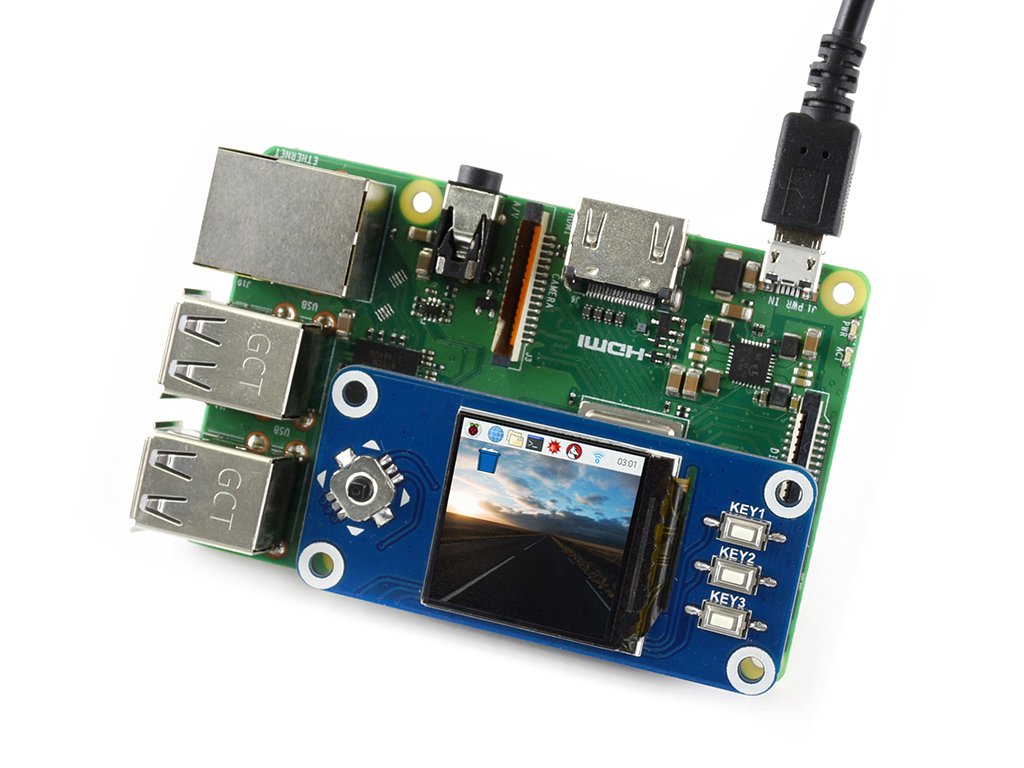

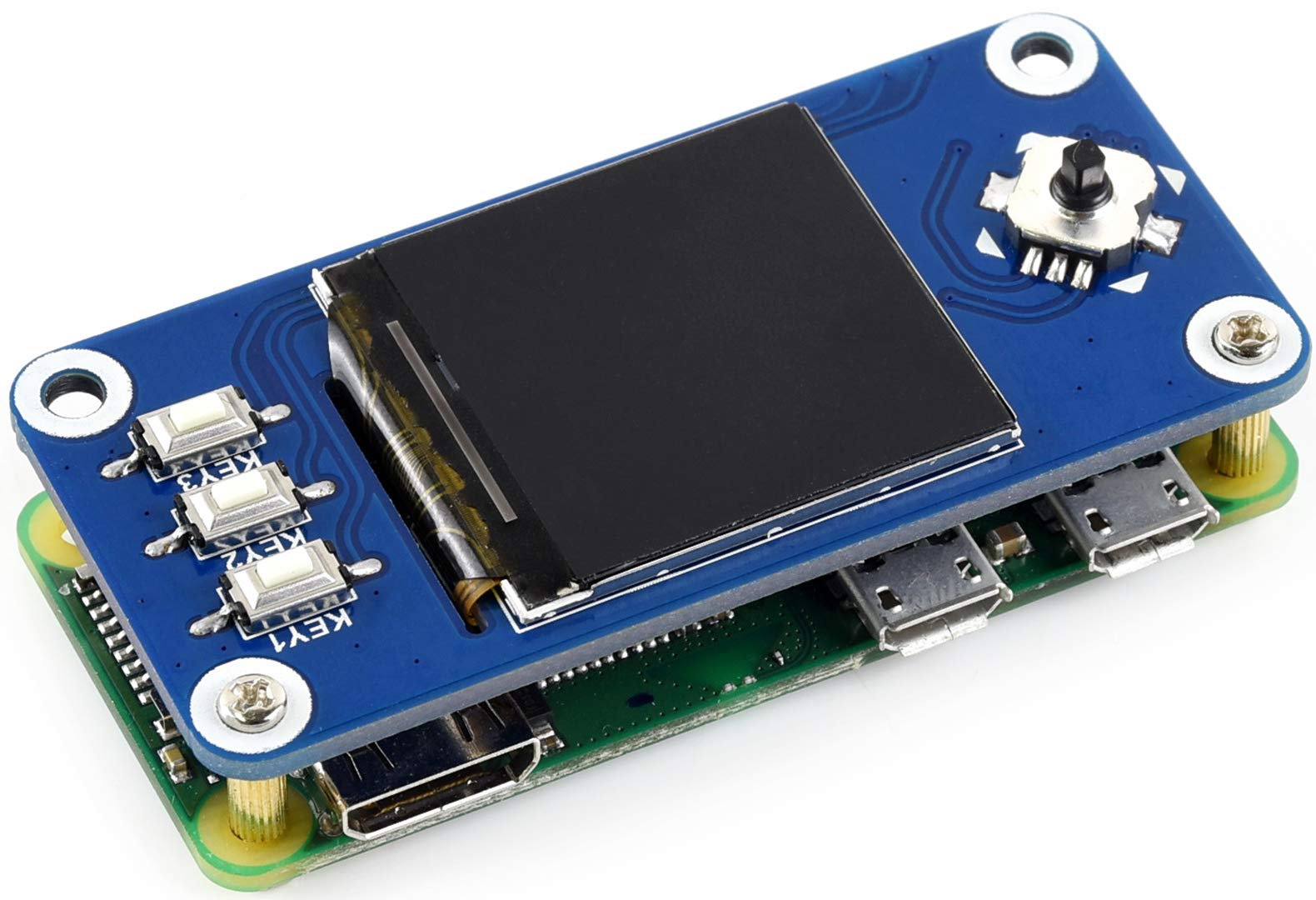

Overview This is an IPS LCD display HAT for Raspberry Pi, 1.3inch diagonal, 240x240 pixels, with embedded controller, communicating via SPI interface. Trying to add a control interface for your Pi? This compact display would be the ideal choice. Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards IPS screen, wide viewing angle, better display High definition in small size 1x joystick, 3x pushbuttons, handy and useful Comes with development resources and manual (examples for Raspberry Pi) Specifications Operating voltage: 3.3V Interface: SPI LCD type: IPS Controller: ST7789VM Resolution: 240(H)RGB x 240(V) Display size: 23.4(H)x 23.4(V)mm Pixel size: 0.0975(H)x 0.0975(V)mm Dimension: 65 x 30.2(mm) User Manual/How to use: //bit.ly/3gcUJWw LCD and the controller The ST7789VW is a single-chip controller/driver for 262K-color, graphic type TFT-LCD. It consists of 240 source line and 320 gate line driving circuits. The resolution of this LCD is 240 (H) RGB x 240(V), it supports horizontal mode and vertical mode, and it doesnt use all the RAM of the controller. This LCD accepts 8-bits/9-bits/16-bits/18-bits parallel interface, that are RGB444, RGB565, RGB666. The color format used in demo codes is RGB565. This LCD use a 4-line SPI interface for reducing GPIO and fast speed.LCD. Package Content 1.3inch LCD HAT x1 RPi screws pack (2pcs) x1
