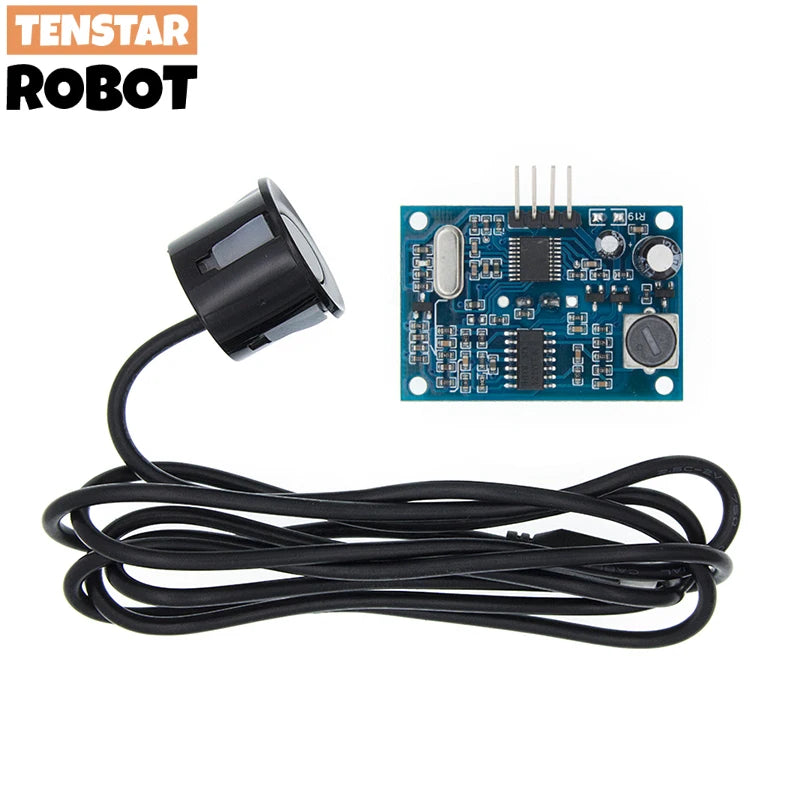

Waterproof Ultrasonic Module JSN-SR04T Water Proof Integrated Distance Measuring Transducer Sensor

Waterproof Ultrasonic Module JSN-SR04T Water Proof Integrated Distance Measuring Transducer Sensor

Regular price $5.71
5 available

Free Standard Shipping Across USA

Vendor: Electroeshop

Type:

Availability: In Stock

Default Title :

Default Title

Wishlist

Guarantee safe checkout

Sold by Electroeshop, an authorized reseller.

Returns accepted within 30 days | support@electroeshop.com

Verified

Shipping Information

Free Standard Shipping — United States only
Processing Time: 3–5 business days
Estimated Delivery: 6–10 business days after dispatch
Double-boxed, fully insured & discreetly packaged
Tracking number sent via email once dispatched

Returns & Refund

Returns accepted within 30 days of delivery.

Damaged or Defective Item

Free return shipping + replacement or full refund

Wrong Item Received

Free return shipping + replacement or full refund

Change of Mind

Return shipping at customer's expense · 25% restocking fee applies

All returns require a Return Authorization (RA) number before sending.

To initiate a return, contact us:

support@electroeshop.com +1 (281) 738-1060

View Full Return & Refund Policy

Waterproof Ultrasonic Module JSN-SR04T Water Proof Integrated Distance Measuring Transducer Sensor - Default Title

Default Title

$5.71

Description Safety & Compliance

SPECIFICATIONS

Brand Name: TENSTAR ROBOT

Choice: yes

High-concerned chemical: none

Material: Metal

Origin: Mainland China

Output: Switching Transducer

Theory: Ultrasonic Sensor

Type: Sound Sensor

Use: Position Sensor

is_customized: Yes

Electrical parameters: JSN-SR04T

Operating voltage: DC 5V

Quiescent current: 5mA

Total current work: 30mA

Acoustic emission frequency: 40khz

Farthest distance: 4.5m

Blind: 25cm

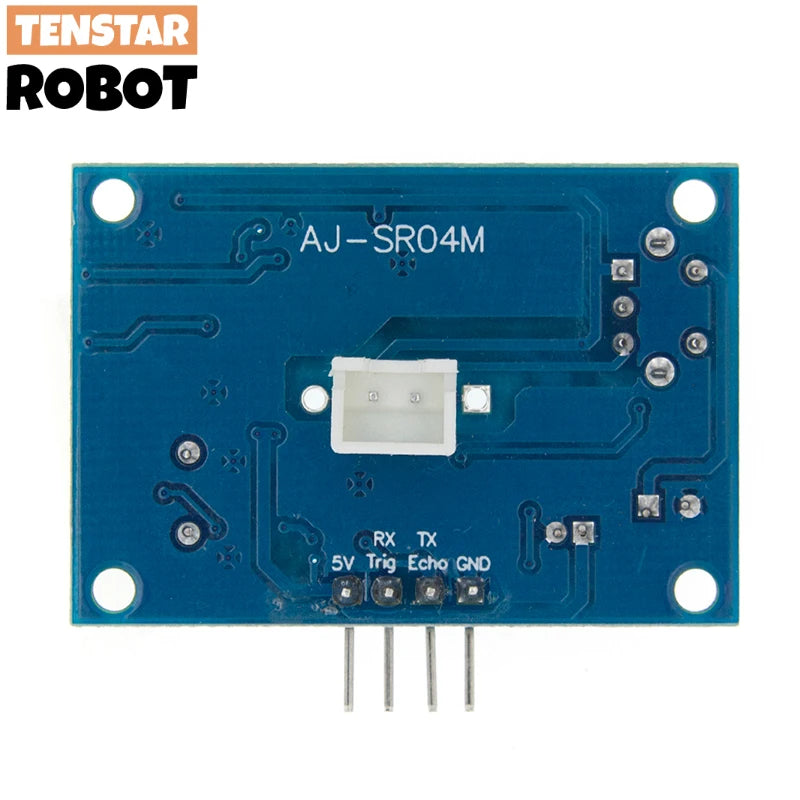

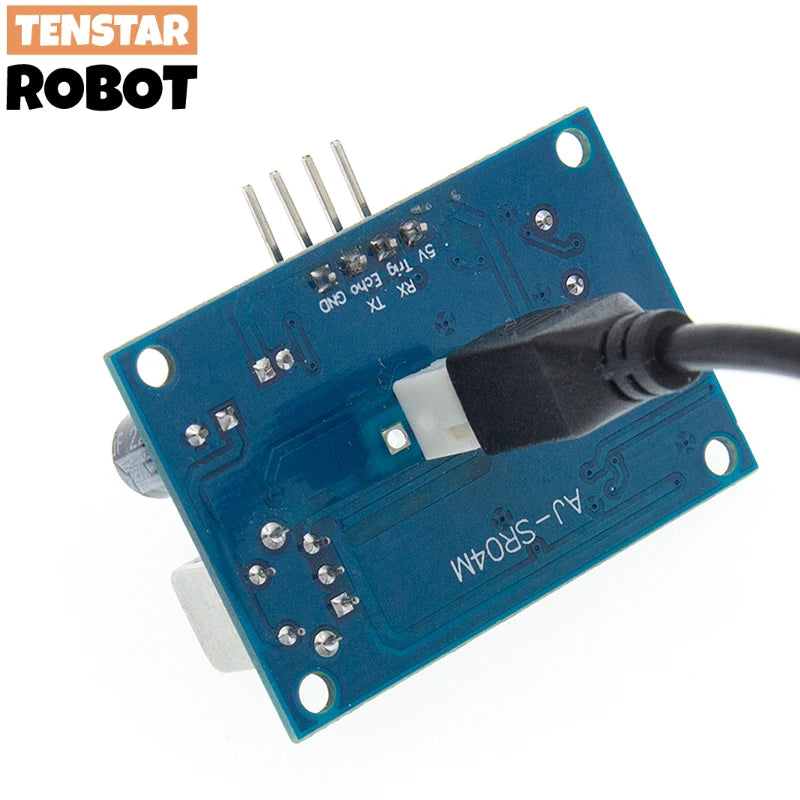

Wiring: + 5V (positive power supply)

Trig (control side) RX

Echo (the receiver) TX

GND (negative)

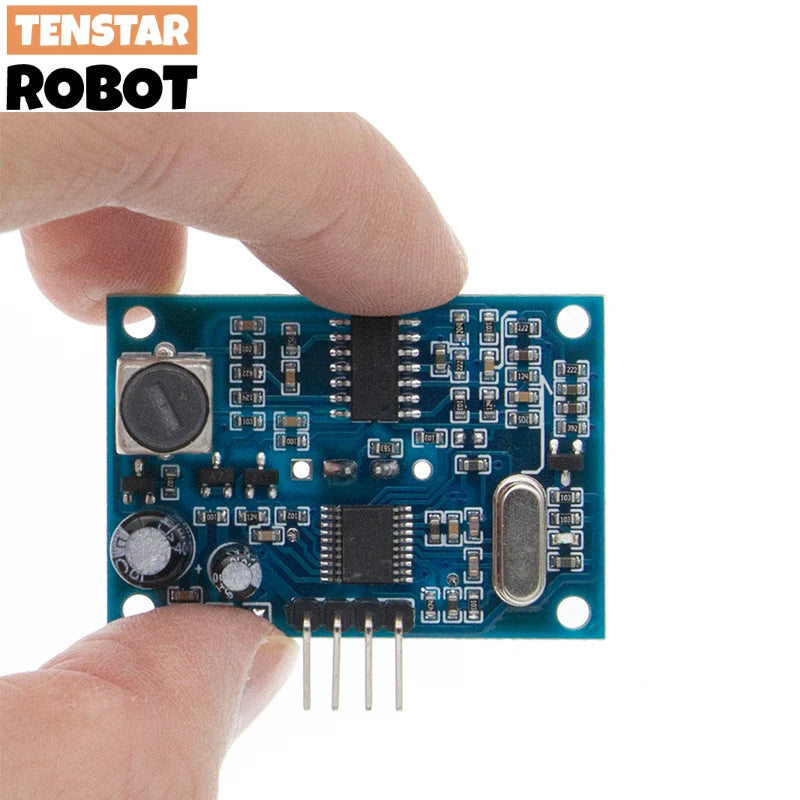

Module size: 41mm * 28.5mm

Resolution: about 0.5cm

Angle: less than 50 degrees

Working temperature: -10 ~ 70 °

Storage temperature: -20 ~ 80 °

Product Features:

1, small size, easy to use;

2, low voltage, low power consumption;

3, high accuracy;

4, strong anti-jamming;

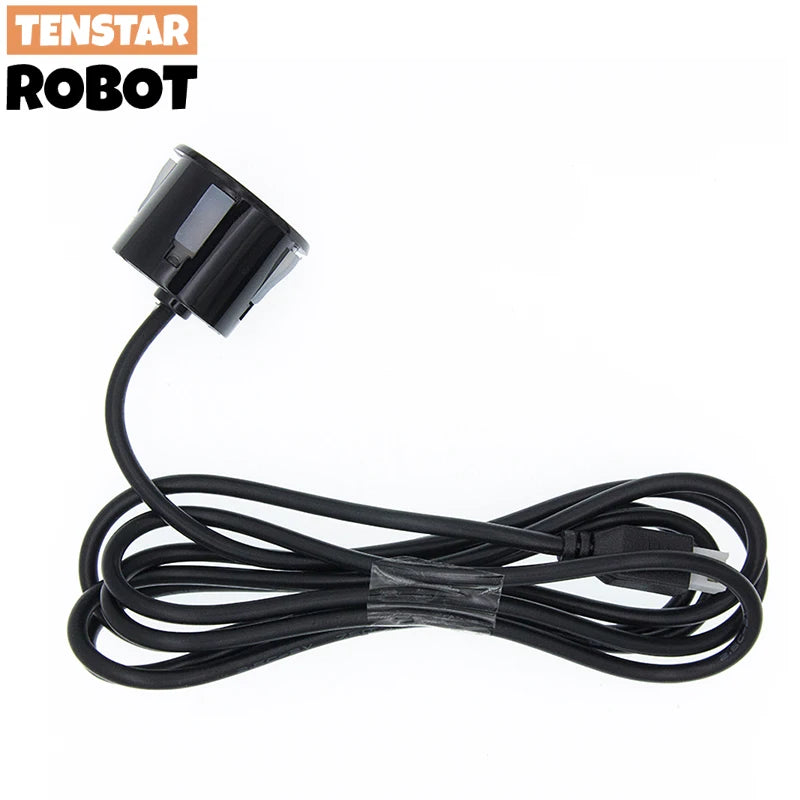

5, integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions.

Application:

1, Horizontal distance;

2, obstacle avoidance, automatic control;

3, the object approaches, there is a perceived

4, traffic control;

5, security, industrial control;

6, artificial intelligence, and research

The basic working principle:

(1) using IO port TRIG trigger location, to the high level signal of at least 10us;

(2) module automatically sends 8 40KHz Fang Bo, automatic detecting whether a signal return;

(3) a signal return, a high level is output through the IO port ECHO, the time duration of the high level is

ultrasonic from launch to return. The test distance = (high level time * speed of sound (340M/S)) /2;

This module uses the simple method, a control port with a 10US above high level, can wait for high level

output at the receiving port. An output can drive the timer, when this port is low can read the timer value,

this time for the location of the time, can be calculated distance. So constantly cycle test, that can achieve

the measurement of the value of your mobile.
