Vsdisplay 9.7 Inch 2048X1536 Ips Lcd Lp097Qx1/ Ltl097Ql01/ Hq097Qx1 With Hd Mi Controller Board Fit For Diy Cabinet Monitor

Frequently Asked Questions

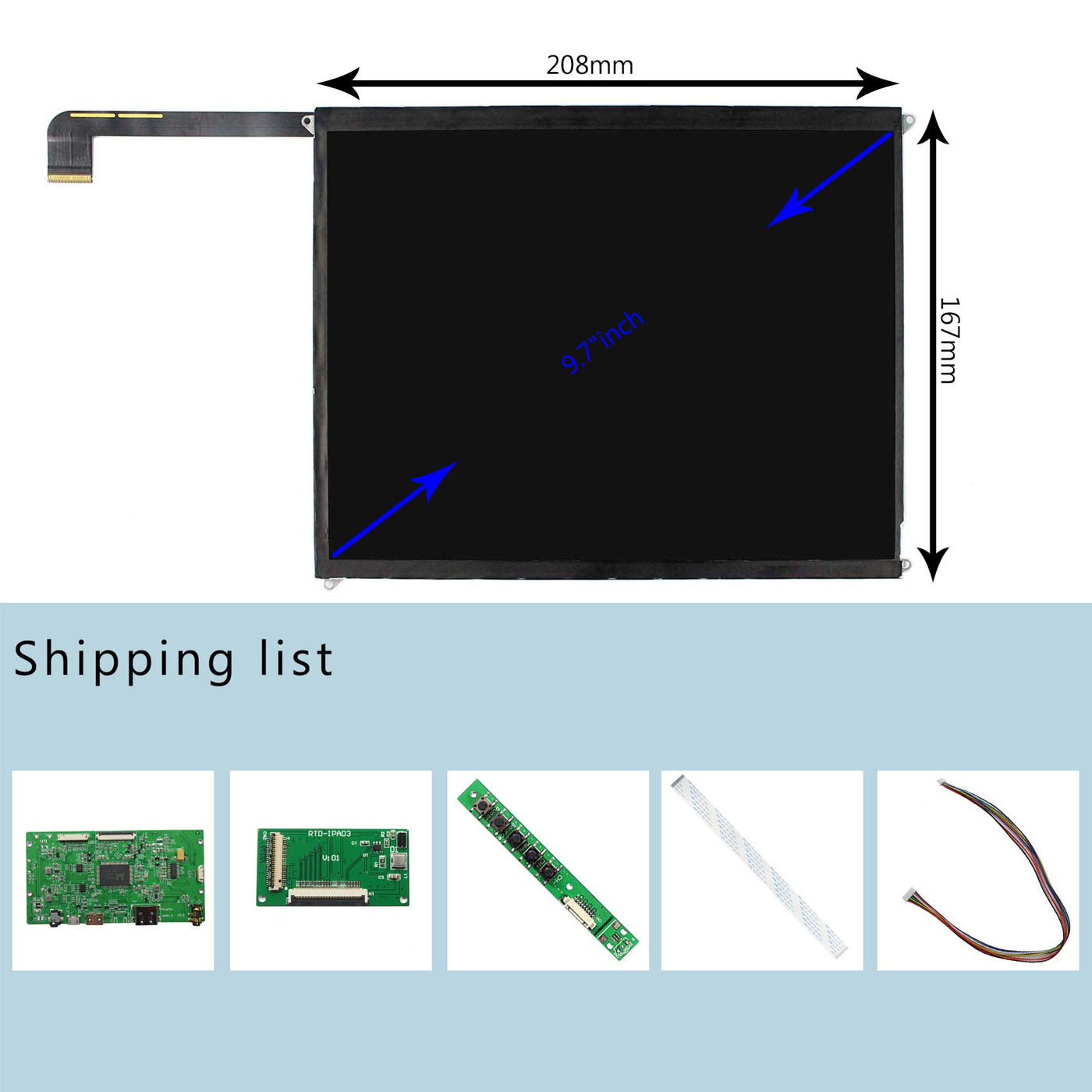

• Q: What are the dimensions of the VSDISPLAY 9.7 inch display? A: The dimensions are approximately eight point two three inches wide by six point five eight inches tall and zero point two inches deep.
• Q: What is the resolution of the LCD screen? A: The resolution is two thousand forty-eight by one thousand five hundred thirty-six pixels, offering high-definition clarity.

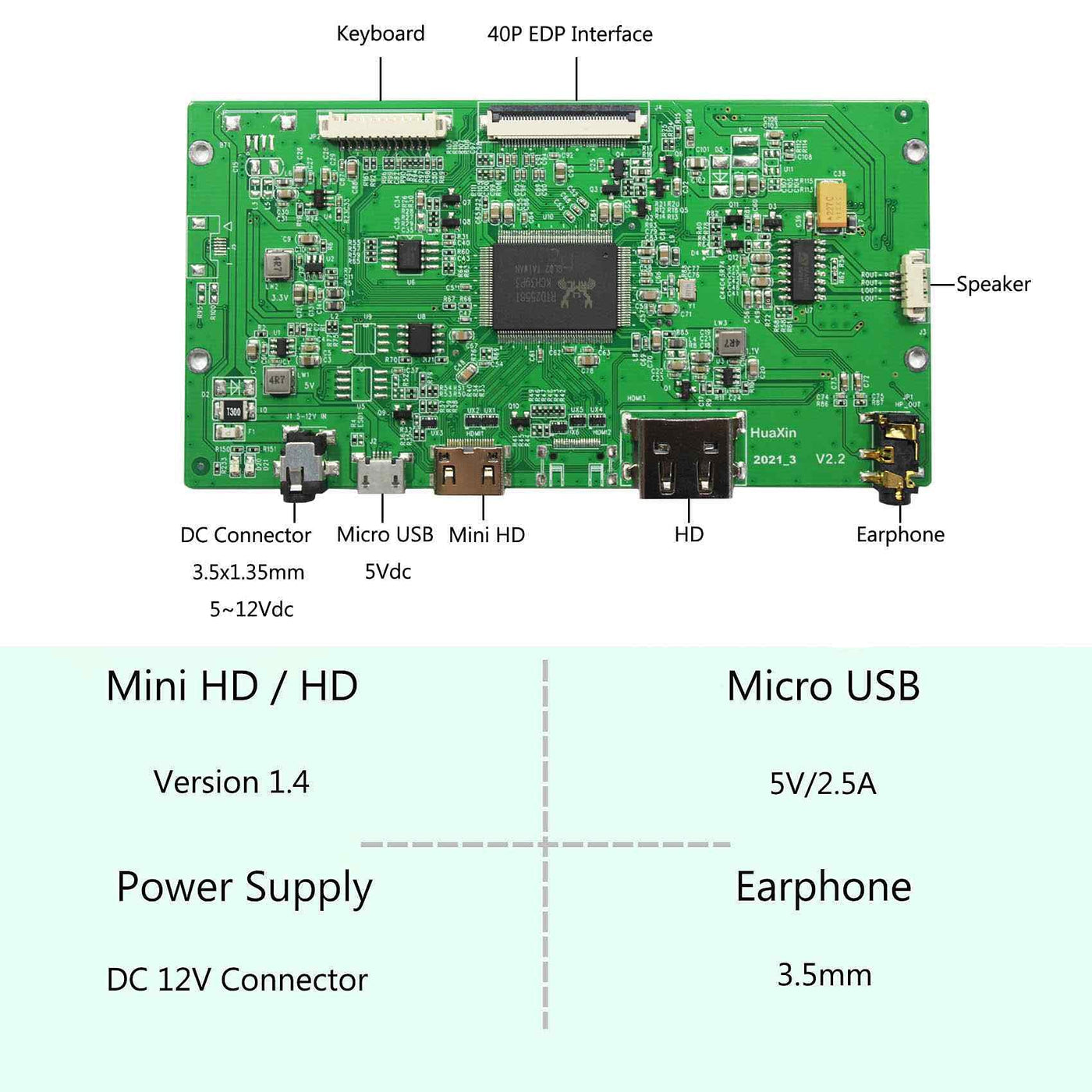

• Q: What type of interface does the LCD use? A: The interface is eDP, specifically with fifty-one pins and four lanes for optimal connectivity.

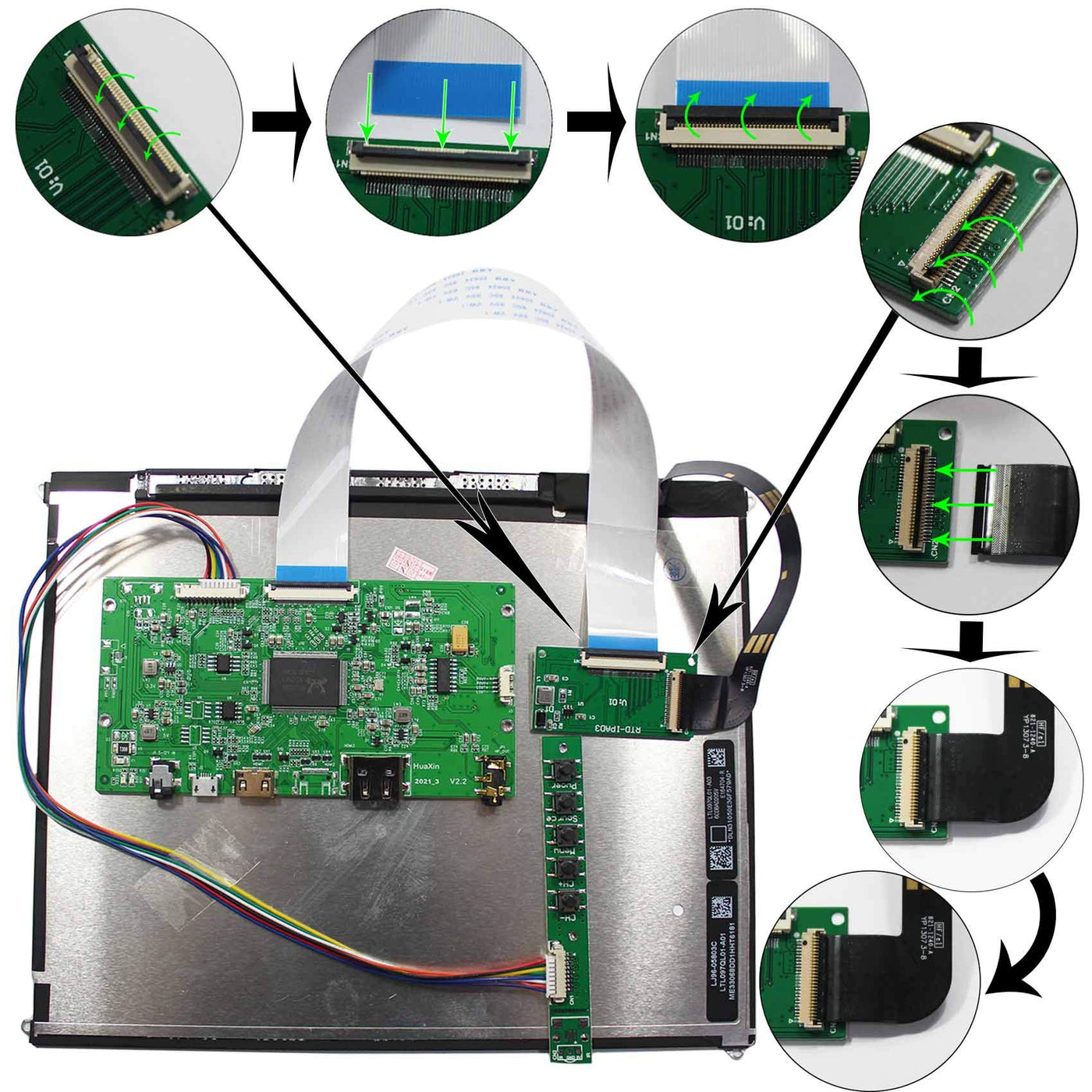

• Q: How do I install the VSDISPLAY LCD monitor? A: To install, connect the LCD to the HD-MI controller board and ensure the power supply is connected properly.
• Q: Can this display be used as a sub-display? A: Yes, it can be used as a general-purpose HD-MI display or as a sub-display for various applications.
• Q: What power supply is required for this monitor? A: You need a power adapter rated between five to twelve volts DC, with a connector size of three point five millimeters by one point thirty-five millimeters.
• Q: How do I keep the LCD screen clean? A: To clean the screen, use a soft, lint-free cloth and a mild cleaning solution, avoiding abrasive materials.
• Q: Is the VSDISPLAY LCD monitor safe for long-term use? A: Yes, it operates in standby mode with less than one watt of power consumption when not in use.
• Q: What should I do if the monitor arrives damaged? A: If the monitor is damaged upon arrival, please contact customer support immediately for a return or exchange.
• Q: Does this product come with a warranty? A: Yes, the product typically comes with a manufacturer's warranty, details of which can be found on the manufacturer's website.
• Q: What languages does the on-screen display support? A: The on-screen display supports multiple languages, including English, French, German, Spanish, and Italian.
• Q: Can I use a micro USB to power the LCD? A: No, the LCD display must be powered using the DC connector and cannot be powered through the micro USB port.
• Q: What audio output options does the monitor have? A: The monitor has an audio output that supports earphones and speakers rated at four ohms and two watts.
• Q: Is there a power adapter included in the package? A: No, the package does not include a power adapter; it must be purchased separately from the VSDISPLAY store.
• Q: What is the maximum brightness of the LCD screen? A: The maximum brightness of the screen is four hundred forty candela per square meter, providing clear visibility.
