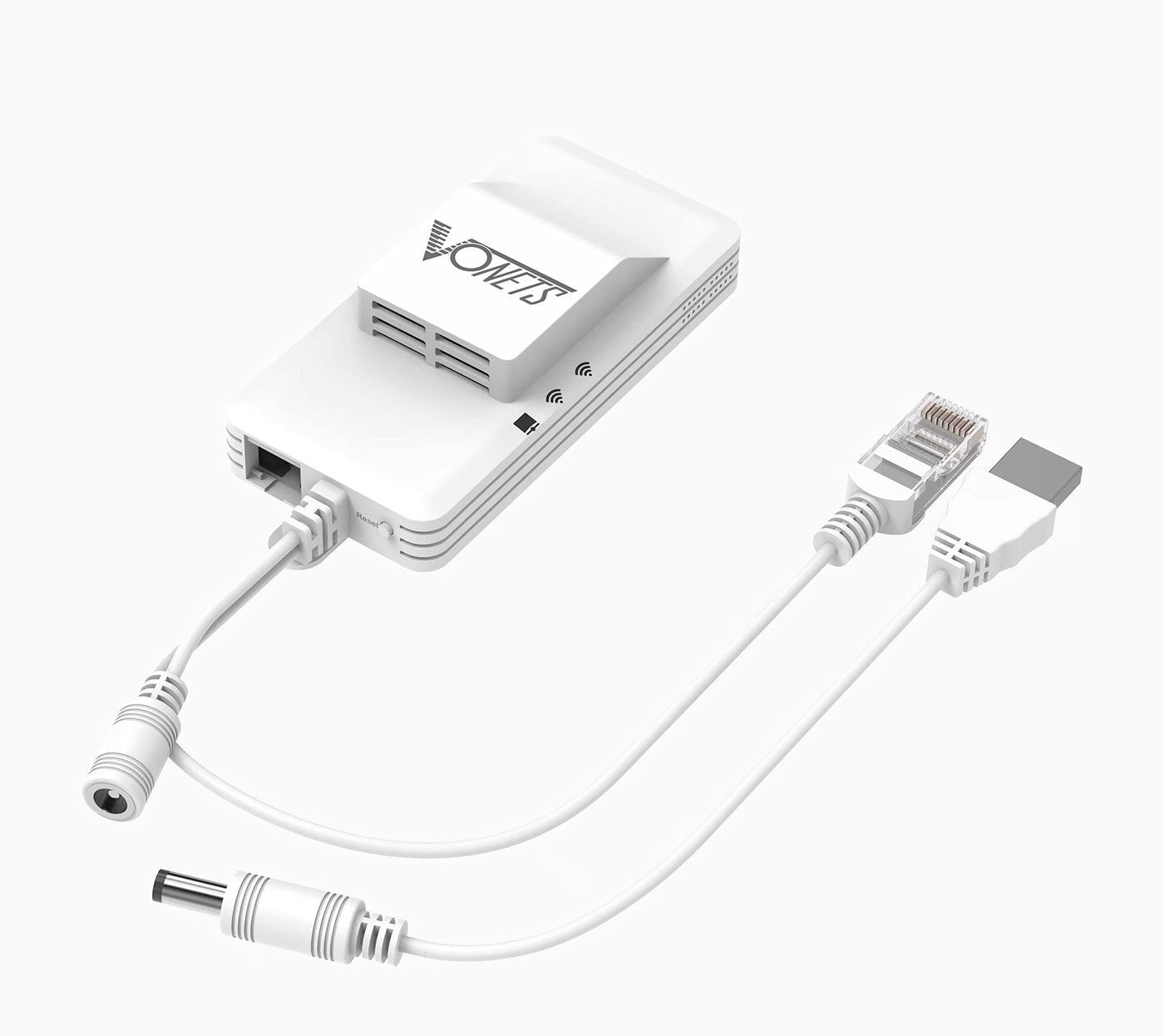

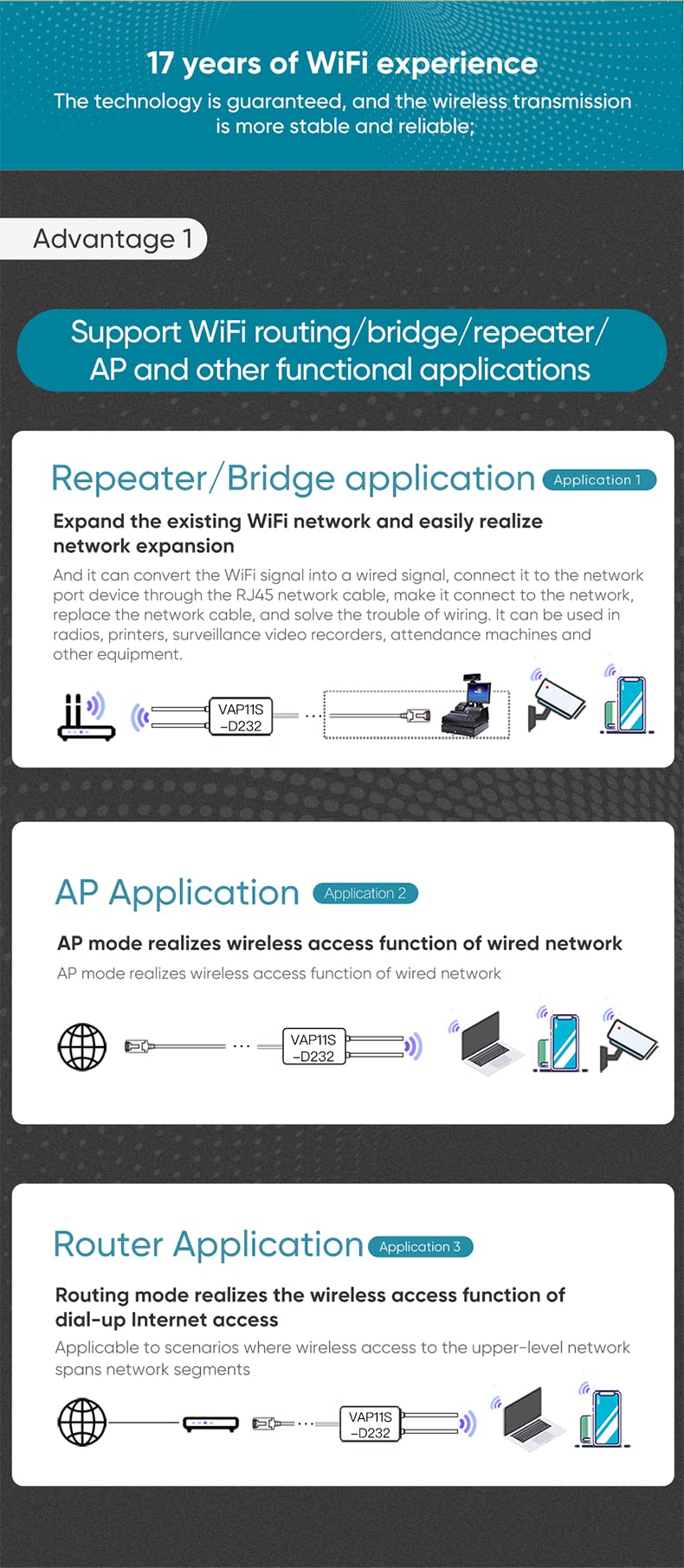

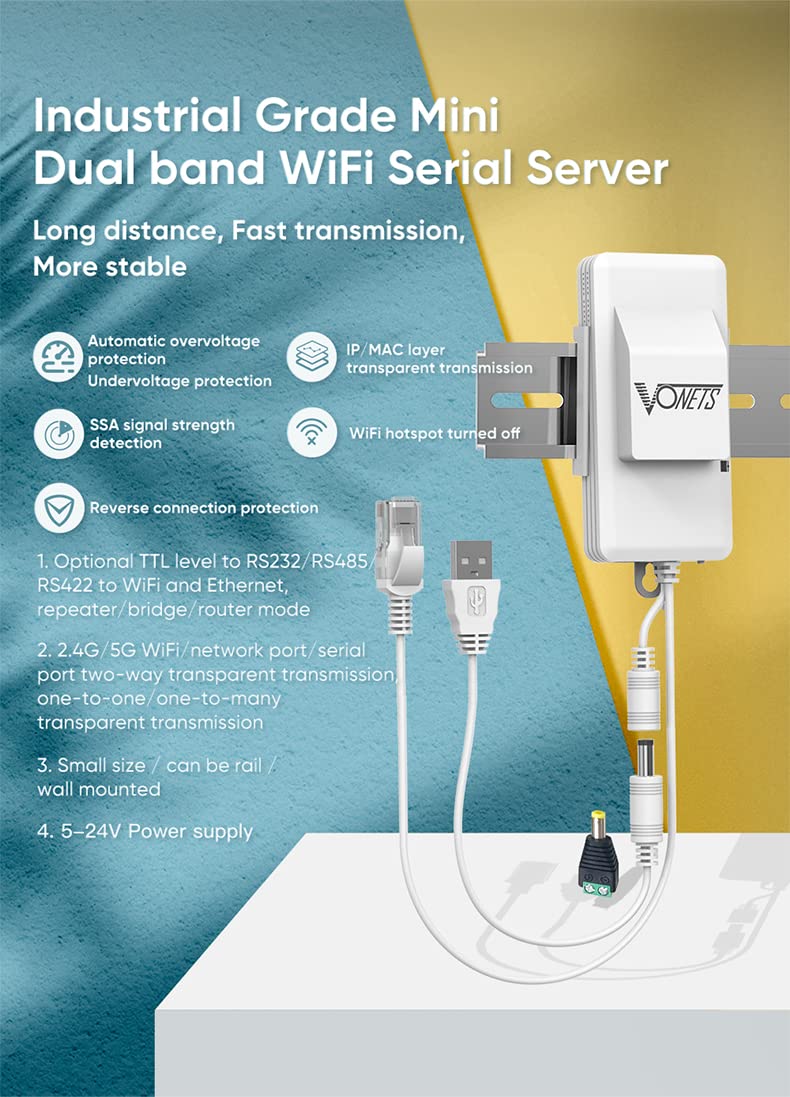

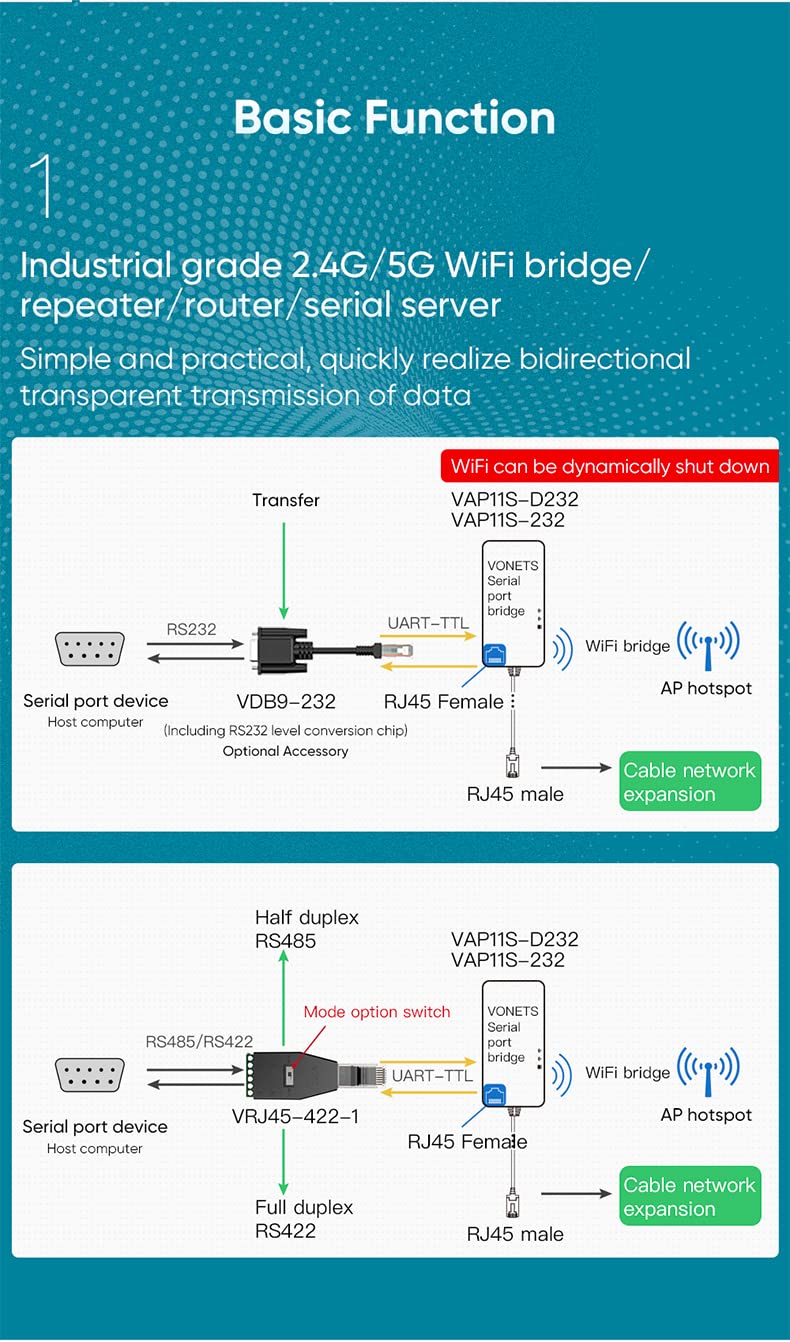

Vonets Vap11S-D232 Is An Industrial Dual Band 2.4Ghz/5Ghz Wifi Serial Port Server, Wifi Bridge Wireless Repeater Ethernet Mini Router; Can Achieve Wifi To Wired Or Wired To Wifi Function Basic Functions 1) Serial Port Mode, Support Wifi, Serial Port Conversion (The Forwarding Function Is Enabled By Default (Instant Forwarding, Udp Protocol, Broadcasting Allowed); 2) Wifi Bridge Mode: Transparent Bridge (Ip Layer Transparent Transmission, Mac Layer Transparent Transmission); 3) Routing Mode, Support Wifi Access; 4) Wifi Transmission Protocol: 802.11A/Ac/N/B/G; 5) Transmission Power: 2.4G Is 15Dbm, 5G Is 19Dbm/23Dbm, Optional 6) Wifi Hotspots Automatically Reconnect, Two Hotspot Matching Methods: Full Matching Authentication Mode, Ssid And Password Authentication Mode; 7) Wifi Hotspot Memory, Up To 100 Hotspots; 8) Ssa Signal Strength Detection And Reporting Function;Application Method Wifi Serial Server; Wifi Repeater (Wifi Signal Repeater), Can Extend Wifi Transmission Distance; Wifi Bridge: Wifi To Wired Convert; Wifi Access Point (Ap);Led Status Indication: Ethernet Port (Line) Status Light (Yellow); 2.4G Wifi Connection Status Light (Blue); 5G Wifi Connection Status Light (Green); External Interface 1) Dc/Usb Power Supply Line; 2) 10/100M Adaptive Ethernet Cable; 3) One Rj45 Female Socket (Uart Serial Port: Support Ttl Level (Lvttl-3.3V) Or Cmos Level -3.3V), Optional: Vdb9-232 (Optional Accessory), Vdb9-232X2 (Optional Accessory), Vrj45-Com -2 (Option) Vrj45-422-1 (Option);Optional Accessories: Support Rs232: Db9-232, Vdb9-232-X2 (Built-In Rs232 Chip); Support Rs485/Rs422: Vrj45-422-1 (Built-In Rs485/Rs422 Chip, With Toggle Switch); Support Ttl Level (3.3V): Vrj45-5P Adapter;Packages: Vap11S-D232*1 Fixing Kit*1Industrial Dc Connector*1 User Manual*1 Retail Box*1
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the VONETS VAP11S-D232?A: The dimensions are three point seven inches in length, one point seventy-seven inches in width, and zero point fifty-nine inches in height.
Q: What is the power supply voltage for the VONETS VAP11S-D232?A: The device supports a wide voltage range of five to twenty-four volts for power supply.
Q: What wireless standards does the VONETS VAP11S-D232 support?A: It supports multiple wireless standards, including eight zero two point eleven a, ac, n, b, and g.
Q: How do I set up the VONETS VAP11S-D232 for WiFi?A: To set up, connect the device to a power source and configure it using the user manual for WiFi settings.
Q: Can I use the VONETS VAP11S-D232 as a WiFi extender?A: Yes, it can function as a WiFi repeater to extend the coverage of your existing WiFi network.
Q: Is the VONETS VAP11S-D232 suitable for medical devices?A: Yes, it is designed to support medical devices, AGVs, and various network devices with its reliable connectivity.
Q: How do I clean and maintain the VONETS VAP11S-D232?A: To maintain, ensure it is unplugged before cleaning with a dry cloth and avoid using any liquid cleaners.
Q: What should I do if the device doesn't connect to WiFi?A: If it doesn't connect, check the WiFi settings, ensure the correct SSID and password are entered, and power cycle the device.
Q: Can I return the VONETS VAP11S-D232 if I am not satisfied?A: Yes, you can return it according to the seller's return policy if you are not satisfied with the product.
Q: What accessories are included with the VONETS VAP11S-D232?A: The package includes one VAP11S-D232 unit, a fixing kit, an industrial DC connector, a user manual, and a retail box.
Q: Does the VONETS VAP11S-D232 support RS232 devices?A: Yes, it supports RS232 devices with optional accessories for connection.
Q: Is the VONETS VAP11S-D232 easy to install?A: Yes, installation is straightforward and can be done by following the detailed user manual provided.
Q: What is the maximum number of WiFi hotspots it can remember?A: It can remember up to one hundred WiFi hotspots for easy reconnection.
Q: What is the warranty period for the VONETS VAP11S-D232?A: The warranty period typically varies by retailer, so check with your seller for specific warranty details.
Q: Can the VONETS VAP11S-D232 be powered via USB?A: Yes, it supports both USB and DC power supply options for flexibility.
