We are an authorized Victron Energy Dealer/Distributor.
We offer free guidance & technical support. If you have any question prior, during, or after a purchase please reach out to us and we will give you the support you need. Multiple units can be programmed (FREE) for split phase or 3 Phase operation and your specific battery configuration.
Most of our Victron products are in stock in our rapid ship warehouse for same or next day shipment. Some items have a longer shipping time and will normally ship within 1 week. These differences are notated in the handling time of an item.
All items except batteries come with a 5 Year Warranty. For a 15% fee, we can extend this warranty to 10 years!
Photo may not match product listed, you will receive the part number/description.

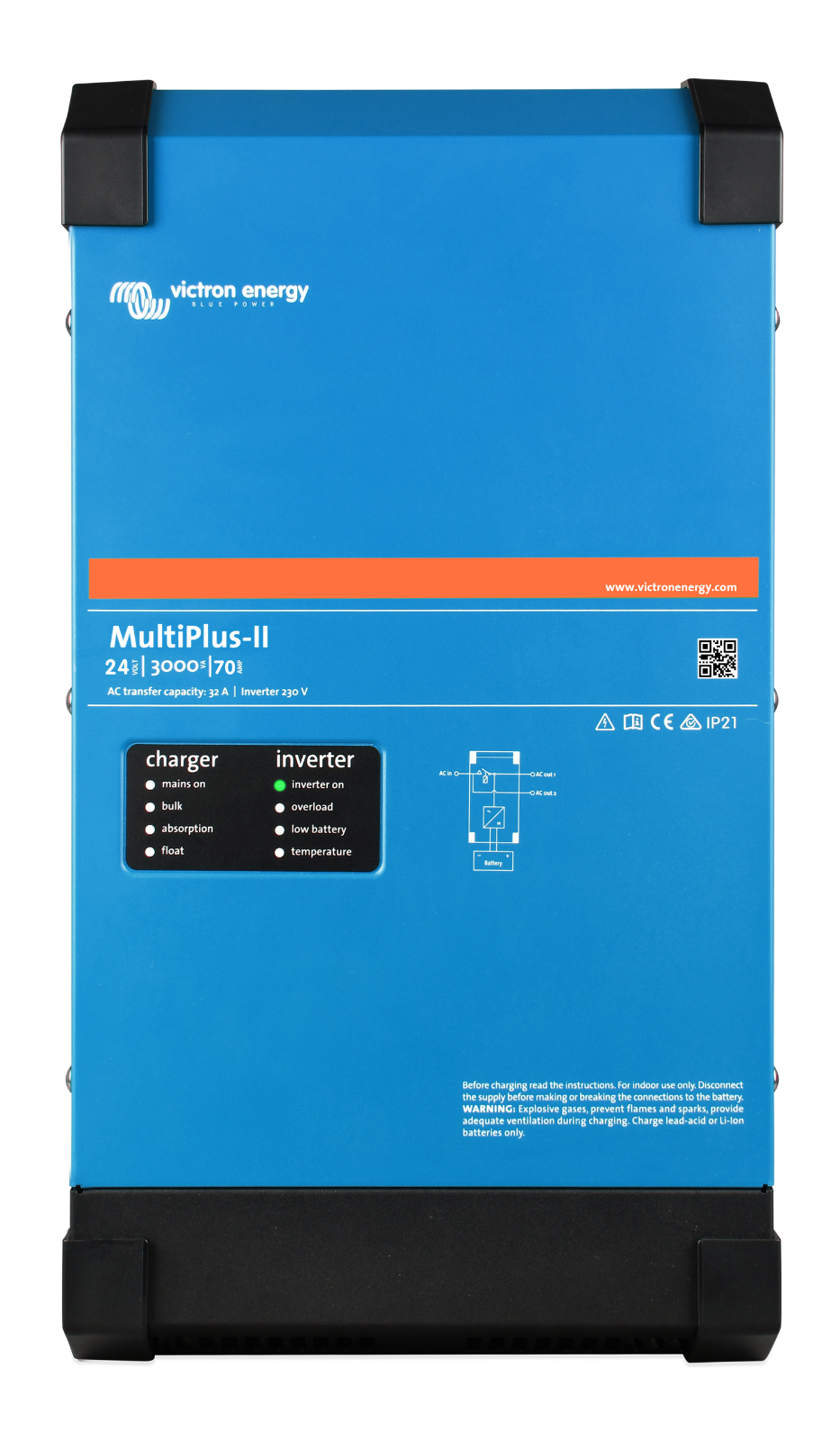

This model PMP122305122 MultiPlus-II 12/3000/120-50 120V UL uses a 12V Battery, Outputs 3000 VA
Made in India
VA (Volt Amps) are similar to watts but include reactive losses to give you a more realistic load capability.
A 2000 VA unit will operate a 2000 watt resistive load but will decrease when running motors.
The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.
It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A).
It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.
Note: for a short period of time this product was called MultiGrid-II.
Models:3000VA - 5000VA - 8000VA - 10000VA - 15000VA
|
The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.
It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A).
It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.
Note: for a short period of time this product was called MultiGrid-II.
Models:3000VA - 5000VA - 8000VA - 10000VA - 15000VA
A MultiPlus with ESS (Energy Storage System) functionality
The MultiPlus-II is a multifunctional inverter/charger with all the features of the MultiPlus, plus an external current sensor option which extends the PowerControl and PowerAssist function to 100A.
PowerControl and PowerAssist - Boosting the capacity of the grid or a generator
A maximum grid or generator current can be set. The MultiPlus-II will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function). PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the MultiPlus-II will compensate insufficient generator, shore or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery.
Solar energy: AC power available even during a grid failure
The MultiPlus-II can be used in off grid as well as grid connected PV and other alternative energy systems. It is compatible with both solar charger controllers and grid-tie inverters.
Two AC Outputs The main output has no break functionality.
The MultiPlus-II takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus-II. Loads that should not discharge the battery, like a water heater for example, can be connected to this output.
Virtually unlimited power thanks to parallel, split phase and three phase operation
Up to 6 Multis can operate in parallel to achieve higher power output. Six 48/3000/35 units, for example, will provide 15 kW / 18 kVA output power with 210 Amps charging capacity. In addition to parallel connection, two units of the same model can be connected for a 240V split phase output, and three units of the same model can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected per phase.
On-site system configuring, monitoring and control
Settings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface needed). Several monitoring and control options are available: Color Control GX, Venus GX, Octo GX, CANvu GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, Digital Multi Control Panel.
Remote configuring and monitoring
Install a Color Control GX or other GX product to connect to the internet. Operational data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed
