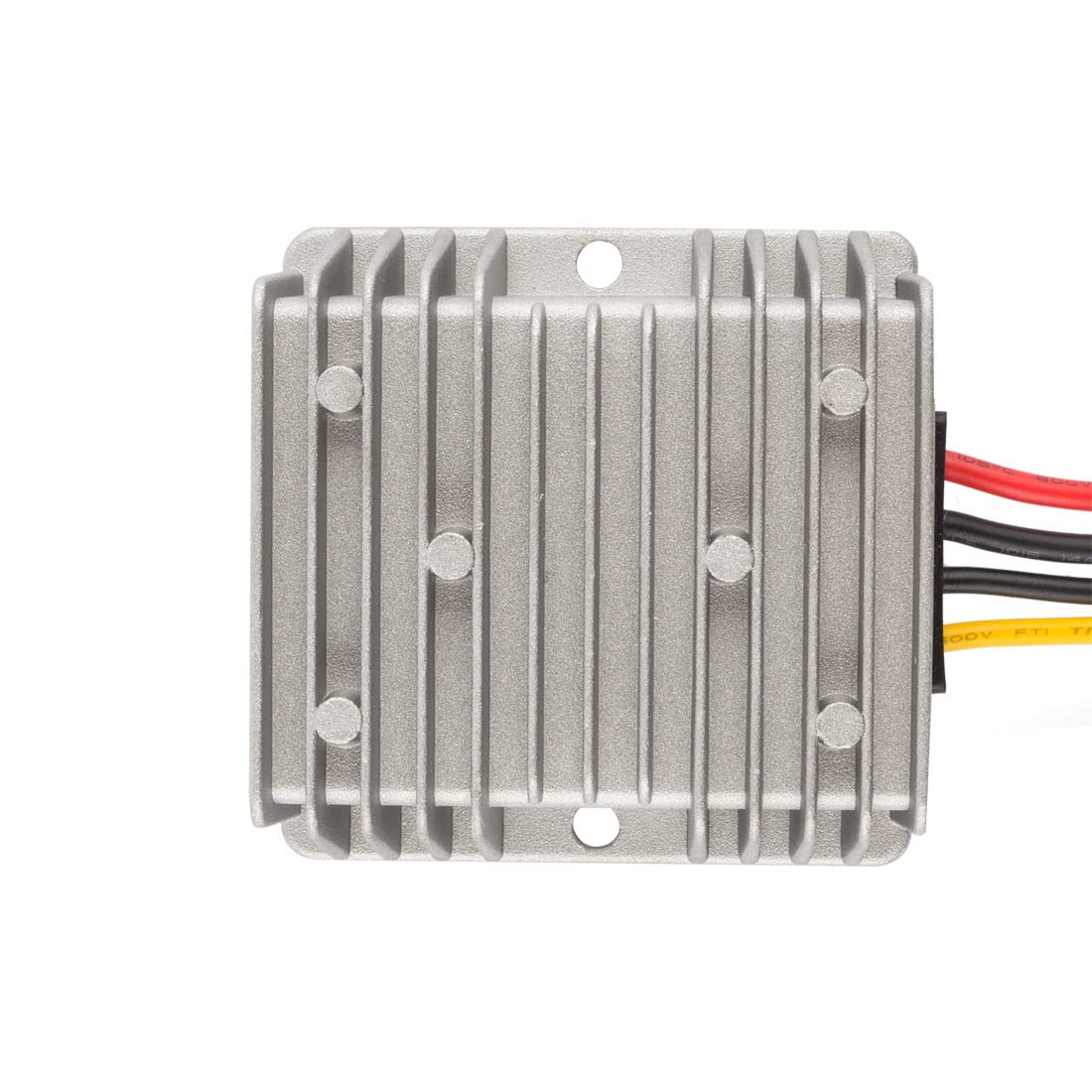

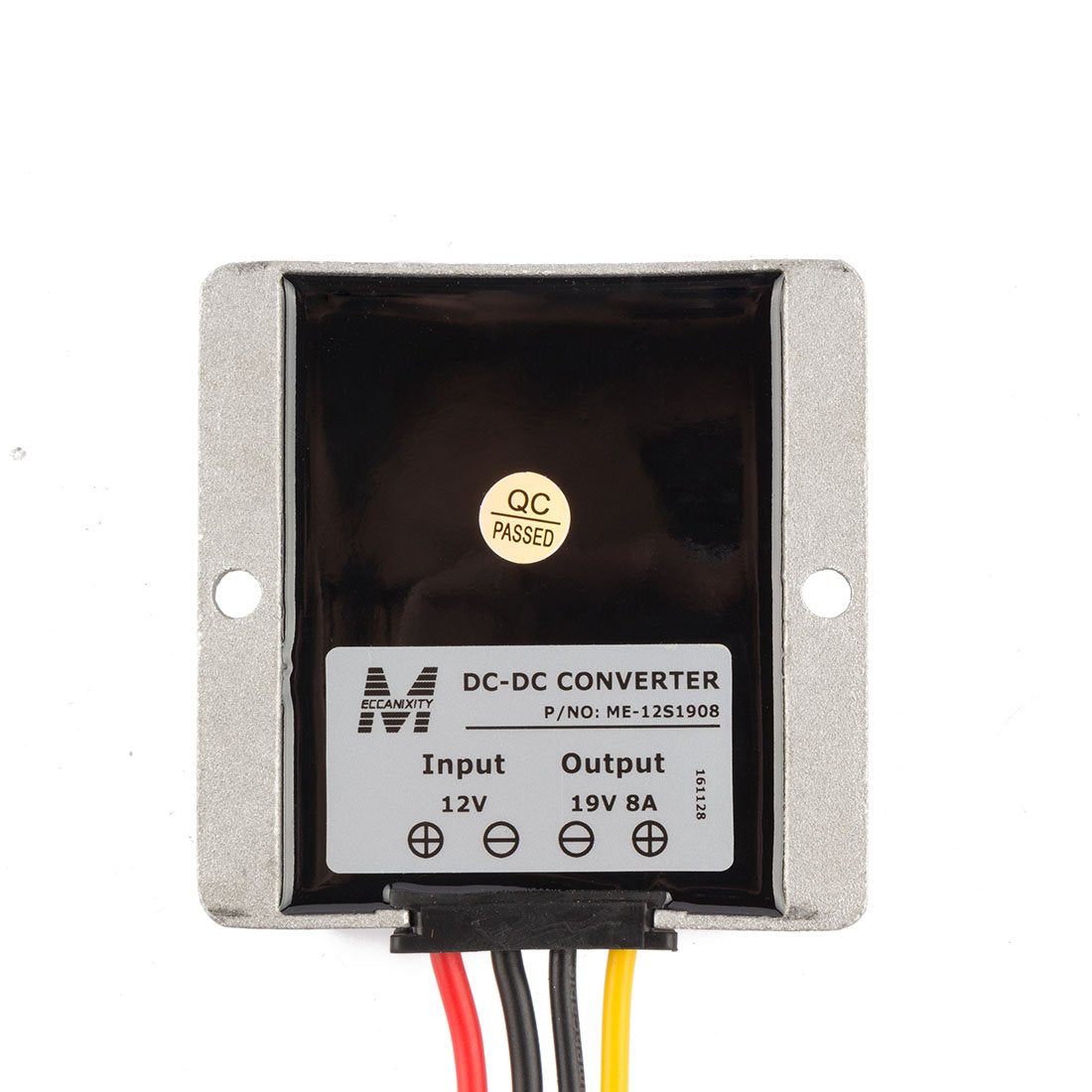

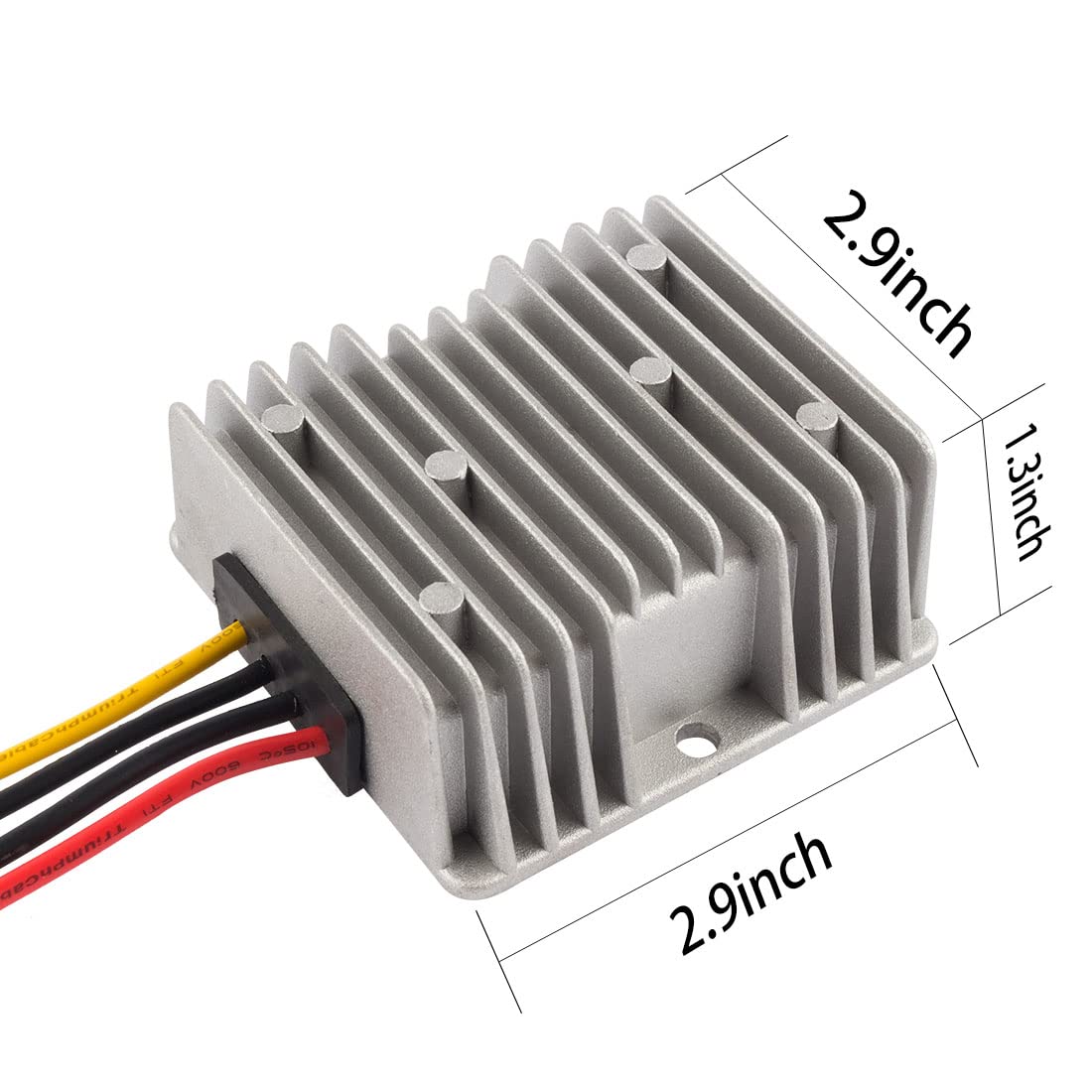

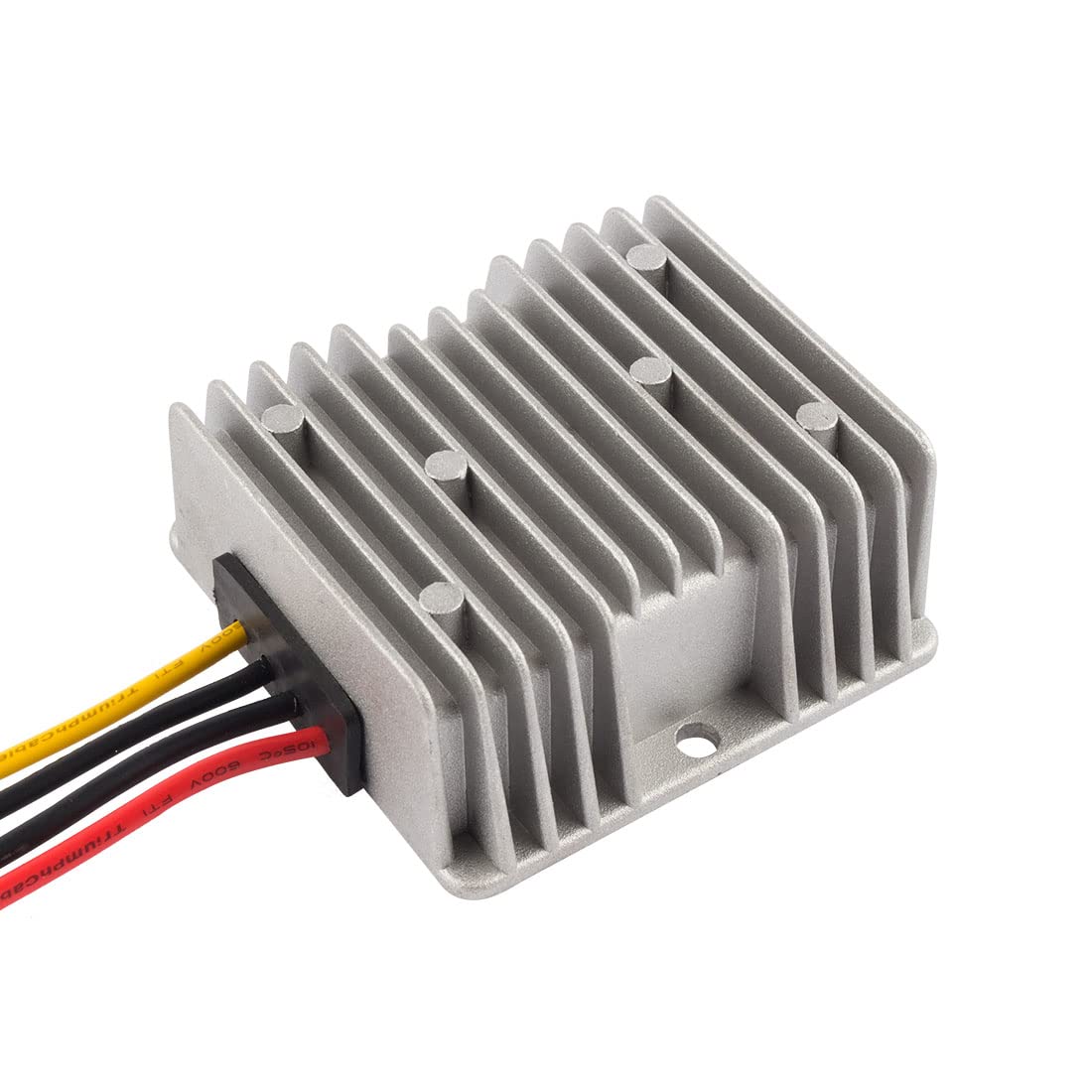

Features:1. 100% Full Power And Stable Current Output, Non-Isolated Module.2. Waterproof Level Ip68 And Anti-Shock Protection, Ultra-Compact Size, Light Weight.3. Industry Grade Dc12V To Dc 19V Step-Up Converter, Efficiency Up To 96%.4. Die-Cast Aluminum Shell, Epoxy Seal, Cooling By Free Air Convection.5. Protections: Over-Current, Over-Voltage, Over-Temperature, Over-Load And Short-Circuit, Recovery When The Device Is Back To Normal Operating.Applications:- Trucks- Golf Carts- Forklifts- Buses- Loaders- Wind Power System- Solar Power System- Telecommunications- Boat And Yacht- And So On..Specifications:* Input Rated Voltage: Dc 12V* Input Voltage Range: 10-16V Dc* Output Voltage: Dc19V 8A* Output Rated Power: 152W* Efficiency: 96% (Half Load); 95% (Full Load)* Output Peak Power: 190W* Voltage Converter: Less Than 1%* Load Converter: Less Than 2%* Ripple(Full Load Test): Less Than 270Mv* No Load Current: Less Than 25Ma* Total Size: 74*74*32Mm(L*W*H)* Fixing Hole Diameter: 5Mm(0.2 Inch)* Hole Center Diameter: 65Mm* Weight: 274Gpackage Included:1 X Dc 12V To Dc 19V 8A Voltage Converterinstructional Manual:Can Not Use A Long Time Under The Max. Listed Load Power.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the uxcell Power Voltage Converter?A: The dimensions are five point nine one inches by five point one two inches by one point five seven inches.
Q: What is the output power of this voltage converter?A: The output power is one hundred fifty-two watts.
Q: What is the input voltage range for this converter?A: The input voltage range is ten to sixteen volts DC.
Q: What materials are used in the uxcell voltage converter?A: The converter features a die-cast aluminum shell for durability and an epoxy seal for waterproofing.
Q: How do I install the uxcell Power Voltage Converter?A: To install, connect the input to a stable DC power source and the output to your device, ensuring proper voltage compatibility.
Q: Can this voltage converter be used with solar panels?A: Yes, it can be used with solar panels, but the open circuit voltage must not exceed the maximum voltage rating.
Q: Is the uxcell voltage converter suitable for vehicles?A: Yes, it is suitable for trucks, golf carts, forklifts, and other vehicles.
Q: How do I care for the voltage converter?A: Keep it dry and clean; avoid exposure to excessive moisture beyond its waterproof rating.
Q: What safety features does this converter have?A: It includes over-current, over-voltage, over-temperature, overload, and short-circuit protections.
Q: What should I do if the converter is not working?A: Check the connections and ensure the input voltage is within the specified range; if problems persist, consult the manual.
Q: Can I return the uxcell voltage converter if it arrives damaged?A: Yes, you can return it if it's damaged upon arrival, following the retailer's return policy.
Q: Does the voltage converter have a warranty?A: Yes, it typically comes with a warranty, but the specific terms should be checked at the point of purchase.
Q: Is this voltage converter suitable for high-load applications?A: Yes, it is designed for high-load applications with a peak power output of one hundred ninety watts.
Q: How heavy is the uxcell voltage converter?A: The weight of the converter is two hundred seventy-four grams.
Q: What is the efficiency rating of this voltage converter?A: The converter has an efficiency of up to ninety-six percent at half load.
