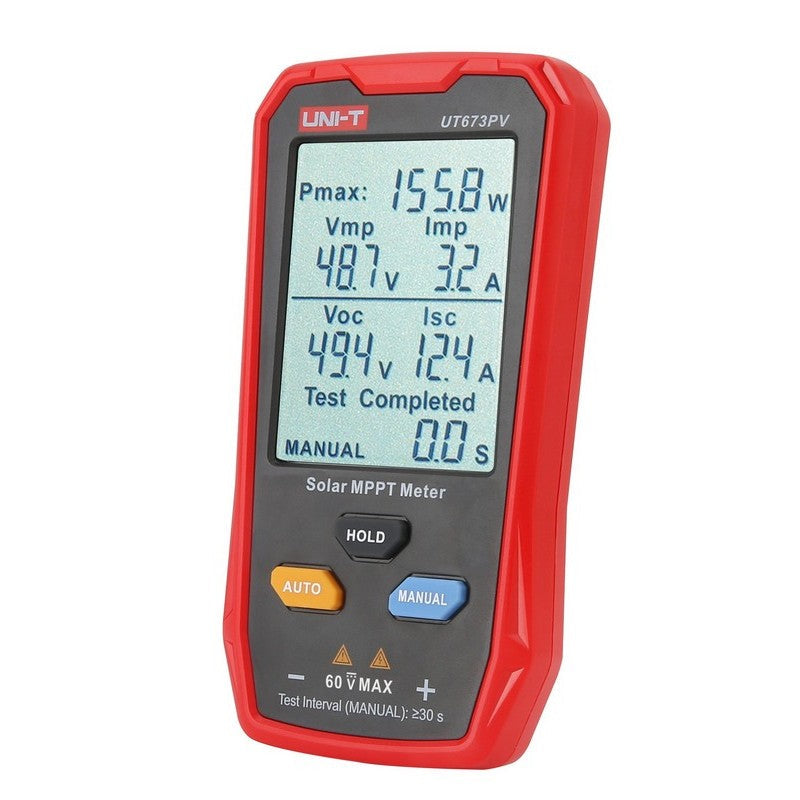

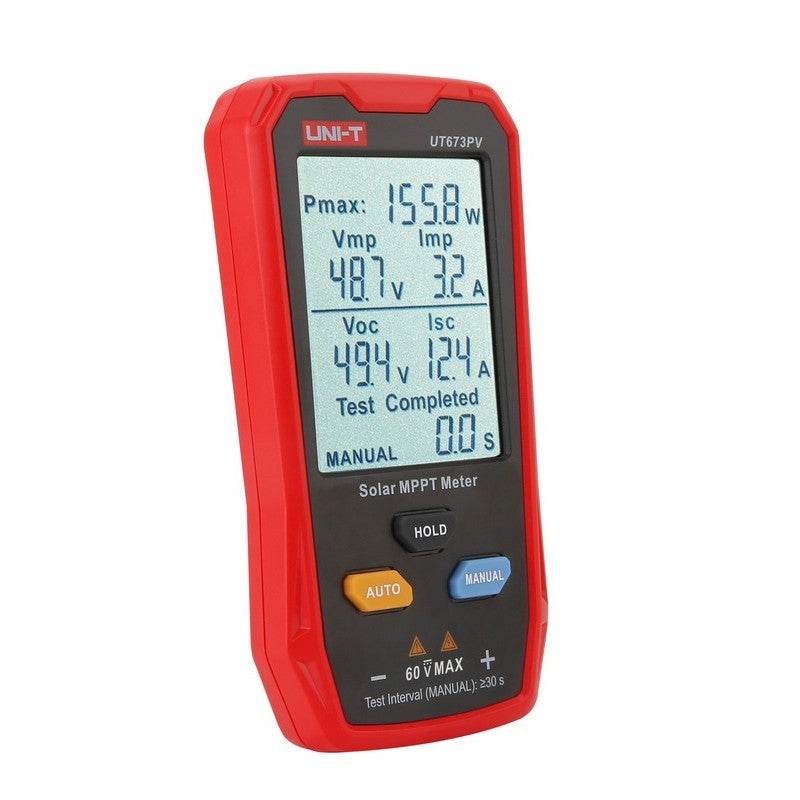

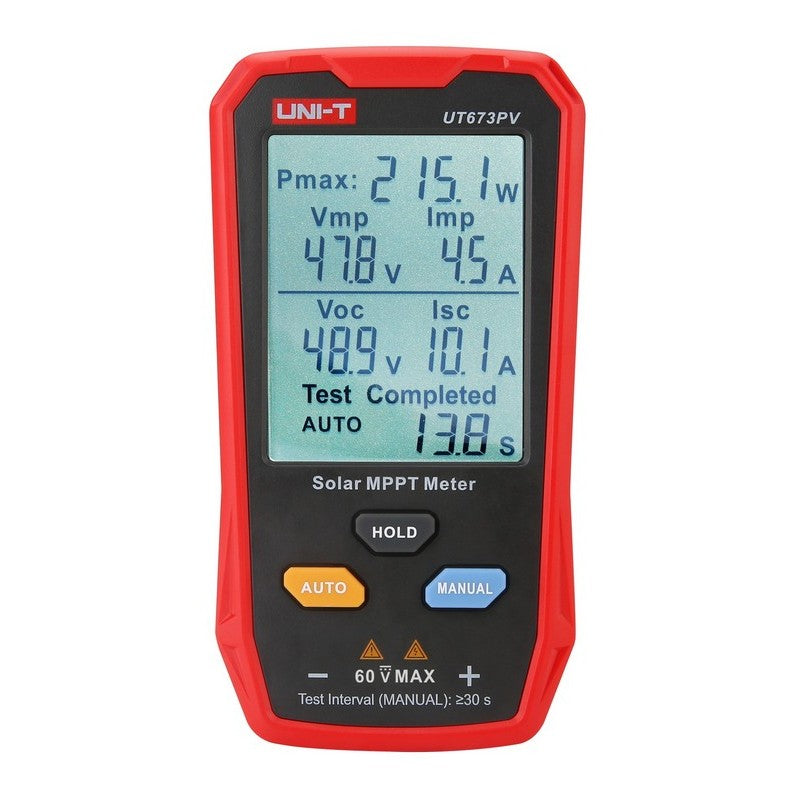

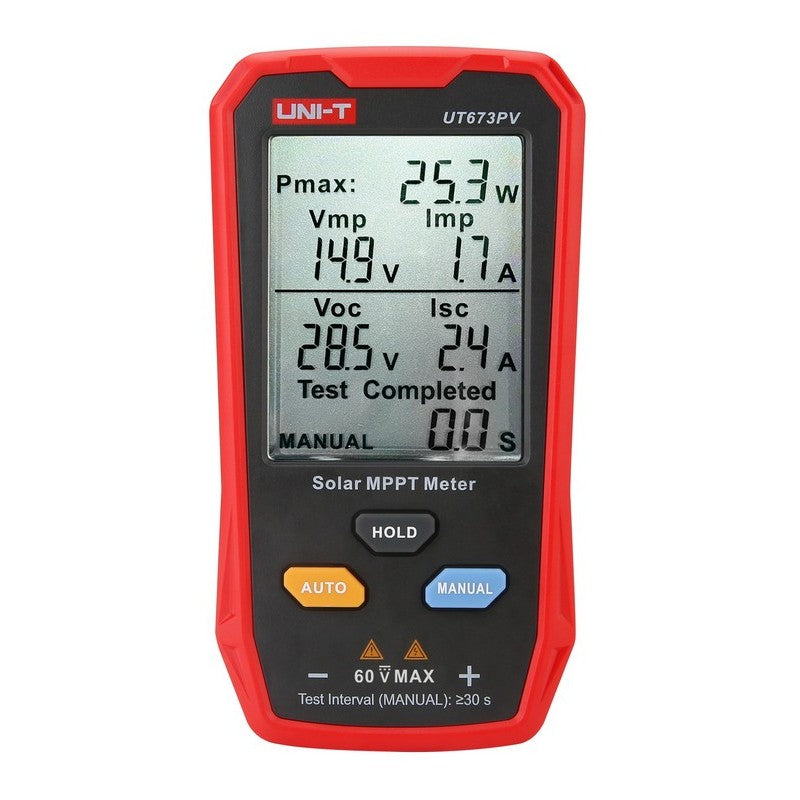

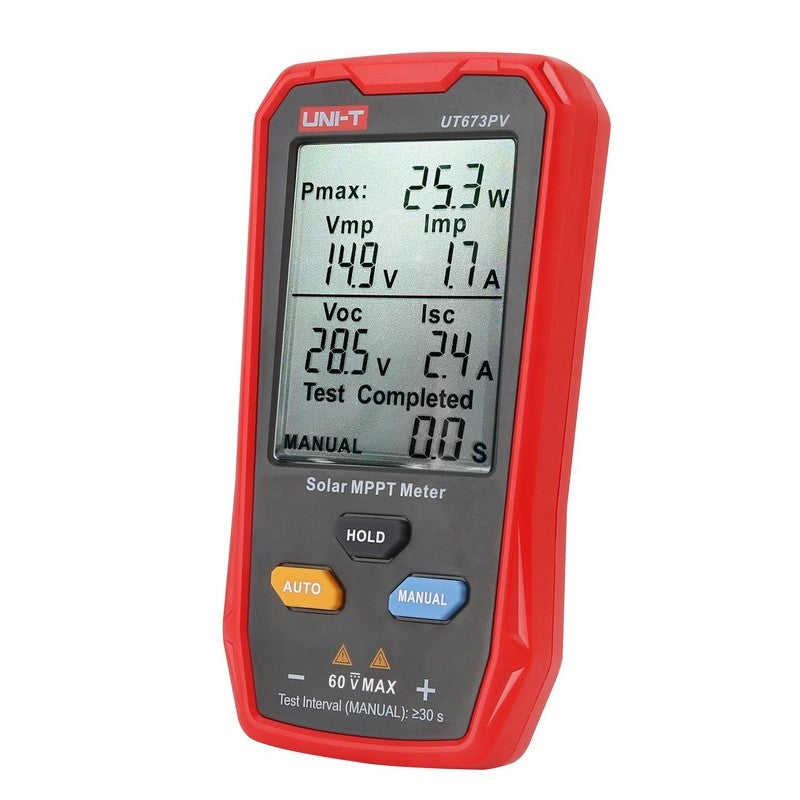

UT673PV Solar Pro MPPT PV Meter
$59.99
Add to Cart
Overview
The UT673PV is a purpose-built solar diagnostic that finds a panel's maximum power point and reads the numbers that tell you whether it's performing: maximum power from 5 W to 800 W, open-circuit voltage and peak-power voltage from 12 V to 60 V, and short-circuit and peak-power current from 0 A to 35 A. It connects through integrated MC4 connectors and is powered by the panel under test — no batteries to charge.
A manual MPPT test, a data-hold function, and a large color LCD make field readings quick, and built-in protections (reverse polarity, overvoltage, overcurrent, overtemperature, overpower) guard the meter in real installations. The compact 143 × 74 × 25 mm body fits a pocket. It's backed by UNI-T's nearly 40 years of test-meter manufacturing.
Key Features
Maximum power measurement 5 W to 800 W, ±(1.0%+10)
Open-circuit voltage and peak-power voltage 12 V to 60 V
Short-circuit and peak-power current 0 A to 35 A
Manual maximum-power-point (MPPT) test
Battery-free — powered by the panel under test
Integrated MC4 connectors, no adapters needed
Data-hold function; large color LCD
Reverse-polarity, over-voltage/current/temperature/power protection
UT673PV Details
Maximum Power Point on the Spot
The UT673PV runs a manual MPPT test to find where a panel delivers its most power, reading maximum power from 5 W to 800 W. That single figure tells you quickly whether a panel or string is performing or losing output to shading, soiling, or degradation.
The Full PV Picture
Beyond peak power, the meter reads open-circuit voltage and short-circuit current (12–60 V, 0–35 A) — the values that diagnose a panel against its nameplate and pinpoint why output is low.
Battery-Free, MC4-Ready

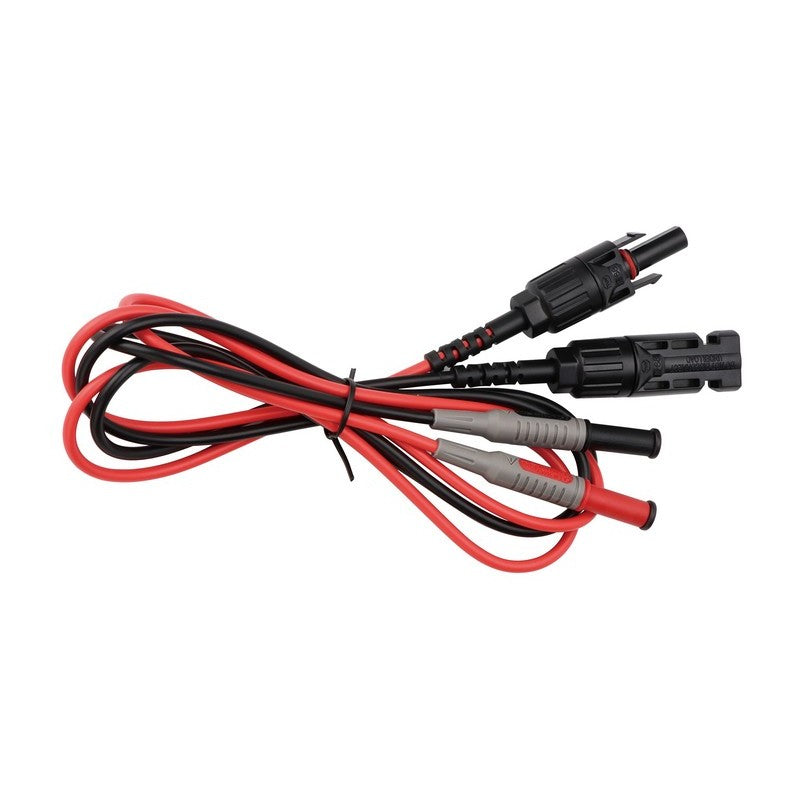

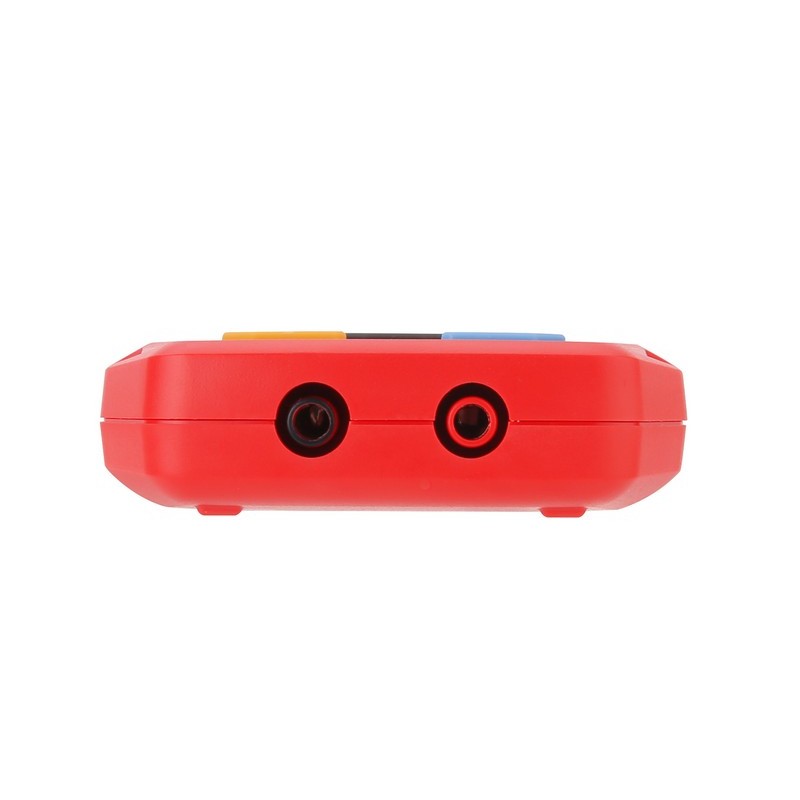

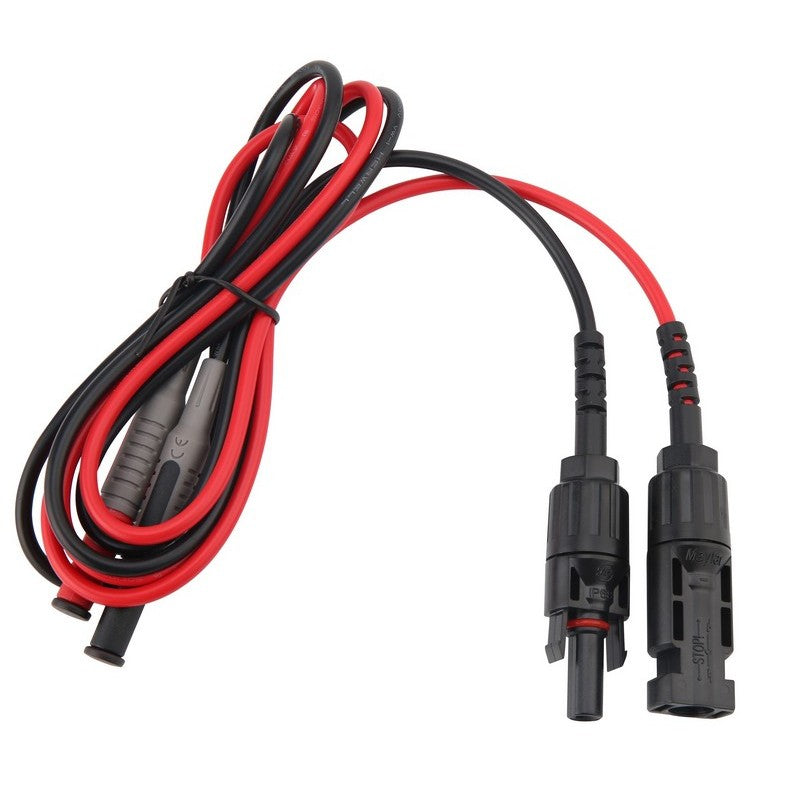

Powered directly by the panel under test, the UT673PV never needs charging, and integrated MC4 connectors plug straight into standard solar leads without adapters — practical for moving down a string in the field.
Protected & Pocketable

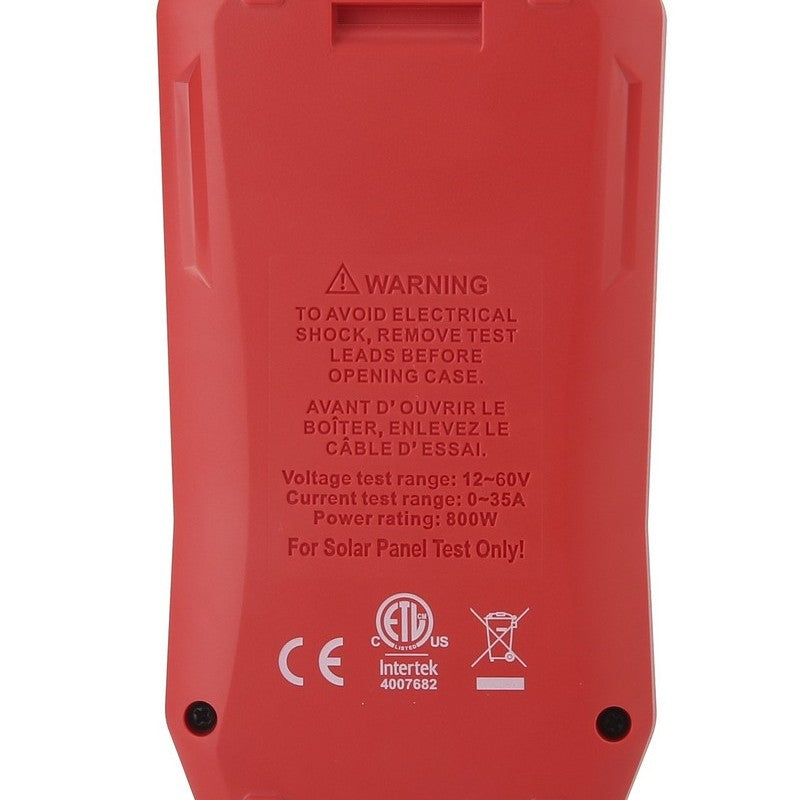

Reverse-polarity, overvoltage, overcurrent, overtemperature, and overpower protection guard the meter in real installations, and a 143 × 74 × 25 mm body with a data-hold function keeps it quick and portable.
Applications
Solar PV installation commissioning; panel and string performance checks; preventive-maintenance and O&M surveys; and incoming or quality inspection of photovoltaic modules.
Frequently Asked Questions
Does the UT673PV need batteries?
No — it is powered directly by the solar panel being tested.
What does it measure?
Maximum power (5–800 W), open-circuit and peak-power voltage (12–60 V), and short-circuit and peak-power current (0–35 A), plus a manual MPPT test.
How does it connect to panels?
Through integrated MC4 connectors, so it plugs into standard solar leads without adapters.
Specifications
Max Power (Pmax) 5 to 800 W, ±(1.0% + 10)
Max-Power Current (Imp) 0 to 35 A, ±(1.5% + 5)
Max-Power Voltage (Vmp) 12 to 60 V, ±(1.5% + 5)
Open-Circuit Voltage (Voc) 12 to 60 V, ±(1.5% + 5)
Short-Circuit Current (Isc) 0 to 35 A, ±(1.5% + 5)

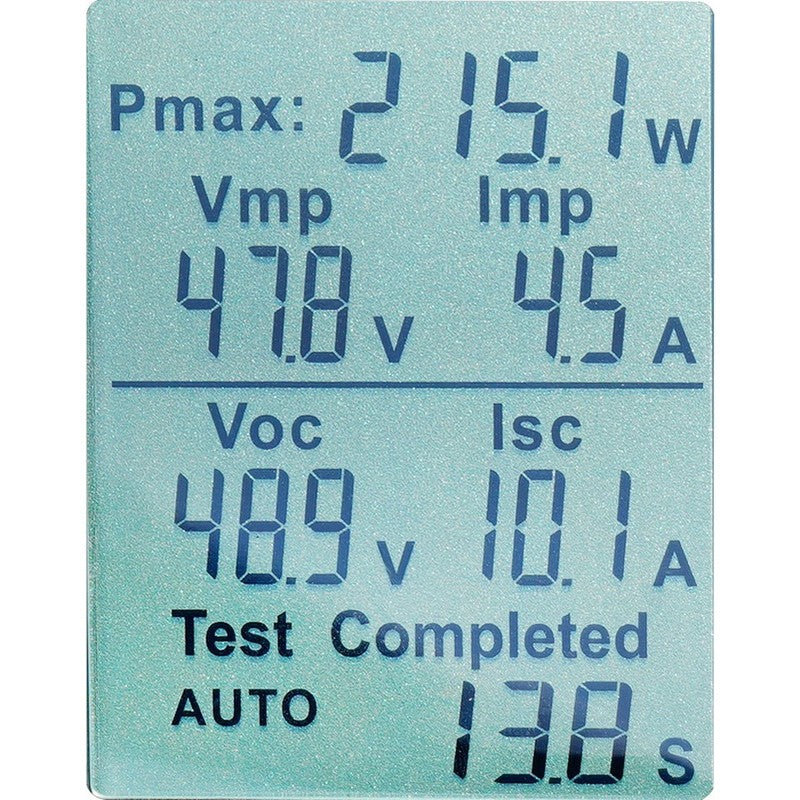

Display Color LCD (52 × 66 mm)
Backlight Yes
Manual MPPT Test Yes
Data Hold Yes
Power Powered by solar panel (no battery)
Dimensions (L × W × D) 143 × 74 × 25 mm
Certification CE
