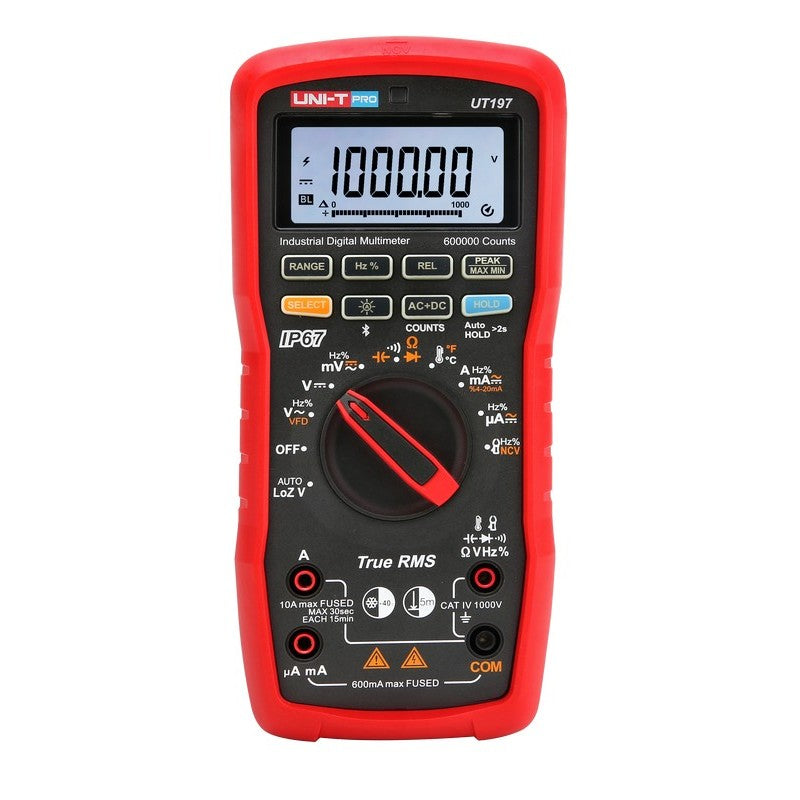

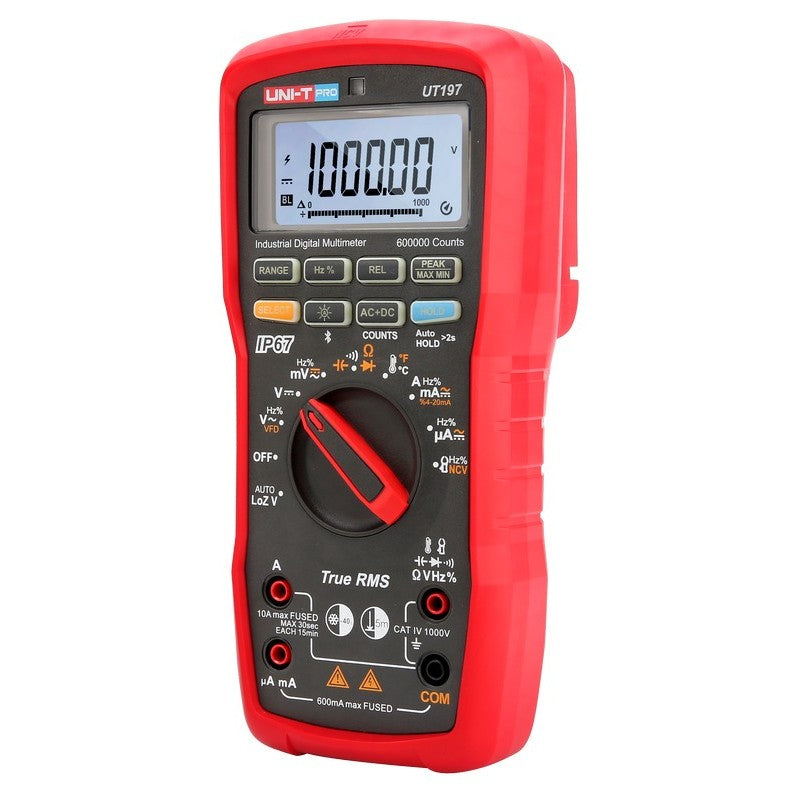

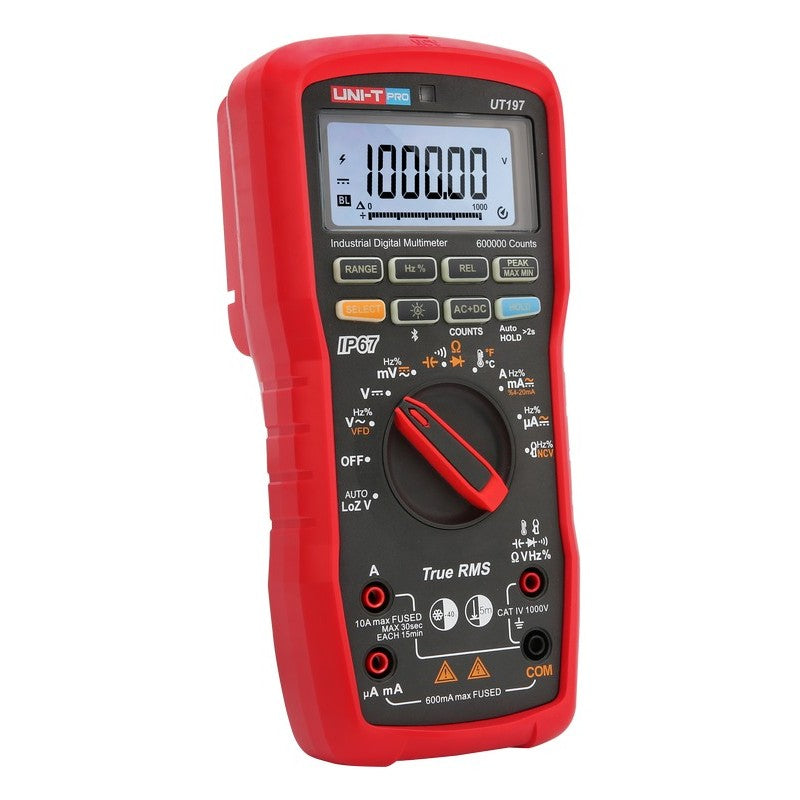

The UT197 is a True-RMS industrial multimeter rated CAT IV 1000 V and built to survive: sealed to IP67 and rated for a 5 m drop, it holds up where most handhelds don't. It measures AC/DC voltage and current to 1000 V and 10 A, combined AC+DC, resistance, capacitance, frequency, and temperature to 1000 ℃, and pairs to a Bluetooth app.
Working tools include a low-impedance (LoZ) mode, low-pass filter, VFC/VFD mode for drive outputs, a loop-read function, conductance, and duty cycle — the functions plant and field electricians reach for. It's backed by UNI-T's nearly 40 years of test-meter manufacturing.
Key Features
CAT IV 1000 V safety rating
IP67 sealing and 5 m drop protection
True-RMS; AC/DC voltage and current to 1000 V and 10 A; combined AC+DC
Low-impedance (LoZ) mode to reject ghost voltages
VFC/VFD mode and low-pass filter for drive outputs
Loop-read function for process work
Resistance to 60 MΩ, capacitance to 60 mF, frequency, temperature to 1000 ℃
Bluetooth app; relative, max/min, and peak-hold modes
UT197 Details
Built to Take Abuse
A CAT IV 1000 V rating, IP67 sealing, and a 5 m drop rating put the UT197 in a different durability class from typical handhelds — it keeps working after dust, water, and falls that would end other meters.
True-RMS & Drive Tools
True-RMS sensing keeps AC accurate on distorted waveforms, while a VFC/VFD mode and low-pass filter let you read the fundamental cleanly on variable-frequency-drive outputs.
Safe & Process-Ready Measurement
A low-impedance mode loads out induced ghost voltages so a dead circuit reads dead, and a loop-read function supports 4–20 mA process measurement alongside the standard electrical set.
Range & Connectivity
Combined AC+DC measurement, temperature to 1000 ℃, and a Bluetooth app cover a wide range of field tasks and let you capture readings to a phone.
Compare the UT197 Series
UT197
UT197PV
Max DC voltage
1000 V
2500 V
Max AC voltage
1000 V
1500 V
Power measurement
—
Active / apparent / reactive, PF
Safety rating
CAT IV 1000 V
CAT IV 1000 V / CAT III 1500 V
Focus
General industrial
Solar / PV
Applications
Demanding plant and field environments where dust, water, and drops are routine; drive and motor troubleshooting; process and loop measurement; and general industrial electrical work needing CAT IV 1000 V safety.
Frequently Asked Questions
How rugged is the UT197?
It is rated CAT IV 1000 V, sealed to IP67, and rated for a 5 m drop — built for harsh field use.
Can it read variable-frequency drive outputs?
Yes — a VFC/VFD mode and a low-pass filter let you read the fundamental on a drive output.
How is the UT197 different from the UT197PV?
The UT197PV is the solar version: higher voltage ranges (2500 V DC / 1500 V AC) and built-in power measurement for PV work.
