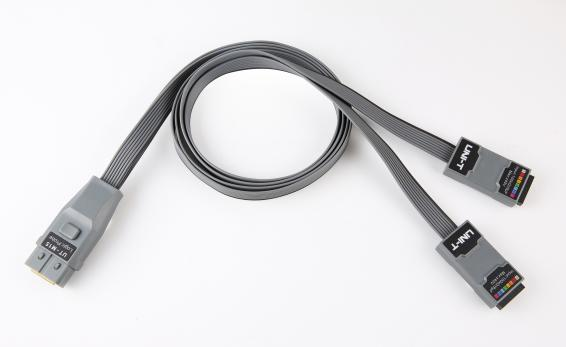

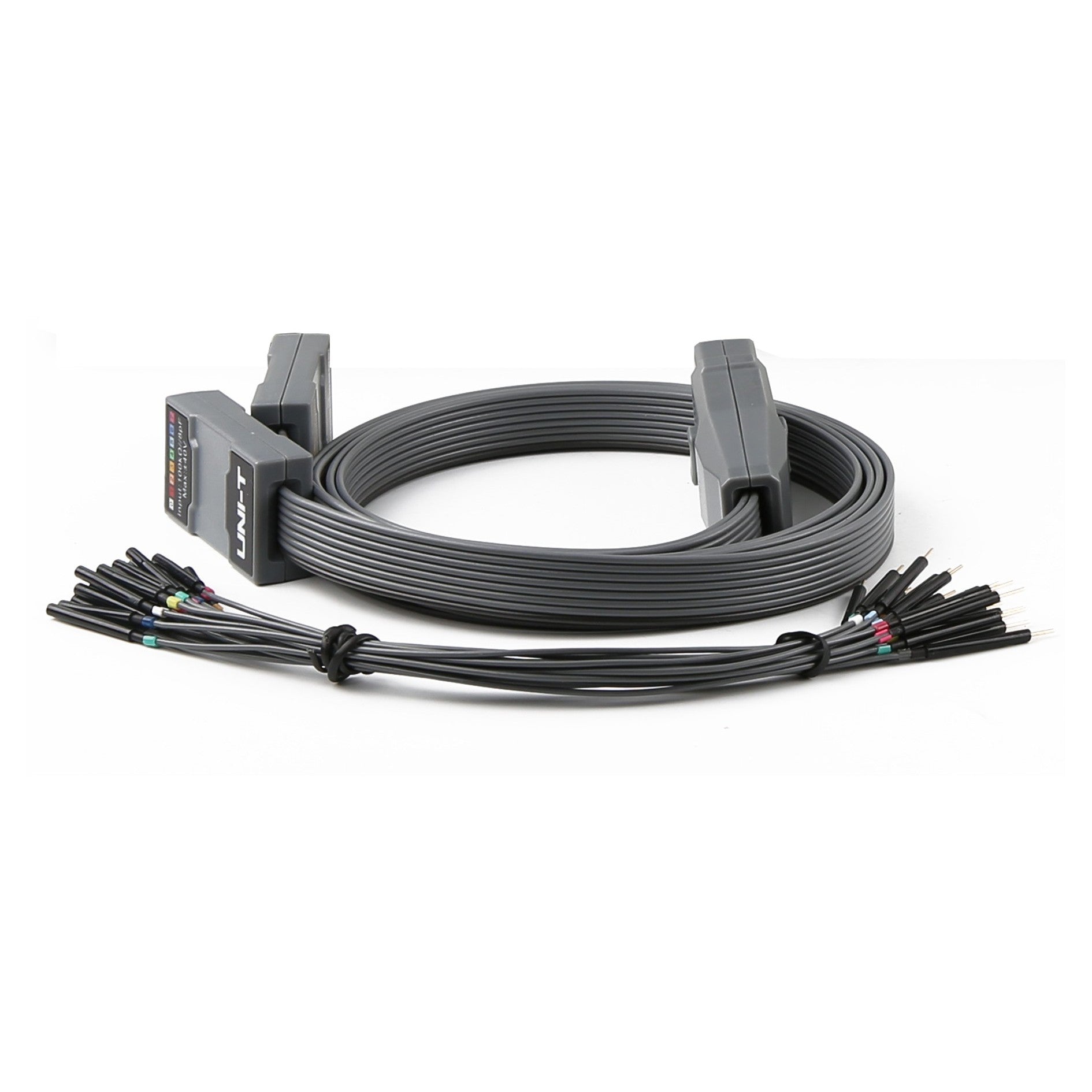

UT-M15 Classic Logic Pod for UPO/MSO Oscillosocopes
$332.00
Add to Cart
Overview
16-channel logic analyzer probe pod for UPO/MSO Oscillosocopes (UPO/MSO2000, MSO/UPO3000E, MSO X, and MSO HD (except MSO1000HD (uses UT-M26 only ). Adds digital bus visibility for mixed-signal debugging of embedded, automotive, and industrial protocols. Connects to compatible UNI-T oscilloscopes via the dedicated logic analyzer port.
Key Features
Standard BNC Connection — Connects to compatible UNI-T oscilloscopes via the dedicated logic analyzer port.
16 Digital Channels — Adds digital bus visibility for debugging embedded, automotive, and industrial communication protocols.
Compatibility — Compatible with UNI-T MSO/UPO2000, MSO2000X, MSO/UPO3000, MSO3000X, MSO3000HD, MSO5000D, MSO8000HD. NOT COMPATIBLE with MSO1000HD-series.
Specifications
Channels 16
Connector Type 8×2 square pin, 2.54mm
Input Capacitance 9.0 pF
Input Impedance 101 Ω ±1%
Min Pulse Width 800ps
