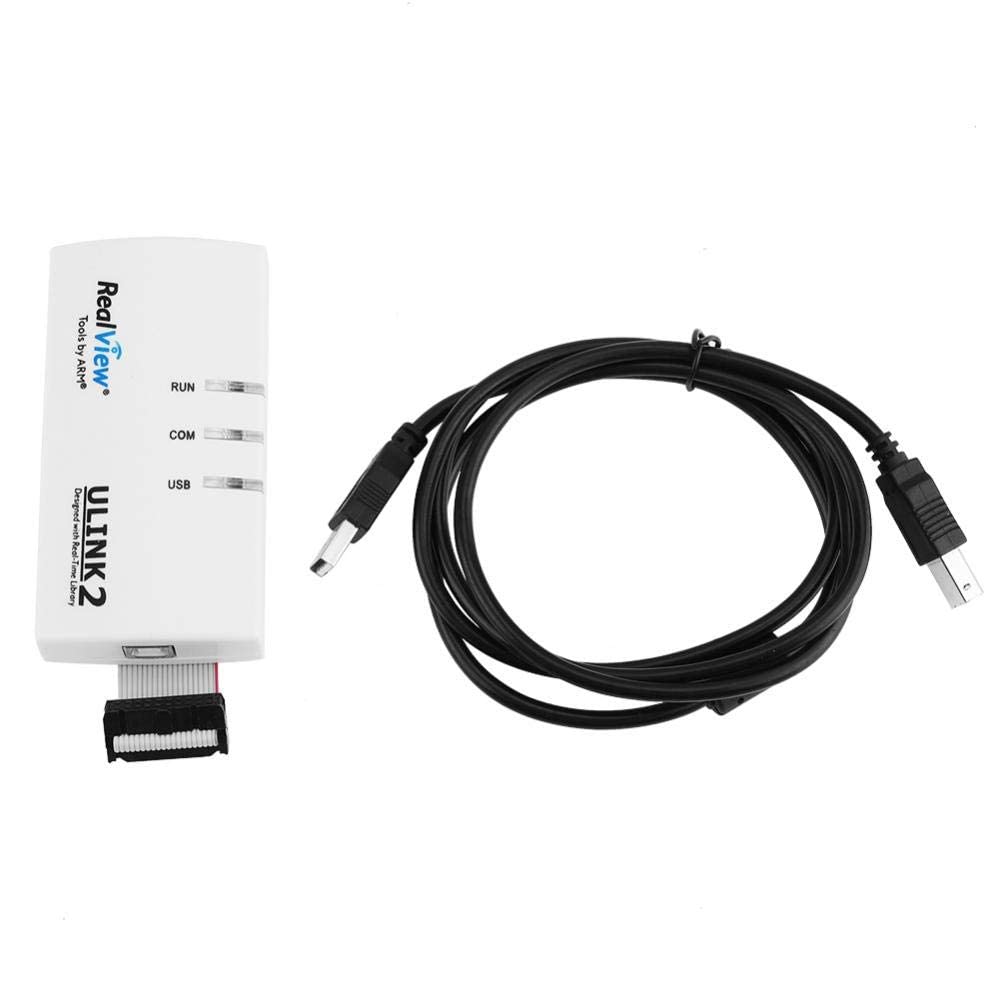

Specifications: Type: ULINK2 Emulator RAM Breakpoints: Unlimited ROM BreakpointsARM7/9): 2 max ROM Breakpoints(Cortex-M3): 6 max Execution Breakpoints (Set While Executing): yes Access Breakpoints(ARM7/9): 2 max (R/W Only, With Value) Access Breakpoints(Cortex-M3): 4 max (With Value) Trace History: No Real-Time Agent : yes JTAG clock: <= 10MHz JTAG RTCK support (Return Clock): yes Memory R/W(Bytes/sec): about 28K Flash R/W(Bytes/sec): about 25K Single-Step(Fast)(Instructions/sec): about 50 Size: 11 x 5.5cm / 4.33 x 2.16in Weight: 40g New features of the emulator: Standard WindowsUSB driver supports ULINK2 plug and play Support for serial debugging based on ARM Cortex-M3 Support for memory read and write, terminal emulation, and serial debug output during program execution Support 10-pin cable (also supports 20-pin cable) The main functions of the simulator: Storage area/register view Fast single step program running Multiple program breakpoints On-chip Flash programming Technical Parameters: RAM breakpoint: Unlimited ROM breakpoint (ARM7/9): 2 max ROM breakpoint (Cortex-M3): 6 max Execution breakpoint (Set While Executing) : Access breakpoint (ARM7/9): 2 max (R/W Only, With Value) Access breakpoint (Cortex-M3): 4 max (With Value) Trace History : Real-Time Agent : JTAG clock: <= 10MHz JTAG RTCK Support (Return Clock) : Memory R/W(Bytes/sec) : 28K Flash R/W (Bytes/sec) : 25K Single-Step(Fast)(Instructions/sec) : 50 Package included: 1 x Emulator 1 x cable
