Uhppote Wired Emergency Fire Alarm Station 9 28Vdc Conventional Dual Action Manual Call Point
$22.21
Regular price
$31.73
-30%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.

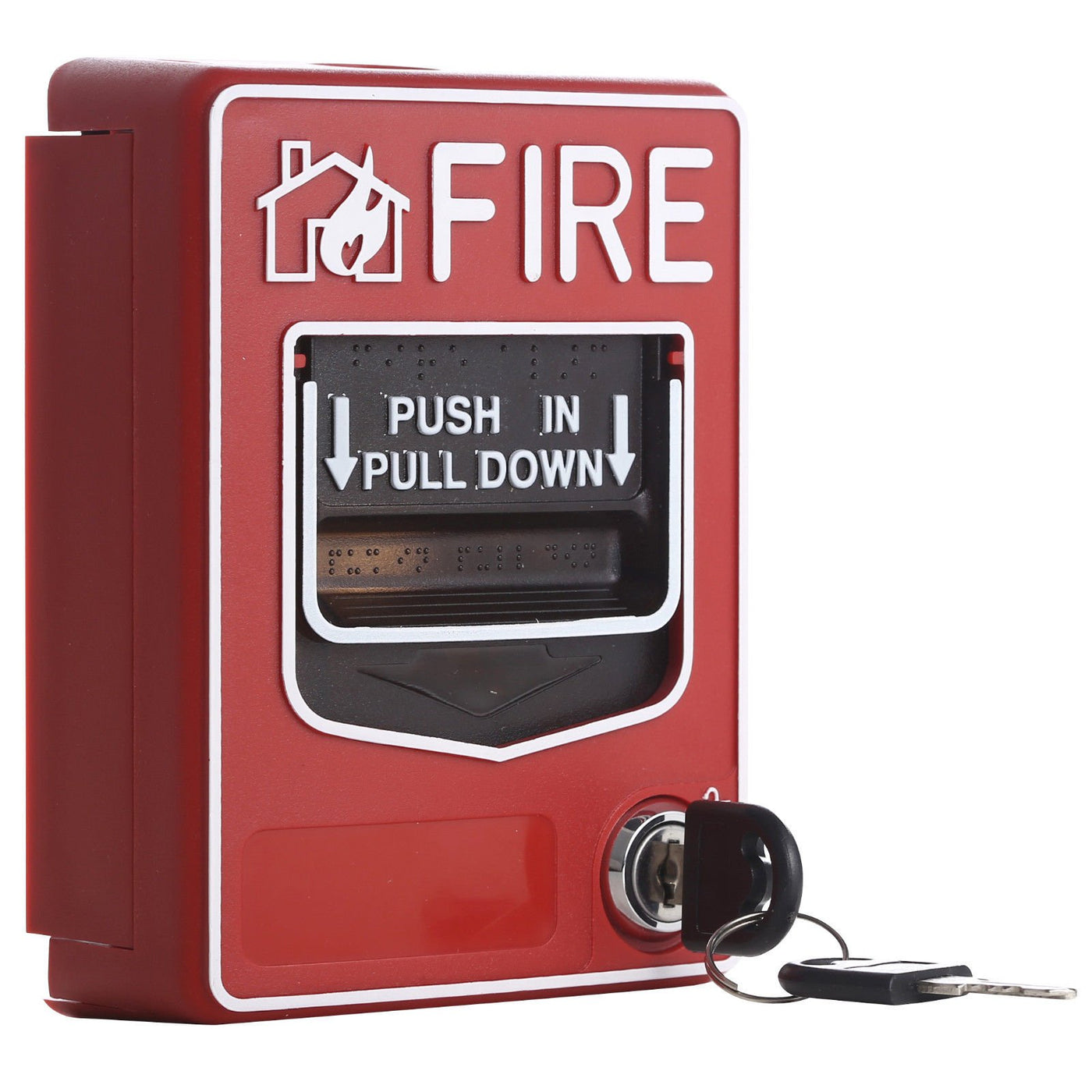

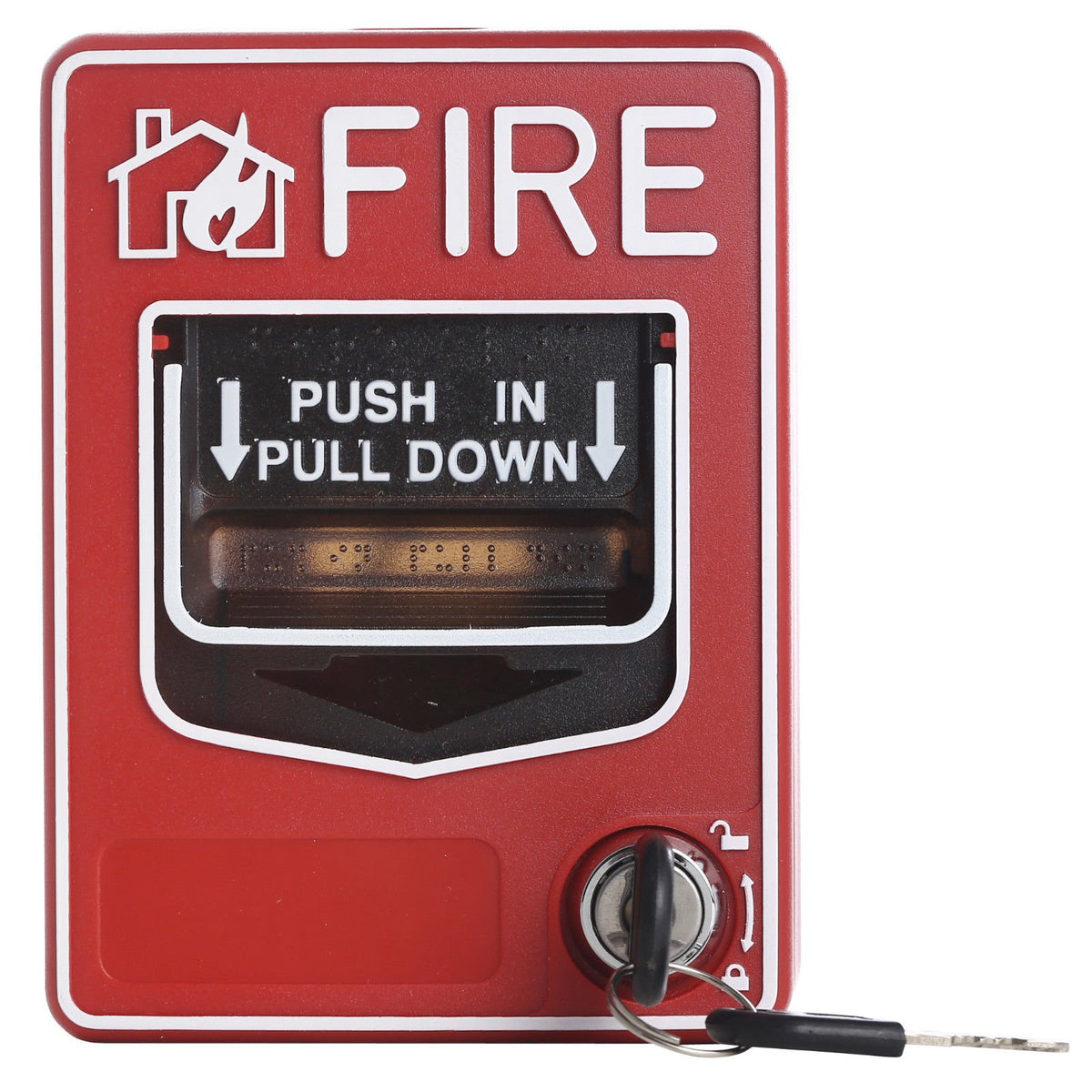

Operation: The Manual Call Points Provide A Textured Finger-Hold Area That Includes Braille Text. In Addition To Push In And Pull Down Text, There Are Arrows Indicating How To Operate The Station, Provided For Non-English-Speaking People. Pushing In And Then Pulling Down On The Handle Activates The Normally-Open Alarm Switch. Once Latched In The Down Position , The Word' Activated' Appears At The Top In Bright Yellow, With A Portion Of The Handle Protruding At The Bottom As A Visible Flag. Resetting The Station Is Simple: Insert The Key, Twist One Quarter-Turn, Then Open The Station'S Front Cover, Causing The Spring-Loaded Operation Handle To Return To Its Original Position. The Alarm Switch Can Then Be Reset To Its Normal(Non-Alarm) Position Manually(By Hand) Or By Closing The Station'S Front Cover, Which Automatically Resets The Switch.

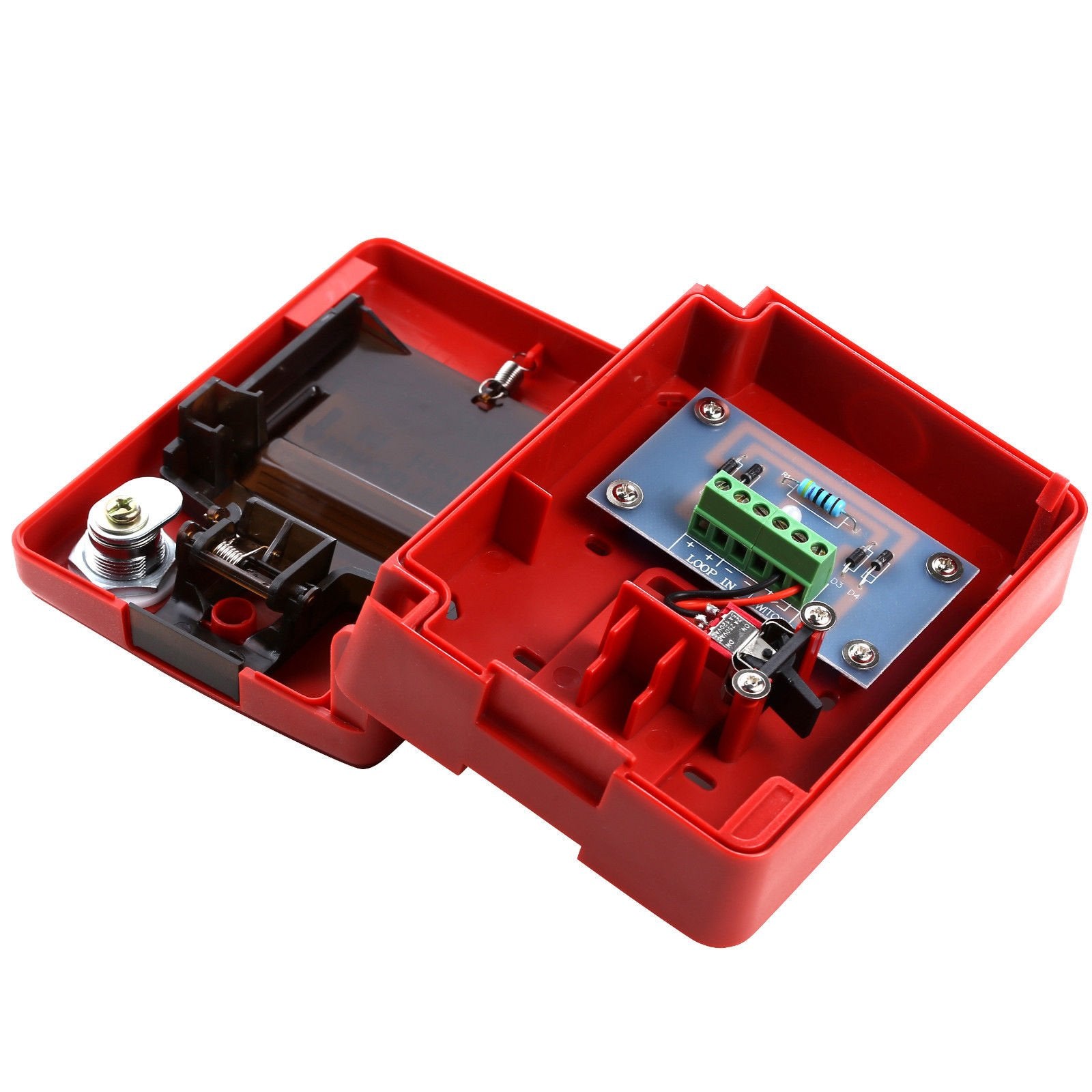

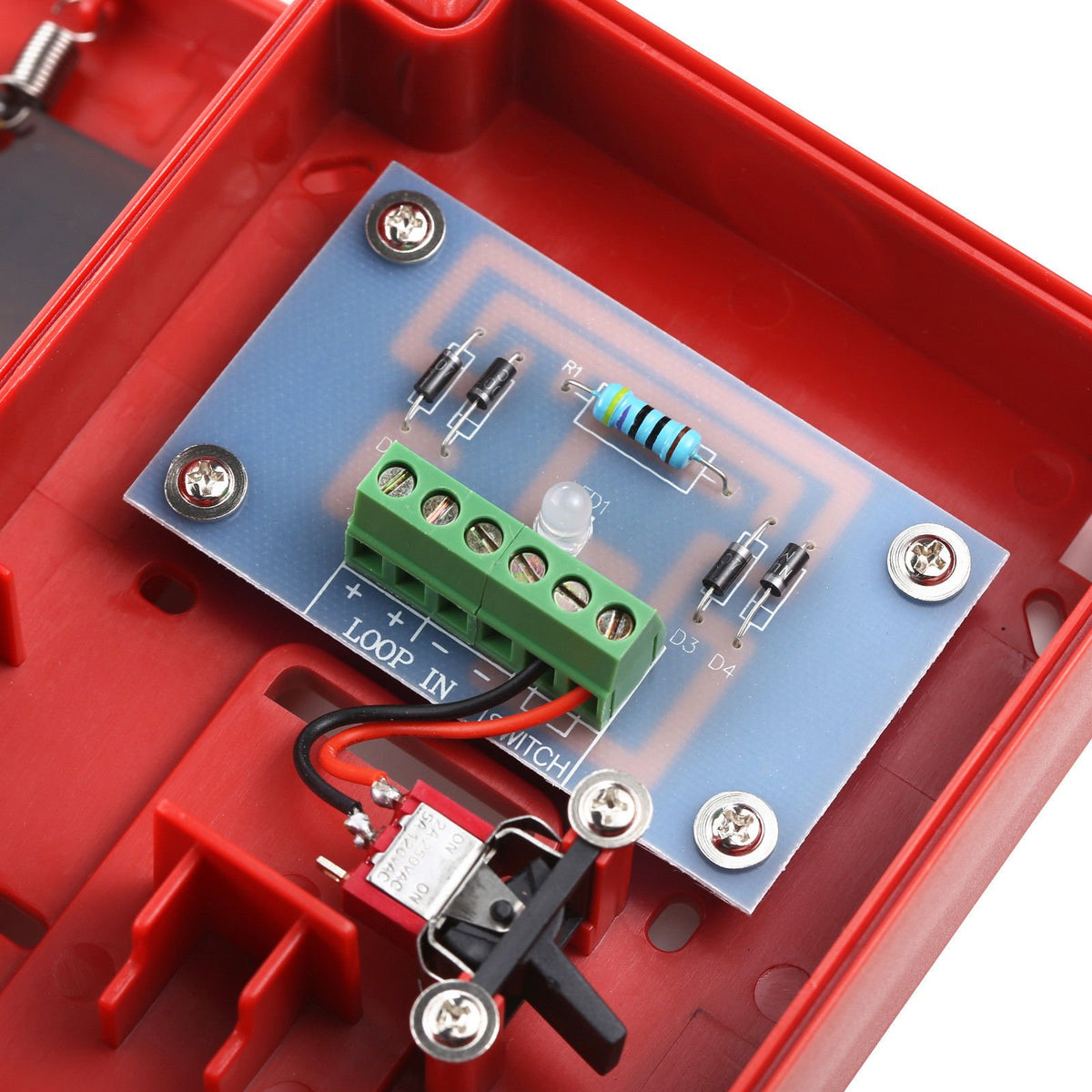

Loop Design And Wiring: The Fire Alarm Control Panel Zone Wire Can Be Connected To Terminal Loop(+), Loop(-) Unpolarized Wire. If The Manual Call Point Is In The End Of The Zone Wire, A 5.6K Resistance Should Be Connected To Terminal Loop(+),Loop(-).
Installation: Note: All Wiring Must Conform To Applicable Local Codes, Ordinances, And Regulations.
Mounting Indoor Wall Attach Mounting Base To Wall At 1.5 Meter'S(59In) High Connect Field Wiring To Terminals To Attach Product To Mounting Base Secure Product By Tightening The One Mounting Screws In The Front Of The Product Housing.
Specifications: Non Ul Listed Operating Voltage Range: 9-28Vdc Volts Alarm Resistance: 470Ohm/1W Operating Humidity Range: 10% To 93% Relative Humidity, Non-Condensing Operating Temperature Range: -10?~50? (14?~122?) Dimensions (Lxwxh): 140X104X45Mm / 5.51'X4.09'X1.77' Net Weight: 220G / 0.44Lb
Package: 1 X Fire Alarm Call Point 2 X Keys 1 X English Manual
