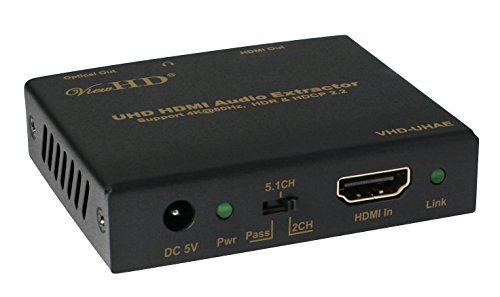

Please Use Certified 18Gbps Hdmi Cable Under 15Ft To Performance. This Is Extremely Important, Particular For Dolby Vision Application. Would Not Recommend This Item For Dvi Display Application Unless The Hdmi Source Allows User To Select Rgb Color To Avoid Potential Hdmi Native Ycbcr Vs Rgb Color Conflict Issues. This Is The Newest Hdmi 2.0 Hdcp 2.2 4K@60Hz 18Gbps Ycbcr 4:4:4 / Rgb 4:4:4 Hdr Dolby Vision Generation Of Hdmi Audio Extractor With Spdif Toslink Optical Digital Audio Output And 3.5Mm Analog Headphone Stereo Audio Output. It Is Backward Compatible With All The Earlier Generations Of Hdmi Devices. The Optical Audio Output Supports Incoming Hdmi Audio Signal Formats Up To Dd+ [Dolby Digital Plus] Dd And Dts 5.1Ch, 2Ch Lpcm. The 3.5Mm Stereo Headphone Output Supports Incoming Hdmi Audio Format Up To 2Ch Pcm / Lpcm, Headphone Output Does Not Support Incoming Hdmi Audio Format Higher Than Stereo, There Will Be No Sound.Hdmi Output Signal Contains Audio Signal, Identical To Hdmi Input Signal, Cec Pass Through. This Vhd-Uhae Model Does Not Support Arc. For Arc, Please Check The Following Models: Uaep / Vhd-Uhae2 / Uhd3X1A Or Vhd-Uhd4X1A. Package Includes: 1] Vhd-Uhae Hdmi 2.0B Audio Extractor 2] 5V1A Universal 100V - 240V Power Adapter With Us Plug3] User Manualu9 Viewhd One Year.Additional Note: Support All Hdmi Sources, Including: Sony Ps3 / Ps4 / Ps4 Pro/ Oppo / Sony Ubp-X800 / Lg Up970 / Samsung M8500 / Panasonic Dp-Ub820P Bluray Player / Roku Ultra / Apple Tv 4K / Chromecast Ultra / Xbox One / Nvidia Shield / Fire Tv Stick, Etc. Dolby Digital Plus Troubleshooting Guide The Toslink Optical Output Of The Vhd-Uhae Supports Dolby Digital Plus [Dd+] Format. Please Make Sure The Av Receiver Can Support Dd+, If Not, Make Sure To Manually Disable Dd+ Output From The Hdmi Source. If You Ever Encounter A No Audio Problem With Dd+ Application Using The Toslink Port, Please First Set The Hdmi Source Output To Stereo Or Dolby Digital To Make Sure Your Connections Are Good, Then Switch The Audio Format To Dolby Digital Plus. If This Still Doesnt Fix The Audio Problem, Please Upgrade The Toslink Cable [ Feel Free To Contact Us For Recommendation ]; Basically, All Toslink Optical Cables Can Support Dd5.1Ch/Ac3 Audio, But Only The Premium Quality Ones Can Support Dolby Digital Plus.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the ViewHD HDMI Audio Extractor?A: The ViewHD HDMI Audio Extractor measures two point ninety-one inches in length, two point four inches in width, and zero point sixty-seven inches in height.
Q: What is the maximum video resolution supported by the ViewHD HDMI Audio Extractor?A: The maximum video resolution supported is four thousand by two thousand at sixty hertz for NTSC or fifty hertz for PAL.
Q: What type of audio outputs does the ViewHD HDMI Audio Extractor provide?A: It provides Toslink optical audio output and a three point five millimeter headphone stereo output.
Q: How do I connect the ViewHD HDMI Audio Extractor?A: To connect the extractor, plug your HDMI device into the HDMI input, then connect your TV or display to the HDMI output.
Q: Is the ViewHD HDMI Audio Extractor easy to install?A: Yes, it's easy to install, requiring just HDMI connections without the need for additional software.
Q: Can I use the ViewHD HDMI Audio Extractor with a surround sound system?A: Yes, the extractor supports five point one channel surround sound through the optical audio output.
Q: How do I clean the ViewHD HDMI Audio Extractor?A: To clean, use a soft, dry cloth to wipe the exterior; avoid using liquids or abrasive materials.
Q: Does the ViewHD HDMI Audio Extractor come with a warranty?A: Yes, it includes a one-year replacement warranty from the manufacturer.
Q: What should I do if my ViewHD HDMI Audio Extractor doesn’t work?A: If it doesn't work, check all connections and ensure your HDMI cables are certified for eighteen gigabits per second.
Q: Is the ViewHD HDMI Audio Extractor compatible with HDMI 2.1 devices?A: No, it is not compatible with HDMI 2.1 features like variable refresh rate and auto low latency mode.
Q: What is the power requirement for the ViewHD HDMI Audio Extractor?A: The power requirement is one hundred to two hundred forty volts AC, converting to five volts DC.
Q: Can I use the ViewHD HDMI Audio Extractor for gaming?A: Yes, it can be used for gaming, providing audio extraction without latency issues.
Q: Is technical support available for the ViewHD HDMI Audio Extractor?A: Yes, lifetime free technical support is available from U9LTD for this product.
Q: Can I use my existing HDMI cables with the ViewHD HDMI Audio Extractor?A: Yes, but for optimal performance, use certified eighteen gigabit per second HDMI cables under fifteen feet.
Q: What audio formats does the ViewHD HDMI Audio Extractor support?A: It supports two-channel PCM, bitstream DTS, Dolby Digital five point one channel, and Dolby Digital Plus.
