Truecable Cat6A Keystone Jack, Unshielded (Utp), 90 Degree Punch Down, Poe++ (4Ppoe), Ul Listed, Etl Verified, Ansi/Tia Certified, Modular Rj45 Female, Gray, 12 Pack

Frequently Asked Questions

• Q: What materials are used in the trueCABLE Cat6A Keystone Jack? A: The trueCABLE Cat6A Keystone Jack is made from tough ABS plastic. This material ensures durability and reliability during installation.
• Q: What are the dimensions of the keystone jack? A: The dimensions of the keystone jack are four point six three inches in length, three point six three inches in width, and one point five inches in height.

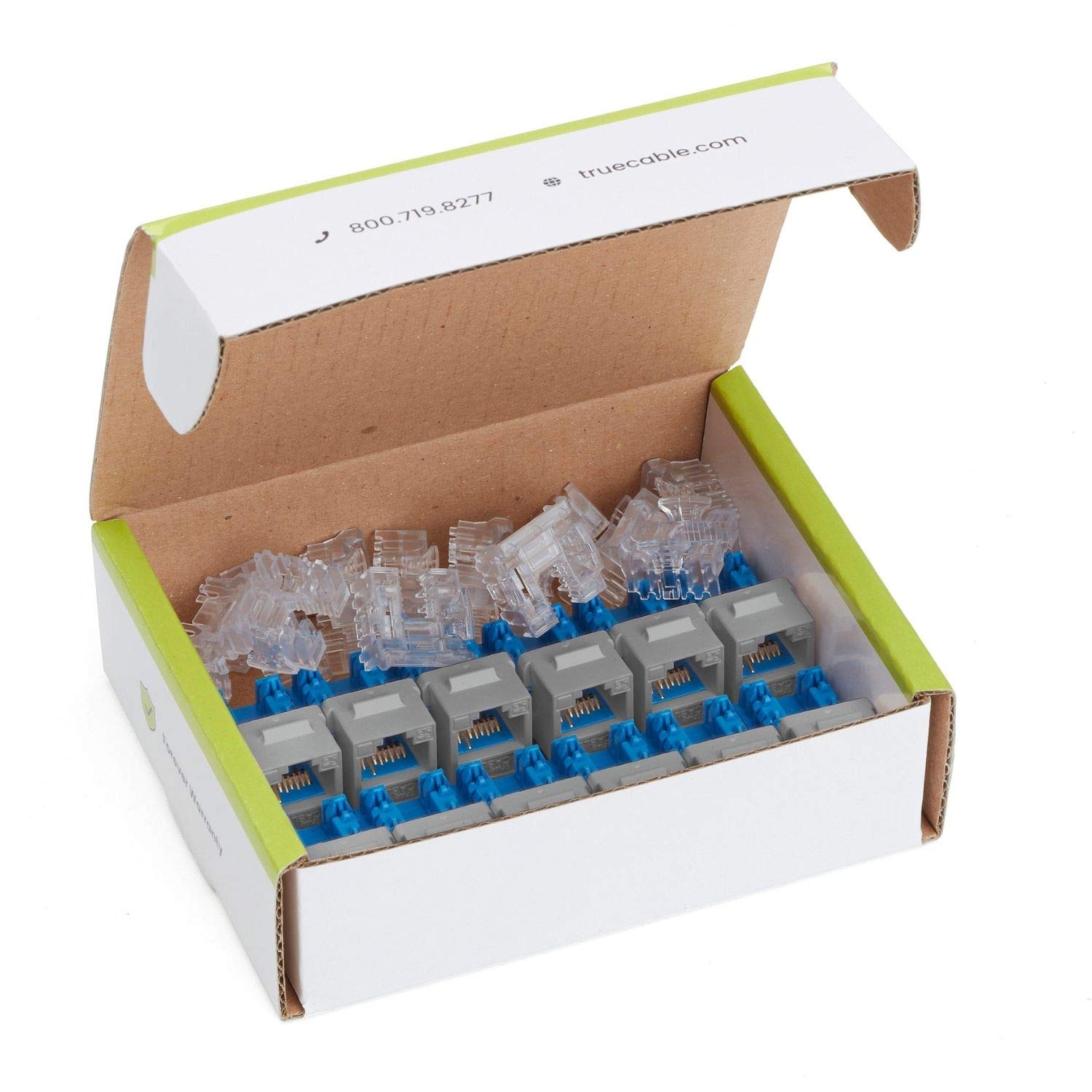

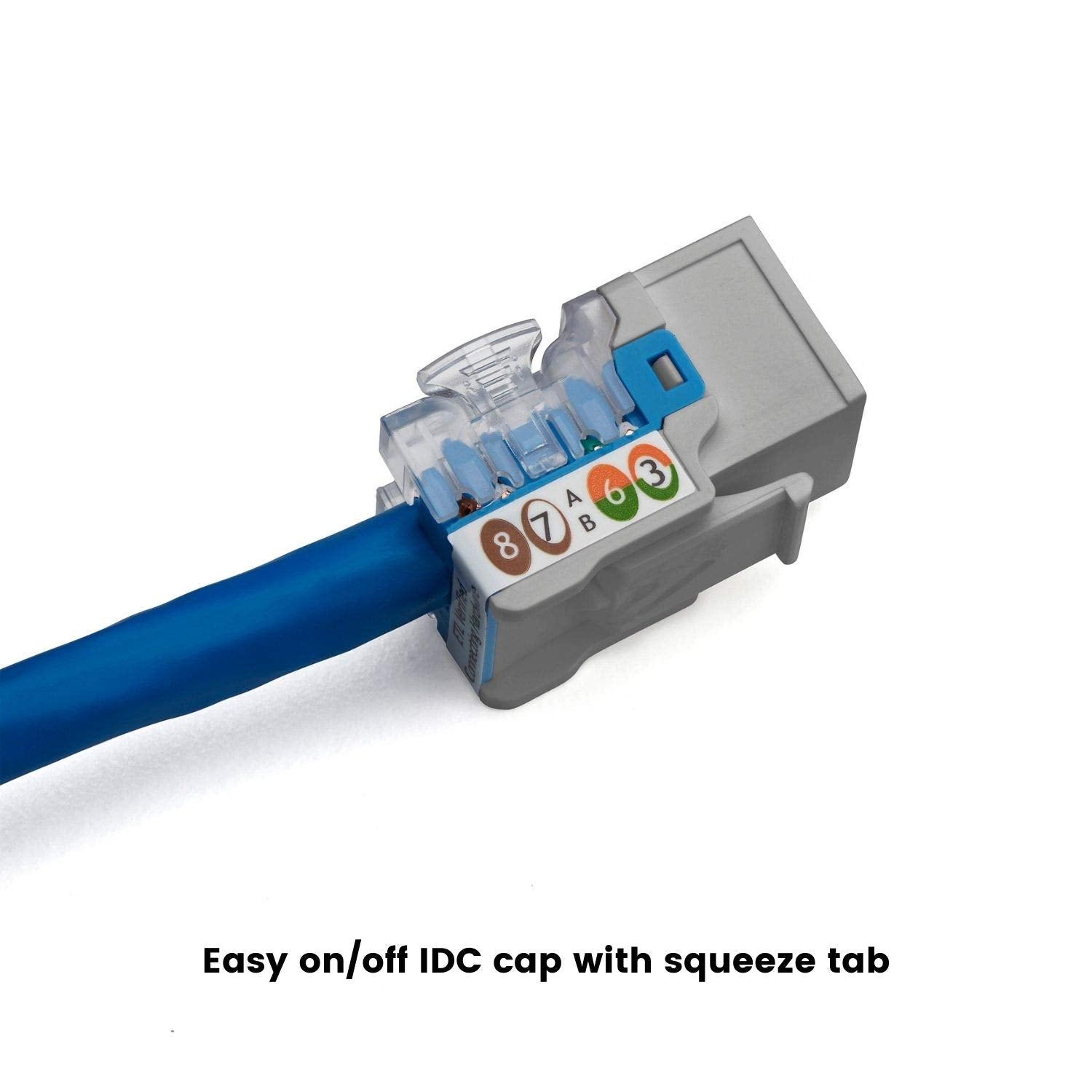

• Q: What is the packaging size for this product? A: This product comes in a box containing twelve pieces. Each keystone jack includes an IDC cap and termination instructions.
• Q: How do I install the trueCABLE Cat6A Keystone Jack? A: To install the keystone jack, use the punch-down tool to connect the wires into the IDC terminal block. Follow the T568A or T568B wiring scheme for proper connections.
• Q: Is this keystone jack suitable for home networking? A: Yes, the trueCABLE Keystone Jack is ideal for home networking. It supports speeds up to ten gigabits per second, making it perfect for high-speed internet connections.
• Q: Can I use this keystone jack with any standard wall plate? A: Yes, the trueCABLE Keystone Jack is one hundred percent compatible with any standard wall plate or patch panel.
• Q: How do I maintain the trueCABLE Keystone Jack? A: To maintain the keystone jack, ensure it is kept clean and free from dust. Avoid excessive force during installation to prevent damage to the terminals.
• Q: Is this product UL listed and certified? A: Yes, the trueCABLE Keystone Jack is UL listed and ANSI/TIA certified. It meets high standards for safety and performance.
• Q: What is the warranty on the trueCABLE Keystone Jack? A: The trueCABLE Keystone Jack comes with a forever warranty. This ensures long-term support and replacement if any issues arise.
• Q: Can this keystone jack support Power over Ethernet? A: Yes, this keystone jack supports Power over Ethernet, including PoE++, up to one hundred watts. This makes it suitable for powering devices like IP cameras.
• Q: What is the performance rating of the trueCABLE Keystone Jack? A: The trueCABLE Keystone Jack is rated for performance up to five hundred megahertz. This allows for efficient data transmission with minimal interference.

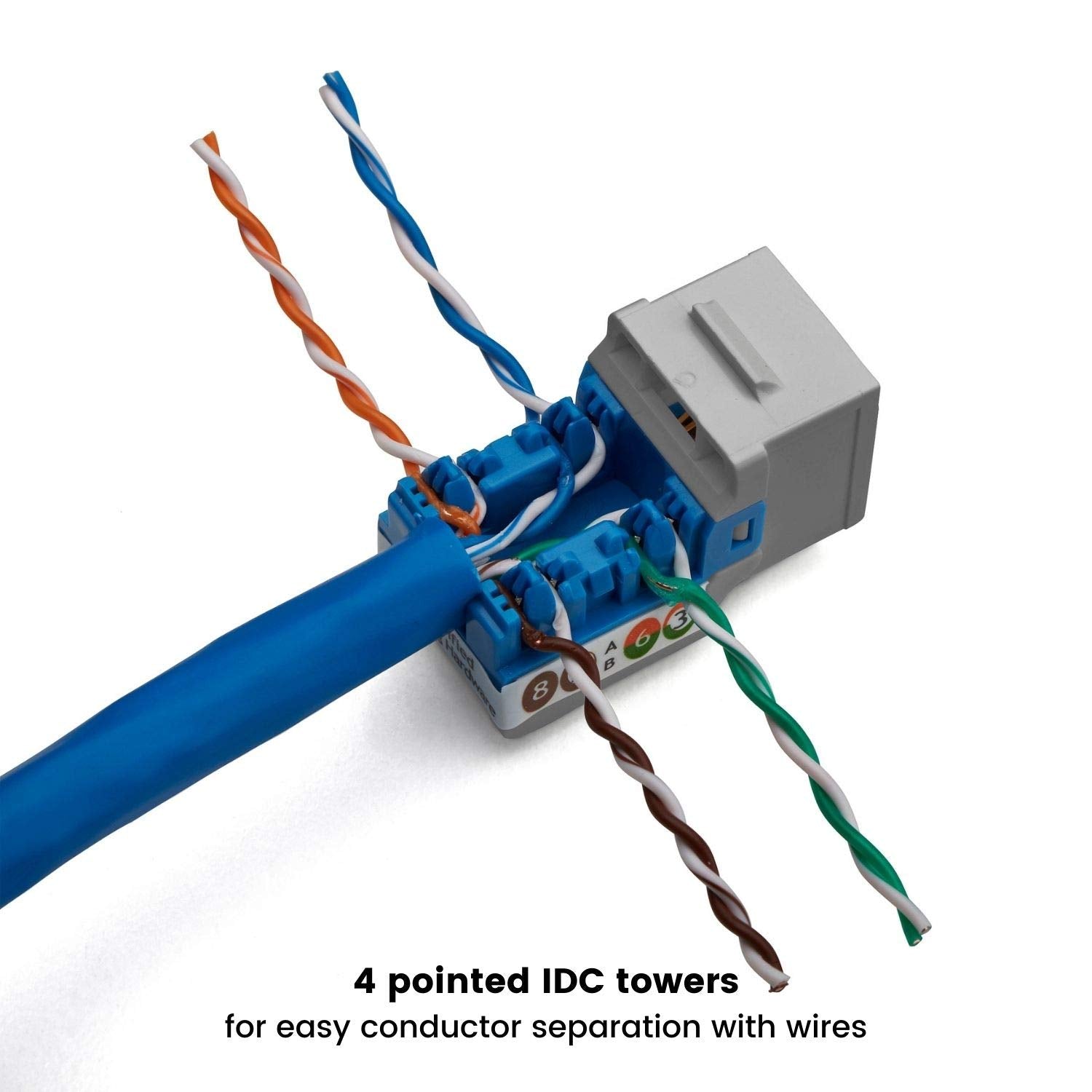

• Q: Is it easy to terminate the wires with this keystone jack? A: Yes, the keystone jack features a sharp 'V' shaped point on the IDC terminal block. This allows for tight terminations without untwisting the wire pairs.
• Q: What color is the trueCABLE Keystone Jack? A: The trueCABLE Keystone Jack is gray in color. Highly visible markings are also printed on the side for easy wiring identification.
• Q: Is the trueCABLE Keystone Jack suitable for professional installations? A: Yes, this keystone jack is designed for professional-grade installations. Its component-level construction outperforms typical channel-grade jacks.
• Q: What types of cables are compatible with this keystone jack? A: The trueCABLE Keystone Jack is compatible with twenty-three to twenty-four AWG solid copper conductors and works well with U/UTP Ethernet cables.
