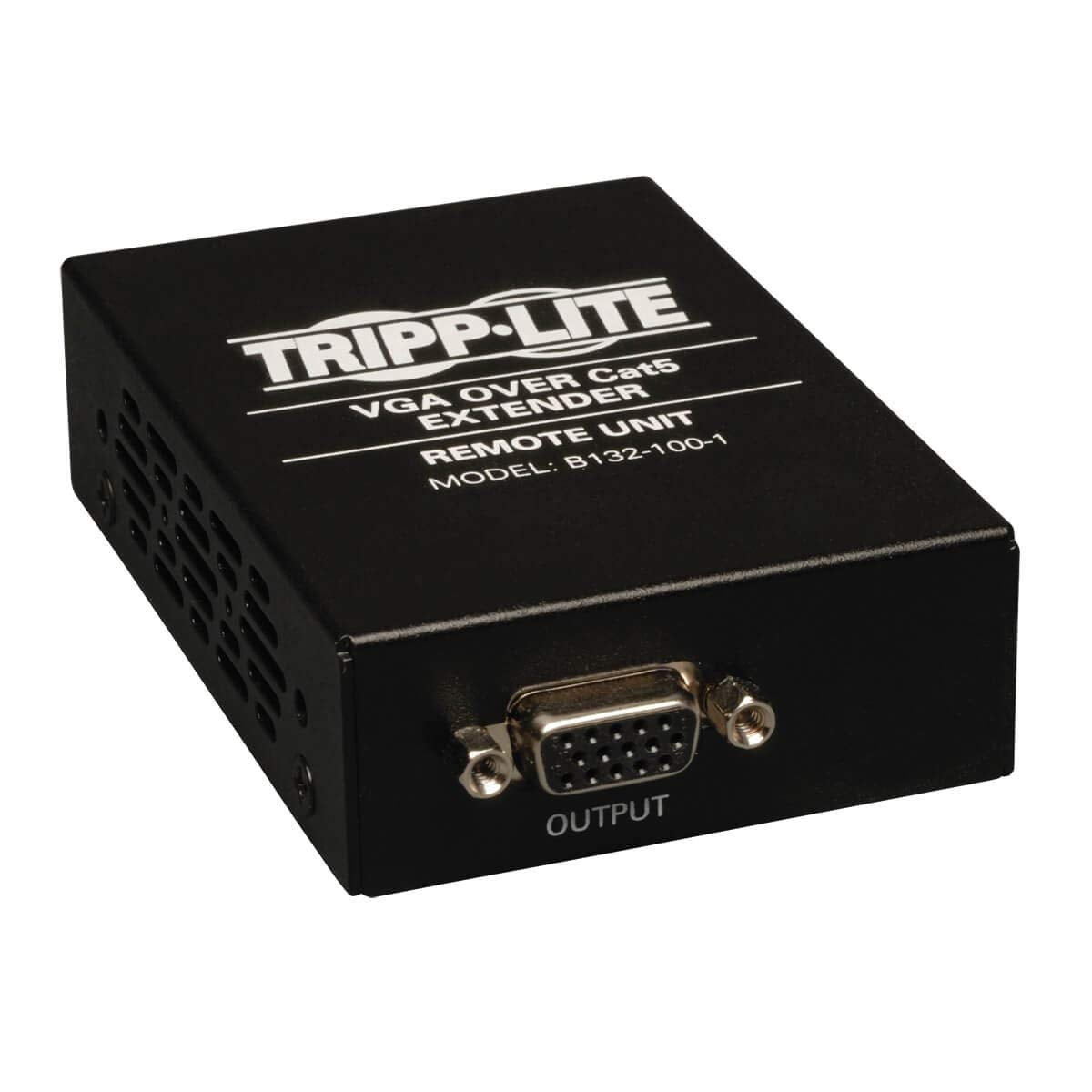

From The Manufacturer Ensure Clear Video Transmission At Distances Of Up To 1000 Feet! The B132-100-1 Vga Over Cat5 Receiver Is The Ideal Solution For Digital Signage Applications That Require Long Distance Transmission And Uncompromising Video Quality. It Works With A B132-002-1 Or B132-004-1 Local Unit To Extend A Vga Video Signal Over Long Distances. It Features Built-In Equalization And Gain Controls For Adjusting The Video Image. Mounting Hardware Is Included To Support Multiple Installation Options. An Ac Power Supply Is Included For Powering The Device.Feature Focus The Smart Solution For Digital Signage Applicationsclick Here For A Larger Image Vga Portsclick Here For A Larger Image The Smart Solution For Digital Signage Applicationsthe B132-100-1 Enables The Video Source To Be Installed In A Secure, Remote Location For Controlled Access. It Can Be Used To Connect Display Devices With Vga Ports, Such As Dtvs, Plasma Displays, Lcd Tvs And Projectors, To Vga Video Sources, Such As Computers, Video Cards And Av Receivers.Greater Distance Greater Flexibilitythis Genuine Tripp Lite Vga Over Cat5 Receiver Works With A B132-002-1 Or B132-004-1 Local Unit To Extend A Vga Video Signal Beyond The Average 100-Ft. Distance Limitation. The B132-100-1 Can Extend A 1024 X 768 (60 Hz) Signal Up To 1000 Feet When Using 24Awg Solid Wire Cat5E/6 Cable (Tripp Lite N202-Series), And Supports A Maximum Resolution Of 1920 X 1440 (60 Hz). For Optimal Image Quality Between 500 And 1,000 Ft., Use Zero-Skew Cable, Such As Tripp Lite P524-01K.Superior Quality Assures Error-Free Signal Transferthe B132-100-1 Receiver Is Manufactured Using Top-Quality Materials. Plus, Built-In Equalization And Gain Controls Allow The Video Image To Be Adjusted For Optimal Quality. It Is Also Compliant With Rohs (Reduction Of Hazardous Substances) Standards, Reflecting Tripp Lites Commitment To Environmental Responsibility.Versatile Installation Optionsthe B132-100-1 Receiver Includes Mounting Hardware That Enables It To Be Installed In Any Venue. Mounting Options Include Wall-Mount, Rackmount And Pole Mount.Peace Of Mind1-Year Limited Warranty. Extend A Vga Signal Up To 1000 Ft.Click Here For A Larger Image Technical Specifications Click Here For A Larger Image Whats In The Box B132-100-1 Receivermini-Screwdriver For Eq/Gain Adjustmentmounting Hardwareexternal Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)Owners Manual Tripp Lite Connects All Your Electronicsb132-002-1 2-Port Vga Over Cat5 Transmitterideal For Digital Signage Solutions. Splits A Single Vga Video Signal Into 2, And When Used With B132-100-1 Or B132-100-Wp-1 Remote Units, Extends The Signal Up To 1,000 Feet From The Source. Includes An External Power Supply And Mounting Hardware. 1-Year Warranty.B132-004-1 4-Port Vga Over Cat5 Transmitterideal For Digital Signage Solutions. Splits A Single Vga Video Signal Into 5 (1 Local, 4 Remote), And When Used With B132-100-1 Or B132-100-Wp-1 Remote Units, Extends The Signal Up To 1,000 Feet From The Source. Increase The Number Of Displays By Up To 25 (1 Local, 24 Remote) By Daisychaining Up To Six B132-004-1 Units Together. Includes An External Power Supply, A Vga Daisychain Cable, And Mounting Hardware. 1-Year Warranty.N202-050-Bl Cat6 Gigabit Solid Conductor Snagless Patch Cable (Rj45 M/M) 50 Ft.Tripp Lites Solid Conductor 4-Pair Cat6 Patch Cables Are Ideal For Long Ethernet Patch Cable Runs, As Well As For Use With Tripp Lites Hdmi-Over-Cat6 Audio/Video Products. Solid Conductor Wire Has A Lower Dc Resistance, Allowing Signals To Run Farther And Stronger Than Stranded Conductor Patch Cables. Unique, Snagless Boot Protects The Rj45 Locking Tab During Cable Pulls, Yet Easily Disconnects From Attached Equipment. Lifetime Warranty.P502-006 Gold Svga/Vga Monitor Cable (Hd15 M/M) 6 Ft.Premium Double-Shielded Cable For Maximum Emi/Rfi Protection And Superior Signal Quality. High-Density Db15 Male Connectors Are Gold Plated For Superi
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What is the maximum resolution supported by the Tripp Lite VGA Over Cat5 Receiver?A: The maximum resolution supported is one thousand nine hundred twenty by one thousand four hundred forty at sixty hertz. This ensures clear video quality over long distances.
Q: What are the dimensions of the Tripp Lite VGA Over Cat5 Receiver?A: The dimensions are three point six inches in length, two point five inches in width, and one inch in height. This compact size allows for versatile installation options.
Q: What type of cable is recommended for optimal performance with this device?A: For optimal performance, it is recommended to use twenty-four gauge solid wire Cat5e or Cat6 cable. This ensures signal integrity over long distances.
Q: How does the Tripp Lite VGA Over Cat5 Receiver extend the VGA signal?A: The receiver extends a VGA video signal up to one thousand feet from the source. It works in conjunction with a compatible local unit for effective transmission.

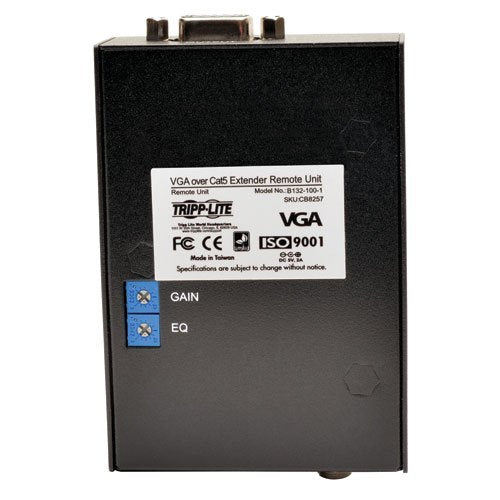

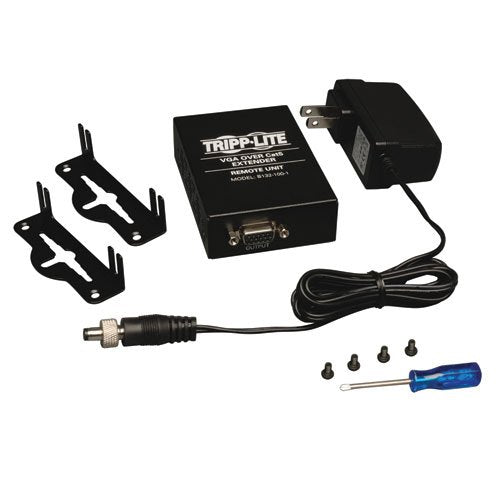

Q: What is included in the box with the Tripp Lite VGA Over Cat5 Receiver?A: Included in the box are the receiver, a mini-screwdriver for equalization and gain adjustment, mounting hardware, and an external power supply. Everything needed for setup is provided.
Q: How do I install the Tripp Lite VGA Over Cat5 Receiver?A: Installation is straightforward with included mounting hardware, allowing for wall-mounting, rack-mounting, or pole-mounting options. Follow the provided instructions for best results.
Q: Is the Tripp Lite VGA Over Cat5 Receiver suitable for digital signage applications?A: Yes, it is ideal for digital signage applications. It allows for clear video transmission over long distances, making it suitable for retail, schools, and churches.
Q: Can this receiver be used with any VGA source?A: Yes, it can be used with any VGA source, including computers, video cards, and AV receivers. It connects to display devices with VGA ports such as DTVs and projectors.
Q: How should I care for the Tripp Lite VGA Over Cat5 Receiver?A: To ensure longevity, keep the receiver in a dry environment and avoid exposing it to extreme temperatures. Regularly check connections for optimal performance.
Q: Is there a warranty offered with the Tripp Lite VGA Over Cat5 Receiver?A: Yes, there is a one-year limited warranty. This provides peace of mind and protection against potential defects.
Q: What should I do if the VGA signal does not transmit properly?A: If the signal does not transmit properly, check all connections and ensure you are using recommended Cat5e or Cat6 cable. Adjust equalization and gain settings as needed.
Q: Can I use this receiver with longer distances than one thousand feet?A: No, the maximum extension distance is one thousand feet. Using longer distances may result in signal degradation.
Q: What kind of materials is the Tripp Lite VGA Over Cat5 Receiver made from?A: The receiver is constructed from high-quality materials to ensure durability and long-lasting performance. It is designed to maintain signal integrity over extended distances.
Q: Is the Tripp Lite VGA Over Cat5 Receiver compliant with any standards?A: Yes, it is compliant with RoHS standards, reflecting the manufacturer's commitment to environmental responsibility. This means it meets regulations for hazardous substances.
Q: What are the mounting options for the Tripp Lite VGA Over Cat5 Receiver?A: The receiver offers multiple mounting options including wall-mount, rack-mount, and pole-mount. This versatility allows for installation in various setups.
Q: What do I do if the product arrives damaged?A: If the product arrives damaged, contact customer support immediately for assistance with returns or exchanges. Keep all original packaging for the return process.
