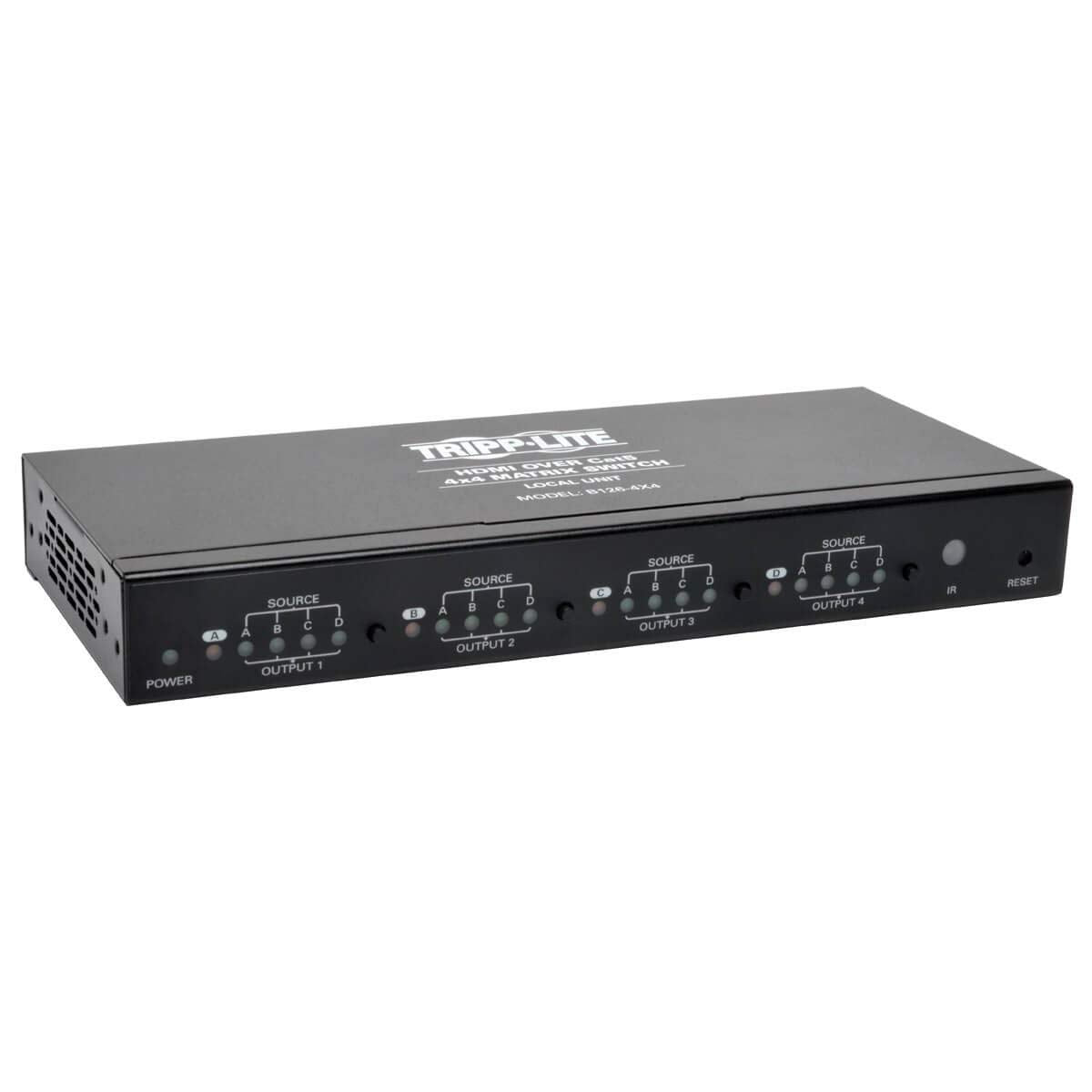

Tripp Lite B126-4X4 allows Four HDMI video sources ( DVR, Cable box, etc. ) to be shared among multiple monitors, over ordinary Cat5e/Cat6 cable. When used with Tripp Lite Active HDMI receivers, can extend a 1080P signal up to 125ft, and 1080i up to 175ft. Allows any Input to be routed to any Output; or the same Input to be routed to multiple outputs. Switch between inputs via pushbuttons, remote control, or RS232 serial. Four monitors can be supported with the basic switch further expand the range and number of monitors by adding B126-110 remote repeater units. Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lites N202-Series, to achieve maximum distance and resolution. A 1080p at 60Hz signal can be extended up to 125 ft. for each repeater added into a channel (or up to 175 ft. for a 1080i at60Hz signal). For longer distances: Use a B126-1A0 or B126-1A0-WP-1 active remote receiver to extend a 1080p at 60Hz signal up to 125 ft. from the transmitter (or a 1080i at 60Hz signal up to 175 ft. from the transmitter). For shorter distances: Use a B126-1P0 or B126-1P0-WP-1 passive remote receiver to extend a 1080p at 60Hz signal up to 50 ft. from the transmitter (or a 1080i at 60Hz signal up to 75 ft. from the transmitter).
