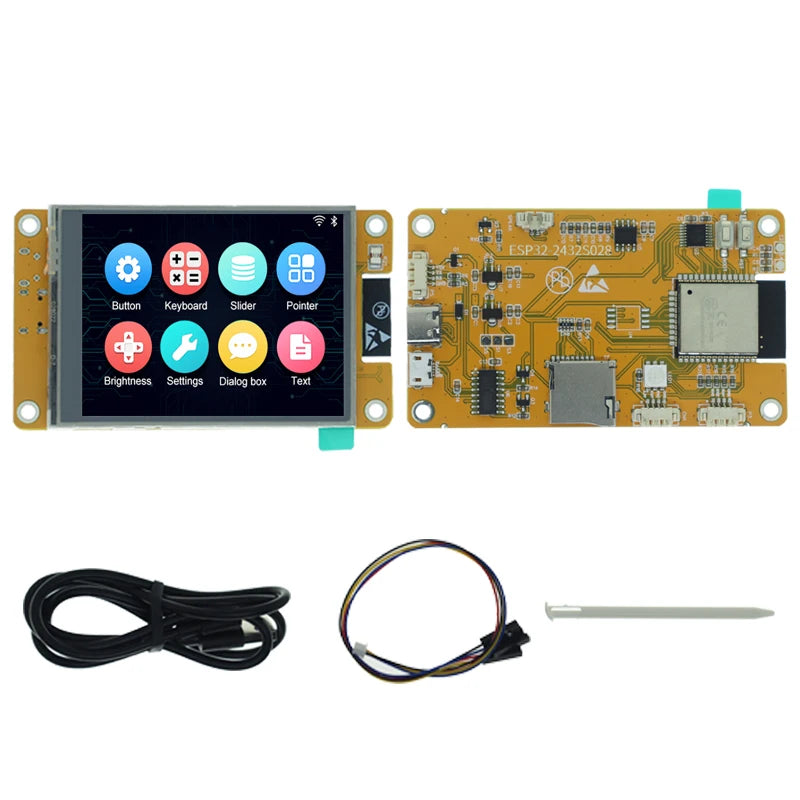

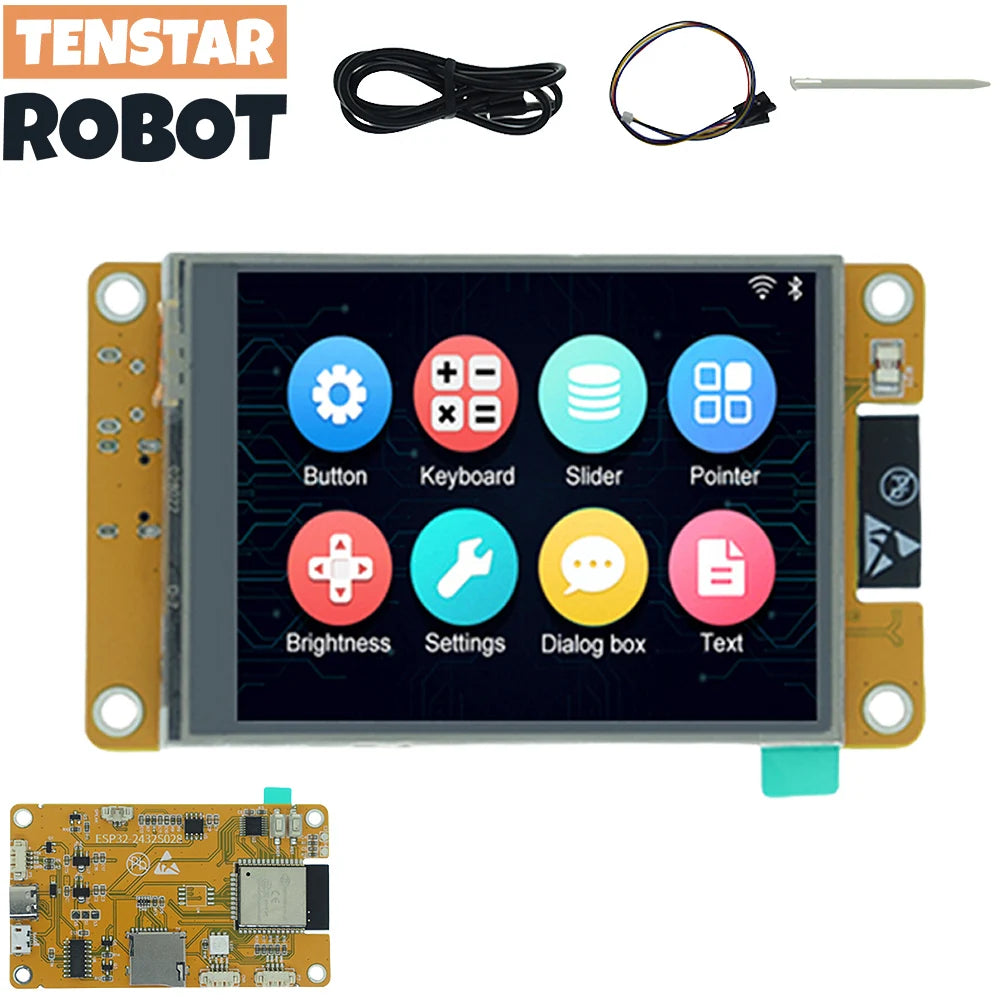

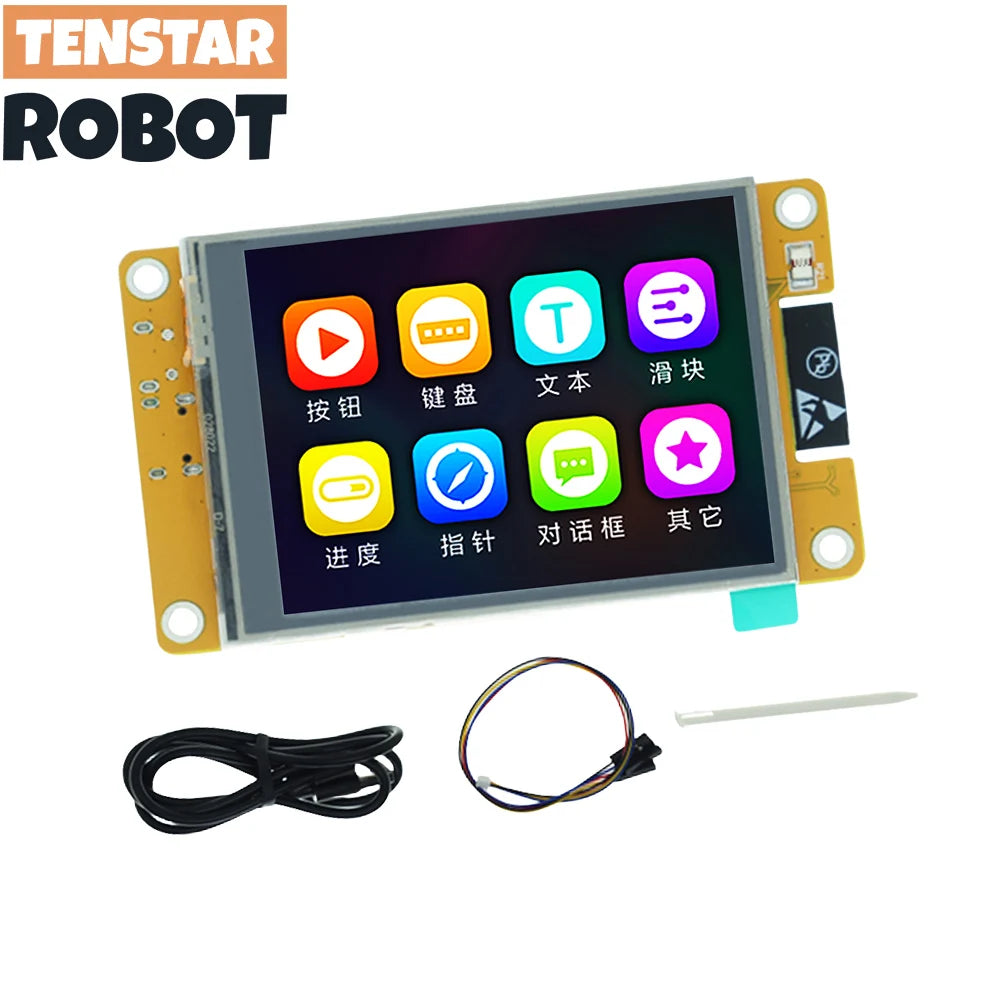

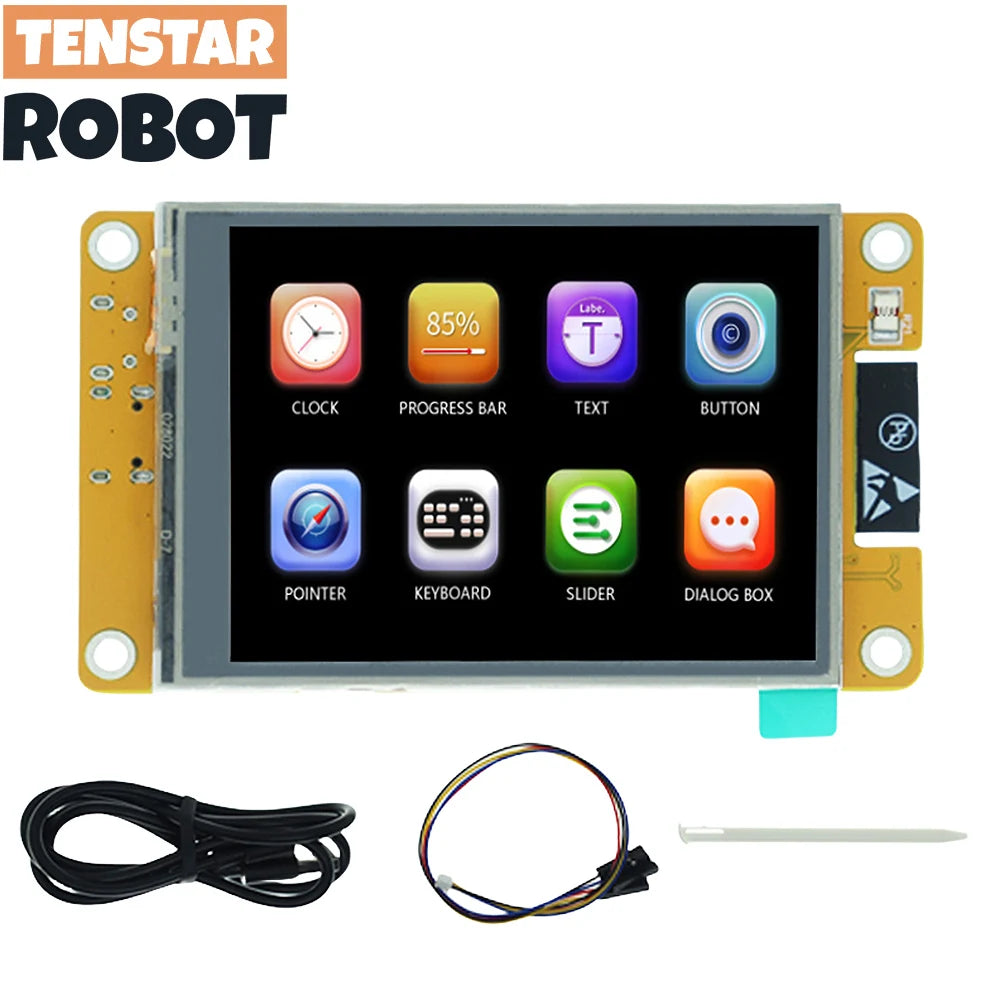

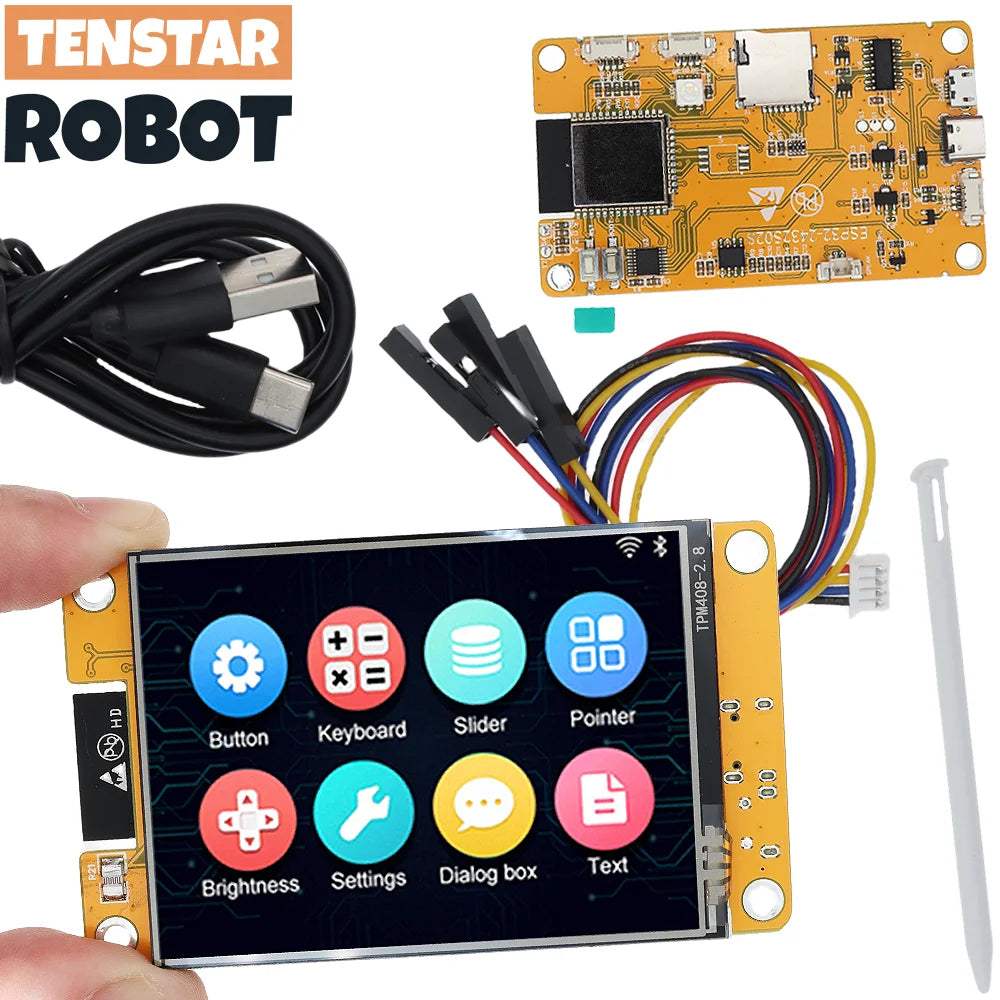

TENSTAR ROBOT ESP32 LVGL WIFI&Bluetooth Development Board 2.8 Inch 240*320 Smart Display Screen TFT Module With Touch
Free Standard Shipping Across USA
Couldn't load pickup availability
Refresh
Sold by Electroeshop, an authorized reseller.
Returns accepted within 30 days | support@electroeshop.com
Verified
Shipping Information
Free Standard Shipping — United States only
Processing Time: 3–5 business days
Estimated Delivery: 6–10 business days after dispatch
Double-boxed, fully insured & discreetly packaged
Tracking number sent via email once dispatched
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · 25% restocking fee applies
Return Authorization (RA) number before sending.
View Full Return & Refund Policy
Your Cart
Item(s):
Total: $0.00
TENSTAR ROBOT ESP32 LVGL WIFI&Bluetooth Development Board 2.8 Inch 240*320 Smart Display Screen TFT Module With Touch - Default Title
Default Title
Default Title
$16.31
Add to Cart
SPECIFICATIONS Brand Name : TENSTAR ROBOT
Choice : yes
Display Mode : 320x240
High-concerned chemical : none

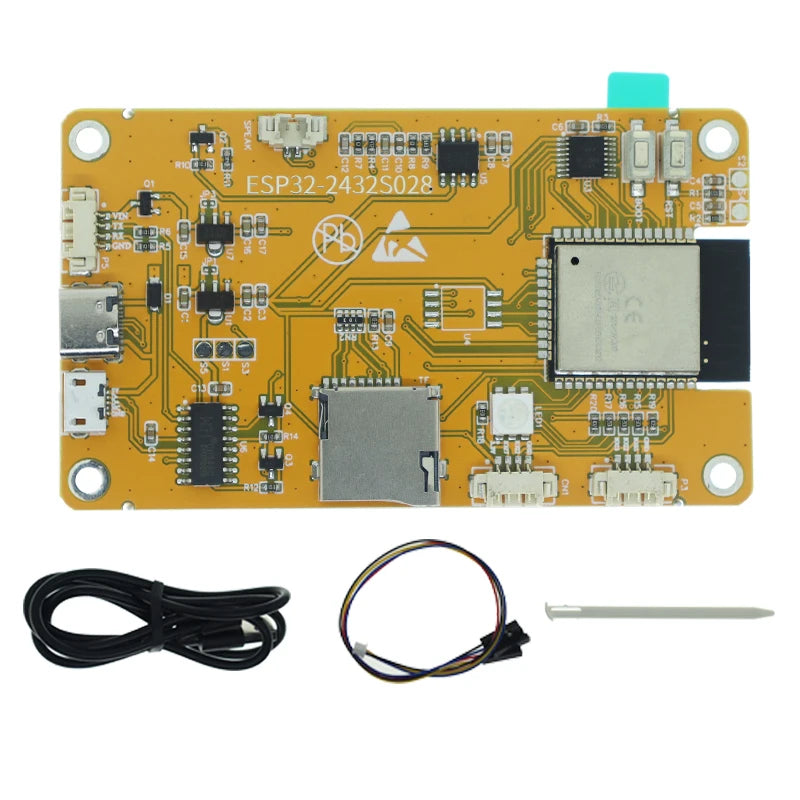

Model Number : ESP32-2432S028
Origin : Mainland China
Resolution : 320*240
Type : TFT
is_customized : Yes
ESP32-2432S028R download link： https://drive.google.com/drive/folders/1Z7SlKt1MD6miIoHX1Jf0sB15iaqURNGU?usp=sharing
Parameter：
Use low-power dual-core 32-bit CPU, which can be used as an application processor.
The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS
Built-in 520 KB SRAM
Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
Support OV2640 and OV7670 cameras, built-in flash
Support picture WiFI upload
Support TF card
Support multiple sleep modes.
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click network configuration
Support secondary development
Specifications
Working voltage 4.75-5.25V
SPIFlash default 32Mbit
RAM internal 520KB
Wi-Fi 802.11b/g/n/e/i
Bluetooth Bluetooth 4.2BR/EDR and BLE standard
Support interface (2Mbps) UART, SPI, I2C, PWM
Support TF card, maximum support 4G
IO port 9
Serial port rate default 115200bps
Spectrum range 2400 ~2483.5MHz
Antenna form Onboard PCB antenna, gain 2dBi
Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE
Packaging method DIP-16
Transmit power 802.11b: 17±2dBm (@11Mbps)
802.11g: 14±2dBm (@54Mbps)
802.11n: 13±2dBm (@MCS7)
Receiving sensitivity CCK, 1Mbps: -90dBm
CCK, 11Mbps: -85dBm
6Mbps(1/2BPSK): -88dBm
54Mbps (3/464-QAM): -70dBm
MCS7 (65Mbps, 72.2Mbps): -67dBm
Power consumption Turn off the flash: 180mA@5V
Turn on the flash and adjust the brightness to the maximum: 310mA@5V
Deep-sleep: The lowest power consumption can reach 6mA@5V
Moderm-sleep: the lowest can reach 20mA@5V
Light-sleep: the lowest can reach 6.7mA@5V
Security WPA/WPA2/WPA2-Enterprise/WPS
Working temperature -20 ℃~ 70 ℃
Storage environment -40 ℃~ 125 ℃, <90%RH
Application
Home smart device image transmission
Wireless monitoring
Smart agriculture
QR wireless recognition
Wireless positioning system signal
And other IoT applications
