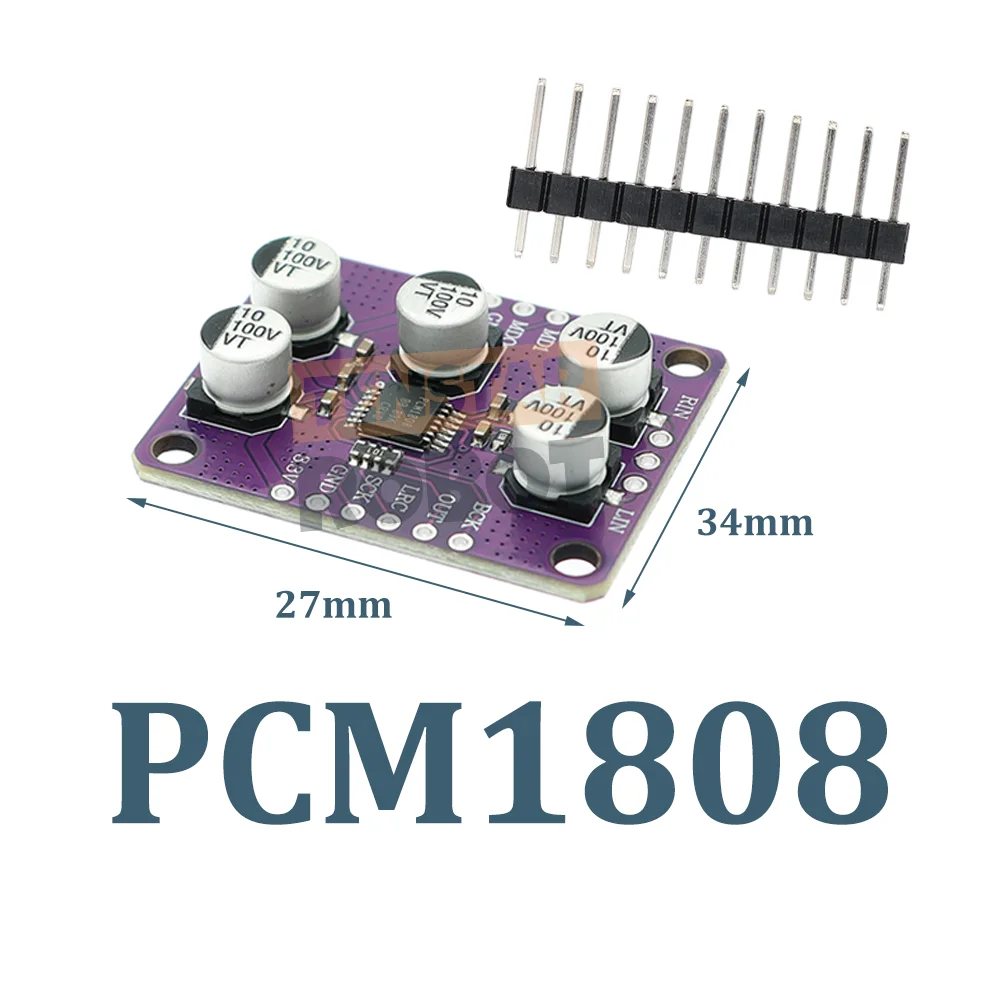

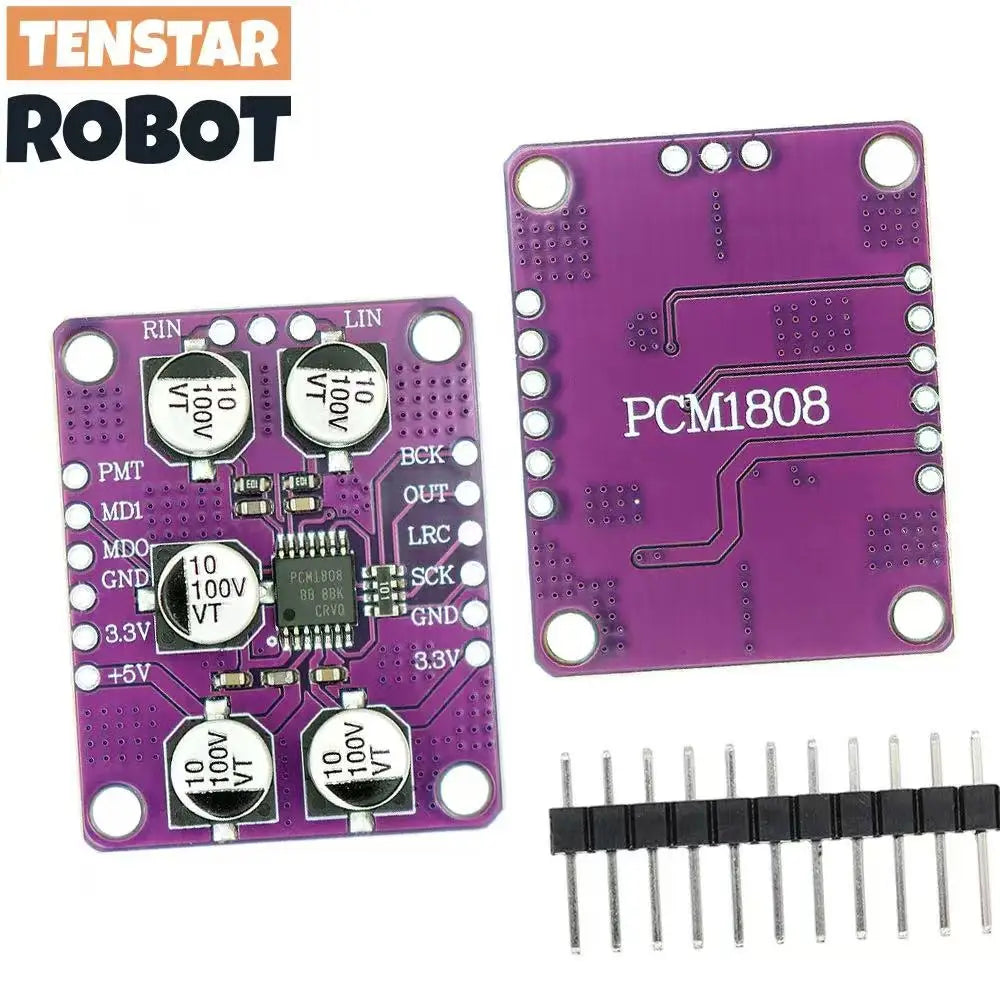

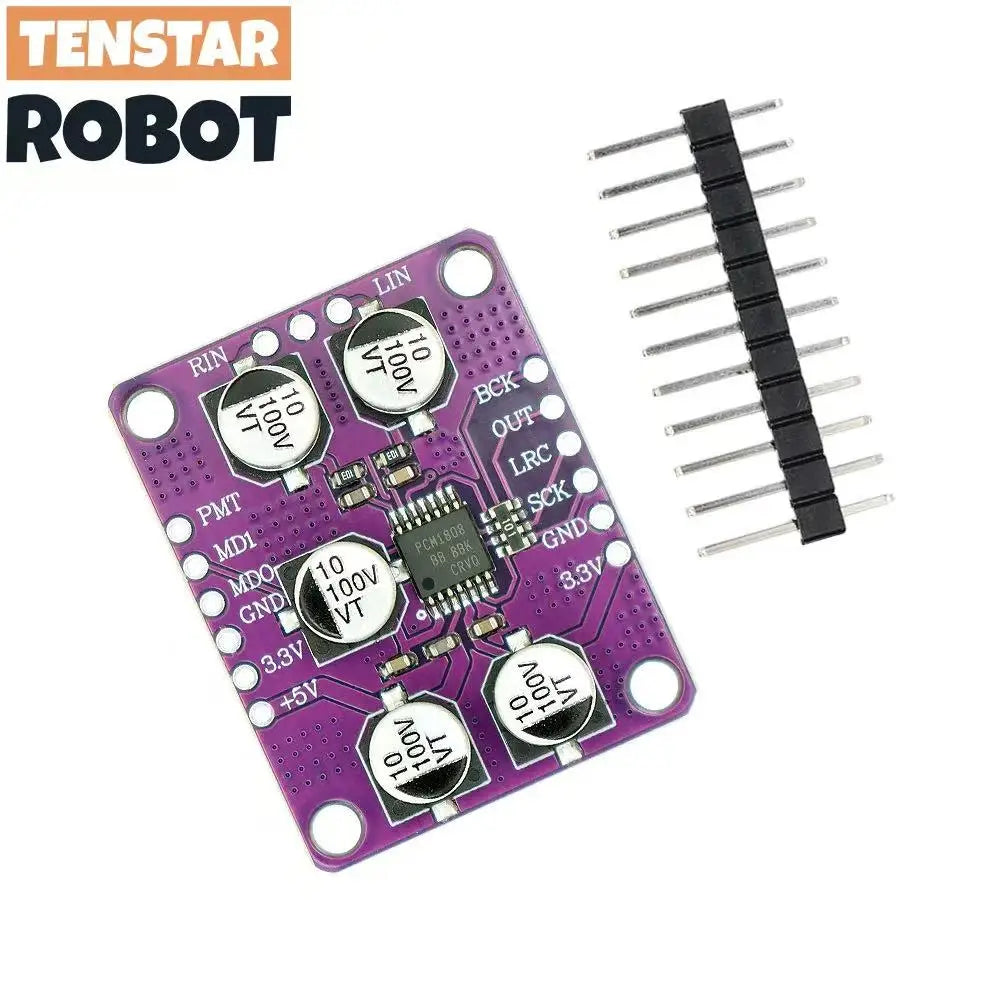

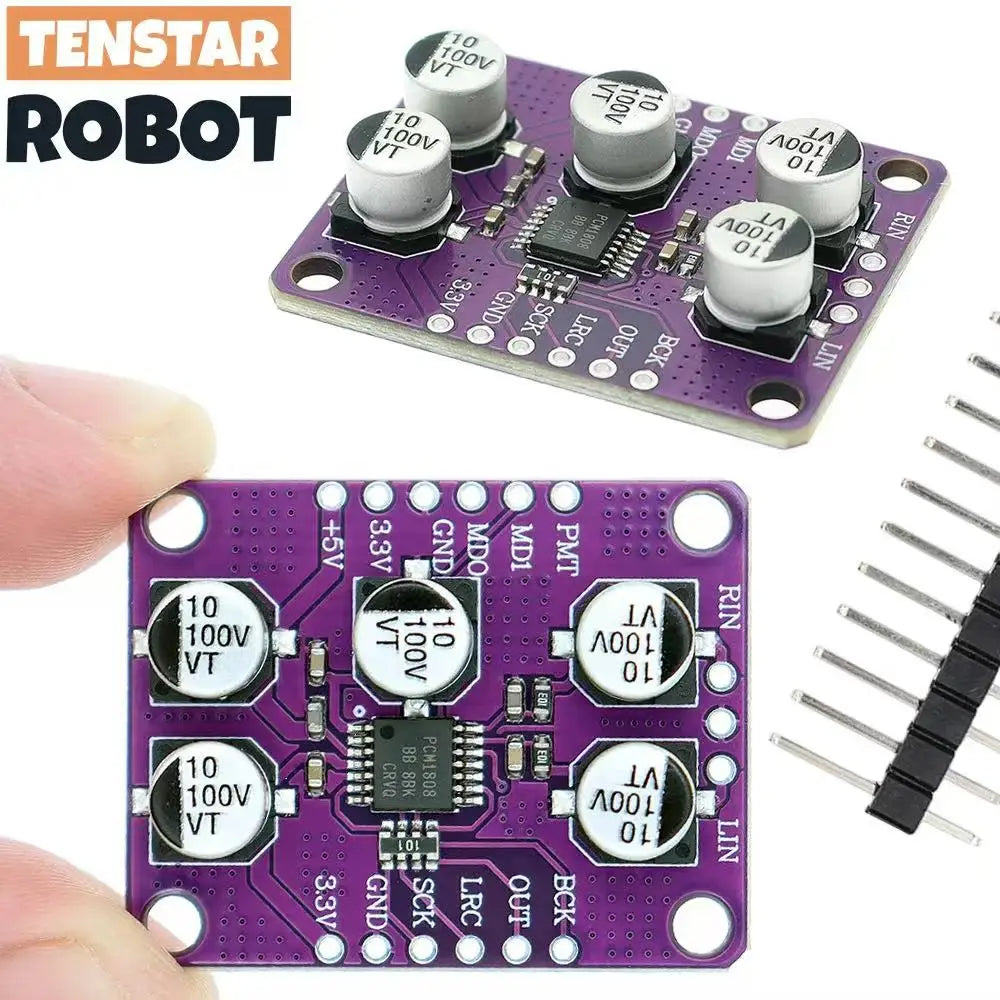

The PCM1808 device is a high-performance, low-cost, single-chip stereo analog-to-digital converter with single-ended analog voltage inputs. Utilizing a delta-sigma modulator with 64x oversampling, the PCM1808 includes a digital decimation filter and a high-pass filter to eliminate DC components from the input signals. For various applications, the PCM1808 supports both master and slave modes as well as two data formats in its serial audio interface.
The PCM1808 device supports power-down and reset functions by suspending the system clock. It is suitable for cost-sensitive consumer applications requiring good performance, operating with a 5V analog supply and a 3.3V digital supply. The PCM1808 is manufactured using a CMOS process and comes in a compact 14-pin TSSOP package.
Power Down and Reset via Suspension of System Clock
Includes Analog Anti-Alias LPF
Sampling Rates: 8 kHz - 96 kHz
System Clock: 256 fS, 384 fS, 512 fS
Resolution: 24-bit
Dual Supply:
5V for Analog
3.3V for Digital
