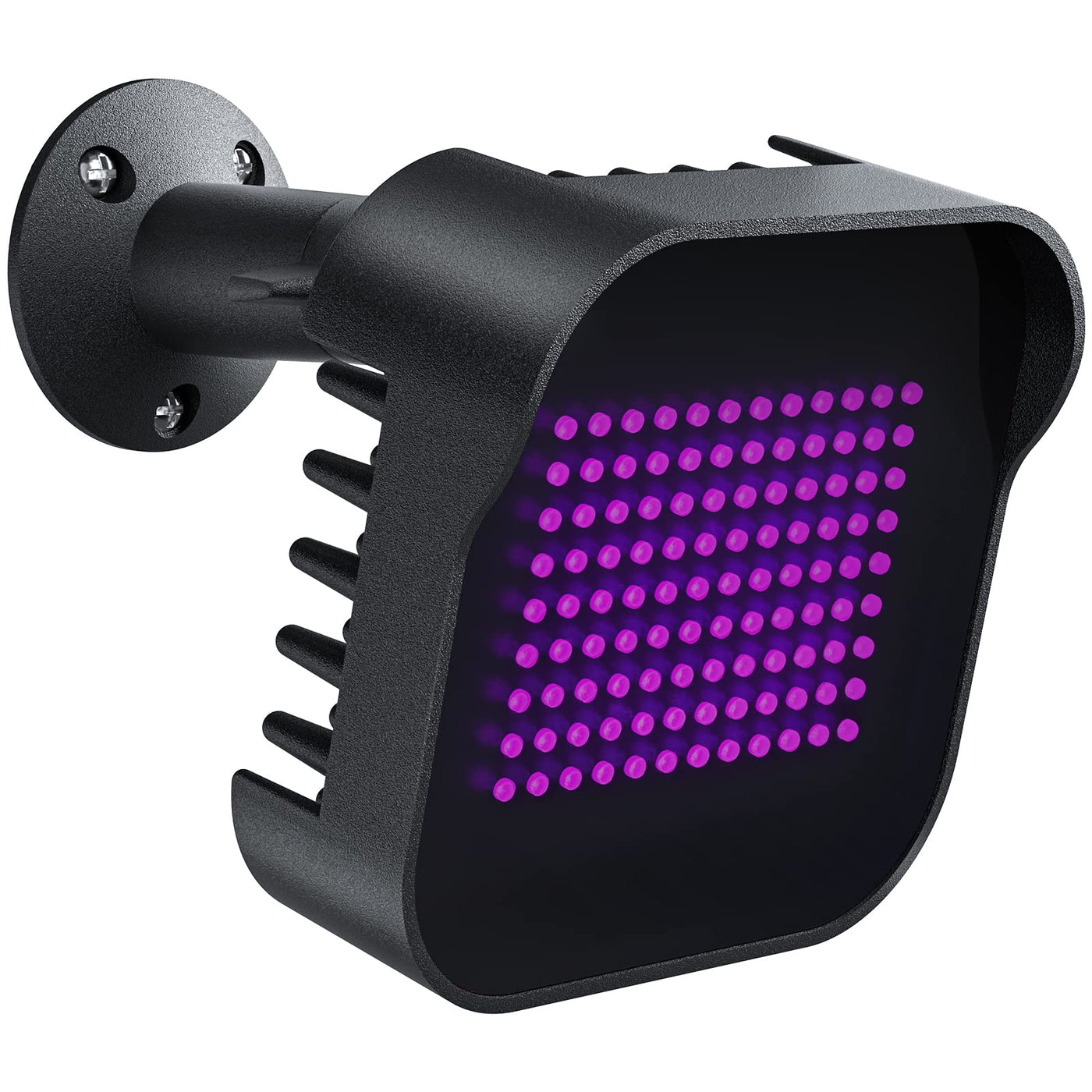

The Tendelux DI20B is a compact DC powered IR illuminator designed specifically to enhance nighttime surveillance capabilities for IR sensitive network cameras. This powerful illuminator ensures clear and reliable surveillance images around the clock, making it an essential tool for security applications.
Constructed from durable cast aluminum, the DI20B boasts a sleek design that not only looks modern but also supports effective heat dissipation. The illuminator operates within a wide input voltage range of DC 12-24V and consumes just 20 watts of power. It features advanced SMD LED technology with a wavelength of 850 nm, delivering optimal infrared light for enhanced nighttime visibility. The efficient design ensures an effective range of 160-240 feet, making it suitable for both residential and commercial surveillance needs.
Key Features:

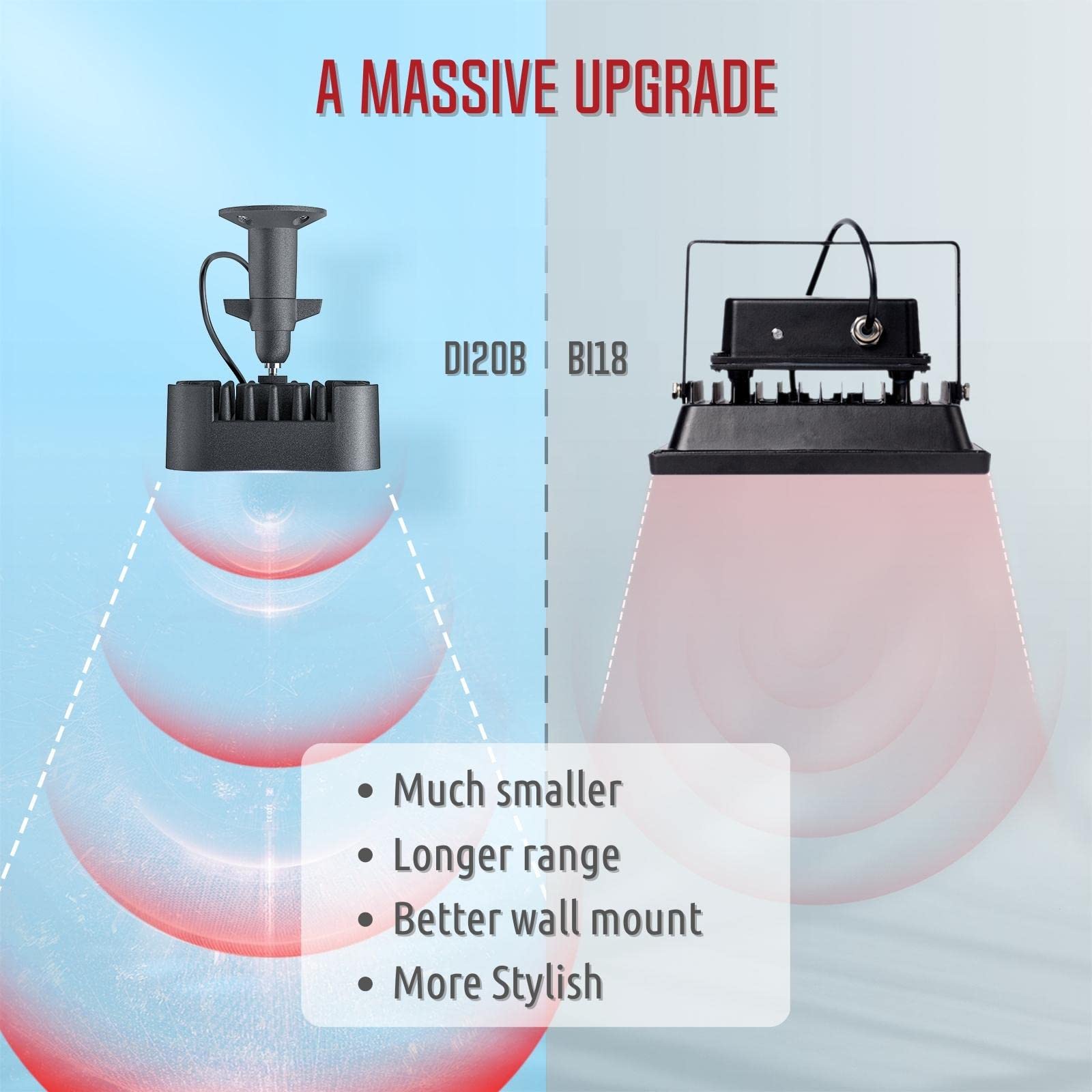

Compact Design: The DI20B is half the size of the BI18 model but offers increased illumination for superior night vision.
Even Illumination: Tailored integrated lens design ensures that IR light is distributed evenly, eliminating hot spots and washed-out images.

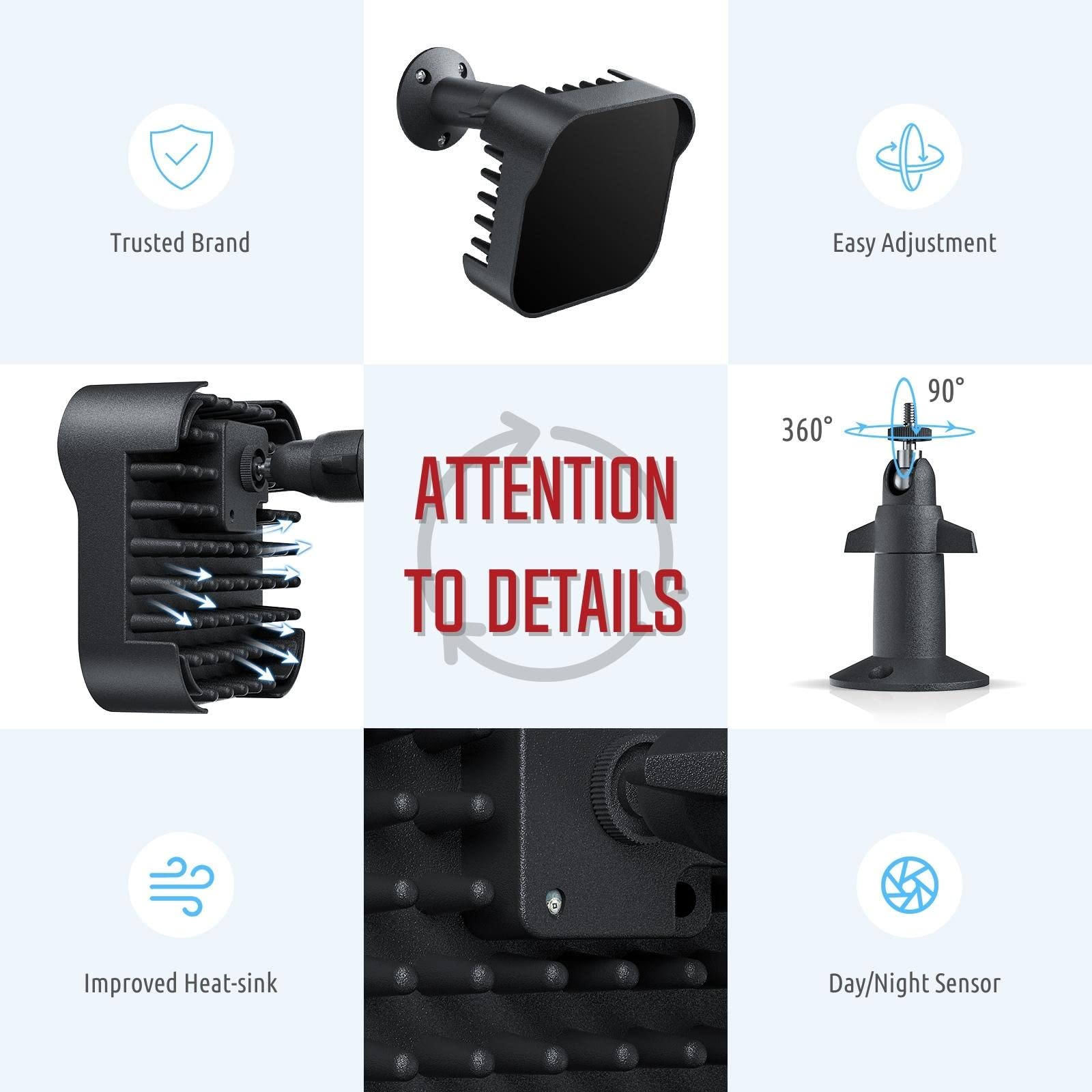

Angle Adjustment: Equipped with a 360-degree swivel and 90-degree tilting bracket for easy and precise angle adjustments.
Durable Construction: Made from premium aluminum that withstands harsh weather conditions without aging like plastic alternatives.
Waterproof Rating: With an IP65 rating, the DI20B is resistant to dust and water, ensuring reliable performance in various environments.
Long Lifespan: Designed for longevity, with a lifespan of 30,000 hours, making it a cost-effective solution for ongoing surveillance needs.
Included Accessories: Comes with a 100-240VAC to 24VDC power supply, installation screws, and a user manual for easy setup.
The Tendelux DI20B is ideal for both residential and commercial users seeking a reliable, high-performance infrared illuminator for enhanced security. Its compact size and robust features make it a practical choice for effective nighttime surveillance, ensuring peace of mind for property owners and security professionals alike.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the Tendelux DI20B IR Illuminator?A: The dimensions are three point nine inches by three point nine inches by one point five inches. This compact size makes it easy to install in various locations.
Q: What materials are used in the construction of the DI20B?A: The housing is made of cast aluminum. This material ensures durability and effective cooling for prolonged use.
Q: What is the input voltage for the Tendelux DI20B?A: The input voltage is DC twelve to twenty-four volts. This wide range allows compatibility with various power sources.

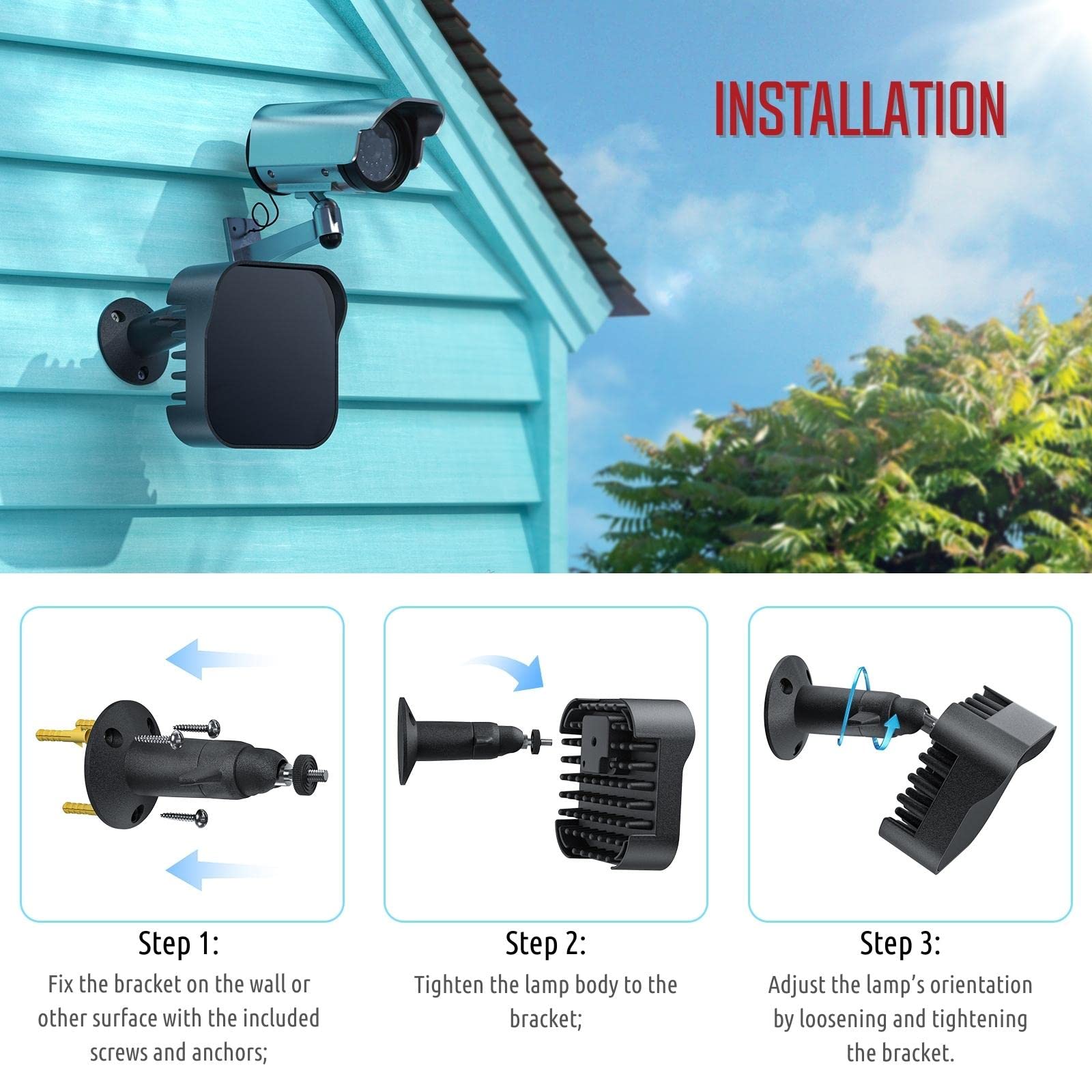

Q: How do I install the Tendelux DI20B IR Illuminator?A: Installation is straightforward with the included set of screws and fixings. You can mount it using the adjustable bracket for optimal angle.
Q: Is the DI20B suitable for outdoor use?A: Yes, the DI20B has a waterproof rating of IP65. This makes it ideal for outdoor security camera applications.
Q: Can I adjust the angle of the DI20B IR Illuminator?A: Yes, the DI20B features a 360-degree swivel and ninety-degree tilting bracket. This allows for easy angle adjustments to suit your needs.
Q: What is the lifespan of the Tendelux DI20B?A: The lifespan of the DI20B is thirty thousand hours. This long lifespan reduces the need for frequent replacements.
Q: What is the effective range of the DI20B IR Illuminator?A: The effective range is between one hundred sixty to two hundred forty feet. This range provides ample illumination for security cameras.
Q: Does the DI20B automatically turn on?A: Yes, it automatically powers on when ambient light falls below ten lux. This feature ensures it operates effectively at night.
Q: What is the power consumption of the Tendelux DI20B?A: The power consumption is twenty watts. This efficient power usage makes it suitable for continuous operation.
Q: What is included in the package with the DI20B?A: The package includes one DI20B infrared illuminator, one power adapter, a set of screws, and a user manual. Everything needed for setup is provided.
Q: Is the DI20B easy to maintain?A: Yes, the DI20B requires minimal maintenance. The durable materials and design help ensure long-term performance without frequent upkeep.
Q: Can the DI20B be used with any IR sensitive camera?A: Yes, it is compatible with any IR sensitive network camera. This makes it versatile for various security setups.
Q: What temperature range can the DI20B operate in?A: The operating temperature range is from minus twenty-five degrees Celsius to fifty-five degrees Celsius. This allows it to function in diverse climates.
Q: What kind of lighting does the DI20B use?A: The DI20B uses SMD LEDs as its light source. These LEDs provide efficient and effective infrared illumination.
