1 X Taramps Ts400X4 Full Range Amplifier Quantity: 1 Amplifier Number Of Channels: 04 Max Power At 13.8 Vdc 2 Ohms: 400W (4 X 100W Rms) Max Power At: 13.8 Vdc 4 Ohms: 252W (4 X 63W Rms) Bridged At 13.8 Vdc 4 Ohms: 400W (2 X 200W Rms) Input Sensitivity: 200Mv (Vol=Max) Signal To Noise Ratio: Greater Than 90Db Frequency Response: (Full Range): 18Hz To 30Khz (-3Db) High Pass Crossover (Hpf): 90Hz (-12Db / 8Th) Low Pass Crossover (Lpf): 90Hz (-12Db / 8Th) Input Impedance: 22K Ohms Thermal Protection System And Short Output Minimum Supply Voltage: 8 Vdc Maximum Supply Voltage: 16 Vdc Standby Power: 0.8 A Maximum Musical Power: At 13.8Vdc: 16.5 A Maximum Consumption In Sine Signal: (1Khz) 13.8Vdc: 33 A
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the Taramps TS 400x4 amplifier?A: The dimensions are five point four three inches in width, one point nine three inches in height, and four point seven six inches in length.
Q: What is the weight of the Taramps TS 400x4 amplifier?A: The weight of the amplifier is one point three two pounds.
Q: What materials are used in the construction of the Taramps TS 400x4?A: The Taramps TS 400x4 is made of aluminum.
Q: How do I connect the Taramps TS 400x4 to my car audio system?A: Connect the amplifier using RCA inputs or high level inputs to your car audio system.
Q: Is the Taramps TS 400x4 suitable for subwoofers?A: Yes, the Taramps TS 400x4 is a full range amplifier that can be wired with subwoofers, woofers, drivers, and tweeters.
Q: What is the maximum power output of the Taramps TS 400x4?A: The maximum power output is four hundred watts RMS at two ohms.
Q: How should I maintain the Taramps TS 400x4 amplifier?A: Keep the amplifier in a cool, dry place and ensure proper ventilation to avoid overheating.
Q: What is the recommended fuse size for the Taramps TS 400x4?A: A twenty amp circuit breaker or fuse is recommended for the Taramps TS 400x4.
Q: What is the input sensitivity of the Taramps TS 400x4?A: The input sensitivity is two hundred millivolts when the volume is set to maximum.
Q: Is the Taramps TS 400x4 safe to use with a vehicle's electrical system?A: Yes, it operates within a supply voltage range of eight to sixteen volts DC.
Q: How does the Taramps TS 400x4 compare to other amplifiers?A: The Taramps TS 400x4 offers four hundred watts RMS, making it suitable for various audio configurations compared to lower wattage amplifiers.
Q: Can I use the Taramps TS 400x4 for home audio systems?A: Yes, while designed for car audio, it can also be used in home audio setups if appropriately connected.
Q: What should I do if my Taramps TS 400x4 arrives damaged?A: Contact the retailer immediately to discuss return or exchange options for the damaged amplifier.
Q: Does the Taramps TS 400x4 come with a warranty?A: Yes, the Taramps TS 400x4 typically comes with a manufacturer's warranty; check with the retailer for specific details.
Q: What if I experience distortion at high volumes with the Taramps TS 400x4?A: If distortion occurs, reduce the volume and check connections. Ensure the amplifier is not overheating.

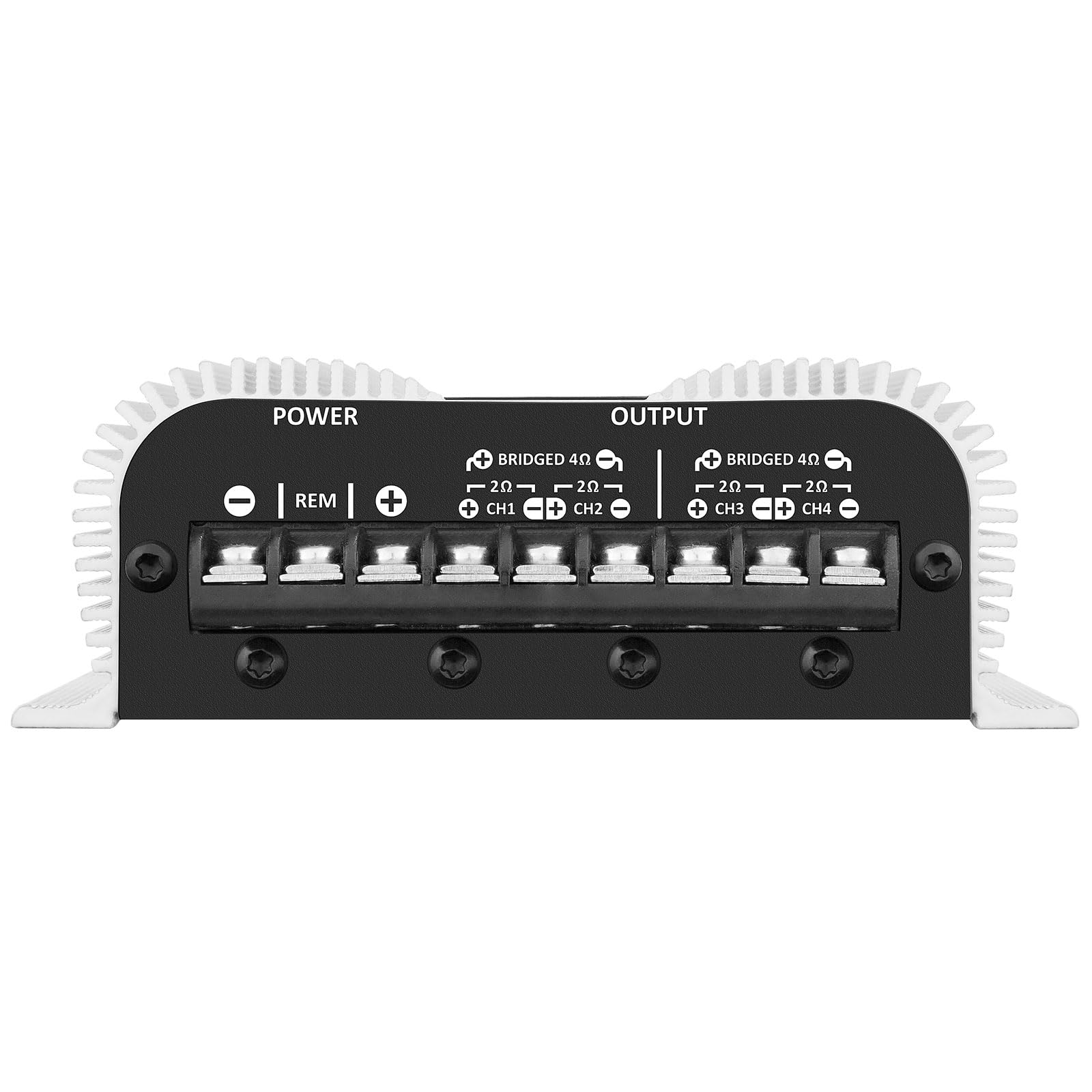

Q: How do I install the Taramps TS 400x4 in my vehicle?A: Installation involves connecting the power, ground, and speaker wires correctly; refer to the manual for detailed instructions.
