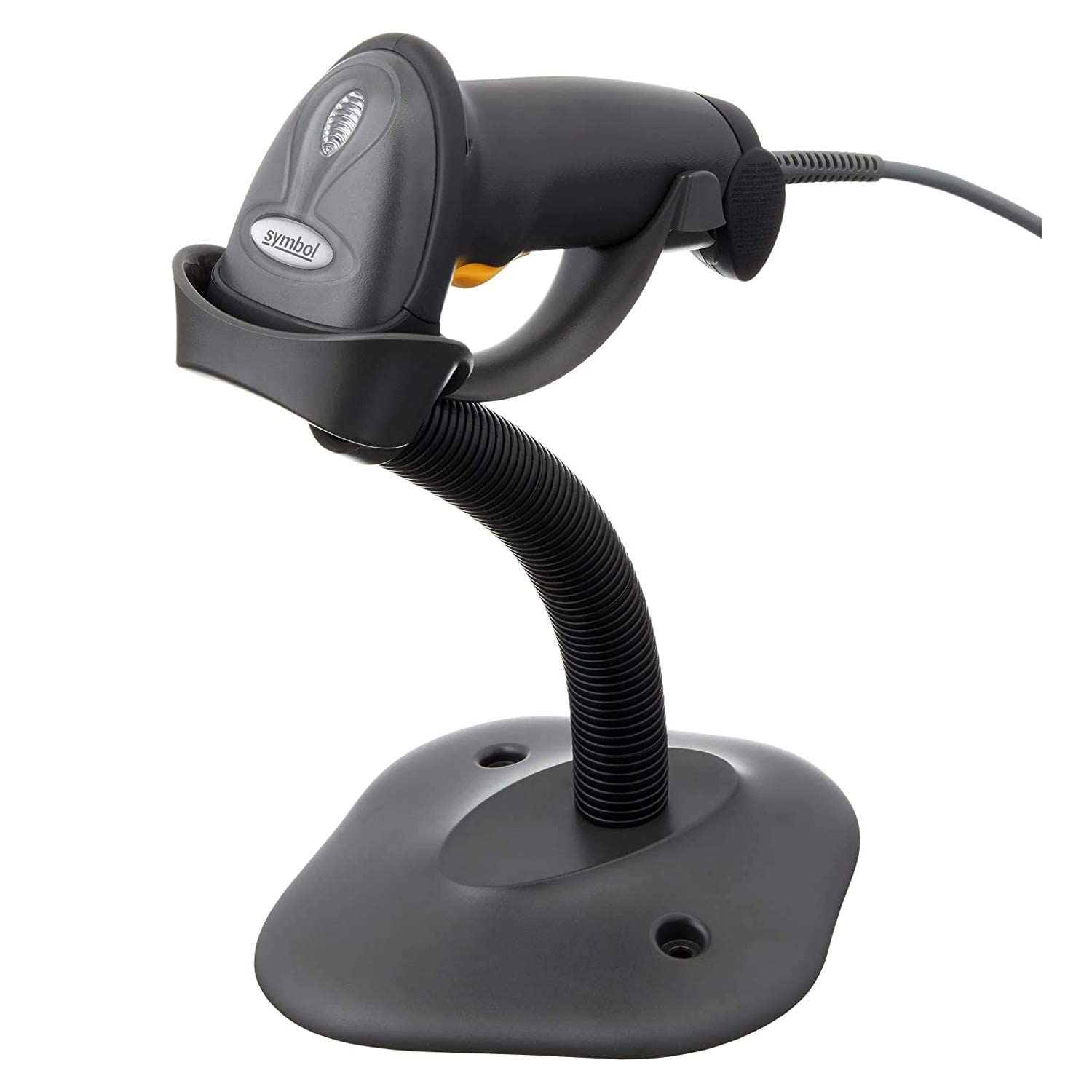

This Symbol LS2208 black general purpose handheld 1D bi-directional scanner decodes one-dimensional (1D) barcodes, including GS1 and RSS symbologies. A 650-nm laser produces a single line of light that can scan barcodes from left to right or right to left at speeds up to 100 scans per second. The Advanced Data Formatting (ADF) allows the user to modify the barcode data before transmitting it to the host computer. The scanner has a lightweight design with a scratch-resistant tempered glass exit window. Its wide depth of field range scans from near contact to 17 away. With the on-board multiple interface, the scanner connects to a host (not included) using a USB, RS-232, or IBM 468xx/9x cable, or keyboard wedge (sold separately). SpecificationsInput voltage5V +/-10% at 130 mA typical, 175mA max.Power sourceHost power or external power supplyScan rate100 scans per secondHost system interfacesUSB, RS-232, Keyboard Wedge, IBM 468x/9xScan patternBi-directional single lineDecode capabilityReads 1D barcodes, including GS1 DataBar (formerly RSS) symbologies. Also reads UPC/EAN, UPC/EAN with supplementals, UPC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codebar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, Chinese 2 of 5Depth of fieldFrom contact to 17 in./43 cm on 100% UPC/EAN symbolsDrop specsUnit functions normally after repeated 5 ft./1.5m drops to concreteElectrostatic dischargeConfirms to 15 kV air discharge and 8 kV of contact dischargeReader dimensions*2.5 x 3.34 x 6 inches/6.3 x 8.4 x 15.2 cm (L x W x H)Reader weight5.29 oz./150 g* L is length, the horizontal distance from left to right; W is width, the horizontal distance from front to back; H is height, the vertical distance from bottom to top.Barcode scanners, also known as barcode readers, can be used to scan and decode barcodes and to transmit barcode data to a computer or another host system. Barcode readers with a single-line laser can be used to scan linear, one-dimensional (1D) barcodes. Some lasers can produce light in an omnidirectional pattern to allow scanning of barcodes from different angles. Other barcode readers contain CCD (charge-coupled device) light sensors instead of a laser for accuracy and wear resistance. Barcode scanners with raster scanning, area imaging, and other scanning technologies can allow scanning of two-dimensional (2D) or Portable Document Format 417 (PDF417) barcodes, among other types. Some barcode readers provide onboard flash memory to allow the storage of barcode data before transmitting it to a computer or host system through a USB cable or wireless WLAN or Bluetooth connection. Many barcode readers have a handle for handheld use and come with a stand or a charging cradle for fixed position applications, while others are designed for stationary use on a counter or another flat surface. Some portable readers are small enough to be carried in a pocket or attached to a lanyard. Barcode readers are used at retail checkout counters and other points of sale (POS) locations and in warehouses and shipping facilities. Whats in the Box? Symbol LS2208 laser scanner Instructions
