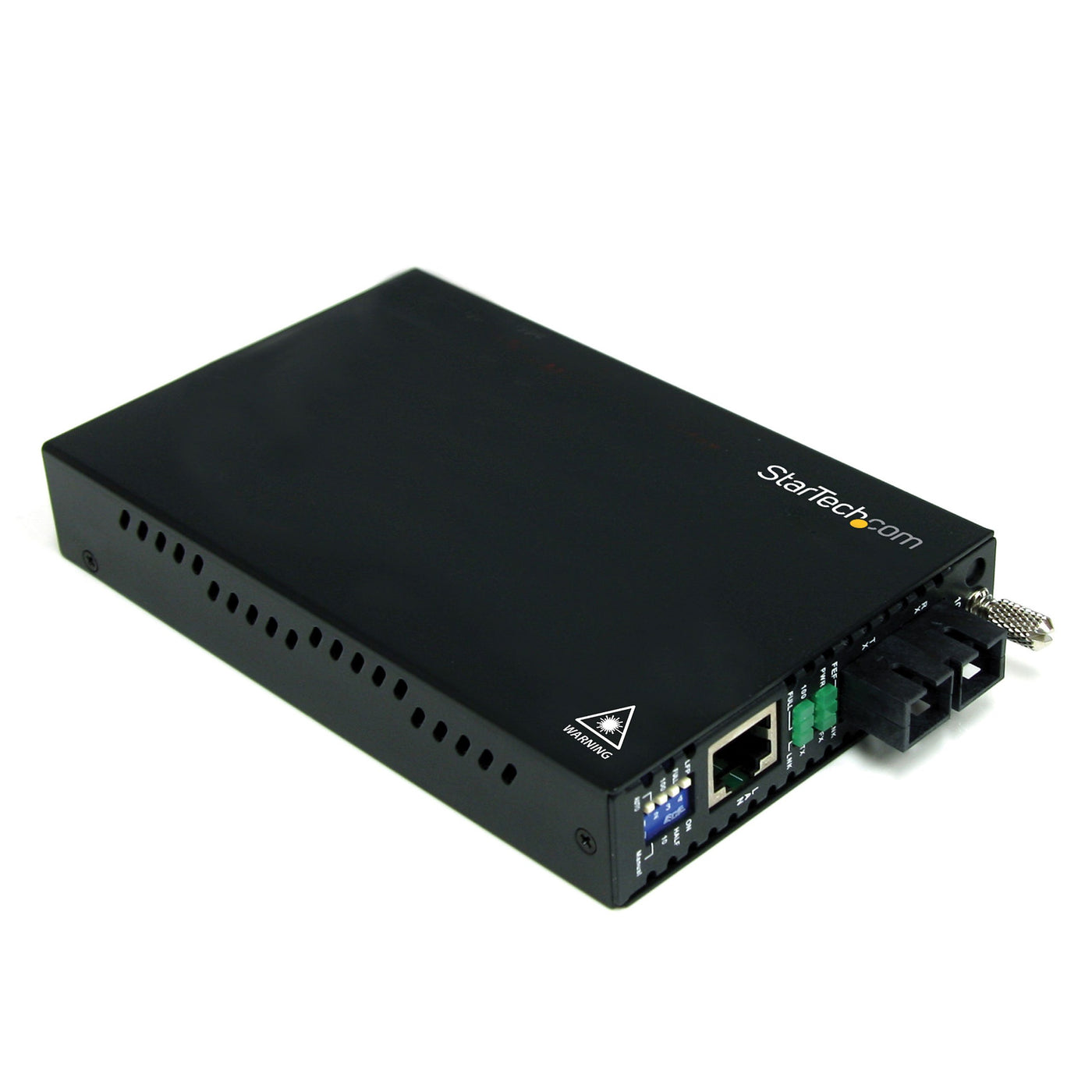

Single Mode Fiber Media Converter Lets To Extend A Fast Ethernet Network Over Single Mode Fiber And Supports Standalone Operation Or Installation Into The 20 Slot. Single Mode Fiber Media Converter Transforms And Extends A 10/100 Mbps Ethernet Connection Up To 18.6 Miles/30 Km. Converter Features Rugged Steel Casing For Durability In Harsh Environments. Interface/Ports: 1 X Rj-45 Female, 1 X Fiber-Optic Sc Female. Dimensions: 0.9''(H) X 3.4''(W) X 6.1''(L). Compatibility: Pc. Connectivity Technology: Wired. Form Factor: Desktop, Rack Mountable. Black. Fiber Optic Mode: Single Mode, Half/Full-Duplex Operating Mode. Max Transfer Distance: 30 Km (18.6 Mi). Data Transfer Rate: 200 Mbps (Full-Duplex Mode). Environment Conditions: Operating Temperature: 0 - 60 Deg C, Storage Temperature: -10 - 70 Deg C, Humidity: 10 - 90% Rh. Input Voltage: 115 - 230 Ac. Output Voltage: 12 Dc, Output Current: 1A. Center Tip Polarity: Positive. Includes 1 X Fiber Media Converter, 1 X Universal Power Adapter (Na/Uk/Eu), 1 X Instruction Manual. Certifications And Standards: Rohs, Ieee 802.3, Ieee 802.3U, Ieee 802.3Ab, Fc, Fcc. Weight: 14 Oz. Warranty: 2 Years Limited.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the StarTech ET90110SM302 media converter?A: The media converter measures zero point nine inches in height, three point four inches in width, and six point one inches in length.
Q: What materials are used to make the StarTech ET90110SM302?A: The media converter is made from rugged steel, providing durability in harsh environments.
Q: What is the weight of the StarTech ET90110SM302 media converter?A: The media converter weighs fourteen ounces, making it lightweight and easy to handle.

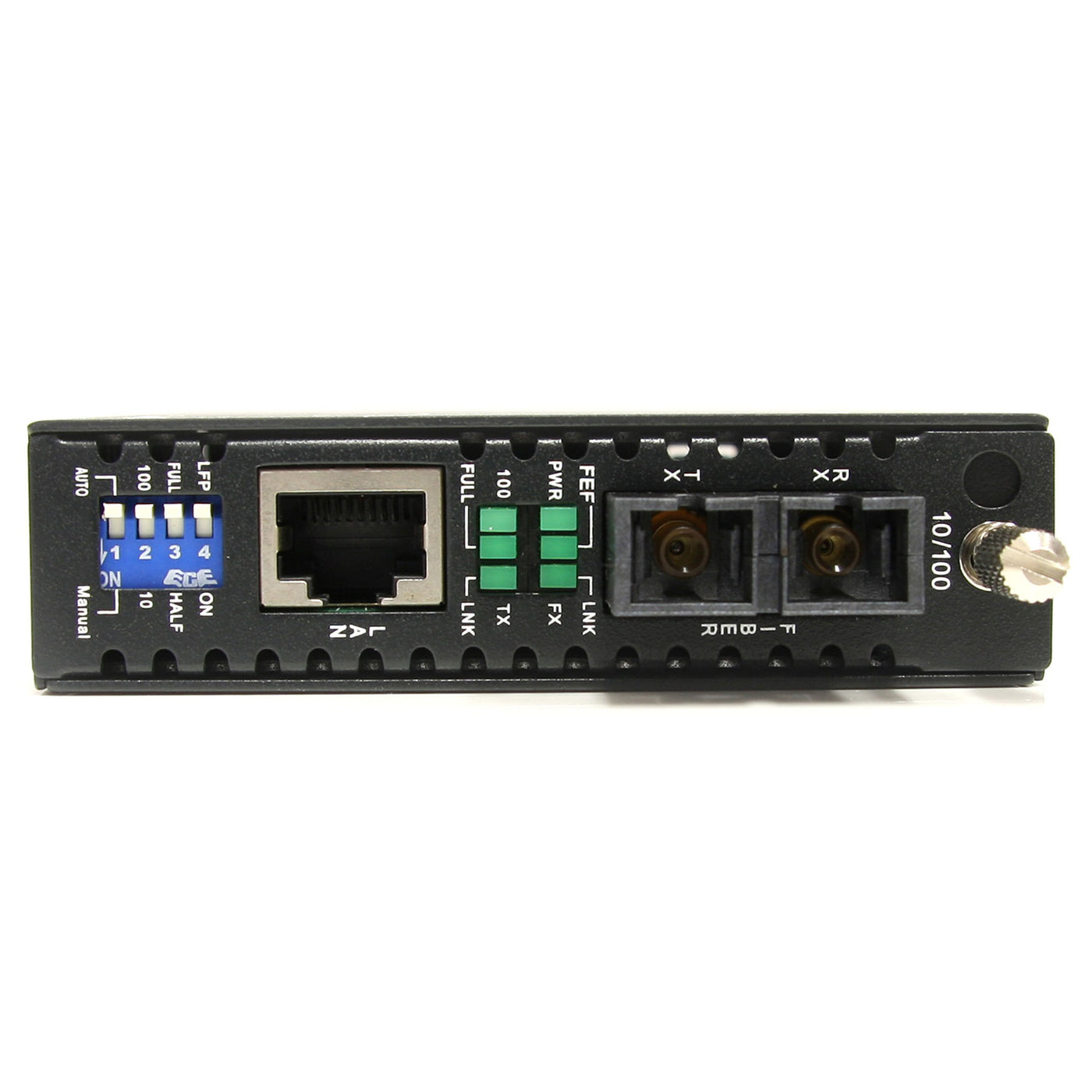

Q: How do I connect the StarTech ET90110SM302 to my network?A: To connect, simply plug your Ethernet cable into the RJ-45 female port and connect the fiber-optic cable to the SC female port.
Q: Is the StarTech ET90110SM302 suitable for outdoor use?A: No, the media converter is designed for indoor use only, as it operates best in controlled environments.
Q: Can I install the StarTech ET90110SM302 in a rack?A: Yes, the media converter is rack mountable, allowing for convenient installation in a server rack.
Q: What is the maximum data transfer rate of the StarTech ET90110SM302?A: The maximum data transfer rate is two hundred megabits per second in full-duplex mode.
Q: How far can I extend my Ethernet connection using the StarTech ET90110SM302?A: The media converter can extend an Ethernet connection up to thirty kilometers, or eighteen point six miles, over single mode fiber.
Q: What power input does the StarTech ET90110SM302 require?A: It requires an input voltage of one hundred fifteen to two hundred thirty volts AC.
Q: Does the StarTech ET90110SM302 come with a warranty?A: Yes, it comes with a two-year limited warranty for added peace of mind.
Q: What certifications does the StarTech ET90110SM302 have?A: The media converter is certified by RoHS, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, FC, and FCC.
Q: How do I maintain the StarTech ET90110SM302 media converter?A: Keep it in a dry place and clean it with a soft, dry cloth to maintain its condition.
Q: What should I do if the StarTech ET90110SM302 arrives damaged?A: Contact the seller immediately for assistance with returns or exchanges if the unit is damaged.
Q: Is the StarTech ET90110SM302 compatible with other brands?A: Yes, it is compatible with any device that uses standard Ethernet connections.
Q: What is the recommended operating temperature for the StarTech ET90110SM302?A: The recommended operating temperature is between zero to sixty degrees Celsius.
