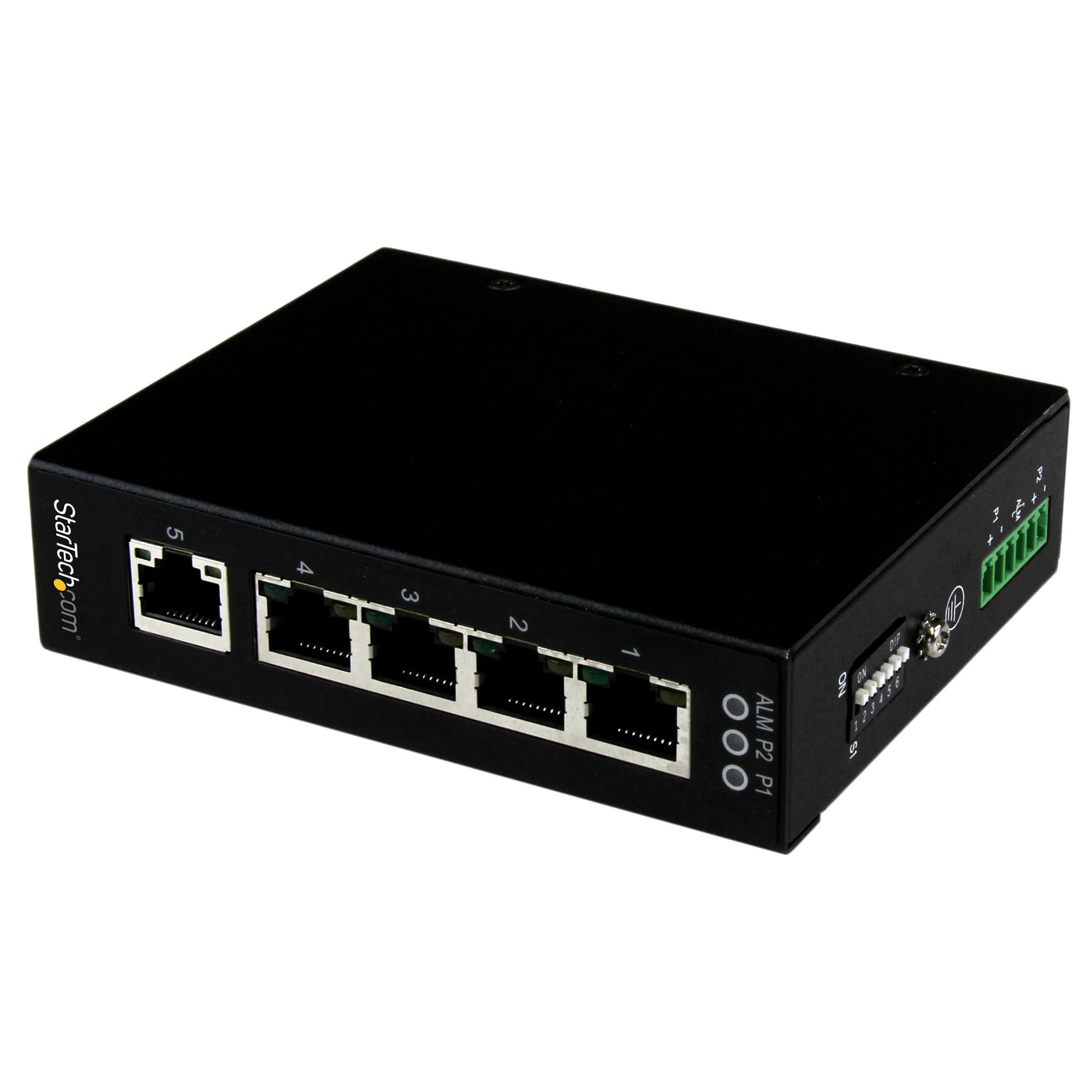

5 101001000 Mbps Unmanaged Rj45 Ethernet Ports Ip30-Rated Din Rail And Wall-Mountable Metal Enclosure Wide-Range Redundant Power Via Two 12-58V Dc Terminal Block Inputs, With Alarm Relay Overcurrent And Reverse Polarity Protection Extended Operating Temperature Range (-40Ac To 75Ac) Speed Duplex Auto-Negotiation And Auto-Mdix Detection On Each Port Up To 9K Jumbo Frame Support Ieee 8023Az Energy-Efficient Ethernet Supports Ieee 8023X Flow Control And Back-Pressure The Ies51000 5-Port Industrial Ethernet Switch Offers 5 Gigabit Ethernet Ports In A Compact, Ip30-Rated Metal Enclosure, Making It The Ideal Network Solution For Harsh Industrial Environments Such As Factory Floors, Warehouses Or Large Junction Boxes Quickly Connect Your Network Devices With Little To No Configuration This Unmanaged Industrial Network Switch Supports 101001000 Mbps Transfer Speeds, Fullhalf-Duplex Auto-Negotiation, Jumbo Frames And Auto Mdimdix, Which Helps To Eliminate The Hassle Of Troubleshooting Mis-Matched Speed And Duplex Settings Providing Seamless Operation In The Event Of Power Dips Or Failures, The Switch Features Redundant 12-58V Dc Terminal Block Power Inputs To Help Prevent Unnecessary Downtime When Used With Two Power Sources, The Switch Also Supports Alarm Relay Contacts That You Can Wire To Your Existing Alarm Circuit To Notify You Instantly When A Power Disruption Occurs For Easy Installation And Dependable Performance In Harsh Environments, The Switch Can Be Din Rail Or Wall Mounted And Features A Compact, Ip30-Rated Enclosure With An Extended Operating Temperature Range (-40Ac To 75Ac) Backed By A Startechcom 2-Year Warranty And Free Lifetime Technical Support Ideal For Industrial Applications Such As Warehouses And Junction Boxes Without Temperature Control Suitable For Adding Gigabit Ethernet On Factory Manufacturing Floors Great For Adding Small Workgroups To An Existing Network Seamless Performance Even In Harsh Industrial Conditions, With An Extended Temperature Range And An Ip30-Rated Enclosure Maintain Device Operation During Power Disruptions, With Redundant Power Inputs Install The Switch Exactly Where You Need It, Using The Included Din Rail & Wall-Mount Brackets Specifications Warranty Information Warranty 2 Years Connector(S) 5 - Connector Type(S) Rj-45 1 - Connector Type(S) Terminal Block (6 Wire) Environmental Operating Temperature -40Ac To 75Ac (-40Af To 167Af) Storage Temperature -40Ac To 85Ac (-40Af To 185Af) Humidity 595% Rh (Non-Condensing) Hardware Ports 5 Interface Rj45 (Gigabit Ethernet) Industry Standards Ieee 8023 10Base-T, Ieee 8023U 100Base-Tx, Ieee 8023Ab 1000Base-Tx Ieee 8021P Qos, Ieee 8023Az Energy-Efficient Ethernet, Ieee 8023Ad Link Aggregation Ip30 (Enclosure) Indicators 1 - Led Indicators P1 (Power) Indicator P2 (Power) Indicator Alm (Alarm) Indicator 5 - Led Indicators Link Act Speed Indicator Packaging Information Package Height 33 In 830 Mm] Package Length 69 In 176 Cm] Shipping (Package) Weight 185 Oz 5230 G] Package Width 55 In 139 Cm] Performance Maximum Data Transfer Rate 2 Gbps (Full-Duplex) Maximum Cable Length 3280 Ft 100 M] Buffer Size 128 Kb Flow Control Half-Duplex Back-Pressure And Ieee8023X Full-Duplex Compatible Networks 101001000 Mbps Auto Mdix Yes Full Duplex Support Yes Jumbo Frame Support 9K Max Switching Architecture Store-And-Forward Physical Characteristics Color Black Material Steel Product Length 44 In 111 Cm] Product Width 35 In 890 Mm] Product Height 11 In 28 Cm] Weight Of Product 116 Oz 3280 G] Power Power Source Terminal Block Input Voltage 12 58 Dc Power Consumption (In Watts) 363W Max Software Os Compatibility Os Independent No Additional Drivers Or Software Required Whats In The Box 1 - Included In Package Industrial Ethernet Switch Din-Rail Clip Terminal Block Instruction Manual 2 - Included In Package Wall-Mount Brackets 4 - Included In Package Screws
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the StarTech.com IES51000?A: The dimensions are six point eight five inches long, five point five five inches wide, and three point zero four inches high.
Q: What materials is the IES51000 made from?A: The switch is housed in a metal enclosure that is rated IP30 for durability and protection.

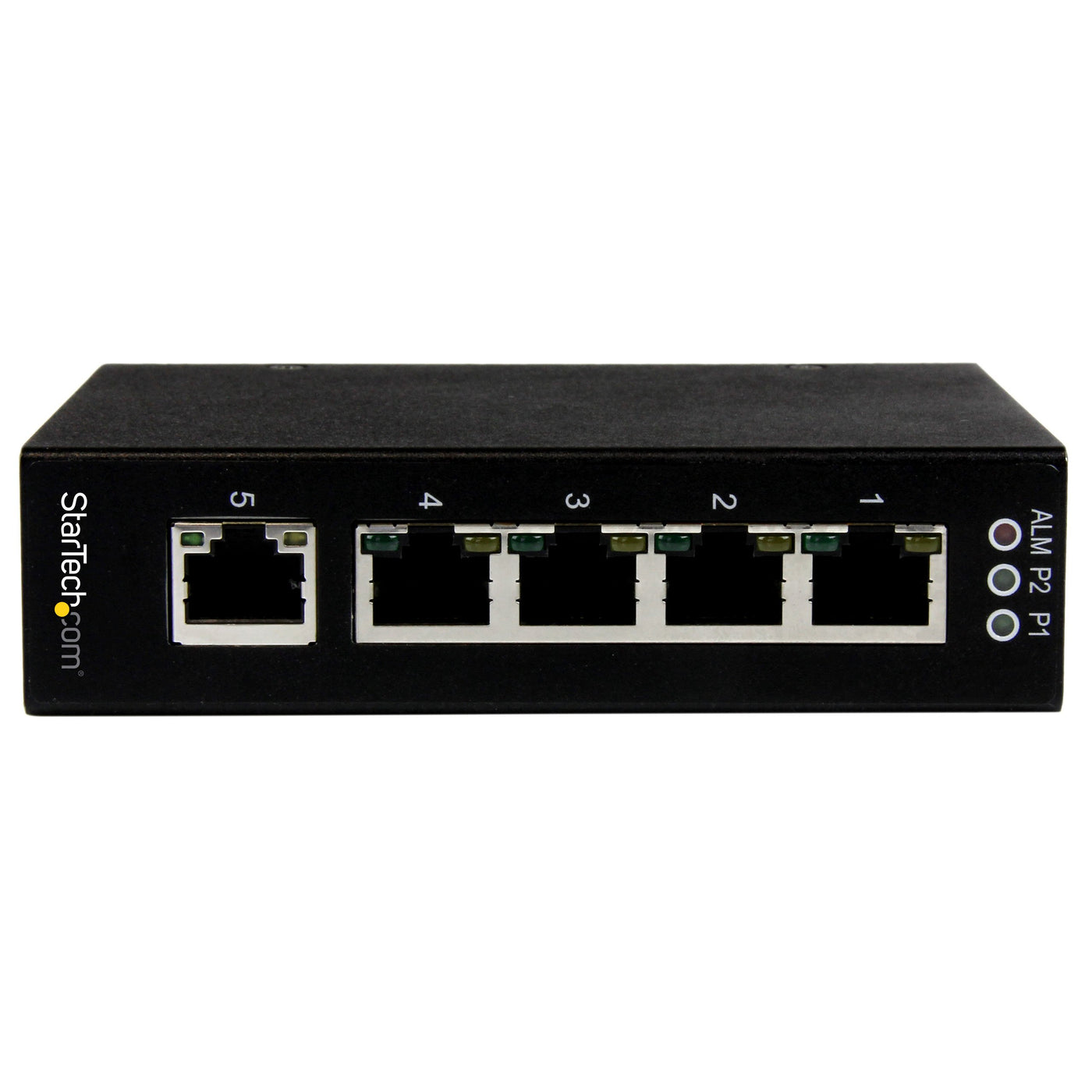

Q: How many Ethernet ports does the IES51000 have?A: The switch features five Gigabit Ethernet ports for network connectivity.
Q: How do I install the StarTech.com IES51000?A: You can easily install the switch by mounting it on a DIN rail or wall, making it versatile for any setup.
Q: What speed does the IES51000 support?A: It supports transfer speeds of ten hundred to one thousand megabits per second.
Q: Is this switch suitable for indoor or outdoor use?A: The IES51000 is designed for indoor use, particularly in harsh industrial environments.
Q: How do I keep the IES51000 in good condition?A: Ensure the enclosure remains clean and protected from extreme environmental conditions, as it is rated for a wide temperature range.
Q: Does the IES51000 have any specific safety features?A: Yes, it includes overcurrent and reverse polarity protection for enhanced safety.

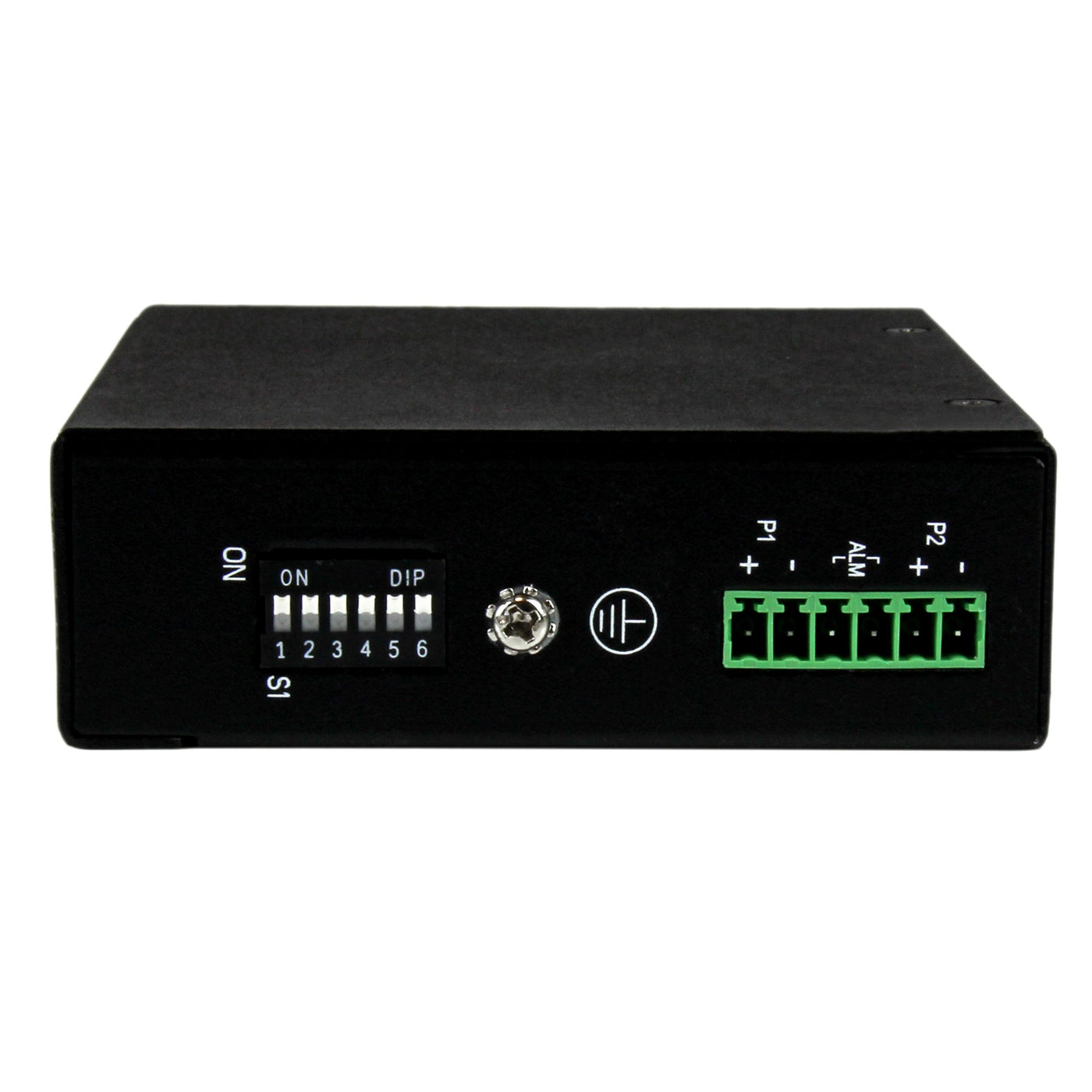

Q: What power inputs does the IES51000 support?A: It supports redundant power inputs via two twelve to fifty-eight volt DC terminal blocks.
Q: Can I use this switch with an alarm system?A: Yes, it supports alarm relay contacts for notification during power disruptions.
Q: Is the IES51000 easy to troubleshoot?A: Yes, it features auto MDI/MDIX and full/half-duplex auto-negotiation, minimizing troubleshooting complexities.
Q: What kind of warranty does the IES51000 come with?A: The product is backed by a two-year warranty from StarTech.com.
Q: Will this switch work in extreme temperatures?A: Yes, it operates effectively in temperatures ranging from negative forty degrees Celsius to seventy-five degrees Celsius.
Q: Is the IES51000 suitable for use in a factory?A: Yes, it is designed for harsh industrial environments like factories and warehouses.
Q: What kind of technical support is available for this switch?A: StarTech.com provides free lifetime technical support for the IES51000.
