Sparkfun Qwiic Mini Dtof Imager Tmf8821 5000Mm Detection Range Board Dimensions 0.5In To 1In 3X3 4X4 3X6 Multizone Output
$25.86
Regular price
$36.94
-29%
Will be in stock after
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.

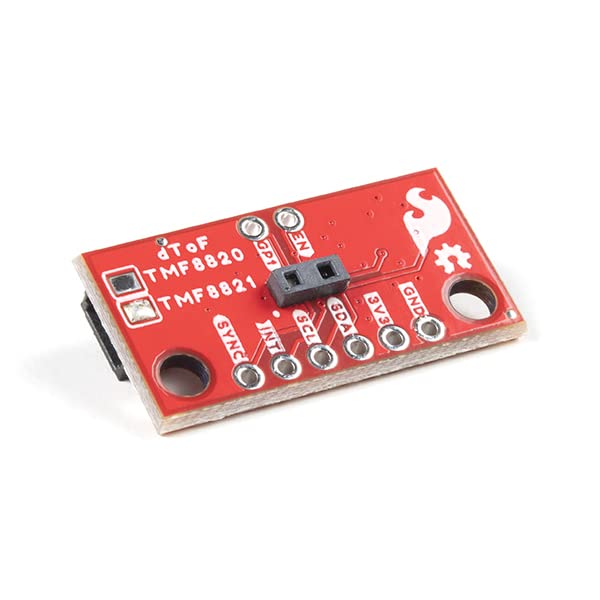

The Sparkfun Qwiic Mini Dtof Tmf8821 Imager Is A Direct Time-Of-Flight (Dtof) Sensor That Includes A Single Modular Package With An Associated Vertical Cavity Surface Emitting Laser (Vcsel) From Ams. The Dtof Device Is Based On Single Photon Avalanche Photodiode (Spad), Time-To-Digital Converter (Tdc) And Histogram Technology To Achieve A 5000Mm Detection Range. Due To Its Lens On The Spad, It Supports 3X3, 4X4, And 3X6 Multizone Output Data And A Very Wide, Dynamically Adjustable Field Of View. A Multi-Lens-Array (Mla) Inside The Package Above The Vcsel Widens Up The Foi (Field Of Illumination). All Processing Of The Raw Data Is Performed On-Chip And The Tmf8821 Provides Distance Information Together With Confidence Values On Its I2C Interface. The High Performance On-Chip Optical Filter Blocks Most Of The Ambient Light, And Enables Distance Measurements In Dark And Sunlight Environments.To Make It Even Easier To Get Your Readings, All Communication Is Enacted Exclusively Via I2C, Utilizing Our Handy Qwiic System So No Soldering Is Required To Connect It To The Rest Of Your System. However, We Still Have Broken Out 0.1 -Spaced Pins In Case You Prefer To Use A Breadboard. The Tmf8821 Offers Two Configurable Gpio Pins And One Enable (En) Pin, Which Are Broken Out As Pth Pads. The Board Also Includes A Power Led And I2C Pull-Up Resistors, Each Configurable Via Jumpers. This Mini Version Has A Footprint That Is Half The Size (0.5In. X 1.0In.) Of Our Standard Qwiic Mini Dtof Tmf8821 Imager Board. Additionally, We Moved The Qwiic Connectors To The Back Of The Board. These Design Changes Favor Mounting Applications Where The Tmf8821 Sensor Faces Outward From An Enclosure Or Chassis, And Keeps Your Qwiic Cables Cleanly Tucked Away.This Sensor Is Great For Projects Such As Distance Measurement For Camera Autofocus - Laser Detect Autofocus - Ldaf (Mobile Phone), Presence Detection (Computing And Communication), Object Detection And Collision Avoidance (Robotics), And
Related products
Frequently Asked Questions
Q: What is the detection range of the SparkFun Qwiic Mini dToF Imager?A: The SparkFun Qwiic Mini dToF Imager has an impressive detection range of up to 5000mm, making it suitable for various applications such as distance measurement and object detection.
Q: How does the Qwiic Mini dToF Imager communicate with microcontrollers?A: This imager communicates exclusively via I2C, utilizing the Qwiic connector system, which simplifies connections without the need for soldering.
Q: What microcontrollers are compatible with the TMF8821 sensor?A: We recommend using microcontrollers with sufficient flash memory, such as the Artemis Thing Plus or ESP32 Thing Plus, as boards like the Arduino Uno may not have enough resources to support its functionality.
Q: Can the field of view be adjusted on the SparkFun Qwiic Mini dToF Imager?A: Yes, the field of view is dynamically adjustable, allowing for flexibility in various applications, with a maximum diagonal field of view of up to 63°.
Q: What type of applications can the TMF8821 sensor be used for?A: The TMF8821 sensor is ideal for applications including distance measurement for camera autofocus, presence detection, object detection, and collision avoidance in robotics.
