Sparkfun Iot Redboard Esp32 Development Board Esp32 Wroom Mcu Module Usb C Connector Qwiic Connector Microsd Card Esp32 Dime
$48.77
Regular price
$69.67
-29%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.

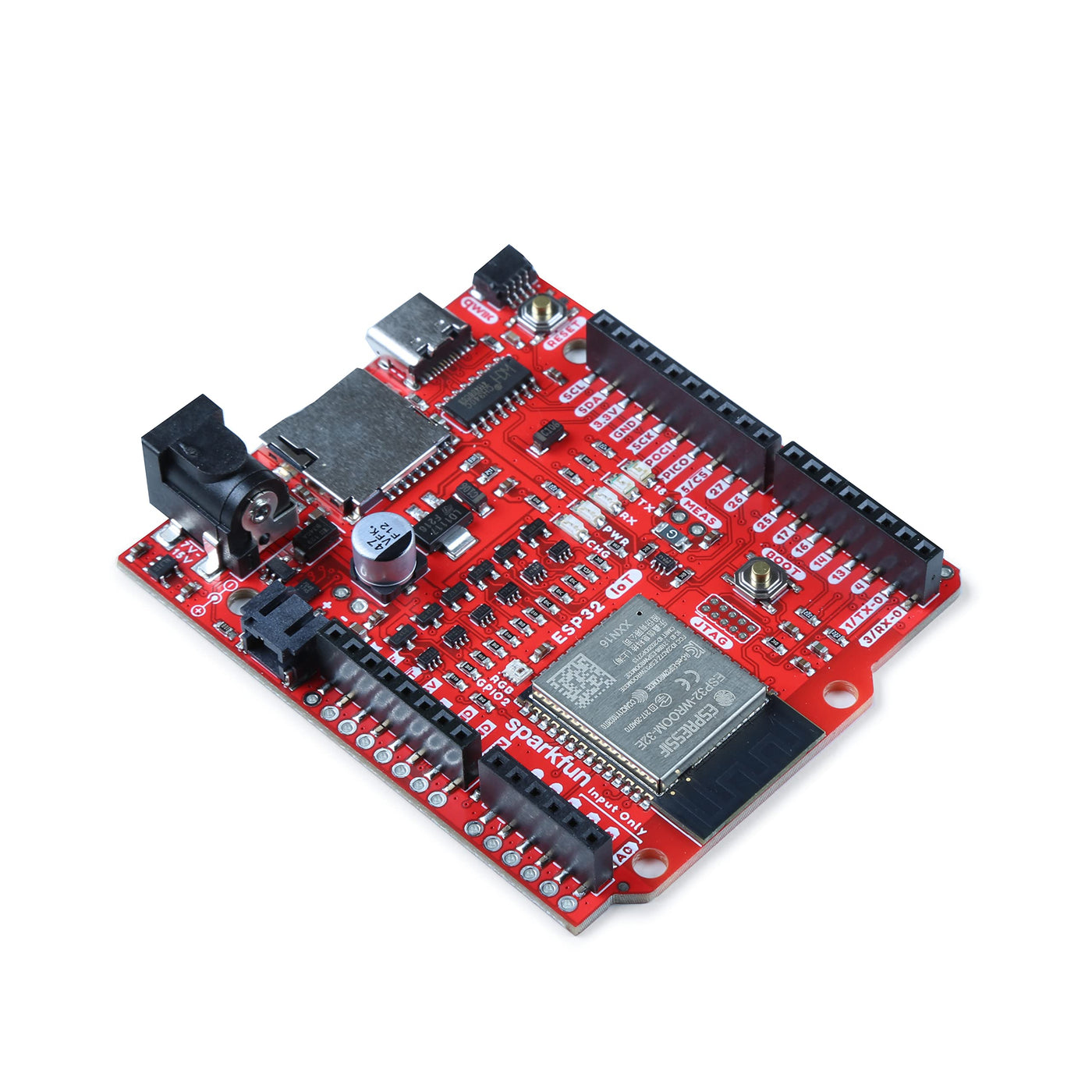

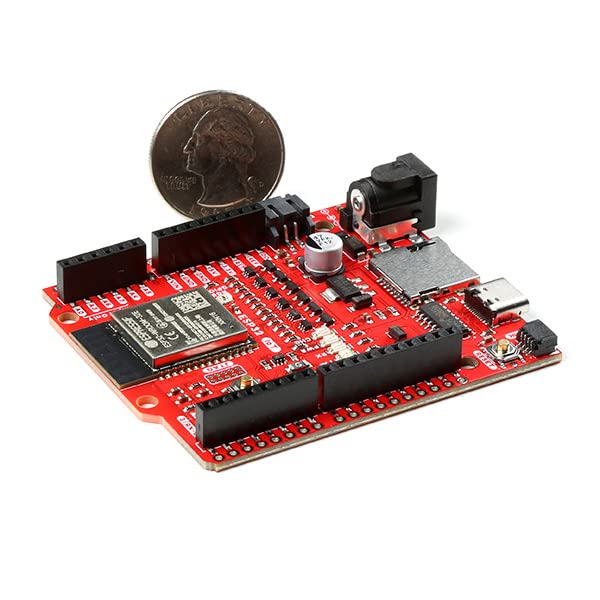

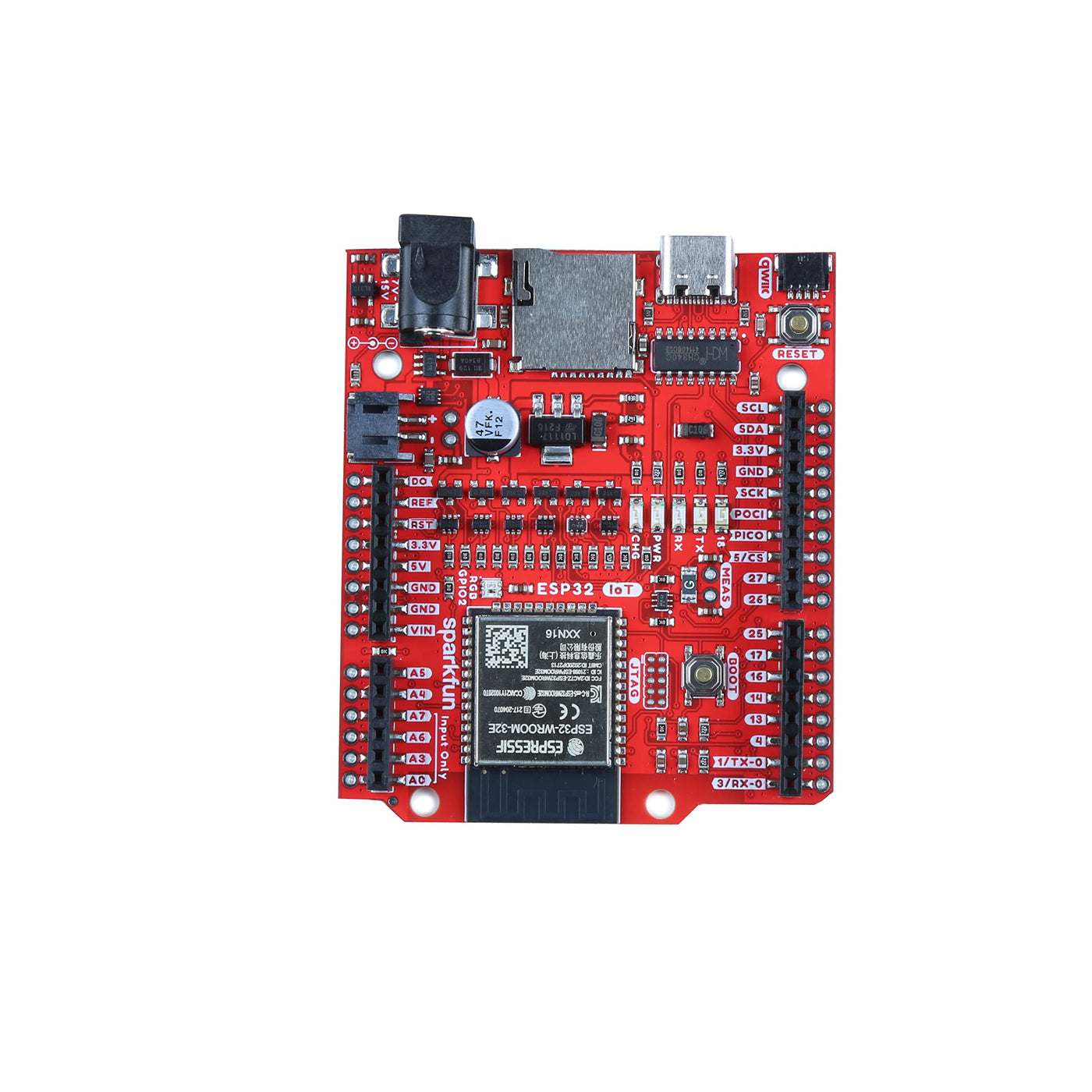

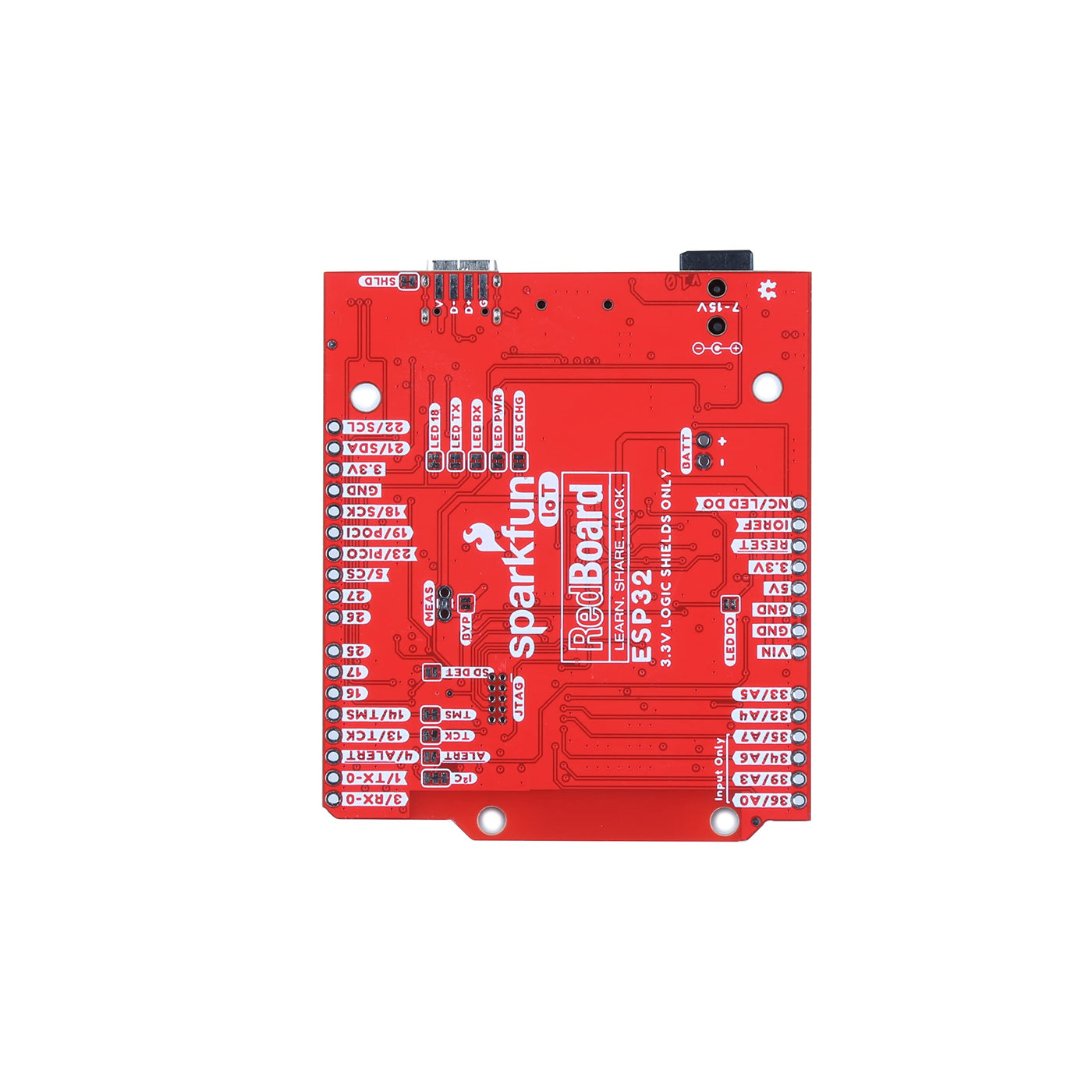

The Sparkfun Iot Redboard Is An Esp32 Development Board That Includes Everything But The Kitchen Sink! Espressif'S Esp32 Wroom Is A Powerful Wifi And Bluetooth Mcu Module That Targets A Wide Variety Of Applications. At The Core Of This Module Is The Esp32-D0Wdq6 Chip Which Is Designed To Be Both Scalable And Adaptive. The Iot Redboard Can Target A Wide Variety Of Applications, Ranging From Low-Power Sensor Networks To The Most Demanding Tasks, Such As Voice Encoding, Music Streaming, And Mp3 Decoding. The Iot Readboard Also Utilizes Our Handy Qwiic Connect System Which Means No Soldering Or Shields Are Required To Connect It To The Rest Of Your System! The Usb-To-Serial Is Achieved With A Usb-C Connector With Through Hole Anchoring And The Ubiquitous Ch340G Requiring Fewer Driver Installs. We'Ve Included 3.3V Voltage Translation And A Qwiic Connector To The Edge Of The Board To Allow For Quick And Seamless Connection To Our Ever-Growing Line Of I2C Based Qwiic Products. The Board Even Includes A Microsd Socket If Your Application Requires You To Log And Save Data To A Memory Card.The Operating System Is Freertos With Lwip; Tls 1.2 With Hardware Acceleration Is Built In As Well. Secure (Encrypted) Over The Air (Ota) Upgrade Is Also Supported, So That Users Can Upgrade Their Products Even After Their Release, At Minimum Cost And Effort. At The Core Of The Module Is The Esp32-D0Wd-V3 Chip. The Embedded Chip Is Designed To Be Scalable And Adaptive. There Are Two Cpu Cores That Can Be Individually Controlled, And The Cpu Clock Frequency Is Adjustable From 80 Mhz To 240 Mhz. The Chip Also Has A Low-Power Coprocessor That Can Be Used Instead Of The Cpu To Save Power While Performing Tasks That Do Not Require Much Computing Power, Such As Monitoring Of Peripherals. Esp32 Integrates A Rich Set Of Peripherals, Including Capacitive Touch Sensors, Hall Sensors, Sd Card Interface, Ethernet, High-Speed Spi, Uart, I2S And I2C.
Related products
Frequently Asked Questions
Q: What are the main features of the SparkFun IoT RedBoard ESP32 Development Board?A: The SparkFun IoT RedBoard features the ESP32-D0WD-V3 chip with dual-core processing capabilities, up to 240 MHz clock speed, built-in WiFi and Bluetooth, a USB-C connector, a Qwiic connector for I2C devices, and a microSD socket for data logging.
Q: Is the SparkFun IoT RedBoard compatible with other Qwiic products?A: Yes, the IoT RedBoard is designed to work seamlessly with the Qwiic Connect System, allowing easy integration with other I2C-based Qwiic products without soldering.
Q: What programming environment is recommended for the SparkFun IoT RedBoard?A: The recommended programming environment for the SparkFun IoT RedBoard is the Arduino IDE, which supports the ESP32 platform and provides a user-friendly interface for coding and uploading sketches.
Q: Can I perform over-the-air (OTA) updates with the SparkFun IoT RedBoard?A: Yes, the SparkFun IoT RedBoard supports secure over-the-air (OTA) updates, enabling you to upgrade your firmware remotely without needing physical access to the board.
Q: What types of applications can I build with the SparkFun IoT RedBoard?A: The SparkFun IoT RedBoard is versatile and can be used for a variety of applications, including low-power sensor networks, voice encoding, music streaming, MP3 decoding, and other IoT projects that require WiFi or Bluetooth connectivity.
