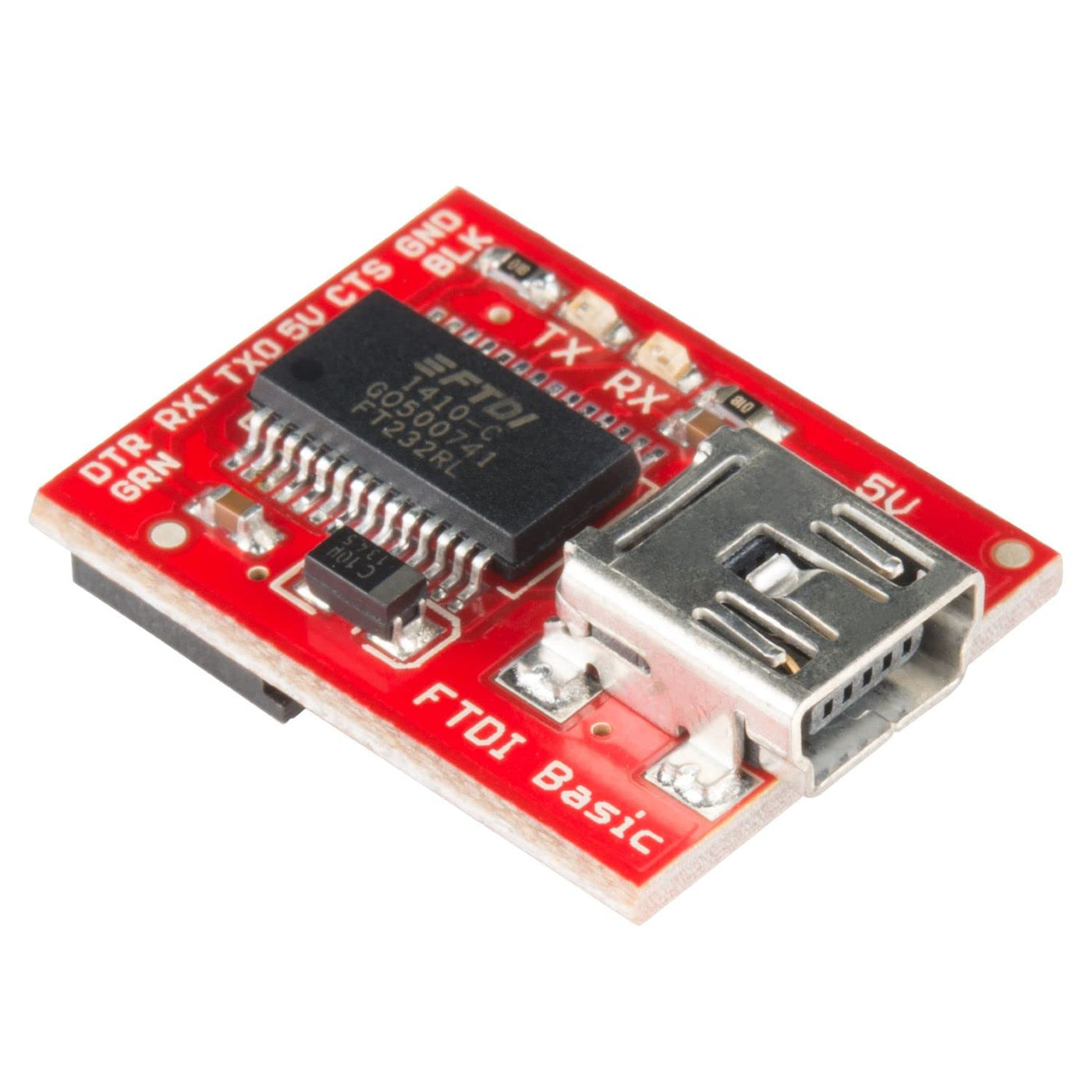

Sparkfun Ftdi Basic Breakout 5V Development Tool With Usb Mini B Connector
$25.32
Regular price
$36.17
-29%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.
This Is The Newest Revision Of Our Ftdi Basic. We Now Use A Smd 6-Pin Header On The Bottom, Which Makes It Smaller And More Compact. Functionality Has Remained The Same.This Is A Basic Breakout Board For The Ftdi Ft232Rl Usb To Serial Ic. The Pinout Of This Board Matches The Ftdi Cable To Work With Official Arduino And Cloned 5V (Arduino-Compatible) Boards. It Can Also Be Used For General Serial Applications. The Major Difference With This Board Is That It Brings Out The Dtr Pin As Opposed To The Rts Pin Of The Ftdi Cable. The Dtr Pin Allows A Compatible With Arduino Target To Auto-Reset When A New Sketch Is Downloaded. This Is A Really Nice Feature To Have And Allows A Sketch To Be Downloaded Without Having To Hit The Reset Button. This Board Will Auto Reset Any (Arduino-Compatible) Board That Has The Reset Pin Brought Out To A 6-Pin Connector.The Pins Labeled Blk And Grn Correspond To The Colored Wires On The Ftdi Cable. The Black Wire On The Ftdi Cable Is Gnd, Green Is Dtr. Use These Blk And Grn Pins To Align The Ftdi Basic Board With Your Compatible With Arduino Target.There Are Pros And Cons To The Ftdi Cable Vs The Ftdi Basic. This Board Has Tx And Rx Leds That Allow You To Actually See Serial Traffic On The Leds To Verify If The Board Is Working, But This Board Requires A Mini-B Cable. The Ftdi Cable Is Well Protected Against The Elements, But Is Large And Cannot Be Embedded Into A Project As Easily. The Ftdi Basic Uses Dtr To Cause A Hardware Reset Where The Ftdi Cable Uses The Rts Signal.This Board Was Designed To Decrease The Cost Of Compatible With Arduino Development And Increase Ease Of Use (The Auto-Reset Feature Rocks!). Our Compatible With Arduino Pro And Lilypad Boards Use This Type Of Connector.
Related products
Frequently Asked Questions
Q: What is the main function of the SparkFun FTDI Basic Breakout?A: The SparkFun FTDI Basic Breakout serves as a USB to serial converter using the FTDI FT232RL IC, allowing users to connect Arduino and other microcontroller boards to a computer for programming and serial communication.
Q: Is the FTDI Basic compatible with all Arduino boards?A: Yes, the FTDI Basic Breakout is compatible with official Arduino boards as well as cloned 5V Arduino-compatible boards, making it versatile for various projects.
Q: How does the DTR pin benefit Arduino users?A: The DTR pin on the FTDI Basic allows compatible Arduino targets to auto-reset when a new Sketch is downloaded, simplifying the programming process by eliminating the need to manually press the reset button.
Q: What type of cable is required to use the FTDI Basic Breakout?A: The FTDI Basic Breakout requires a USB Mini-B cable for connection to a computer or power source, differentiating it from the FTDI cable which uses a different connector.
Q: Can the FTDI Basic be configured for different voltage levels?A: Yes, the FTDI Basic Breakout can be configured to operate at either 3.3V or 5V. A jumper on the back of the board allows users to switch between these voltage levels as needed.
