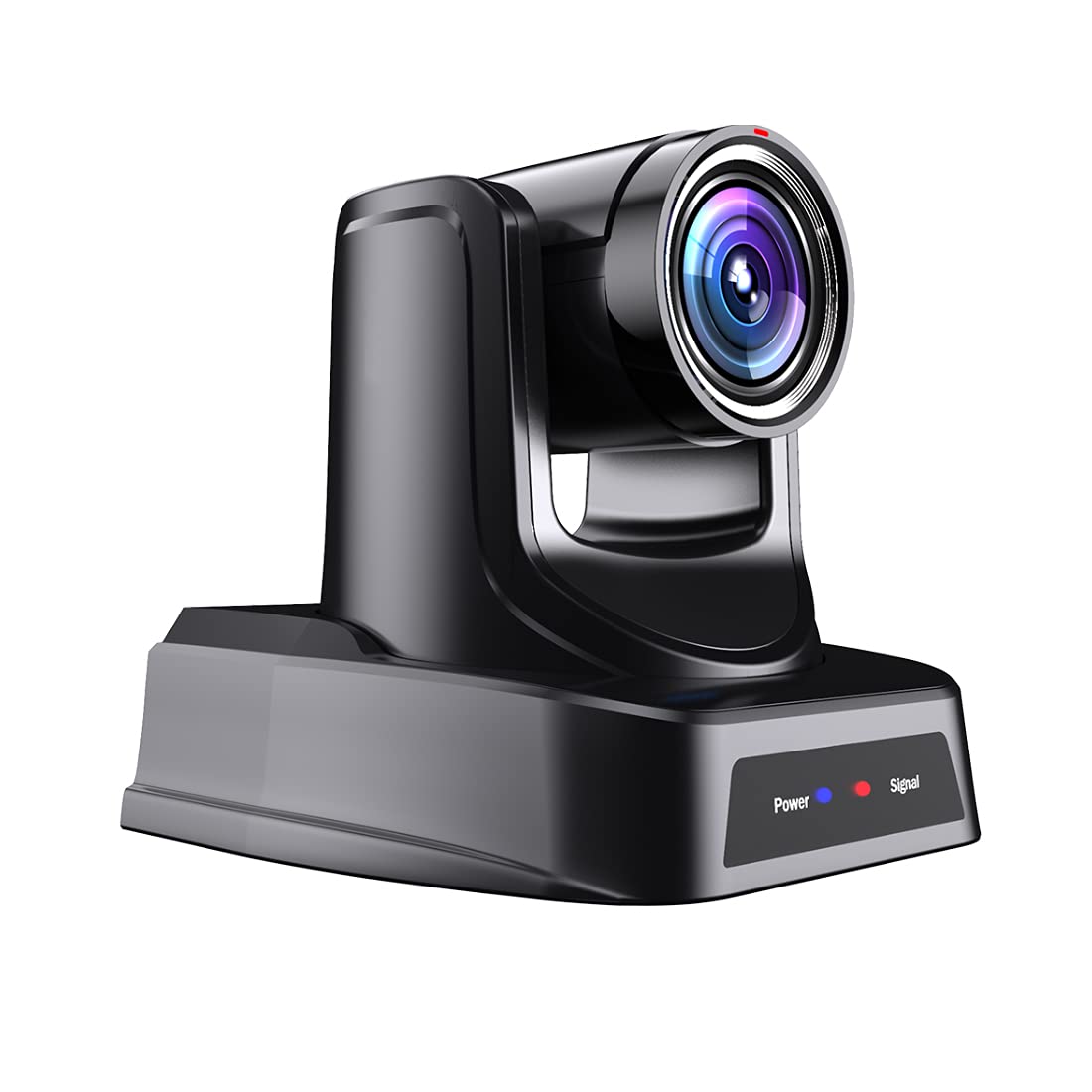

Smtav Ndi Ptz Camera,30X + 8X Zoom,Live Streaming Camera With Hdmi,3G Sdi And Ip Outputs,Ndi Hx 4.5,For Church,Conference,Teachi

Frequently Asked Questions

• Q: What is the video resolution of the SMTAV NDI PTZ Camera? A: The SMTAV NDI PTZ Camera supports a maximum video resolution of one thousand eighty p at sixty frames per second. This allows for high-quality live streaming and video output.

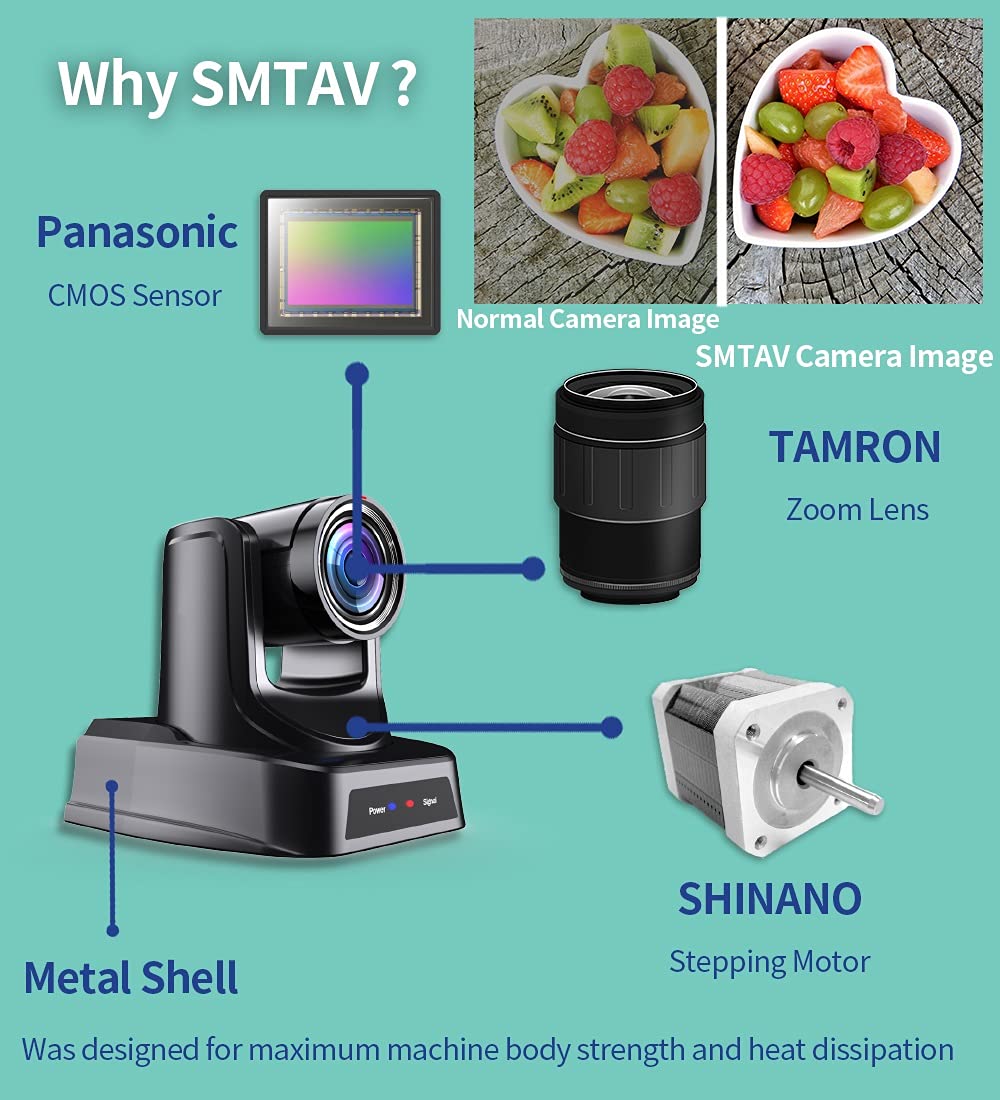

• Q: What are the dimensions of the camera sensor? A: The camera features a one over two point seven inch CMOS sensor. This size allows for effective pixel capture of two point zero seven million.
• Q: What type of lens does this camera use? A: The camera uses a TAMRON lens with a focal length range of four point forty-two millimeters to one hundred thirty-two point six millimeters. It has a maximum aperture of F1.8 for optimal light capture.

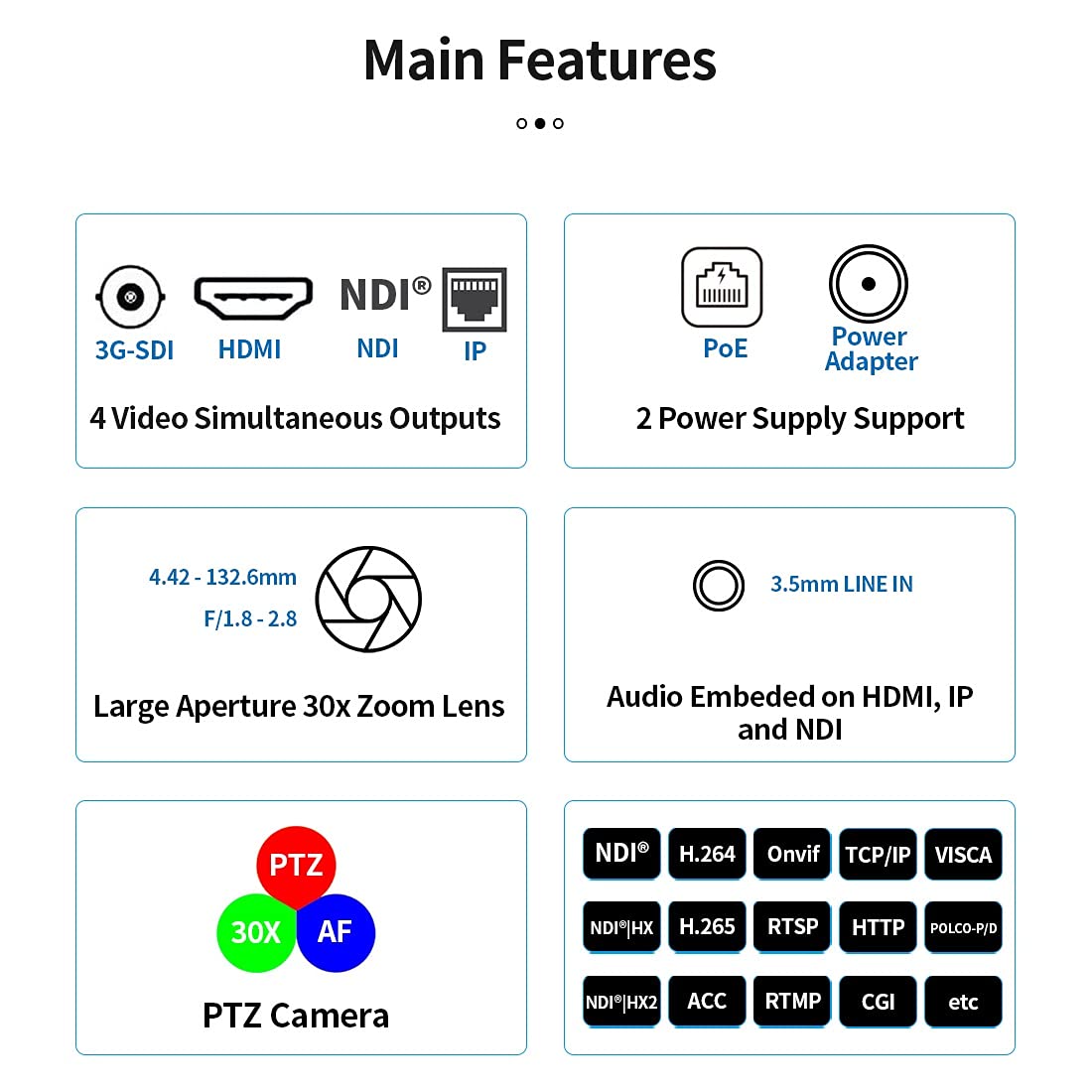

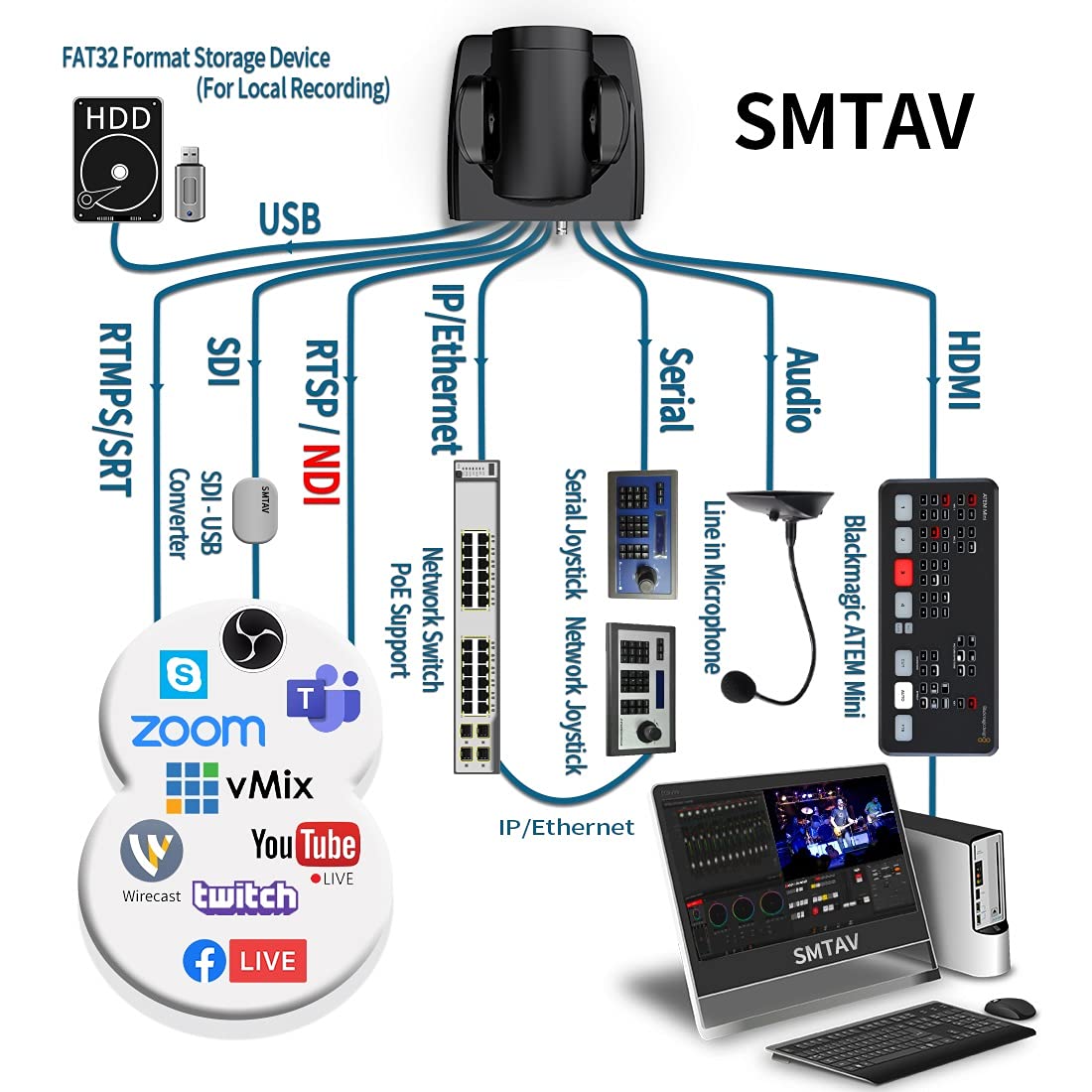

• Q: What are the main outputs available on the camera? A: The camera offers multiple outputs, including one three G-SDI, one HDMI, and IP streaming capabilities. This versatility makes it suitable for various broadcasting applications.
• Q: How do I set up the SMTAV NDI PTZ Camera for live streaming? A: To set up the camera, connect it via Ethernet for power and video transmission, configure the NDI settings, and link it with compatible software like OBS or vMix. Ensure your network supports the necessary protocols.
• Q: Is this camera suitable for low-light conditions? A: Yes, the SMTAV NDI PTZ Camera operates well in low-light conditions, with a minimal illumination requirement of zero point five Lux at F1.8. This feature enhances its usability for various environments.
• Q: Can I control the camera remotely? A: Yes, the camera supports remote control via an included IR remote, as well as control through NDI PTZ, CGI, HTTP, VISCA, and other protocols. This allows for flexible operation from a distance.
• Q: What is the maximum digital zoom available? A: The camera offers a maximum digital zoom of eight times. This feature enhances the ability to focus on distant subjects without compromising image quality.
• Q: What are the audio input options for the camera? A: The camera includes one three point five millimeter audio interface for line-in audio. This allows for embedded audio in live streaming and video conferences.
• Q: How do I maintain the SMTAV NDI PTZ Camera? A: To maintain the camera, ensure it is kept clean and free of dust. Regularly check the connections and firmware updates to ensure optimal performance.
• Q: Is the camera covered by a warranty? A: Yes, the SMTAV NDI PTZ Camera typically comes with a standard manufacturer's warranty. Check the details upon purchase for specific coverage.
• Q: Can this camera be used for outdoor events? A: Yes, the camera can be used for outdoor events provided it is protected from harsh weather conditions. Use enclosures if necessary to safeguard against moisture and dust.
• Q: What should I do if the camera doesn't power on? A: If the camera doesn't power on, first check the power connection and ensure the power adapter is functioning. If the issue persists, consult the user manual for troubleshooting steps.
• Q: Does this camera support streaming to multiple platforms? A: Yes, the SMTAV NDI PTZ Camera supports streaming to multiple platforms simultaneously via NDI, RTSP, and RTMP protocols. This is ideal for reaching a wider audience.
• Q: What is the pan and tilt range of the camera? A: The camera has a horizontal rotation range of plus or minus one hundred seventy degrees and a vertical rotation range from negative thirty degrees to positive ninety degrees. This allows for extensive coverage.
• Q: How many presets can be set on this camera? A: The camera supports up to two hundred fifty-five presets. This feature enables quick positioning for different shooting angles and scenes.
