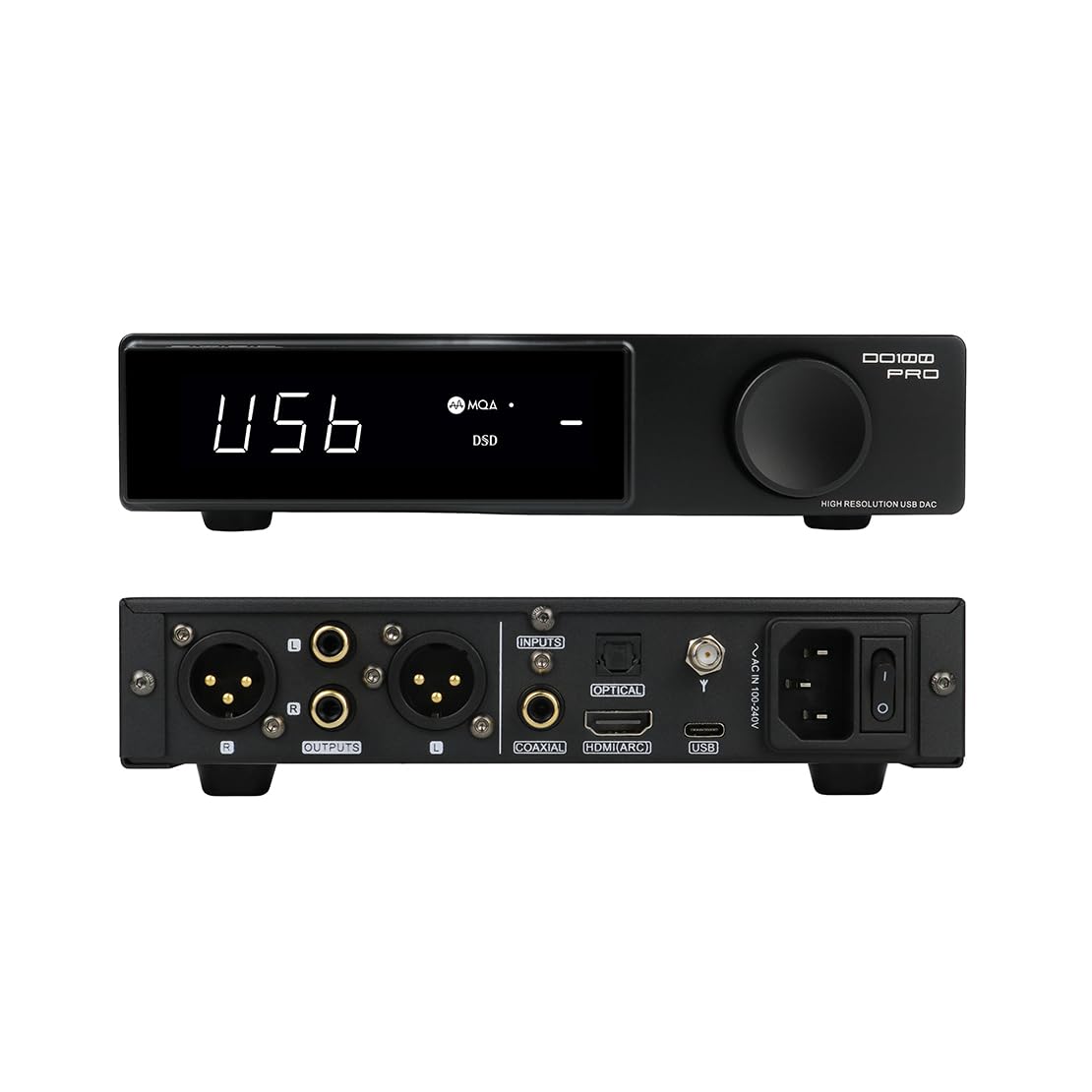

Smsl Do100 Pro Es9039Q2M Usb Balanced Audio Mqa-Cd Dac Feature: ? 2X Es9039Q2M Dac Chips. ? Usb Input Supports Dsd512 And Pcm32Bit/768Khz ? Qcc5125 Bluetooth5.1, Supports Ldac 24Bit/96Khz, Aptx/Hd, Sbc, And Aac Coding Format. ? Usb, Optical And Coaxial Inputs All Support Mqa Decoding. ? 6X Chip High-End Dual Op-Amp Opa1612 And Clock Processing Circuit For Audio. Parameter Model: Smsl Do100 Pro Input: Usb / Optical / Coaxial / Bluetooth / Hdmi Arc Output: Rca/Xlr Line Output Amplitude: Xlr: 5.2Vrms Rca: 2.5Vrms Thd+N: 0.00005% ( -124.5Db) Dynamic Range: Xlr: 131Db Rca: 127Db Snr: Xlr: 131Db Rca: 127Db Output Impedance: 100O Usb Compatibility: Mac Osx10.6 Or Later, Linux(Driverless) Windows 7/8/8.1/10/11(Needs Driver) Usb Transmission: Asynchronization Mqa Decoder: Usb / Optical / Coaxial Sampling Rate & Bit Depth: Usb: Pcm 44.1-768Khz (32Bit) Dsd: 2.8224-22.5792Mhz Dop: Dop256 Optical / Coaxial: 44.1-192Khz (24Bit) Dop: Dop64 (Optical / Coaxial) Bluetooth Specification(Bluetooth 5.1 ): Ldac 24Bit/96Khz, Aptx-Hd, Aptx, Sbc, Aac Power Consumption:
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the SMSL DO100 PRO DAC?A: The dimensions of the SMSL DO100 PRO DAC are one hundred eighty-nine millimeters wide, forty-five millimeters high, and one hundred sixty-eight millimeters deep.
Q: What materials are used in the SMSL DO100 PRO?A: The SMSL DO100 PRO is made of aluminum, providing a sturdy and lightweight design.
Q: What is the weight of the SMSL DO100 PRO DAC?A: The SMSL DO100 PRO DAC weighs one point eight kilograms, making it easy to place in various setups.
Q: How do I connect the SMSL DO100 PRO to my devices?A: You can connect the SMSL DO100 PRO using USB, optical, coaxial, Bluetooth, or HDMI ARC inputs, making it versatile for different audio sources.
Q: Is the SMSL DO100 PRO suitable for gaming consoles?A: Yes, the SMSL DO100 PRO is compatible with gaming consoles like PlayStation five and Nintendo Switch, making it ideal for gaming audio.
Q: Can I use the SMSL DO100 PRO with my TV?A: Yes, it features an HDMI ARC input, allowing high-quality audio transmission from compatible TV devices.
Q: How do I clean the SMSL DO100 PRO DAC?A: To clean the SMSL DO100 PRO, use a soft, dry cloth to wipe the surface. Avoid using any harsh chemicals.
Q: What is the power consumption of the SMSL DO100 PRO?A: The power consumption of the SMSL DO100 PRO is less than ten watts during operation and less than zero point five watts in standby mode.
Q: What should I do if the SMSL DO100 PRO arrives damaged?A: If the SMSL DO100 PRO arrives damaged, contact customer support immediately for assistance with returns or exchanges.
Q: Does the SMSL DO100 PRO have a warranty?A: Yes, the SMSL DO100 PRO typically comes with a warranty, details of which can be found in the user manual or on the manufacturer's website.
Q: Is the SMSL DO100 PRO compatible with Mac or Windows?A: Yes, it is compatible with Mac operating systems ten point six or later and various versions of Windows, though some may require drivers.
Q: What audio formats does the SMSL DO100 PRO support?A: The SMSL DO100 PRO supports DSD512 and PCM up to thirty-two bits and seven hundred sixty-eight kilohertz, as well as MQA decoding.
Q: Can I use Bluetooth with the SMSL DO100 PRO?A: Yes, the SMSL DO100 PRO features Bluetooth five point one, supporting various audio codecs for wireless connectivity.
Q: How do I store the SMSL DO100 PRO DAC?A: Store the SMSL DO100 PRO DAC in a cool, dry place and avoid exposure to moisture to maintain its performance.
Q: Is the SMSL DO100 PRO easy to set up?A: Yes, the SMSL DO100 PRO is designed for easy setup, allowing you to quickly connect and enjoy high-quality audio.
