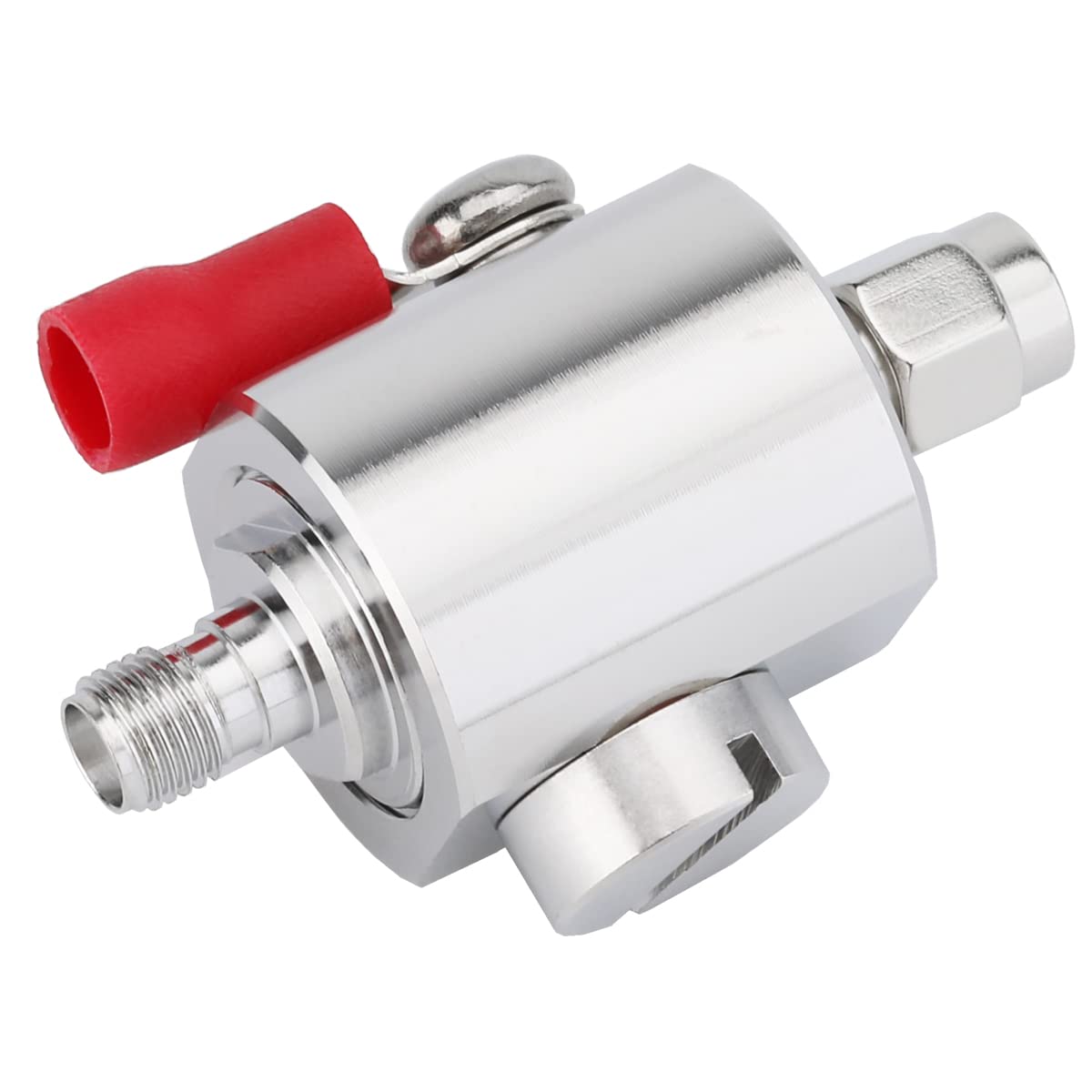

Sma Lightning Arrestor Cellular & Gps Sma Surge Protector Sma Male To Sma Female 0 6Ghz 50 Ohms (6G Lightning Arrestor Male To Female)

Frequently Asked Questions

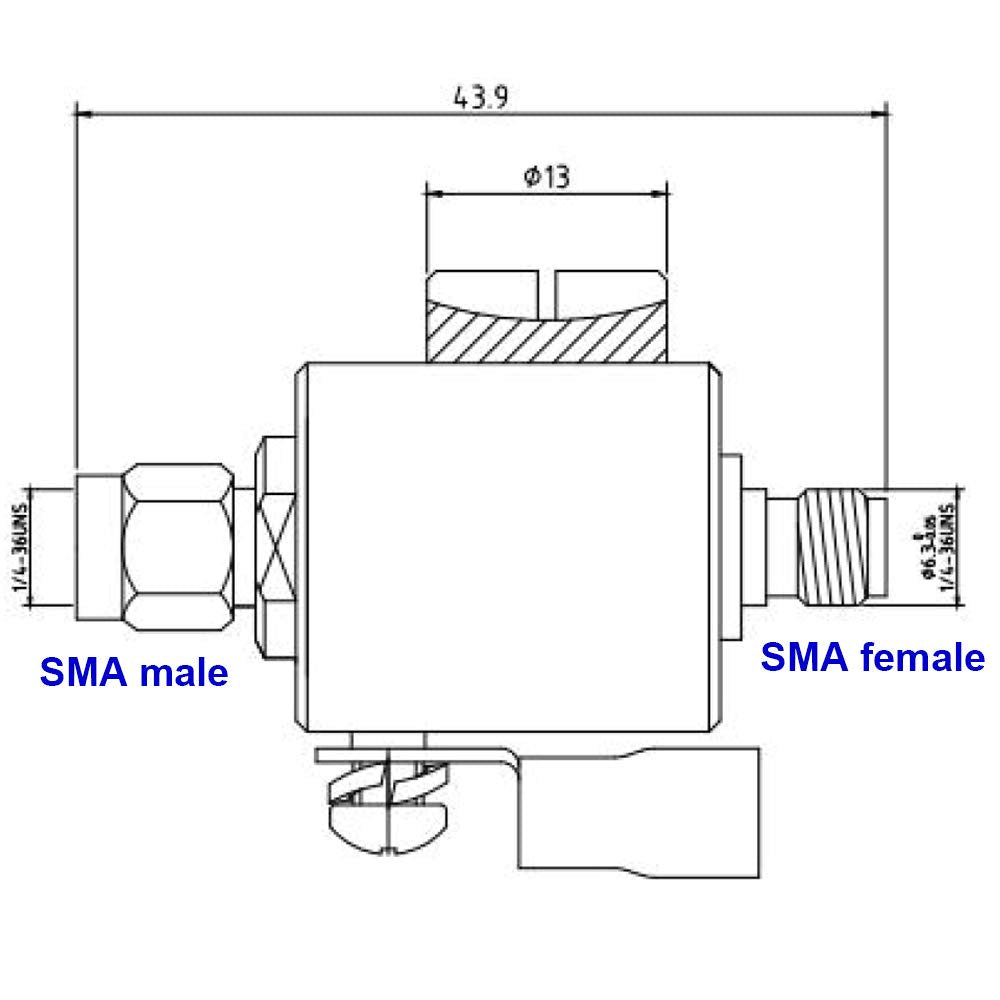

• Q: What are the dimensions of the SMA Lightning Arrestor? A: The dimensions are one point seven three inches in length, one point one eight inches in width, and zero point six nine inches in height. This compact size allows for easy installation in various setups.
• Q: What materials are used in the SMA Lightning Arrestor? A: The body is made from brass nickel plated material, while the pin is brass gold plated. The insulator is constructed from PTFE, commonly known as Teflon.
• Q: What is the input impedance of this product? A: The input impedance of the SMA Lightning Arrestor is fifty Ohms. This specification ensures compatibility with cellular boosters and other devices that require this impedance.
• Q: How do I install the SMA Lightning Arrestor? A: To install, place the device between the amplifier and the outside antenna cable connection. Ensure that it is properly grounded to protect against surges.
• Q: Is this Lightning Arrestor suitable for outdoor use? A: Yes, it is designed for outdoor use to protect equipment from lightning strikes. It is specifically made for outdoor antennas and should be installed in a grounded position.
• Q: Can I use this with my wireless video system? A: Yes, the SMA Lightning Arrestor is compatible with wireless video systems as well as cellular boosters and GPS receivers. It provides surge protection across various applications.
• Q: How do I care for the SMA Lightning Arrestor? A: To maintain the SMA Lightning Arrestor, ensure it is properly grounded and check connections periodically. Avoid exposing it to extreme temperatures beyond the specified range.
• Q: What is the temperature range for the SMA Lightning Arrestor? A: The operational temperature range is from minus fifty-five degrees Celsius to plus one hundred fifty-five degrees Celsius. This range makes it suitable for various environmental conditions.
• Q: Does the SMA Lightning Arrestor require any special maintenance? A: No special maintenance is required beyond regular inspections of the grounding and connections. It is built for durability with a lifespan of over five hundred cycles.
• Q: What should I do if the SMA Lightning Arrestor arrives damaged? A: If it arrives damaged, contact customer support to initiate a return or exchange. Keep the original packaging for potential returns.
• Q: Is there a warranty for the SMA Lightning Arrestor? A: Yes, the product typically comes with a manufacturer warranty, which covers defects in materials and workmanship. Please check the specific warranty details upon purchase.
• Q: How does this Lightning Arrestor protect my equipment? A: The SMA Lightning Arrestor uses a gas discharge tube to divert surges and transients away from connected equipment, effectively protecting against lightning strikes.
• Q: Can I use the SMA Lightning Arrestor indoors? A: While it can technically be used indoors, it is primarily designed for outdoor applications to protect antennas mounted outside. Indoor use is not recommended.
• Q: What is the maximum breakdown voltage of this device? A: The maximum breakdown voltage is ninety volts. This high voltage tolerance offers robust protection against electrical surges.
• Q: How does the SMA Lightning Arrestor compare to other surge protectors? A: The SMA Lightning Arrestor is specifically optimized for high-frequency applications up to six gigahertz, making it superior for cellular and GPS devices compared to standard surge protectors.
