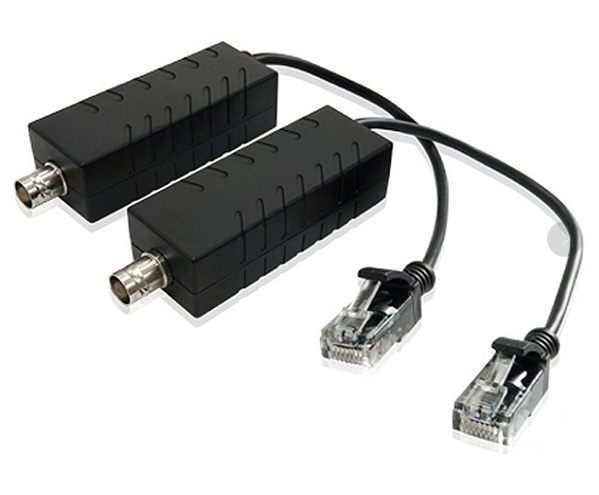

Extend the reach of your IP network with Silarius SIL-EOC1 1CH passive IP extender over coax! Silarius' SIL-EOC1 1CH passive IP extender over coax is the perfect solution for anyone looking to extend their network with a reliable, cost effective connection. With this device, you can rest assured that your data and signals will be transmitted quickly and securely over long distances without any disruption or interference - giving you peace of mind when it comes to staying connected. Plus, its easy installation means you'll have your network up and running in no time!
Supports use with routers, modems, access points and other network devices that have an Ethernet port
Compact size for convenient integration into existing installations
◇1CH passive IP extender over coax ◇Bandwidth: 10Mbps ◇Extend distance: 100m
Specifications:

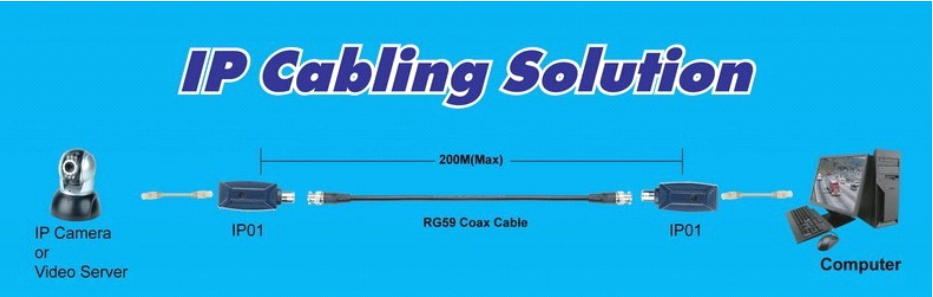

SIL-EOC1 is a low cost and easy, speedy solution to allow you use existing coax cable to send IP camera signal. Used in pairs with your RG59 cable to exceed the IEEE 802.3 10BaseT NEXT specification. The working range
could up to 200 meters at 10Mbps speed.
Features:
1:Send IP camera signal over existing coaxial cable.
2:Passive, no power required.
3:Exceeds 802.3 10BaseT NEXT specification, isolating the receiver from the transmitted signal.
4:Transmission up to 200 meters (Max).
ITEM NO.
IP01
VIDEO INPUT (BNC female Connector)
1
Connector
BNC Female Connector to RJ45 Jack
Impedance
50Ω to dual 100Ω or 75Ω to dual 100Ω or 93Ω to dual 100Ω
Crosstalk
> 30 dB
Cable
Coax Cable (RG59)
DIMENSIONS W x H x D mm
69x25x22
