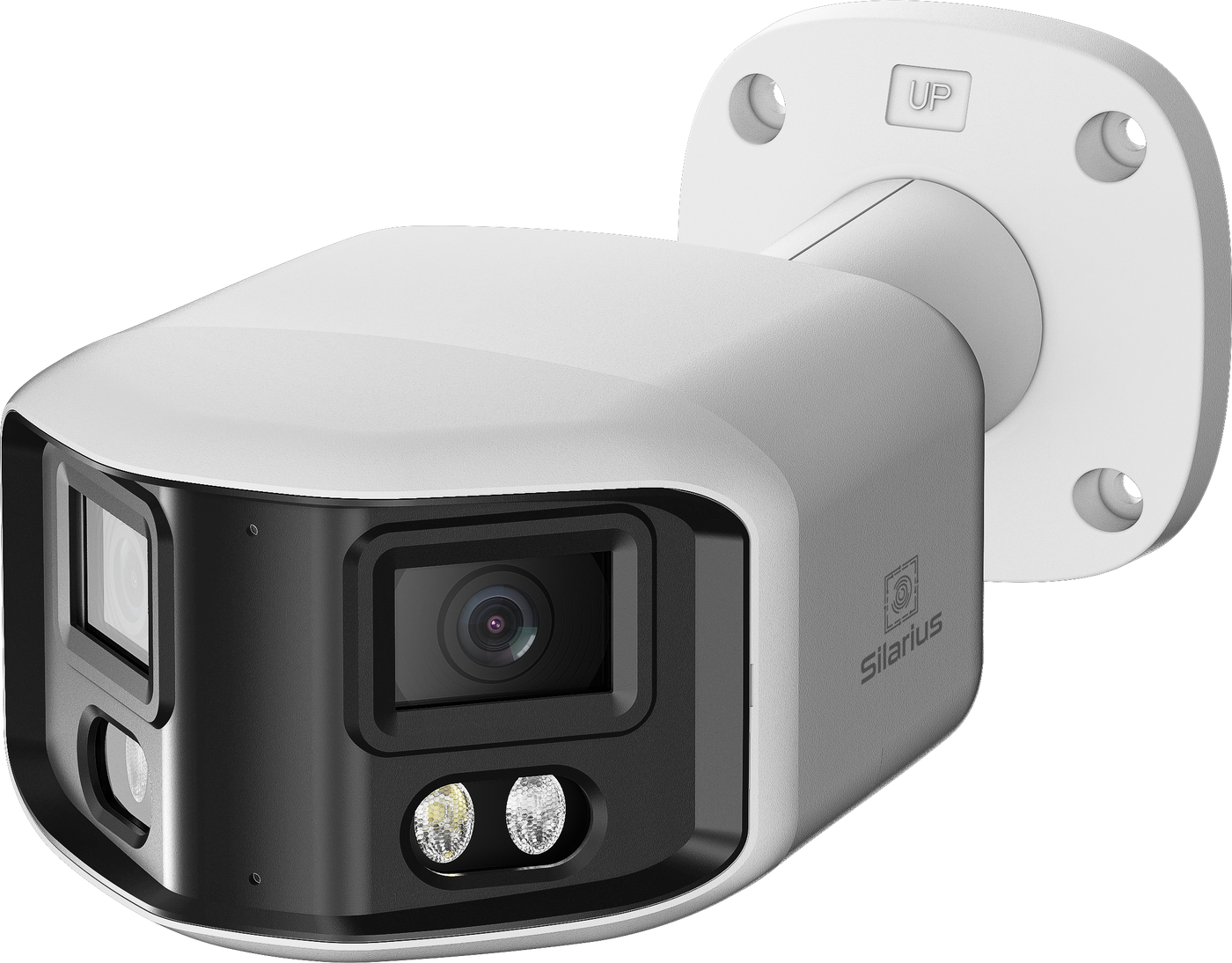

2×4MP 1/2.8” progressive scan CMOS
Output 180° wide angle splicing image
Outputs max. 8MP(4608×1728)@15 fps, and supports 2592×1944 @15fps
Support human and vehicle detection and capture
Intelligent analysis: intrusion, single line crossing, double line crossing, loitering, wrong-way, people counting, illegal parking and heat map
True WDR, 3D DNR, ROI, Defog, HLC
Built-in warm light and IR light, the max. illumination distance up to 30 m (98.4 ft)
Audio: 1ch in,1ch out; built-in Mic and speaker; support two-way talk
Alarm: 1ch in,1ch out; built-in SD card slot, up to 256GB
IP66
|
Camera |
|
|
Image Sensor |
Dual 1/2.8”Progressive Scan CMOS |
|
Max. Resolution |
4608(H)×1728(V) |
|
Electronic Shutter |
Auto/Manual, 1/5 ~ 1/20,000s |
|
Min. Illumination |
Color: 0.01 Lux @ (F1.6,AGC ON) B/W: 0.001 Lux @ (F1.6,AGC ON), 0 Lux with Illuminator on |
|
Illumination Distance |
IR distance up to 20 m (65.6ft) Warm light distance up to 30 m (98.4ft) |
|
Illumination On/Off Control |
Auto/ Manual |
|
Illuminator Number |
2 (IR LED), 2 (Warm Light) |
|
Pan/Tilt/Rotation Range |
Pan: 0°~360°, Tilt: 0°~90°, Rotation: 0°~360° |
|
Lens |
|
|
Lens Type |
Fixed-focal lens, Dual lens: 2.8mm |
|
Iris |
Fixed Iris |
|
Focal Length |
2.8 mm |
|
Aperture |
F1.6 |
|
Angle of View |
H: 180°, V: 63° |
|
Video |
|
|
Streaming Capability |
2 Streams |
|
Stream/Frame Rate |
Splicing mode: Stream1: 4608×1728 @15fps Stream2: 1536×576 @15fps Multi-channel mode: Stream1: 2592×1944, 2592×1520, 1280×720 @ 15fps Stream2: D1, VGA, CIF, QVGA @ 15fps |
|
Bit Rate Control |
CBR/VBR |
|
Bit Rate |
Splicing mode: Stream1: 500Kbps~16Mbps Stream2: 200Kbps~8Mbps Multi-channel mode: Stream1: 200Kbps~12Mbps Stream2: 100Kbps~6Mbps |
|
Smart Encoder |
Support |
|
Region of Interest (ROI) |
Support |
|
Image |
|
|
Image Adjustment |
Brightness, Sharpness, Contrast, Saturation adjustable |
|
Mirror |
Support |
|
White Balance |
Auto/Manual |
|
Day/Night Setting |
Auto, Day, Night, Time |
|
Smart Illumination |
Support |
|
Noise Reduction |
2D/3D DNR |
|
Image Enhancement |
HLC, BLC, Defog |
|
Wide Dynamic Range |
True WDR |
|
S/N Ratio |
55dB |
|
Motion Detection |
Support |
|
Privacy Masking |
4 areas |
|
Smart Function |
|
|
Smart Detection |
Support human and vehicle detection and capture |
|
Intelligent Analysis |
Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way, Illegal parking and Smart motion detection Support alarm triggering by specified target types (human and vehicle) |
|
People Counting |
Support |
|
Heat Map |
Support |
|
Basic Events |
Disk alarm, Network alarm, I/O alarm, Motion detection alarm, Abnormal sound detection |
|
Audio |
|
|
Audio Compression |
G.711, RAW_PCM |
|
Audio Bit Rate |
8kbps, 16kbps, 64kbps |
|
Network |
|
|
Protocols |
IPv4/IPv6, TCP/IP, HTTP, HTTPS, UPnP, UDP/IP, RTSP/RTCP/RTP, IGMP/Multicast, SMTP, DHCP, NTP, DNS, QoS, SNMP, 802.1x, UDP, ICMP, ARP, TLS |
|
Interoperability |
ONVIF, SDK |
|
Streaming Method |
Unicast |
|
Max. User Access |
10 Users |
|
Web Viewer |
<IE11, Chrome, Firefox |
|
Language |
English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English |
|
Interface |
|
|
Network Interface |
1 Ethernet (10/100 Base-T) RJ-45 Connector |
|
Audio Interface |
1ch Input, 1ch Output |
|
Built-in Microphone |
Support |
|
Built-in Speaker |
Max sound transmission distance of 60 m (196.85 ft) (45-48 dB) |
|
Alarm Interface |
1ch Input, 1ch Output |
|

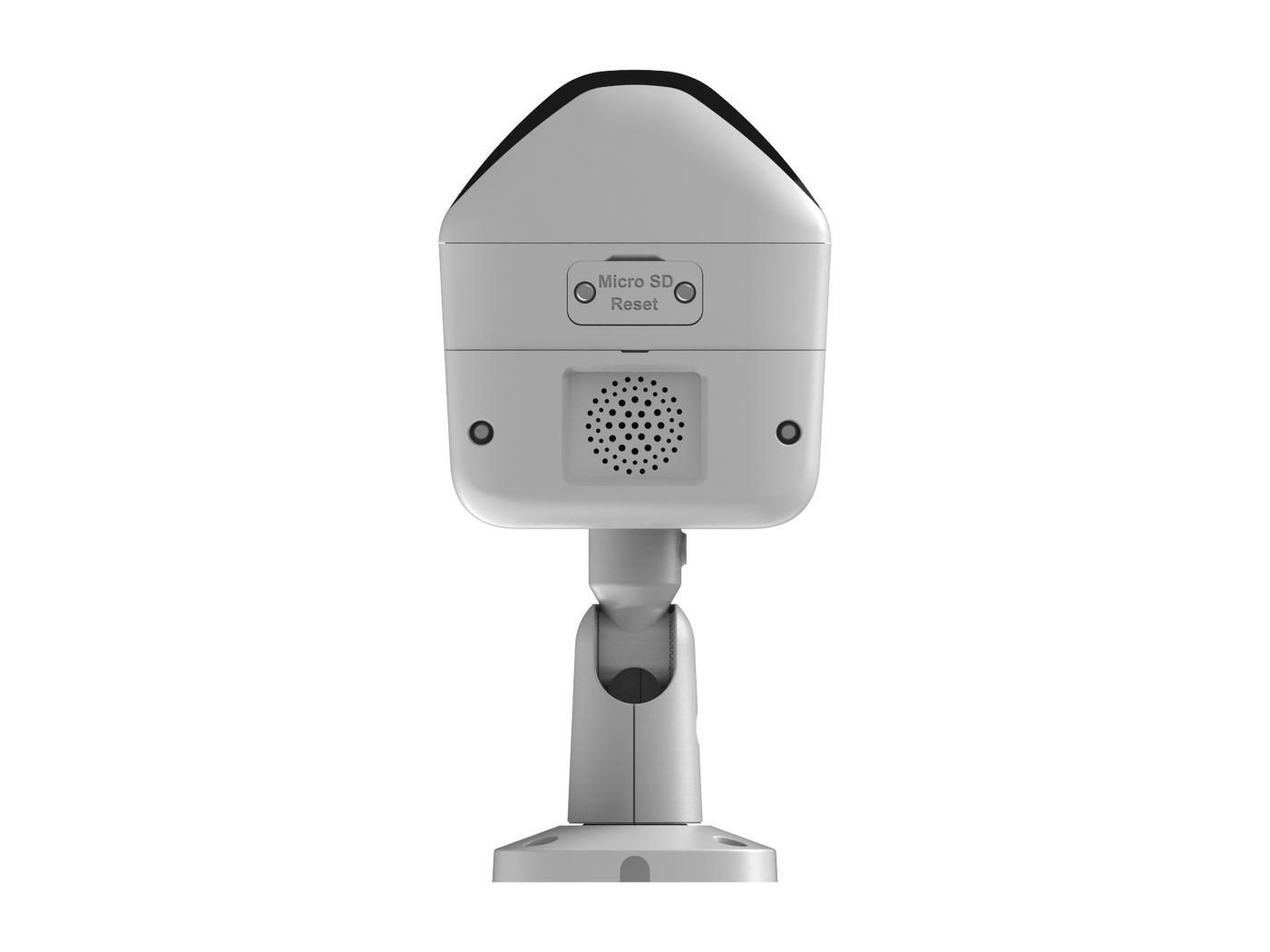

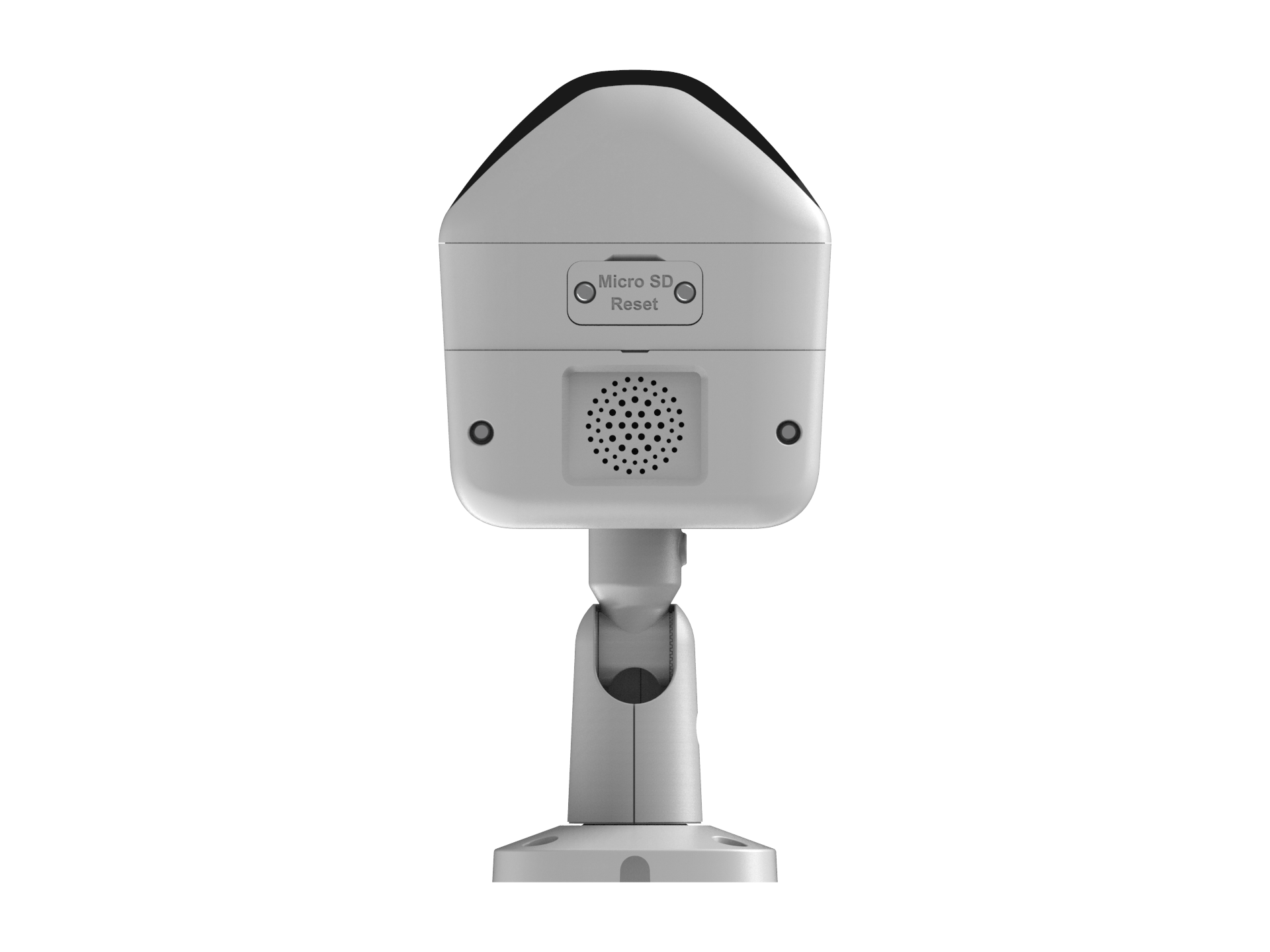

SD Card Slot |
Built-in, up to 256GB |
|
Reset Button |
Support |
|
Electrical |
|
|
Power Supply |
DC12V (-15%~+20%)/POE (IEEE 802.3af) |
|
Power Consumption |
Max 11.5 W |
|
Operating Temperature |
-30°C ~ 60°C (-22°F ~ 140°F ) |
|
Operating Humidity |
Less than 90% RH |
|
Ingress Protection |
IP66 |
|
Certifications |
CE/FCC |
|
Casing |
Metal + plastic |
|
Dimensions |
227.7 × 110 × 80 mm (8.96 × 4.33 × 3.15 inch) |
|
Net Weight |
0.82 kg (1.81 lb) |
