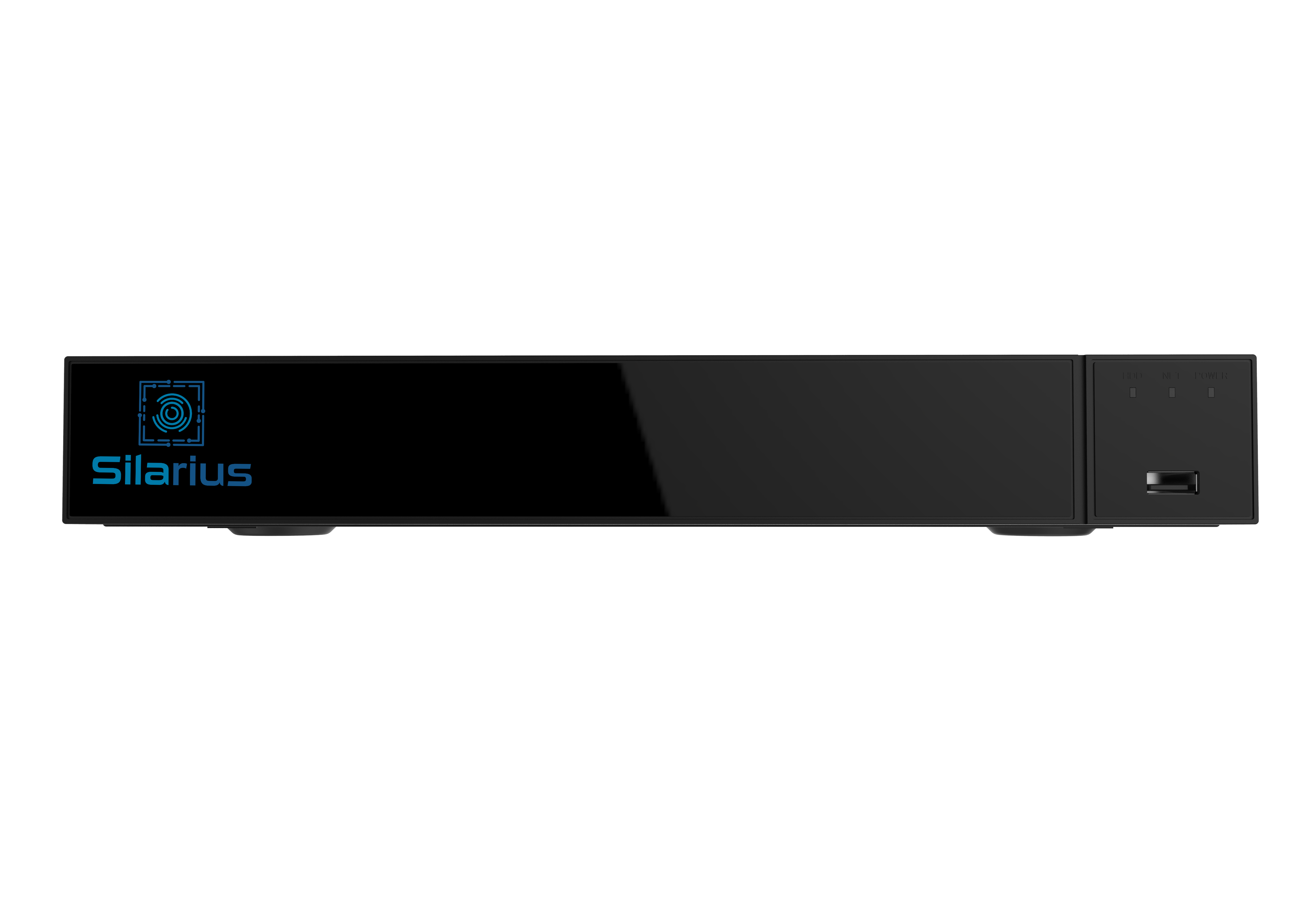

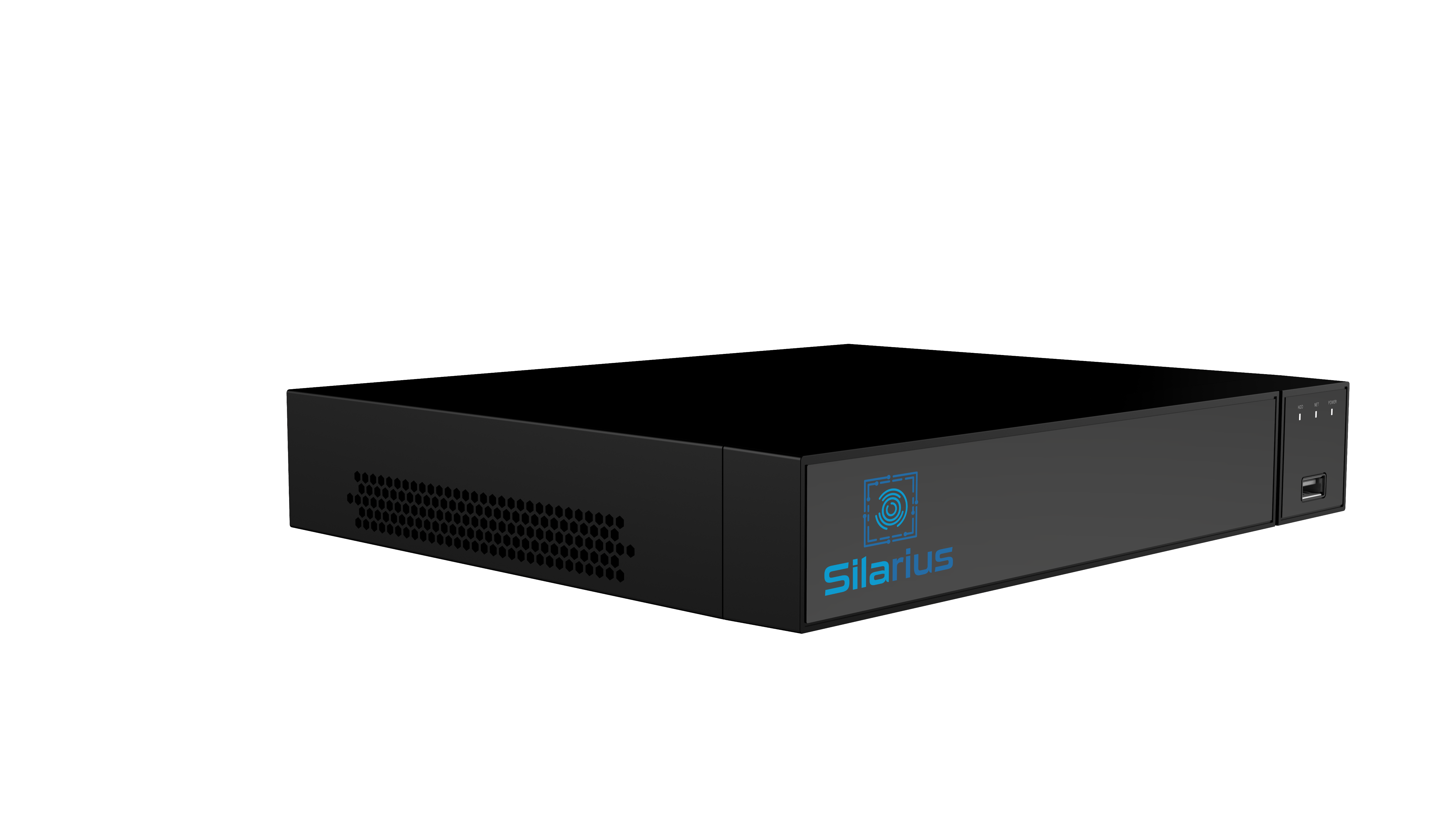

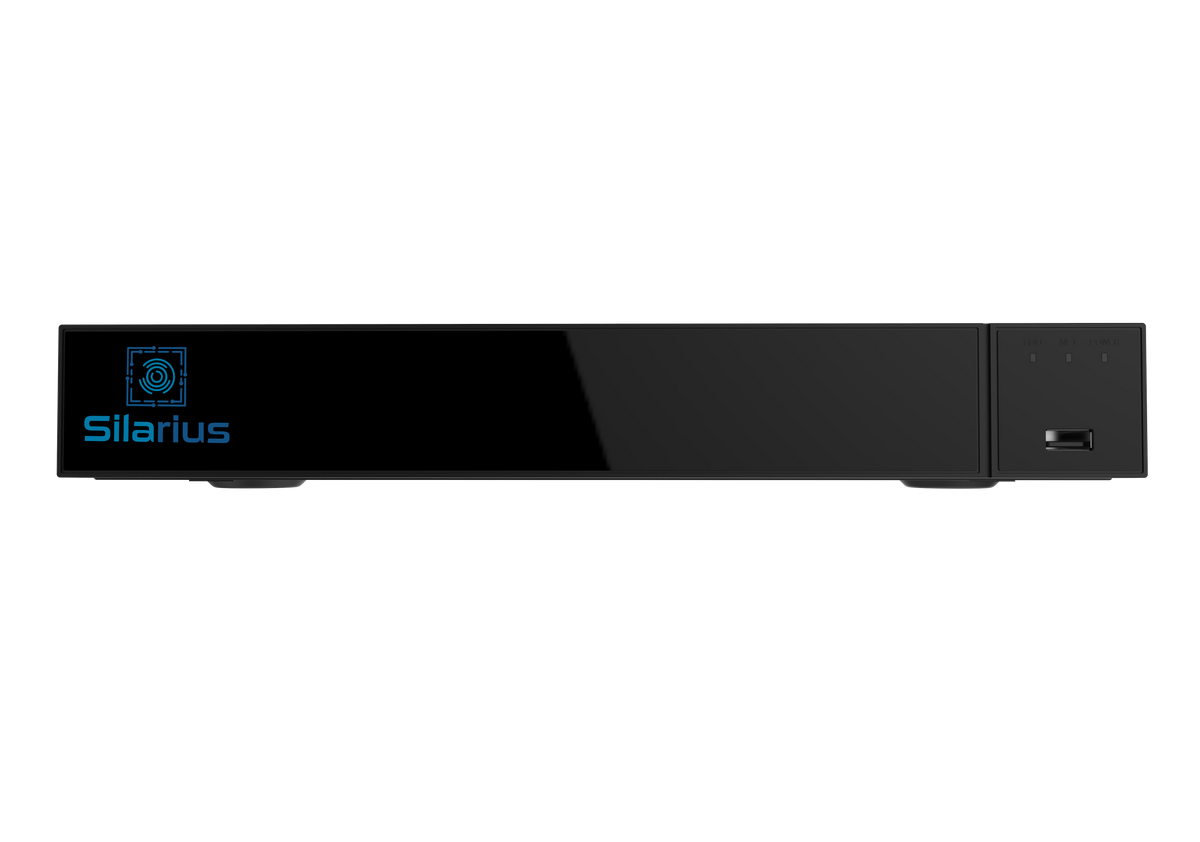

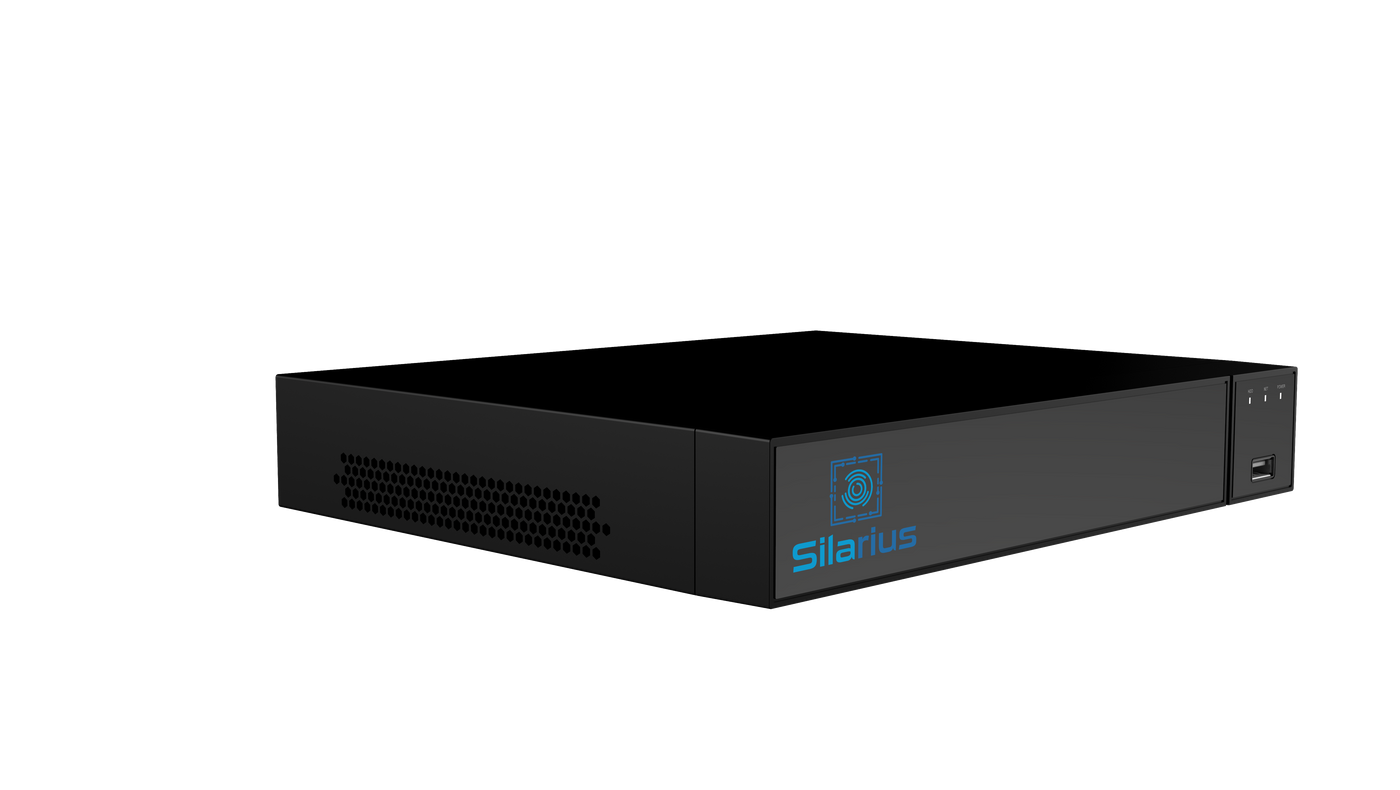

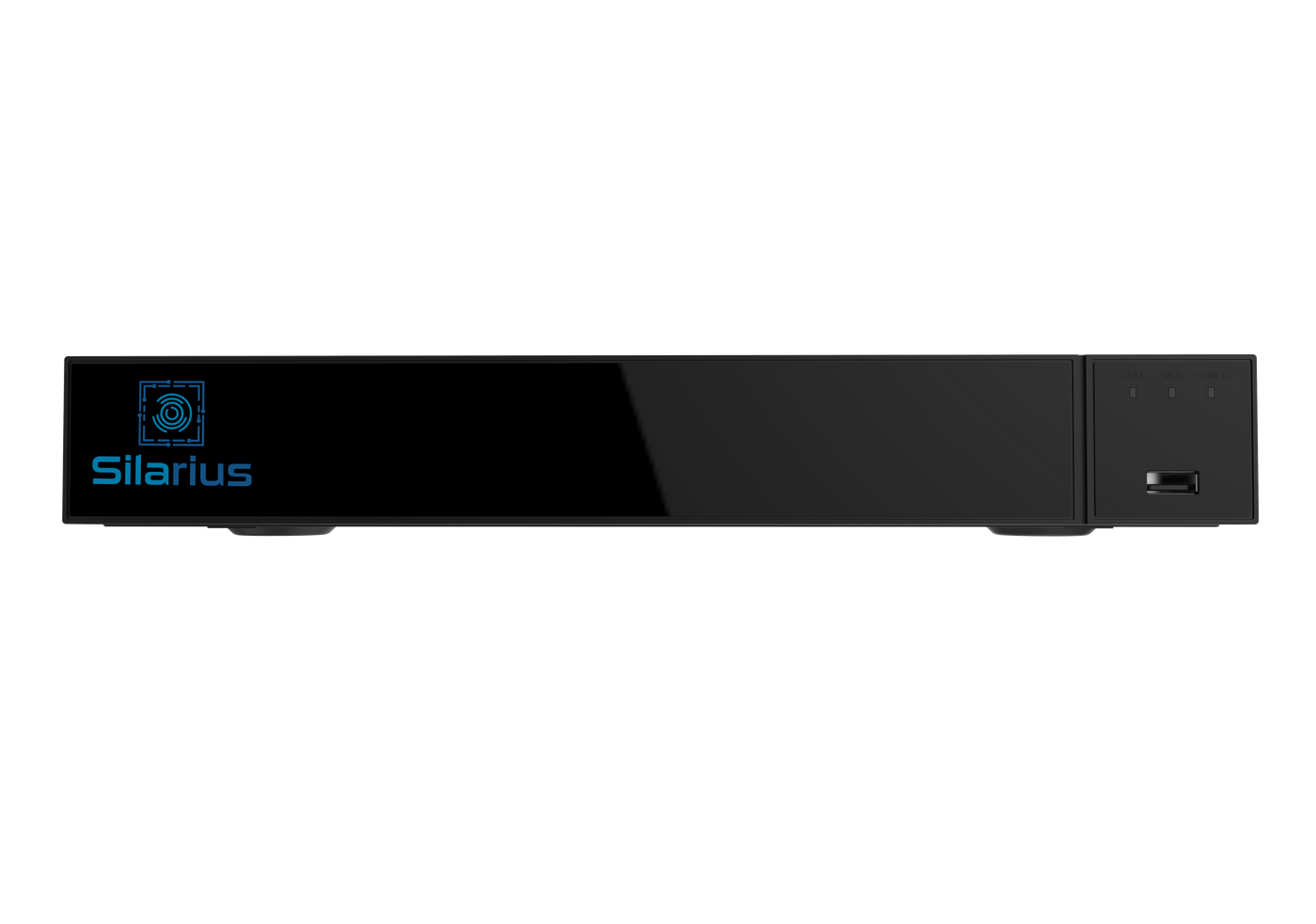

Silarius Pro Series SIL-NVRAI168 36-Channels 4K AI NVR Gigabit 12MP Face Recognition, Face comparison, NVR, 8TB HDD

System
Main Processor: ARM Cortex A17 Quad-core Processor
Operating System: Embedded LINUX

Video
Input: 16CH (4096×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)

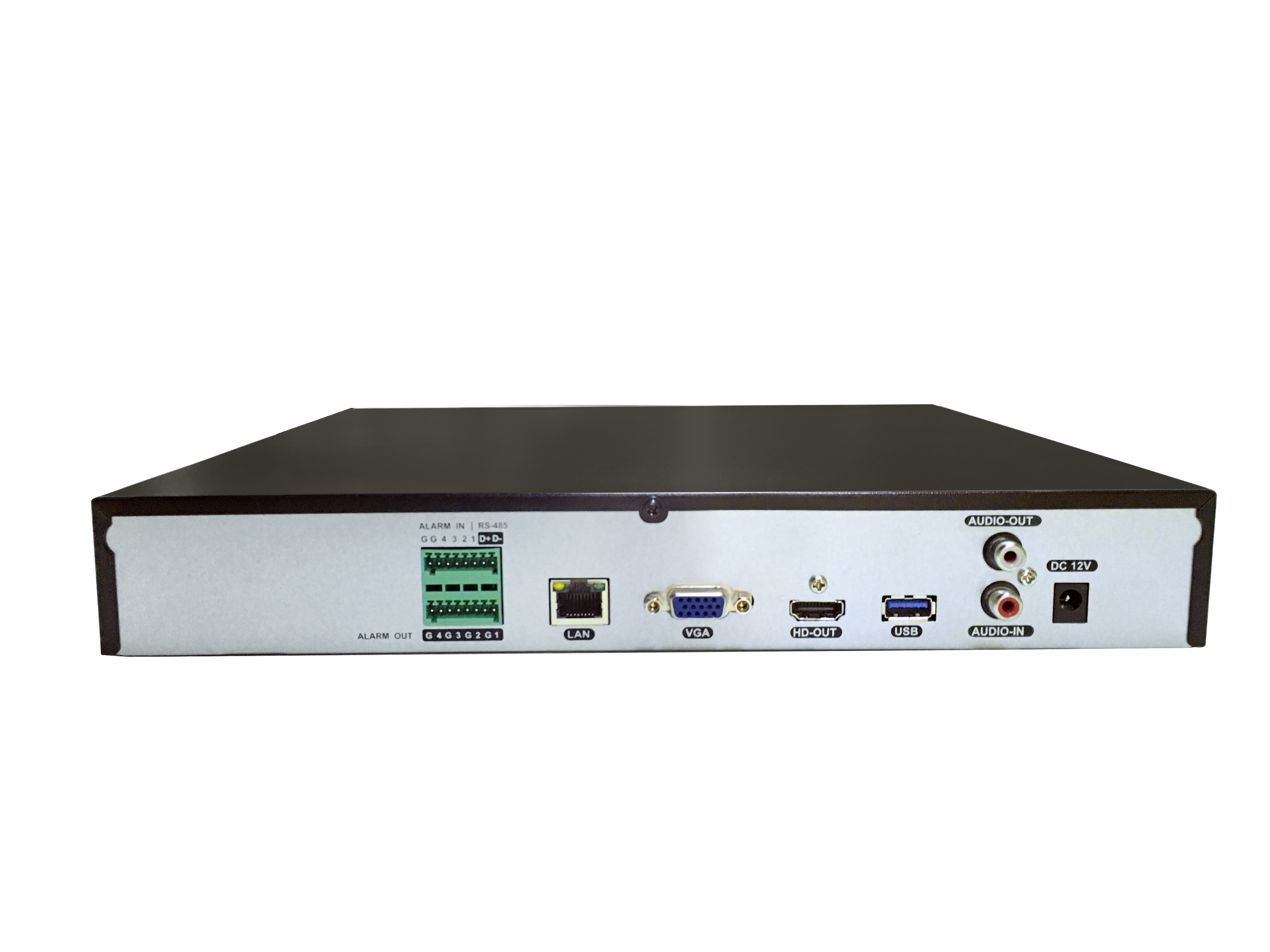

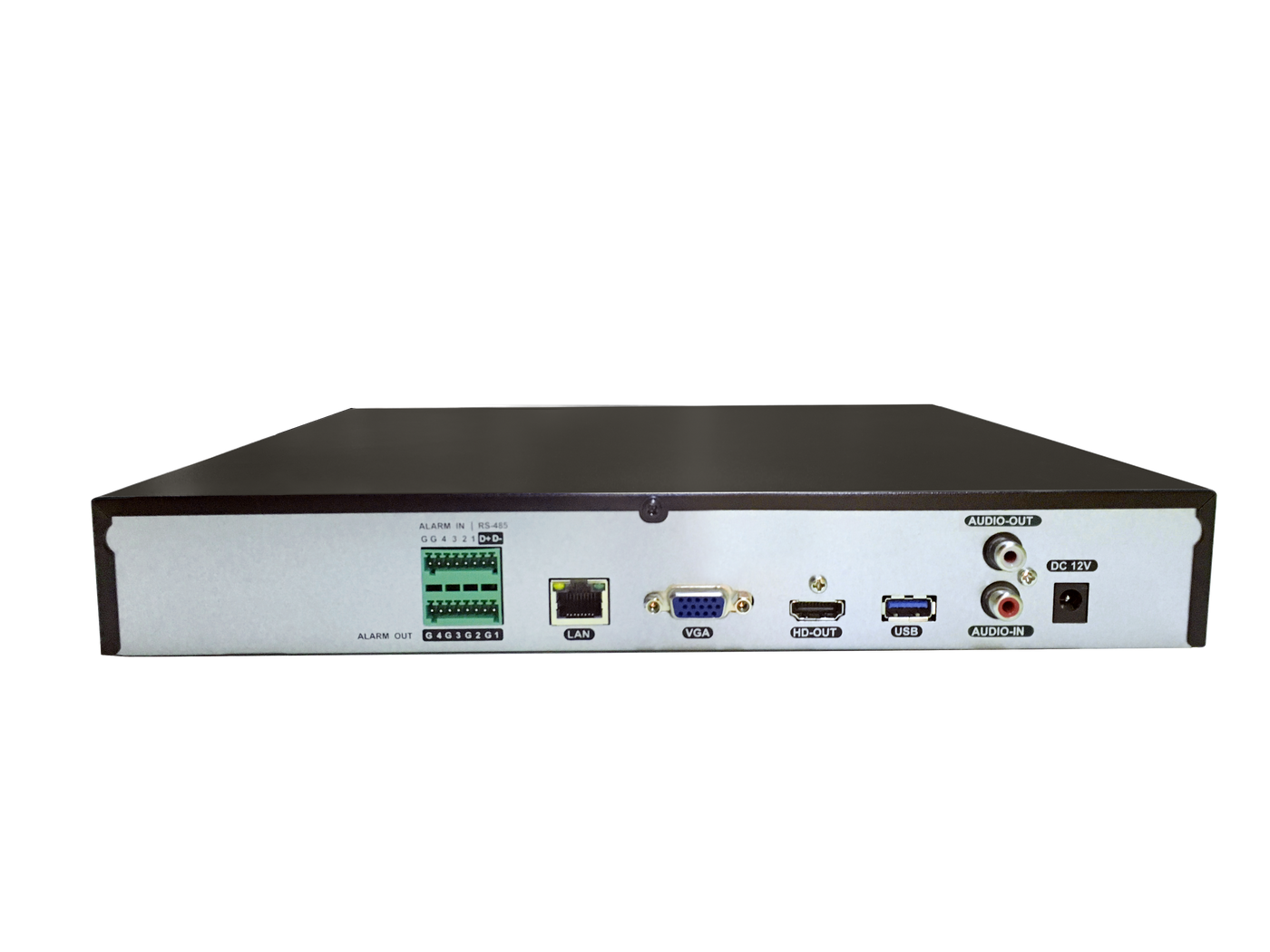

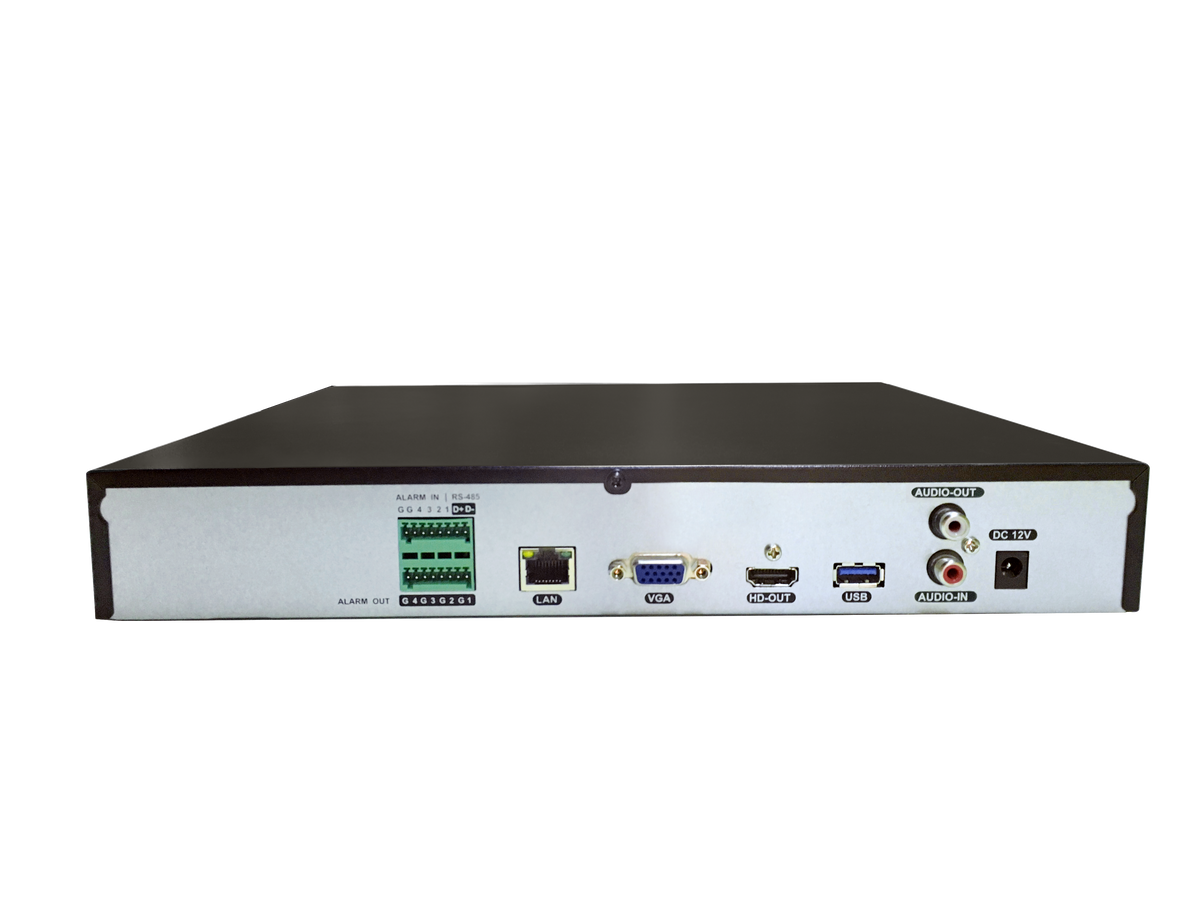

Output: 1 VGA, 1 HD

Audio
Input: 1 Port RCA
Output: 1 Port RCA(Linear, 1kΩ)
Audio Bit Rate: 64kbps
Audio Compression: standard G711u, G711a, ADPCM_DVI4

Alarm
Sensor Input: 4
Output: 4
Motion Detection: 36 Channel, MD Zones: 396 (22 × 18)
Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, Alarm output

AI Function
Face Comparison
Channel 1-4 support video stream face comparison(Every channel max support 4mp@30fps)

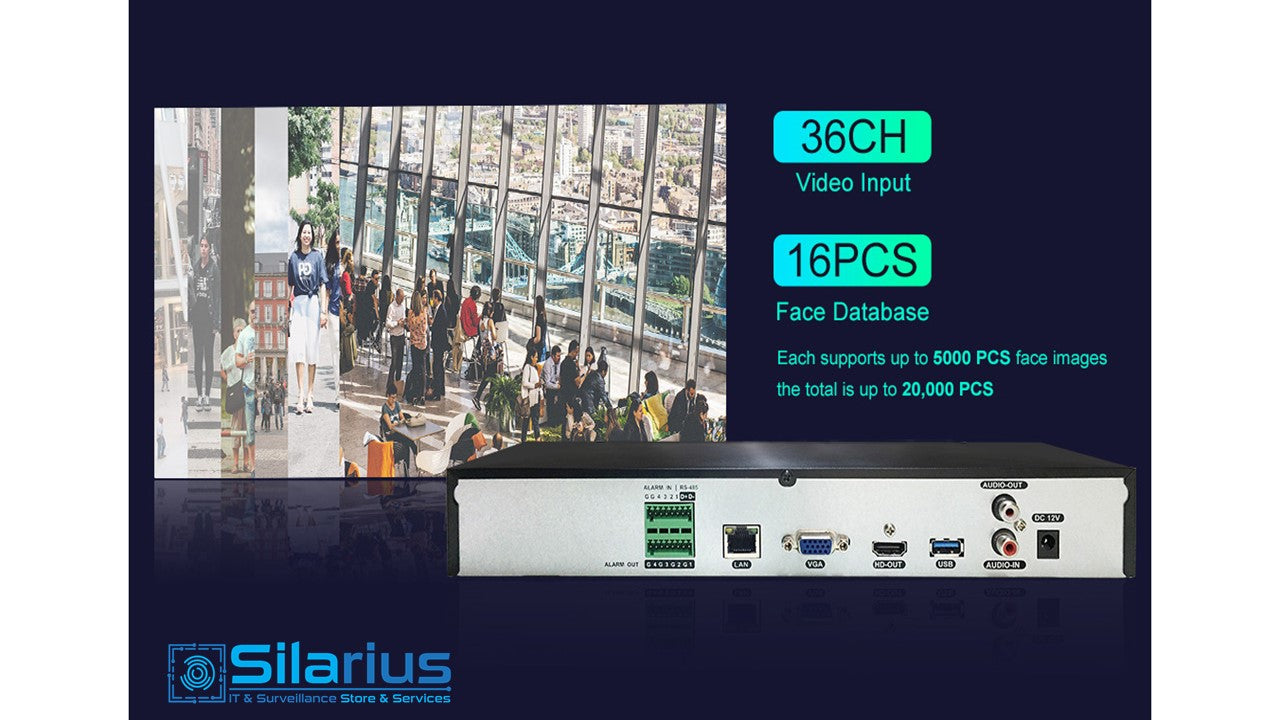

Face database: Max support 16(Each database can max support 5000 faces)
Max number of supported faces: 20000

Display
HD Output1: 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HD Output2: /
VGA 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split: 36CHxD1/25CHxD1/16CHxD1/9CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k/1CHx12MP
Digital Zoom: YES
OSD: Camera Title, Time, Recording, Motion Detection, Event Alarm

Recording
Video Compression: H265/H264/H265+/H264+
Resolution:
12MP(4000×3000),4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),
960P(1280x960),720P(1280×720),D1 (720×576/720×480)
Record Rate: PAL :12MP@25×25fp,4k@30×25fp,5MP@36×25fp,4MP@36x25fp,3MP@36×25fp,1080P@36×25fp, 960P@36×25fp,720P@36×25fp, D1@36×25fp
NTSC: 12MP@25×30fp,4k@30×30fp,5MP@36×30fp,4MP@36×30fp,3MP@36×30fp,1080P@36×30fp, 960P@36×30fp, 720P@36×30fp, D1@36×30fp
Record Mode: Manual\Timer\Motion Detection\Alarm Input\Smart Alarm

Playback & Backup
Local Sync Playback: 3CH 12MP@15fps, 4CH 4K@30fps, 6CH 5MP@30fps, 8CH 4MP@30fps, 10CH 3M@30fps, 16CH 1080P@30fps, 16CH 960P@30fps, 16CH
720P@30fps
Decode Capability: 4CH 4K(3840×2160)@30fps
Remote Sync Playback: YES
Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom
Backup Mode: USB Device/Network

Network
Interface: 1 RJ45 10M/100/1000M Adaptive Ethernet Interface
Incoming Bandwidth: 300MB
Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p
Onvif Version: Support Onvif 2.8
Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS Software Support Windows 7/ Windows 8/Windows 10/MAC OS
Cloud Support(P2P) Yes
Smart Phone: iPhone, iPad, Android, Android Pad
POE /
WIFI /

Storage
Interface Type: 2 SATA Hard Disk Interface (3.5" SATA)
Capacity: Up to 12TB capacity
eSATA: /

General
Language: Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese
USB Interface: 1 USB 2.0 Interfaces ,1 USB 3.0 Interface
RS485: 1 Port
Power Supply: DC12V/5A
Working Environment: -10~55℃/10~90%
Dimension(W×D×H): 310*295*46(mm)
Weight: 4KG (without HDD)
