System Main Processor: ARM Cortex A7 Processor Operating System: Embedded LINUX
Video Input: 25CH (3840×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc) Output: 1 VGA, 1 HD
Audio Input: 1 Port RCA Output: 1 Port RCA(Linear, 1kΩ) Audio Bit Rate: 64kbps Audio Compression: AAC,G711u, G711a, ADPCM_DVI4
Intercom : support (two-way)
Alarm Sensor Input: NO Output: NO Motion Detection: 25 Channel, MD Zones: 396 (22 × 18) Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips
AI Function Face Comparison Channel 1-4 support video stream face comparison(Every channel max support 4mp@30fps) Face database: Max support 16(Each database can max support 5000 faces) Max number of supported faces: 20000
Display HD Output1: Resolution:4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HD Output2: / VGA: Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Display Split: 25CHxD1/16CHxD1/9CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k Digital Zoom: YES OSD: Camera Title, Time, Recording, Motion Detection, Event Alarm
Recording Video Compression: H265/H264/H265+/H264+ Resolution: 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440), 3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480) Record Rate: PAL :4k@12×25fp,5MP@20×25fp,4MP@25x25fp,3MP@25×25fp,1080P@25×25fp, 960P@25×25fp,720P@25×25fp, D1@25×25fp NTSC: 4k@12×30fp,5MP@20×30fp,4MP@25×30fp,3MP@25×30fp,1080P@25×30fp, 960P@25×30fp, 720P@25×30fp, D1@25×30fp Record Mode: Manual\Timer\Motion Detection\Smart Event
Playback & Backup Local Sync Playback: 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps,16CH D1@30fps Decode Capability: 1CH 4K(3840×2160)@30fps Remote Sync Playback: YES Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm,Tag search Playback Functions: Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom,tag,clip Backup Mode: USB Device/Network

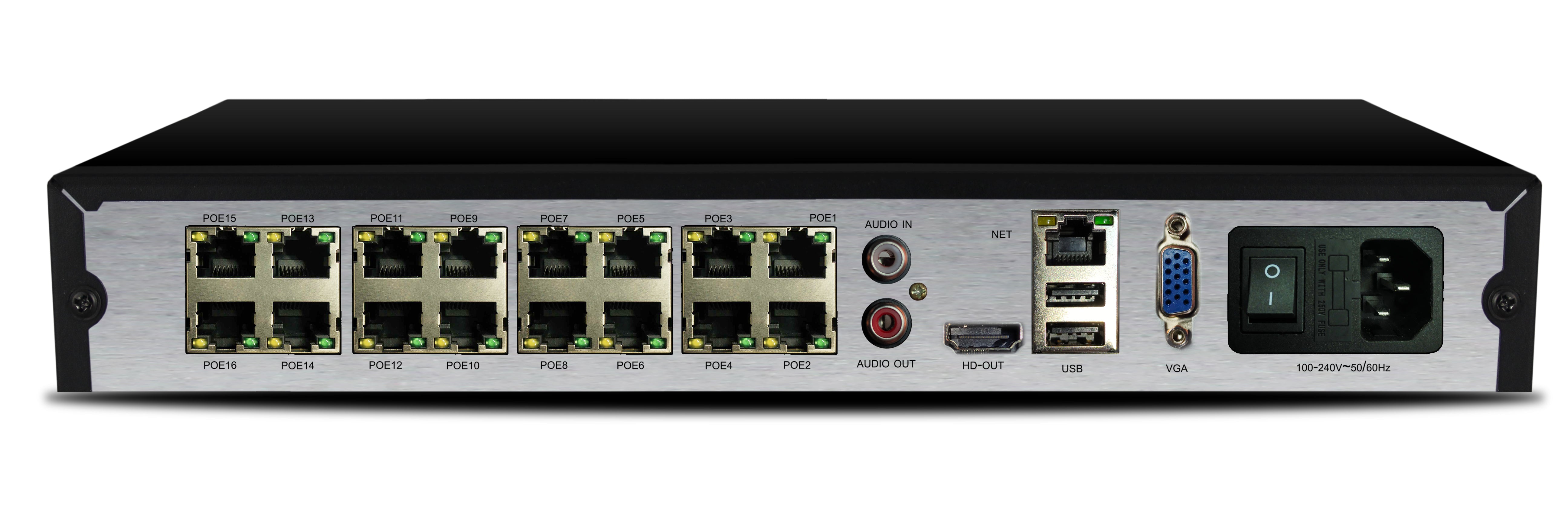

Network Interface: 16 x RJ45 (10M/100M Adaptive Ethernet Interface)+1xRJ45 10M/100M/1000M Adaptive Ethernet Interface Incoming Bandwidth: 120MB Network Functions:TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE Onvif Version: onvif S,onvif T Web Browser: Edge,IE8-11, Google Chrome , Firefox ,Safari CMS Software Support Windows 7/ Windows 8/Windows 10/MAC OS Cloud Support(P2P) Yes Smart Phone: iPhone, iPad, Android, Android Pad POE: 16 x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface), 45/78 line order, Total Power Output≧200W, Support Plug and Play, Support network cable extended mode Max. 250M WIFI /
Storage Interface Type: 1 SATA Hard Disk Interface (3.5" SATA) Capacity: Up to 8TB capacity eSATA: /
General Language: Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese,Janpanese USB Interface: 2 USB 2.0 Interfaces RS485 / Power Supply: AC 100-240V Working Environment: -10~55℃/10~90% Dimension(W×D×H): 310*295*46(mm) Weight: 2KG (without HDD)
