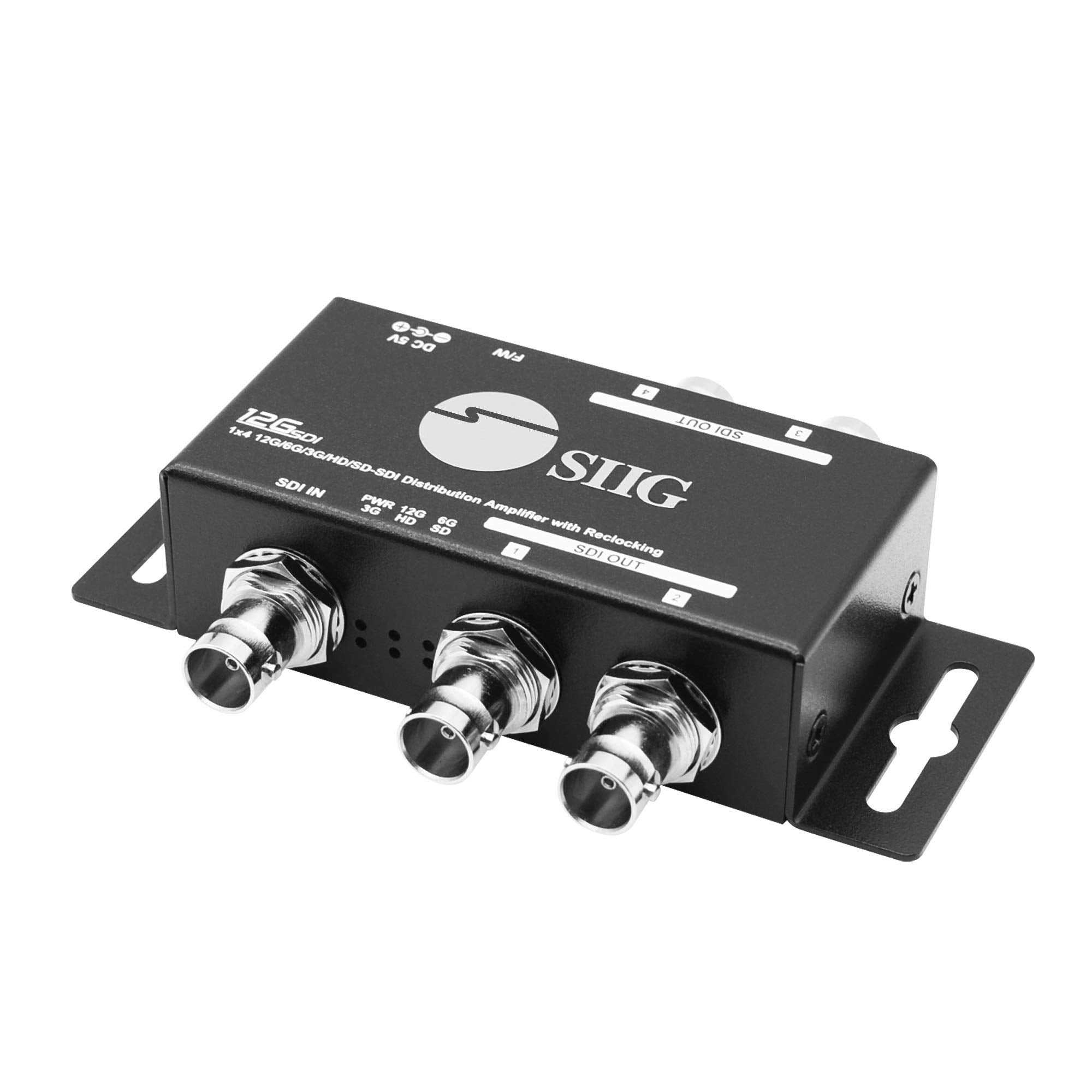

SIIG AC CESD0G11S1 1x4 12G SDI Distribution Amplifier 180M Brown Box
$243.53
Sold Out
Specifications:SDI standards: SD, HD, 3G, 6G, 12GSDI Compliance: SMPTE 424M, SMPTE 292M, SMPTE 344M, SMPTE 259M, DVBASI, ST2081(6G), ST2082(12G)SDI Data rates: 1.485 / 2.97 / 5.94 / 11.88 GbpsVideo bandwidth: Up to 12G [11.88Gpbs & 11.88/1.001Gbps]Auto detection of SD, HD, 3G, 6G, or 12G signalsSeparate buffer and reclocking for each outputSurface mountable metal housingVideo resolution:4K UHD up to 2160p at 60HzUHD up to 1080p at 60Hz (YUV 4:2:2)HD up to 720p at 60Hz, 1080i at 60 Hz, 1080p at 30 HzSD NTSC at 59.94Hz, PAL at 50HzTransmission distance: tested with Belden 1694A cable12G: up to 70m (230ft)6G: up to 100m (330ft)3G: up to 180m (594ft)HDSDI: up to 150m (492ft)SDSDI: up to 300m (984ft)Power consumption: 2.5 Watts [max]Product:Dimensions: 4.35 (L) x 0.95 (H) x 2.97 (W)Weight: 0.38 lbsColor: BlackHousing material: MetalConnectors:1x BNC, SDI, Input4x BNC, SDI, Output1x Power jack1x 5pin Micro USB, Female, F/W updatePower adapter:Input: 100240VAC, 50/60HzOutput: DC 5V/1AUL Listed: E135856 /Level:VIEnvironmental conditions:Operating temperature: 32 to 104 degrees FStorage temperature: 4 to 140 degrees FRelative humidity: 20 to 90% RH (noncondensing)Certifications/Standards: FCC, CE, RoHSTAA compliantCountry of origin: TaiwanPackage contents:1x4 12G SDI Distribution AmplifierPower adapter1x BNC 75 ohm terminatorScrew kit (2pcs)Quick start guide
