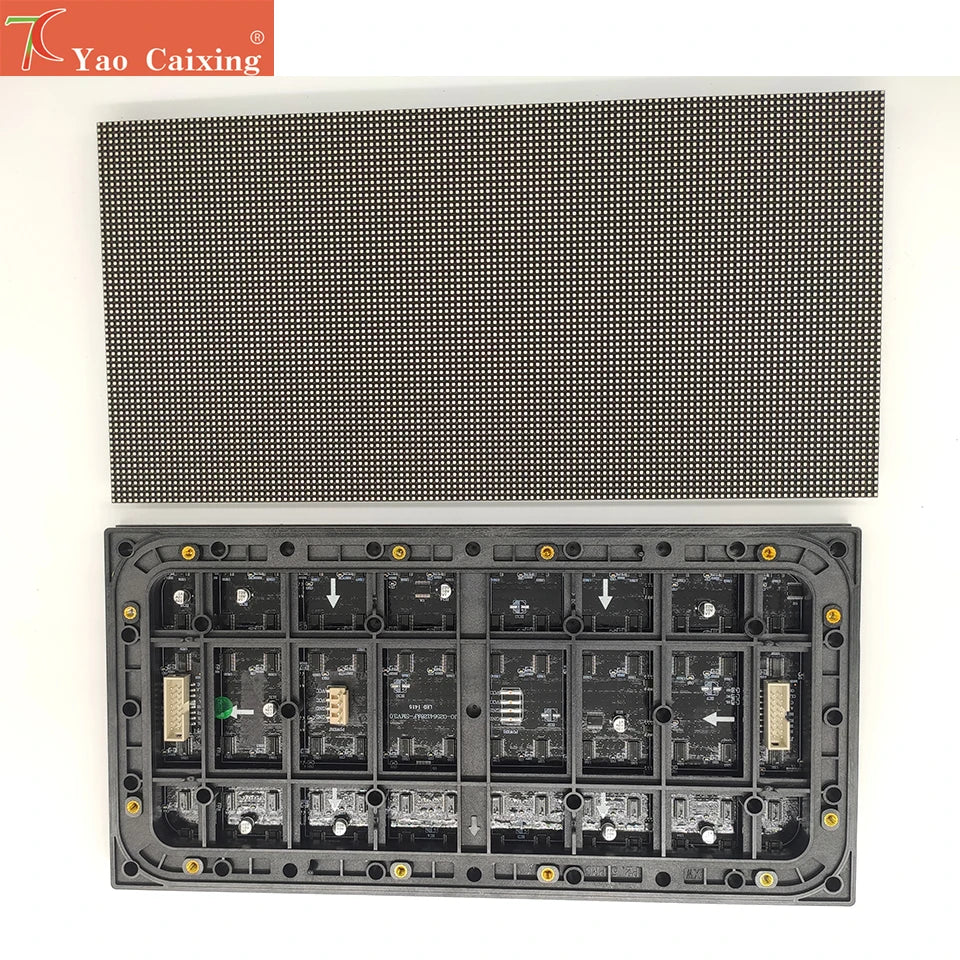

Shipping Free P2.5 320x160mm High Definition Small Spacing 128*64 Pixel IP68 HUB75 Interface Outdoor RGB Module
Free Standard Shipping Across USA
Vendor: Electroeshop
Type:
Sku:
Availability: In Stock
Couldn't load pickup availability
Guarantee safe checkout
Sold by Electroeshop, an authorized reseller.
Returns accepted within 30 days | support@electroeshop.com
Shipping Information
- Free Standard Shipping — United States only
- Processing Time: 3–5 business days
- Estimated Delivery: 6–10 business days after dispatch
- Double-boxed, fully insured & discreetly packaged
- Tracking number sent via email once dispatched
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · 25% restocking fee applies
All returns require a Return Authorization (RA) number before sending.
View Full Return & Refund Policy
Shipping Free P2.5 320x160mm High Definition Small Spacing 128*64 Pixel IP68 HUB75 Interface Outdoor RGB Module - Default Title
$76.86
SPECIFICATIONS
Brand Name: Yao Cai Xing
Brightness: 5000cd/sqm
Choice: yes
Display Function: VIDEO
High-concerned chemical: none
Input Voltage: 5V
Interface Way: Hub75
Is waterproof: Surface watproof(IP43)
Lamps: SMD1516
Max Power: 35w
Model Number: P2.5
Module Resolution: 128*64
Module Size: 320mmx160m
Module Weight: 0.52kg
Origin: Mainland China
Pixels: 2.5mm
Scan Method: 16scan
Tube Chip Color: Full Color
Use: Outdoor
Warranty: 3years
is_customized: Yes
semi_Choice: yes
size,color: 500mm*1000mm;black

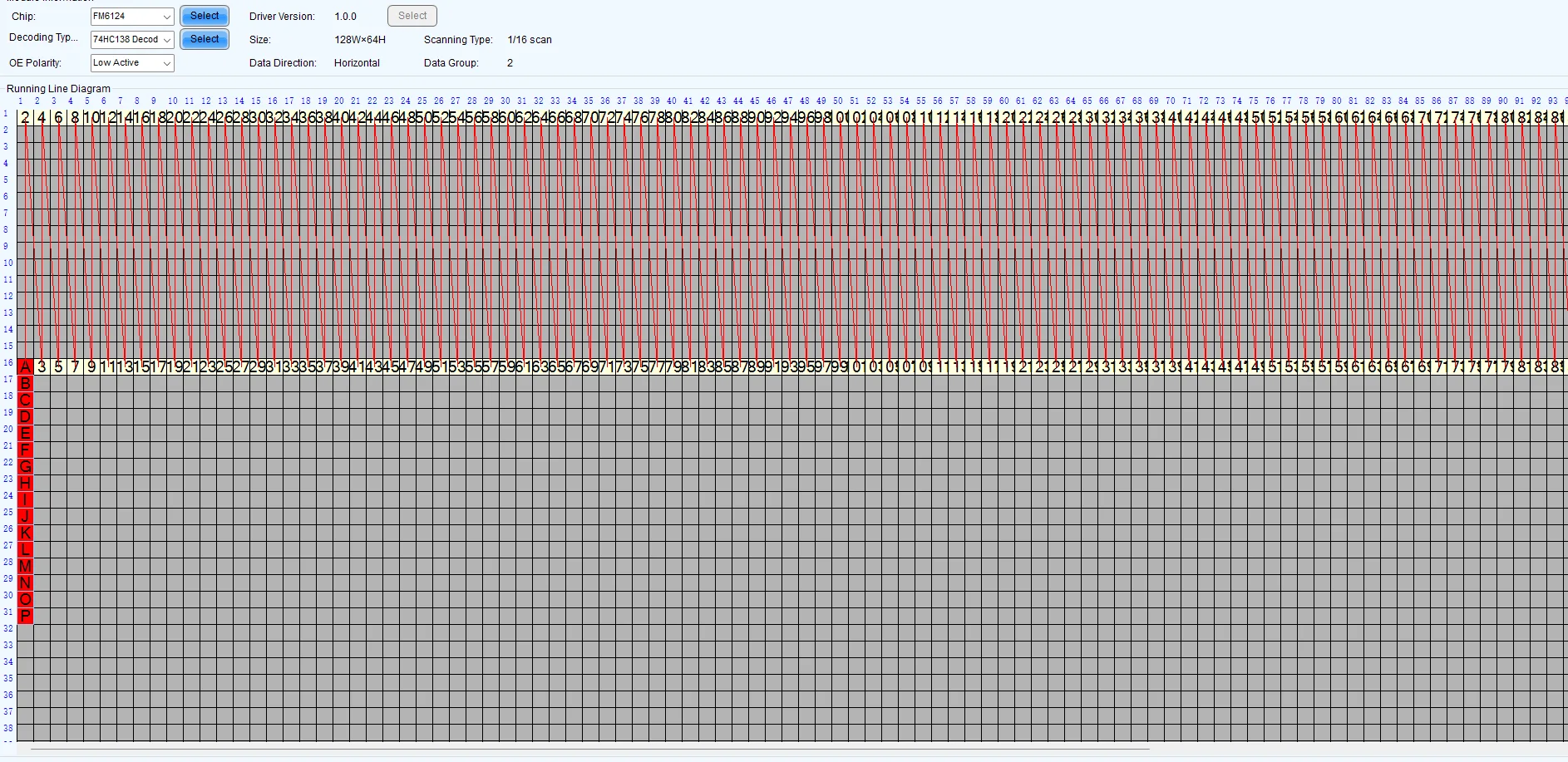

Attention for ESP32 & Raspberry Pi control systems: This module uses non‑standard PCB routing. Below is its PCB routing method. Chip supports these systems.
Welcome to Yao Caixing Electronic store!
Our Advantage
1.CCC,CE&Rosh,ISO9001,FC,
2.Life span:more than 100000h
3.Excellent after-sales services with free repaire whole life
4.MOQ: 1pcs
5.Prompt delivery: 3 working days
Specification

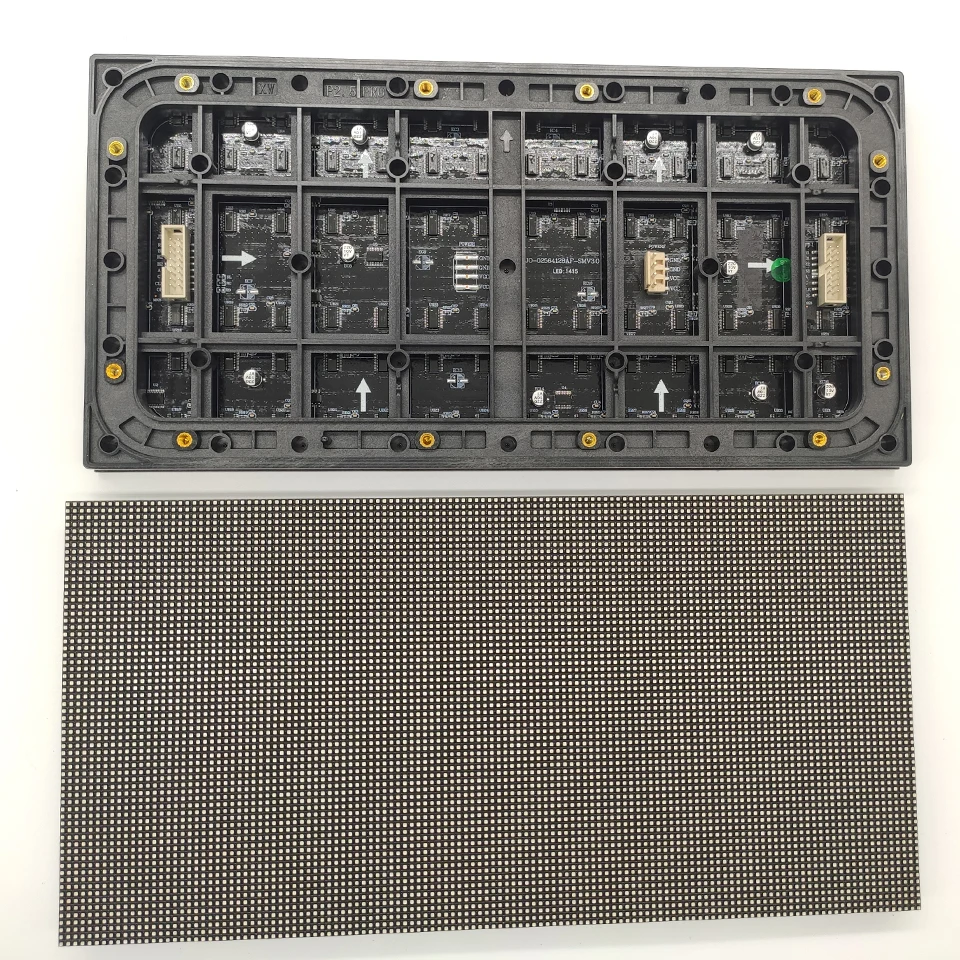

Module Back View | ||
Resolution |
64(H)×128(W) |
|
Pitch |
2.5mm |
|
Density |
163.840pixels/m² |
|
LED Arrangement |
SMD1516 |
|
Driver Mode |
16scan |
|
Size |
320mm×160mm |
|
Mask |
No mask |
|
Electricity Parameter | ||
Optical Ratings | ||
Brightness |
≥5000cd/m² |
|
View Angle |
140 degree ( horizontal) 140degree(vertical) |
|
View Distance |
2m-300m |
|
Gray Scale |
8bits input, correction with 16bits |
|
Display Color |
16.7M |
|
Brightness Adjustment |
100 levels |
|
Power Supply | ||
Operation Power |
AC100-240V 50-60HZ Switch-able |
|
Maxim Power Consumption |
1500 w/m² |
|
Average Power Consumption |
800 w/m² |
|
Control System | ||
Correction Scale Level |
16bits |
|
Frame Update Frequency |
60Hz |
|
Screen Refresh Frequency |
1920Hz |
|
Gamma Correction |
-5.0—5.0 |
|
Support Input |
Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
|
Control Distance |
Ethernet cable 100m, optical fiber 5km |
|
Support VGA Mode |
1024×768,1280×1024,1600×1200,1920×1080 |
|
Color Temperature |
5000-9300 adjustable |
|
Brightness Correction |
dot by dot, module by module, cabinet by cabinet |
|
Reliability | ||
Operating Temp. |
-20℃ - +60℃ Celsius degree |
|
Operating Humidity |
10-95% RH |
|
Operating Life |
100,000 hours |
|
MTBF |
5000 hours |
|
Continuous Working Time |
≥72hours |
|
Protection Level |
IP43 |
|
Out of Control Pixel Rate |
0.01% |
|

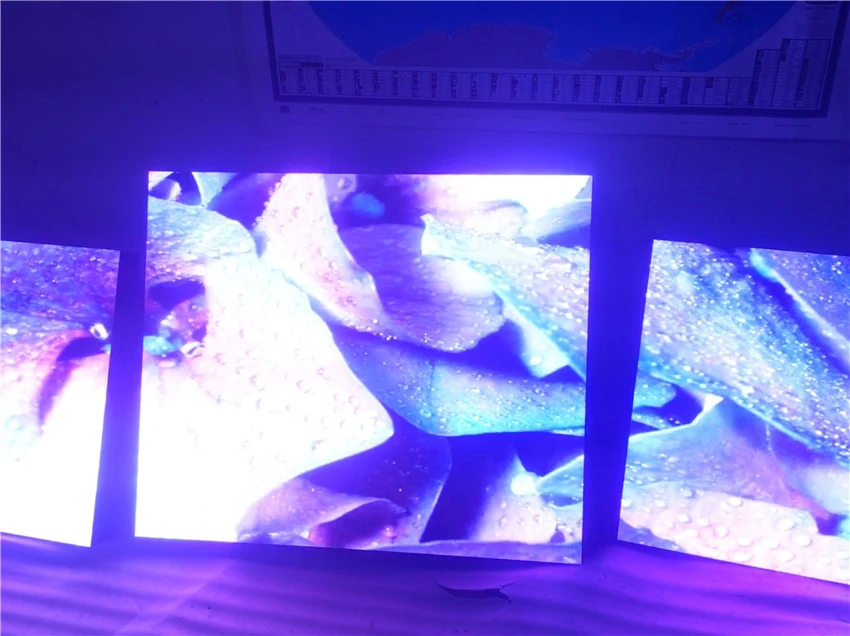

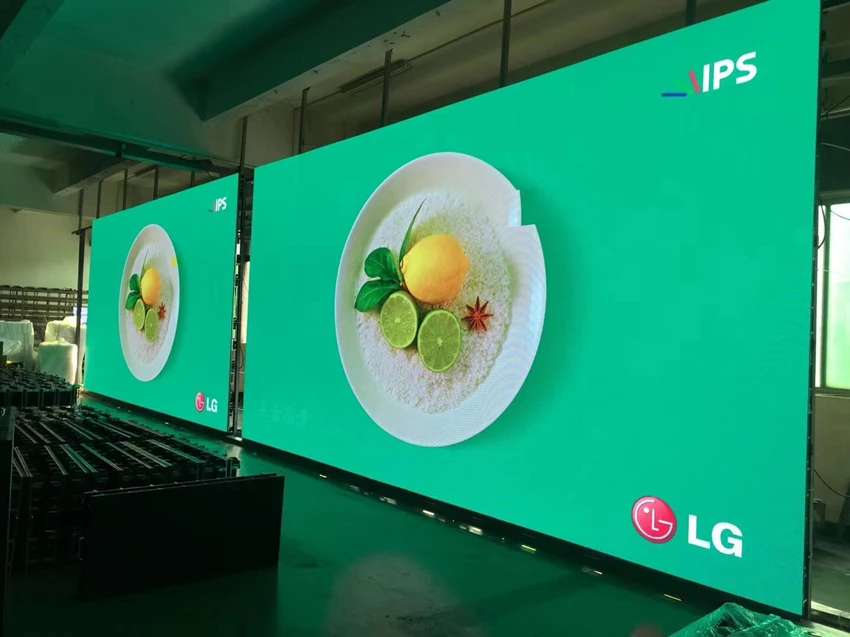

Pictures

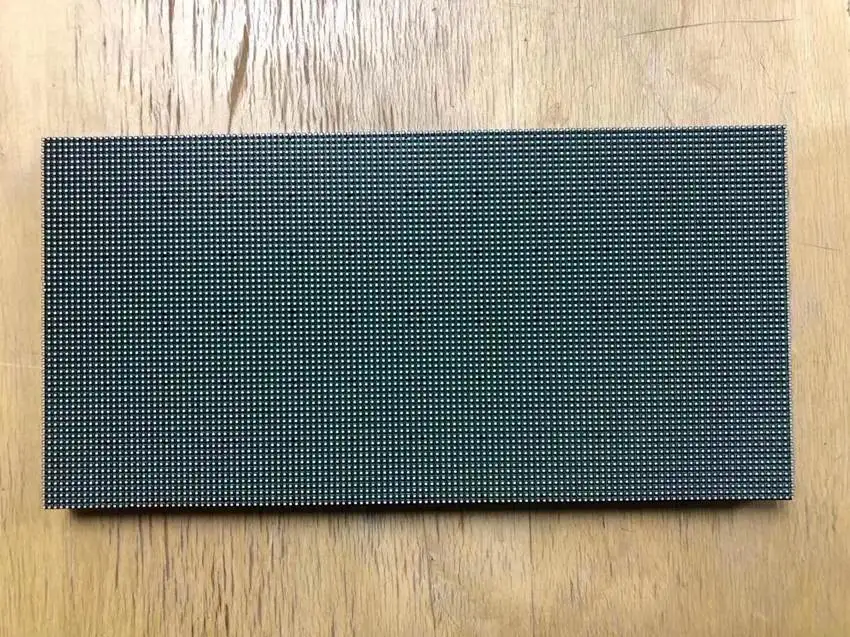

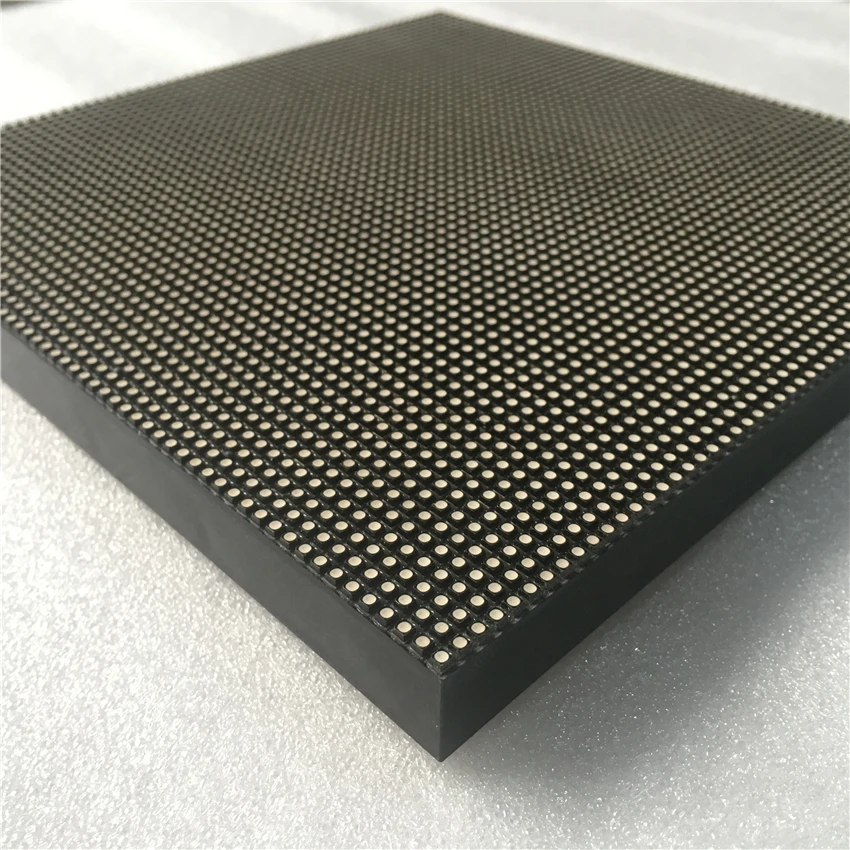

Module details
- SMD1921 outdoor lamps ensure screen brightness reach 5500cd/sqm
- full glue filled make panel surface waterproof
- The data interface use standard hub75 interface
- 5v input , singal and power cable inculde
- Good driving IC ensure high refersh and low shadows
- Standard hub75 interface,16pin flat cable suitable
- Magnets and screws install avialable
- Smaller pitch module(blow P3) without mask
- Thickness of the PCB plate is two to three times that of the conventional module.
- You can use screws or magnets fix module
- Modules not waterproof ,keep it dry
- Keep far away from fire
- Convenient power outlet, safety and quickly
- Flat cable and power line send free
ATTENTION!!!
1. Different batch or different company's led module , they can't be used together because the color ,brightness,signal direction of PCB board are different.
(Different batch screw holes position on the housing might be diferent with the picture, pls confirm with us before order.)
2.As thest products easy to broken, we suggest you choose express(DHL,Fedex, UPS, TNT) shipping ensure folwless and prefect.
3. All the series modules are 5V power ,make sure your switch power supply suitalbe.
About Us
Shenzhen Yao Caixing Electronic Co.,LTD is founded in 2010 which locate in the world LED display manufacturing center-Shenzhen, China.
The cover area is about 20000square meters,nearly 400 employees.
We are specialized in the development,production,sales and services of the LED display and focus on providing customers with a full range of product solutions.It is a integrated operation service private enterprise in photoelectric LED display filed.
Several years of study and unremitting efforts,company gathered a large number of talents and has accumulated rich experience.Owned the firstclass automated production equipment and standard production workship.Also established a systematic and professional display screen productionprocess and provide a powerful guarantee for the quanlity of the LED display to improve the the stability and product cost performance.
Main products:Inside or outside SMD full color modules/panels and cabinet display.
Our main production:P1.667,P1.923,P2,P2.5,P3,P3.91,P4,P4.81,P5,P6,P7.62,P10 indoor;
P3,P3.91,P4,P4.81,P5,P6,P6.67,PH8,P10,P16 outdoor full color.
