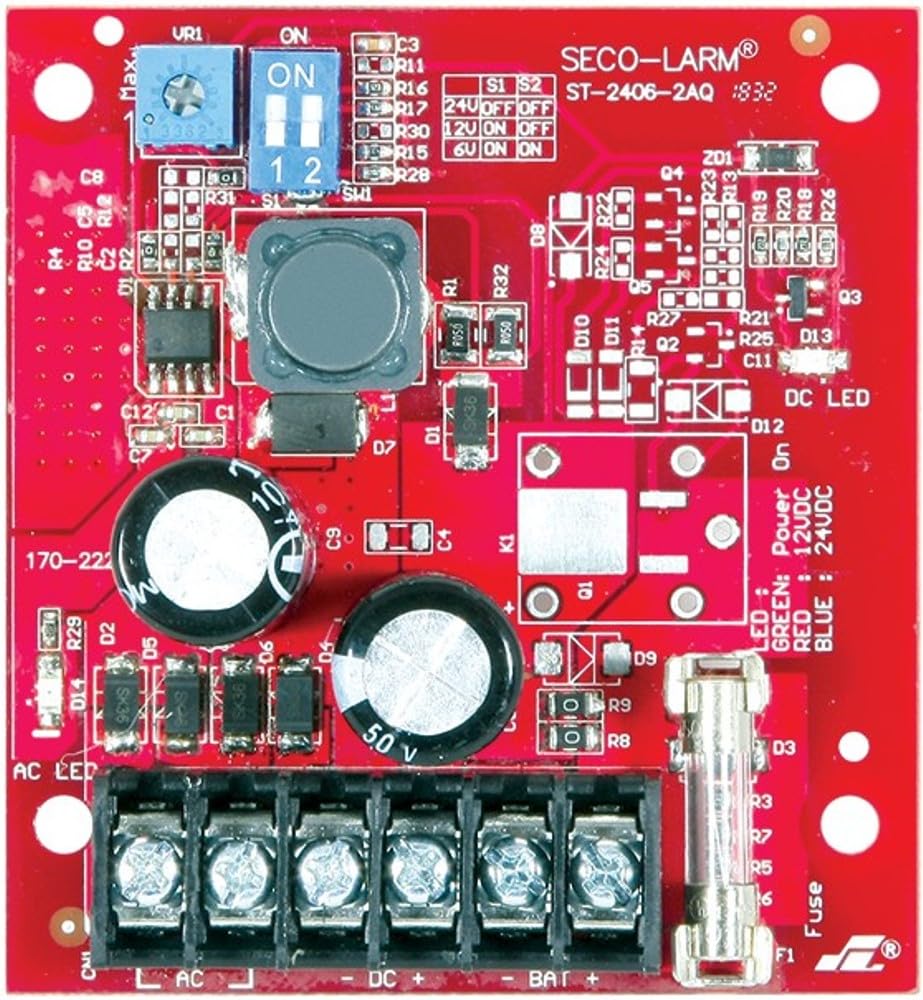

Seco-Larm St-2406-2Aq Enforcer Power Supply Charger, 1.5A Continuous, 2A Peak, Selectable (6, 12, 24 Vdc) Voltage Output, Thermal Protection And Compensation, Built-In Backup Battery Charger Seco-Larm'S St-Series Of Power Supplies/Chargers Ensure That Alarm Systems And Access Control Systems Have Enough Power To Do Their Job. Protected By Fused Outputs, Input Polarity Protection Diodes, And Backup Battery Polarity Reverse Protection, These Power Supplies/Chargers Can Be Used To Maximize The Security And Efficiency Of Nearly Any Alarm Or Access Control Installation. Key Features - Selectable (6, 12, 24 Vdc) Voltage Output - Regulated And Filtered Output Voltage - Short Circuit Protection - Thermal Protection And Compensation - Built-In Backup Battery Charger - Switches To Backup Battery Automatically In Case Of Power Loss - Fused Protection For Battery Charger - 2 Leds To Indicate Ac Power Input And Dc Power Output Status - Compatible With Lead Acid Or Gel-Type Rechargeable Battery - Reverse Polarity Protected - Low Operating Temperature - Battery Leads And Foam Tape Included - High Efficiency At Full Load - Heat-Sink-Free Design Specifications - Operating Voltage: 6, 12, 24 Vdc - Current (Continuous): 1.5A - Current (Peak): 2.0A - Output Current: 6V = 100Ma, 12V = 220Ma, 24V =450Ma - Operating Temperature: -4~149F (-20~65C) - Dimensions: 2-7/8'' X 2-1/2'' X 1-3/8'' (73 X 64 X 35Mm)
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the Seco-Larm ST-2406-2AQ Power Supply Charger?A: The Seco-Larm ST-2406-2AQ measures two and seven eighths inches by two and a half inches by one and three eighths inches.
Q: What is the continuous current rating of this power supply?A: The continuous current rating is one and a half amps.
Q: What voltage outputs does this charger support?A: This charger supports selectable voltage outputs of six, twelve, and twenty-four volts DC.
Q: How do I use the Seco-Larm ST-2406-2AQ Power Supply Charger?A: To use the charger, connect it to your alarm or access control system and select the desired voltage output.
Q: Is this power supply suitable for outdoor use?A: No, the Seco-Larm ST-2406-2AQ is designed for indoor use only.
Q: Can I use this power supply with a backup battery?A: Yes, it includes a built-in backup battery charger for added reliability.
Q: How do I ensure the longevity of this power supply?A: Keep it in a cool, dry place and check for dust accumulation to ensure proper ventilation.
Q: What should I do if the charger stops working?A: First, check the power source and connections. If the issue persists, contact customer support for assistance.
Q: Does this power supply have short circuit protection?A: Yes, it features short circuit protection to safeguard your devices.
Q: What type of batteries can I use with this charger?A: You can use lead acid or gel-type rechargeable batteries with this charger.
Q: Is there a warranty on the Seco-Larm ST-2406-2AQ?A: Yes, it typically comes with a limited warranty, which you should verify with the retailer.
Q: How does thermal protection work in this charger?A: The thermal protection feature prevents overheating by regulating the temperature during operation.
Q: Can I mount this power supply on the wall?A: Yes, it can be mounted for convenience in your installation setup.
Q: What do the two LEDs indicate on the charger?A: The two LEDs indicate the status of AC power input and DC power output.
Q: Is this charger easy to install?A: Yes, it is designed for straightforward installation, typically requiring basic electrical knowledge.
