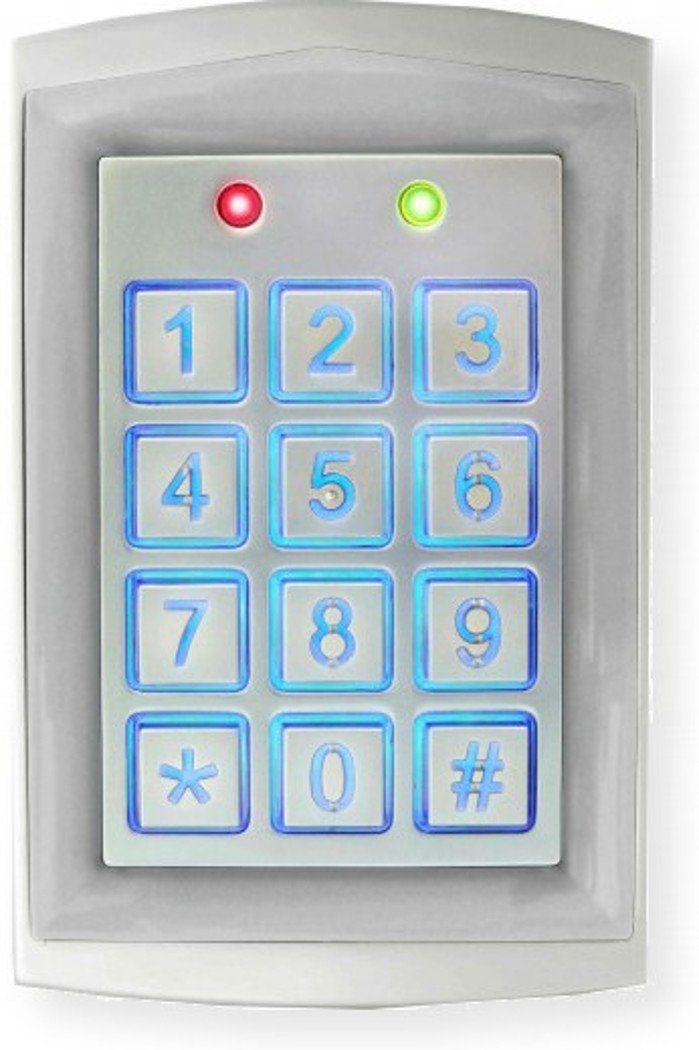

Seco-Larm SK-1323-SDQ Enforcer Sealed Housing Weatherproof Stand-Alone Digital Access Keypad; 12-24 VAC/VDC Operation; 2 Multi-colored Status LEDs; Backlit Keys; 2 Egress Inputs, 1 Door Sensor Input Key Features: - 12 - 24 VAC/VDC operation - 1,010 Users (Output #1: 1000 users, Output #2: 10 users) - 2 Form C relays, each rated 1 Amp @ 30VDC - Each relay has programmable output time from 1~99 seconds or toggle - Output #2 can be programmed for use with a doorbell - 2 Egress inputs and 1 door sensor input - Backlit keys for easy nighttime use - Two multi-colored status LEDs - Able to mount to a single-gang back box - All features are programmed directly from the keypad, no need for an external programmer - EEPROM memory protects programmed information in case of power loss - Optical tamper for added security - Circuitry is potted with epoxy for outdoor use - IP65 Weatherproof rating, rugged aluminum construction Specifications: - Number of User Codes: Up to 1010 - Operating Voltage: 12~24 VAC/VDC - Current Draw - Standby: 64mA@12VDC - Current Draw - Active: 92~120mA@12VDC - Relay Outputs (2): 1A@30VDC, Form C, NO/COM/NC - IP Rating: Weatherproof IP65 - Egress Inputs: 2, N.O. Ground - Door Sensor Input: N.C. Ground - Tamper Sensor: Optical - Keypad LED Life: 60,000 hours (over 6.8 years) - Overall Dimensions: 4.72 x 2.99 x 0.86 inches - Weight: 1.12 pounds
