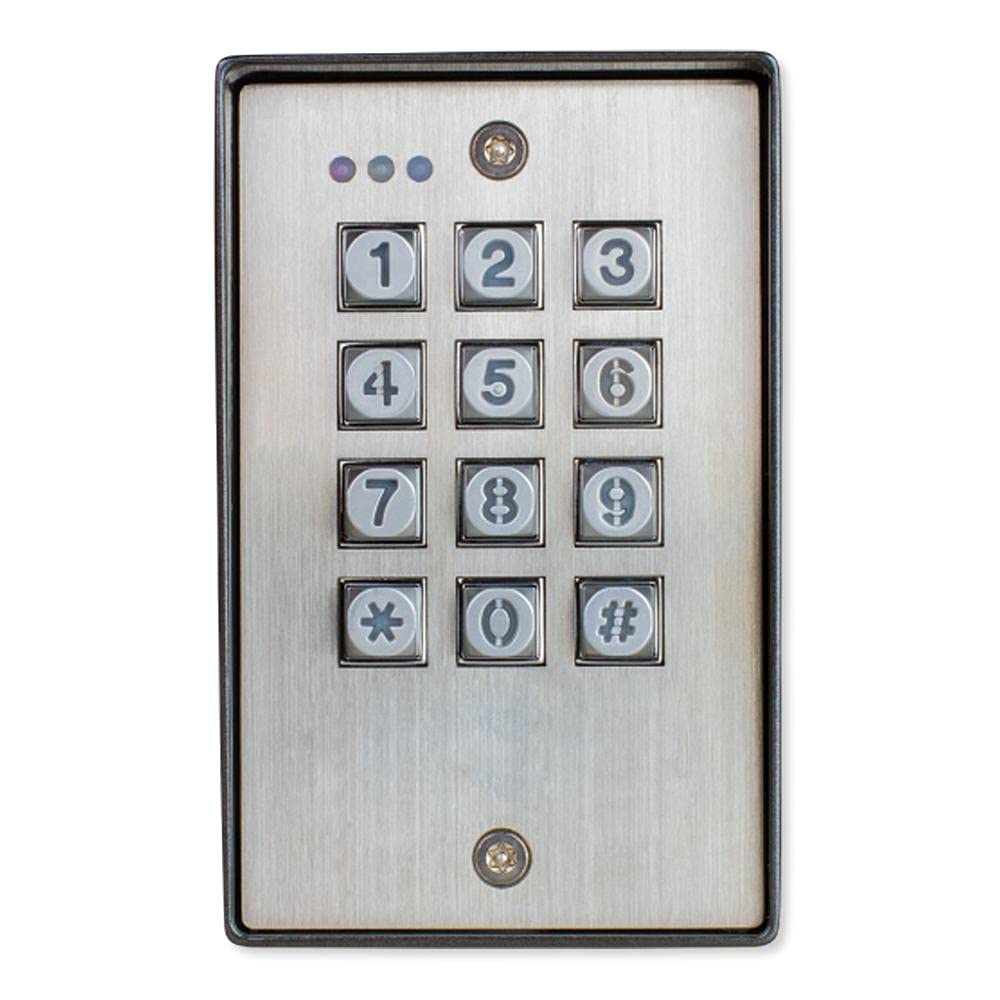

Seco-Larm SK-1123-SDQ Vandal Resistant Outdoor Access Control Keypad, 12 to 24 VDC/VAC, Weatherproof IP66, Up to 50 Possible Temporary Visitor Codes, Stainless Steel Faceplate, Illuminated Keypad Key Features: - Outputs can be programmed to activate for up to 99,999 seconds (nearly 28 hours) - Super user code gives admin access to keypad - Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours) - Programmable egress input with optional warning alarm and delayed egress - Real-time clock to auto-disable access at specific times - Up to 50 (01~50) duress codes for output #1 and 10 (01~10) for output #2 - Duress code signals a silent alarm if an authorized user is forced to open the door under duress - 12~24 VDC/VAC Auto-adjusting operation - All features are programmed directly from the keypad: No need for an external programmer - IP66 Weatherproof Rating - Mounts to a standard single-gang back box (surface-mount back box included) - Durable and attractive stainless steel faceplate - Tamper output: N.C. Dry contact, 50mA@24VDC max. - Keypad illuminates when a button is pressed; backlight can be programmed for FULL, AUTO, or OFF in standby mode - Door sensor input for anti-tailgating operation - Door-propped-open warning - Door-forced-open warning - EEPROM Memory protects programmed information in case of power loss Specifications: - Operating Voltage: 12~24 VDC/VAC - IP Rating: Weatherproof IP66 - Current Draw - Standby: 66mA@12VDC - Current Draw - Keypress: 93mA@12VDC - Current Draw- 1 Relay Active: 99mA@12VDC - Current Draw - Total Max: 160mA@12VDC - Overall Dimensions: 4.92 x 3.11 x 2.04 inches - Weight: 1.14 pounds
