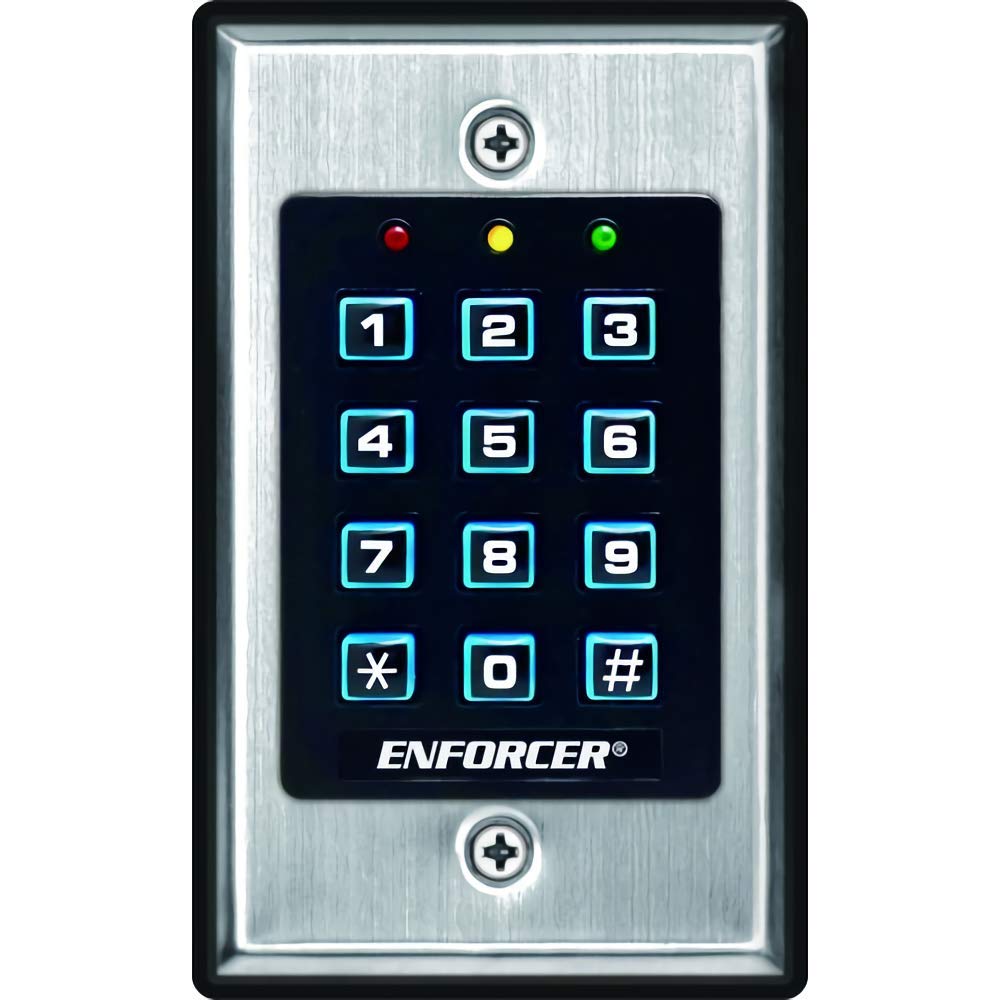

Seco-Larm SK-1011-SDQ ENFORCER Access Control Keypad, Up to 1,000 possible user codes (4-8 digits), Output can be programmed to activate for up to 99,999 seconds (nearly 28 hours) SECO-LARM SK-1011-SDQ ENFORCER Access Control Keypad, Up to 1,000 possible user codes (4-8 digits), Output can be programmed to activate for up to 99,999 seconds (nearly 28 hours) Key Features Up to 1,000 possible user codes (4-8 digits) Output can be programmed to activate for up to 99,999 seconds (nearly 28 hours) Up to 50 (01~50) possible temporary visitor codes, which can be programmed for onetime or limited-time use (1~99 hours) Durable and attractive stainless-steel faceplate Programmable delayed egress input lets users exit the premises without keying in the code EEPROM Memory protects programmed information in case of power loss 12~24 VDC/VAC Auto-adjusting operation Mounts to a standard single-gang back box (surface-mount back box included) Programmable wrong-code lockout Real-time clock to auto-disable access at specific times All features are programmed directly from the keypad: No need for an external programmer Specifications Operating Voltage: 12~24 VDC/VAC Current Draw-Standby: 15mA@12VDC Current Draw-Keypress: 30mA@12VDC Current Draw-1 Relay Active: 55mA@12VDC Current Draw-Total Max: 90mA@12VDC Relay Output-#1: 1A@30VDC, Form C Relay Output-Tamper: 50mA@24VDC Egress Inputs: N.O. ground Operating Temperature: -4~158F Operating Humidity: 5~95% Non-condensing Weight: 6-oz Dimensions: 4-5/8x2-7/8x1-1/2 LED Status-Red: Inhibit /lockout mode LED Status-Amber: Flashes to show the keypad status (see chart) LED Status-Green: Any output activated
