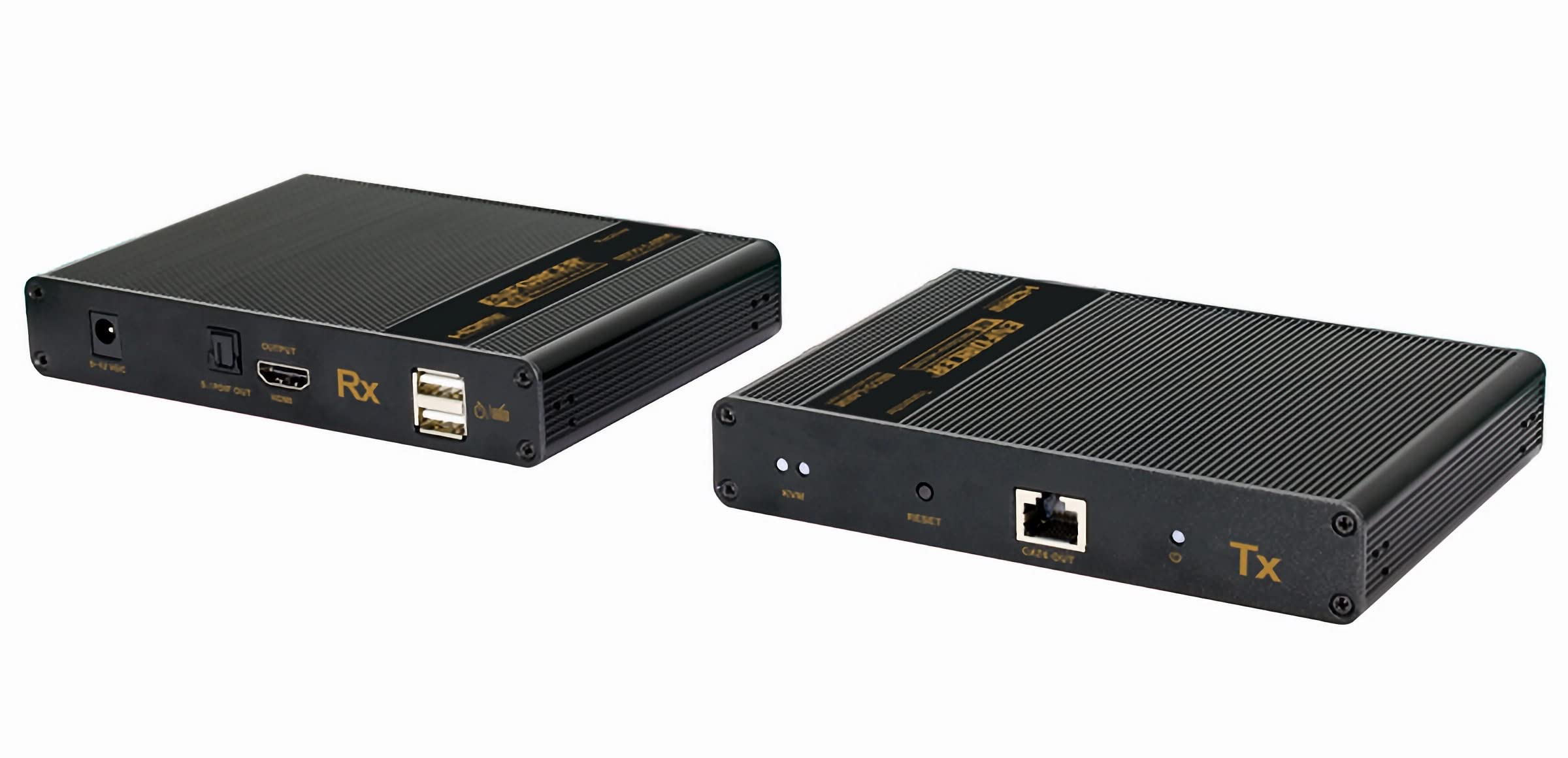

Seco-Larm MVE-AH1E1-42UQ 4K@60Hz HDMI Over Single Cat6 Extender with USB 2.0 KVM and Loop-Out; Range Up to 230ft (70m); Connect HDMI Equipment Using Low-cost Cat6 UTP Cable The ENFORCER HDMI Extender with KVM allow you to transmit HDMI audio and video as well as a USB (2.0) signal up to 230ft (70m) over a single Cat6 cable using an active transmitter and receiver, allowing remote operation of a device such as a computer or NVR/DVR; The extenders also provide HDMI loop-out and KVM Key Features: -Display up to 4K@60Hz -Zero latency transmission up to 230ft (70m) over single Cat6/7 -Supports USB keyboard and mouse (KVM) -Supports point to point connections -Transmitter includes HDMI loop-out Specifications: -Input video signal: 3.3V -Input DDC signal: 5Vp-p (TTL) -Maximum signal link range: 230ft (70m) -Video formats supported: High-speed HDMI, HDCP 2.2 -Audio formats supported: LPCM, DTS HD, DTS Audio, Dolby Digital 5.1CH -Output Video: HDMI -Resolutions supported: 4K@60Hz, 4K@30Hz, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i, 1680 1050, 1680 1050, 1600 900, 1366 768, 1360 768, 1280 960, 1280 800, 1280 720, 1024 768, 800 600 -Range (Cat6/6A/7): Up to 230ft (70m) -Video input connector: HDMI Type A 19-pin female -Maximum input cable length: 26ft (8m) AWG24 -Video output connector: HDMI Type A 19-pin female -Maximum output cable length: 26ft (8m) AWG24 -Cat6 Wiring standard: T-568B -Operating voltage: 5~12 VDC -Power supply: 5VDC@2A -ESD Protection: 8kV (air-gap discharge), 4kV (contact discharge) -Current Draw: Transmitter & Receiver:
